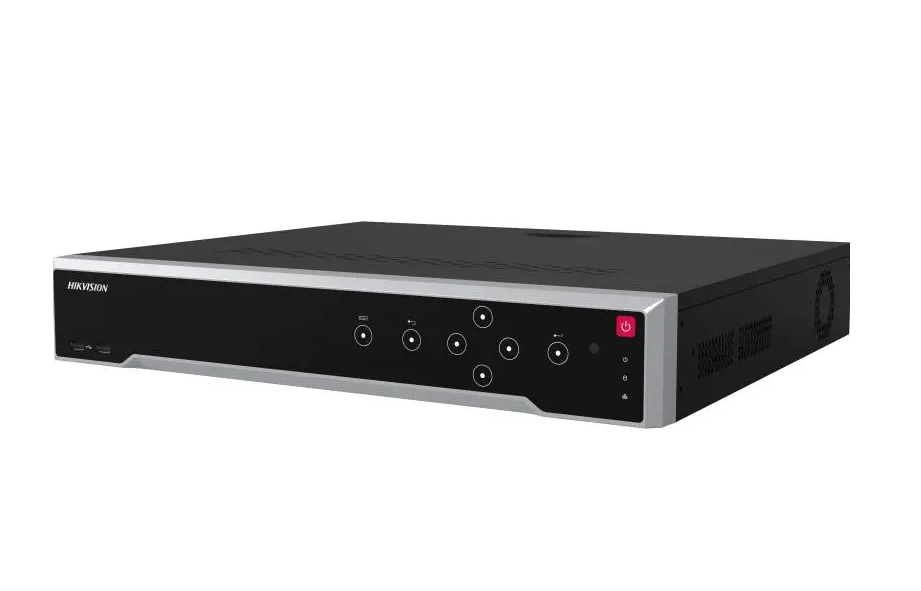

Hikvision DS-7732NI-M4/16P 32ch M-Series 16 PoE NVR, 320Mbps, 8K, 4 Bay, 1.5RU 6TB
Designed for large networks, the DS-7732NI-M4/16P is compatible with the Hik-Connect app, enabling remote monitoring and management from mobile devices. Its dual-stream recording feature helps reduce bandwidth usage while maintaining high-quality footage. This NVR supports up to 128 remote connections and has a PoE power budget of 200W, making it an excellent choice for complex surveillance environments. It is also equipped with various auxiliary interfaces, including eSATA, USB ports, and RS-232/RS-485 communication ports for enhanced flexibility and scalability.
Features
Code/SKU: DS-7732NI-M4/16P
Quick Specs:
| Video and Audio | |
|---|---|
| IP Video Input | 32-ch, Up to 32 MP resolution *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| HDMI 1 Output | 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
| HDMI 2 Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p. |
| VGA Output | 1920 × 1080/60Hz |
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding | |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
| Synchronous Playback | 16-ch |
| Decoding Capability | 2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps) |
| Dual-Stream Recording | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Network | |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
| PoE | |
| Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 200 W |
| Standard | IEEE 802.3 af/at |
| RAID | |
| RAID Type | N/A |
| Auxiliary Interface | |
| eSATA | 1 eSATA interface |
| SATA | 4 SATA interfaces |
| Capacity | Up to 16 TB capacity for each disk |
| Serial Interface | 2 RS-485 (half-duplex), 1 RS-232 |
| Alarm In/Out | 16/9 |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Ctrl 12V | Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9. |
| DC 12V | 12 VDC, 1 A power output |
| General | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 15 W (without HDD and PoE off) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Chassis | 19-inch rack-mounted 1.5U chassis |
| Dimension (W × D × H) | 445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0") |
| Weight | ≤ 5 kg (without HDD, 11 lb.) |
| Certification | FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020 |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision DS-7732NI-M4/16P 32ch M-Series 16 PoE NVR, 320Mbps, 8K, 4 Bay, 1.5RU 6TB
Introducing the powerful Hikvision DS-7732NI-M4/16P 32ch M-Series NVR, a top-of-the-line solution for high-performance IP surveillance systems. This 32-channel NVR supports up to 32 IP camera inputs with an impressive incoming bandwidth of 320 Mbps, ensuring smooth streaming and reliable operation for large-scale installations. Designed for the future, it offers 8K video output capabilities, perfect for ultra-high-definition monitoring.
This NVR features dual HDMI outputs—one for 8K resolution and the other for 4K—along with a VGA output for added flexibility in video display options. The 16 PoE ports simplify the connection and powering of compatible IP cameras directly, eliminating the need for separate power supplies, and enhancing the ease of the installation process. It supports advanced H.265+ video compression, reducing bandwidth and storage requirements without compromising video quality.
The DS-7732NI-M4/16P also integrates advanced video content analytics (VCA) for sophisticated surveillance functionalities including motion detection, intrusion detection, and heat mapping, alongside smart features like automatic number plate recognition (ANPR) and people counting. For enhanced data security, it implements TLS encryption to ensure secure transmission of footage. With 16-channel synchronous playback capability, users can review multiple video feeds simultaneously, maximizing efficiency in monitoring operations.
Designed to manage complex networks, this NVR is compatible with the Hik-Connect app, allowing remote monitoring and management from mobile devices for on-the-go access. Its dual-stream recording feature minimizes bandwidth usage while maintaining high-quality video capture. Supporting up to 128 remote connections, the DS-7732NI-M4/16P is an excellent choice for comprehensive surveillance applications. Additionally, it comes equipped with a variety of auxiliary interfaces, including eSATA, USB ports, and RS-232/RS-485 communication ports, enhancing its scalability and versatility.
Features:
Functions:
Advanced Video Content Analytics: The NVR supports multiple VCA events such as motion detection and intrusion detection, providing intelligent monitoring solutions in real time.
Remote Monitoring Capability: The Hik-Connect app integration allows users to access the NVR and manage it remotely from mobile devices, ensuring convenient oversight from anywhere.
Efficient Dual-Stream Recording: This feature enables the NVR to save bandwidth without sacrificing the quality of critical footage, maximizing its storage efficiency.
User-Friendly Interface: The intuitive design simplifies navigation through settings and features, making it accessible for users of all experience levels.
Flexible Output Options: Dual HDMI and VGA outputs allow versatile display setups tailored to different monitoring environments and user preferences.
Scalability for Large Systems: Designed to support up to 128 remote connections, this NVR is ideal for extensive security networks that require comprehensive oversight.
Robust Auxiliary Connectivity: Equipped with various auxiliary interfaces, including eSATA and USB, providing enhanced flexibility for data storage and communication.
High Power Budget: With a total PoE power budget of 200W, this NVR ensures that all connected cameras receive ample power for operation, making it reliable for extensive applications.
Technical Specifications
| Model | DS-7732NI-M4/16P |
| Video Input | 32 channels with a maximum resolution of 32 MP. |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| HDMI Outputs | Two HDMI outputs: 1st up to 8K (7680 × 4320); 2nd up to 4K (3840 × 2160). |
| VGA Output | 1920 × 1080 at 60Hz. |
| PoE Ports | 16 PoE ports for powering IP cameras directly. |
| Recording Resolution | Supports up to 32 MP recording resolution. |
| Synchronous Playback | Supports 16-channel synchronous playback. |
| Storage Capability | 4 HDD bays, supporting a total storage capacity based on installed HDDs (6TB included). |
