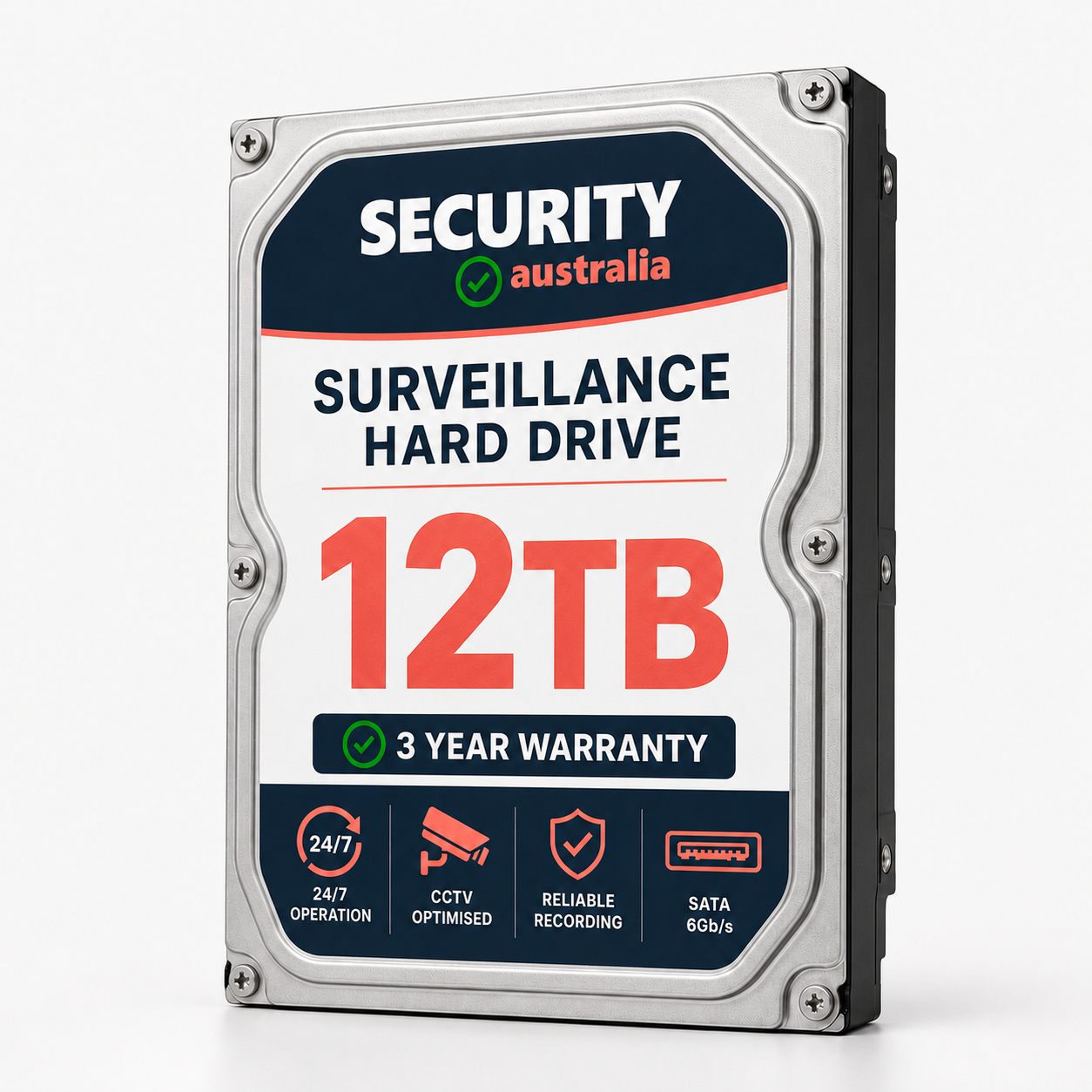

12TB HDD - Surveillance Hard Drive for DVRs & NVR

Model: HDD-12TB

Who This Is For

For installers and property owners who need surveillance-rated storage that keeps up with continuous recording demands across multi-camera DVR and NVR systems. The WD Purple 12TB is built specifically for the write-intensive workloads that surveillance recorders generate around the clock - unlike desktop drives that are designed for intermittent use. At 12TB, this drive suits systems where retention matters: multi-camera setups running at higher resolutions, sites that need weeks of footage on hand, or recorders with multiple high-definition channels running continuously. It is compatible with Hikvision and Dahua DVRs and NVRs, and when ordered alongside a recorder from the same order, the drive is installed and formatted before dispatch so it arrives ready to record from the moment it is powered on.

What This Drive Actually Does

Who Buys This Drive

• Security installers: Ordering a Hikvision or Dahua recorder and adding a pre-formatted drive to the same order so the system ships ready to record on arrival.
• Business owners replacing a failed drive: Swapping out a dead or failing drive in an existing recorder with a surveillance-rated replacement rather than risking a desktop drive that was never built for this application.
• Expanding storage on an existing NVR: Adding a second drive bay to an NVR that shipped without a drive, or upgrading from a smaller capacity drive to support higher resolution cameras or longer retention periods.
• Multi-tenancy and commercial property managers: Specifying recorder storage for a 16-channel or 32-channel system where weeks of retention across multiple cameras requires the highest available single-drive capacity.

Honest Assessment

The WD Purple 12TB does exactly what a surveillance drive should do: it handles the write-heavy, always-on recording cycles that DVR and NVR systems generate without the early failure rates associated with repurposing desktop drives. For Hikvision and Dahua recorder owners, the compatibility testing removes guesswork. The pre-installation service, available through Security Australia when ordering alongside a recorder, is a genuine time-saver for installers who want a system that boots ready to record.

Where this drive will not help is with cloud backup or off-site redundancy - local HDD storage means footage is only as protected as the physical recorder. Sites that require off-site or redundant storage should look at recorders with dual-drive bays or cloud storage integration alongside this drive. This is also a SATA internal drive intended for recorders, not for network-attached storage or RAID arrays that require NAS-rated drives.

Before You Buy

Quick Fit Check

• Good match if: You are purchasing or already own a Hikvision or Dahua NVR or DVR with an available internal bay and need a surveillance-rated drive with confirmed compatibility.
• Good match if: You are ordering a recorder and want the drive pre-installed and formatted before dispatch so the system is ready to record on arrival without any configuration steps.
• You may need a different model if: Your recorder model has a firmware-imposed maximum drive capacity below 12TB - in that case a lower-capacity WD Purple drive in the same range may be the appropriate choice for your specific unit.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need the highest single-drive capacity available in the WD Purple surveillance range for a Hikvision or Dahua recorder, particularly for high-channel or high-resolution systems requiring extended retention.
• You may need a different model if: Your recorder has a firmware maximum below 12TB - a lower-capacity WD Purple drive in the same surveillance-rated series would be the appropriate fit for that specific unit.
• Pairs well with: A multi-channel NVR or DVR with available internal drive bays, particularly recorders with H.265 compression support to maximise the storage duration this 12TB capacity provides.

Common Questions

1. Will this drive work with my Hikvision or Dahua recorder straight away?

   Yes, provided your recorder supports a 12TB drive. The WD Purple 12TB is tested for compatibility with Hikvision and Dahua DVRs and NVRs. The key check is your recorder's maximum supported drive capacity - older or entry-level models may have a firmware cap lower than 12TB. If you are unsure, check your recorder's specification sheet or contact the team before ordering.

2. Why does it matter that this is a surveillance-grade drive rather than a standard desktop HDD?

   It matters significantly. Desktop drives are engineered for intermittent read/write activity, not the sustained sequential writes that a recorder produces 24 hours a day. WD Purple drives are specifically designed for this continuous write workload. Using a desktop drive in a recorder is a common cause of premature drive failure, which results in a gap in recorded footage with no ability to recover what was overwritten or lost.

3. How many days of footage will 12TB store across my cameras?

   It depends on several variables. The number of channels, resolution, frame rate, and compression format all affect how quickly storage is consumed. As a rough guide, a 16-channel system recording at 1080p H.265 continuously may achieve 30 or more days of retention on 12TB, while the same system running at 4MP H.264 will use storage significantly faster. Your recorder's storage calculator, if available in its interface, will give a more accurate estimate for your specific configuration.

4. Does the pre-installation service mean I do not need to format the drive myself?

   Yes, when this drive is ordered alongside a compatible DVR or NVR in the same order, it is installed inside the recorder and formatted before dispatch. The recorder arrives with the drive already initialised and ready to record. This is the option to select if you want the system operational from the moment it is powered on without any additional setup steps. The pre-installation service applies specifically to orders where the recorder and drive are purchased together through Security Australia.

5. Can I add this drive to a recorder I already own, or is it only for new purchases?

   Yes, you can install it into a compatible recorder you already own. The drive fits any recorder with an available internal SATA bay and a maximum supported capacity of 12TB or higher. If ordering the drive on its own rather than with a new recorder, you will need to install it yourself and format it through the recorder's interface before it begins storing footage. The pre-installation and formatting service is only available when the drive and recorder are ordered together.

6. Can I use two of these drives in a dual-bay recorder for 24TB total storage?

   Yes, if your recorder supports dual drives and has 2 available SATA bays, 2 x 12TB WD Purple drives will give you 24TB of total storage. Most Hikvision and Dahua recorders with dual-bay support operate the drives in a combined storage pool by default rather than RAID redundancy, so both drives contribute to a single large storage volume. Check your recorder's bay count and maximum total storage capacity in its specification sheet before ordering 2 drives.

Downloads & Resources

No downloads available for this product.
