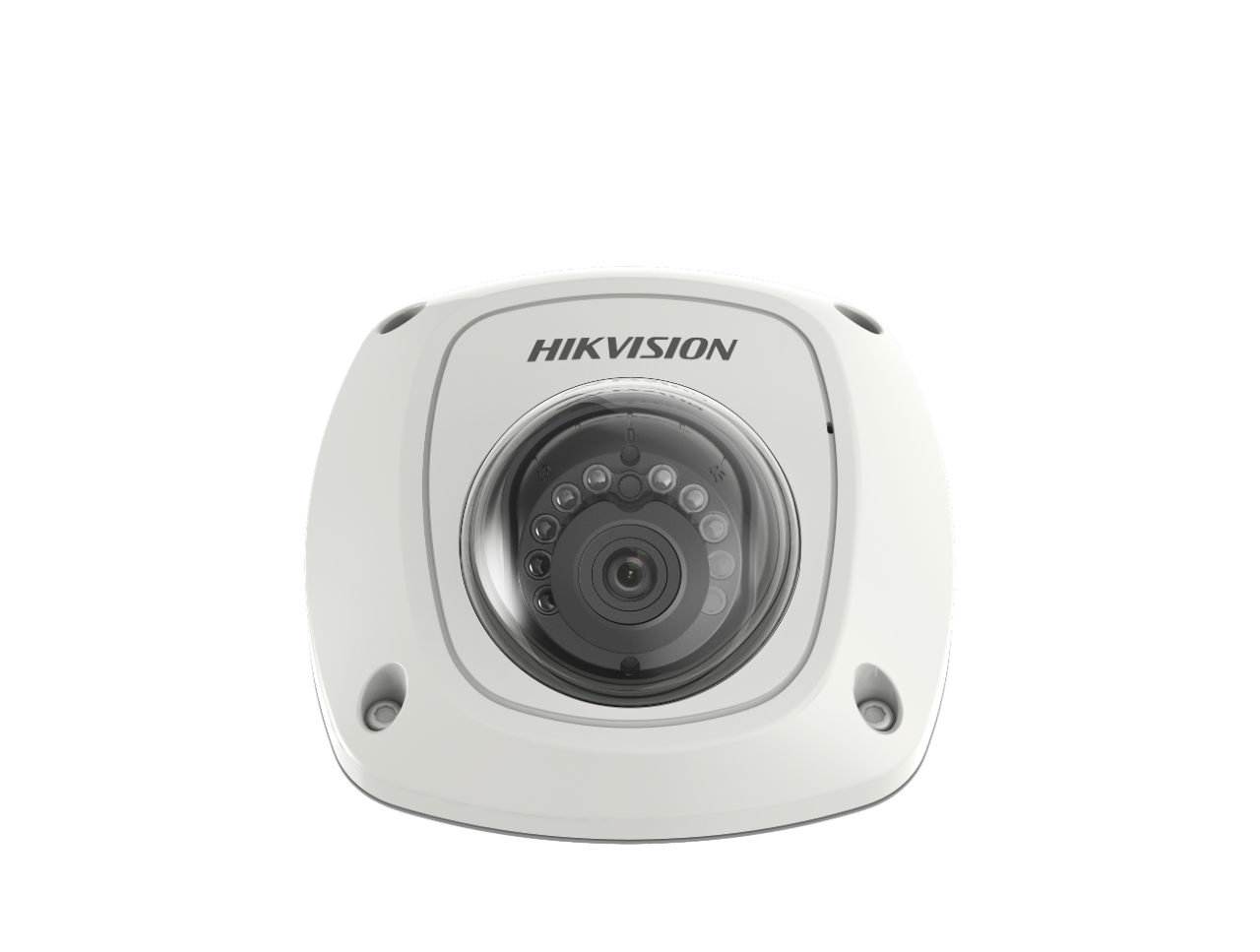

Hikvision DS-2XM6122G0-ID/AE 2MP Vehicle Mini Dome Camera, DWDR, IR 4mm/6mm

Model: DS-2XM6122G0-ID/AE

Who This Is For

When vehicle-mounted surveillance in demanding conditions is the priority, the DS-2XM6122G0-ID/AE is built specifically for that brief. This is a dedicated vehicle mini dome camera - designed for installation inside buses, coaches, taxis, rail carriages, and fleet vehicles where standard IP cameras cannot cope with vibration, condensation, wide lighting swings, and the compact ceiling space of a vehicle cabin. The DS-2XM6122G0-ID/AE delivers 2MP 1080p imaging with 120 dB true WDR to handle the extreme contrast between dark interiors and bright windows or headlights. Its IK08 vandal-resistant housing and IP66-rated sealing mean it holds up in high-use passenger environments. Lens options across 2.8 mm, 4 mm, and 6 mm let integrators match coverage angle to cabin width and the specific monitoring zone - whether that's the full passenger cabin or a focused view of the driver compartment or door entry area.

What This Camera Actually Does

Who Buys This Model

• Public Transport Operators: Bus and coach fleets needing cabin surveillance that can withstand passenger access, condensation from HVAC, and the lighting extremes of sunlit stops versus night routes - all addressed by the IP66/IK08 ratings and 120 dB WDR.
• Taxi and Rideshare Fleet Managers: Single-operator vehicle deployments where on-board microSD storage up to 256 GB removes the need for a separate mobile DVR, keeping the installation compact and low-cost.
• Rail and Light Rail Integrators: Carriage ceiling installs where the compact 100 mm x 90 mm mini dome housing fits flush without protruding into passenger headspace, and IK08 resistance is required by operator specifications.
• Security Integrators Specifying Mobile CCTV Systems: Professionals building out multi-camera vehicle systems who need H.265+ cameras to keep bitrate manageable across 4G data links or constrained on-vehicle NVR storage.

Honest Assessment

The DS-2XM6122G0-ID/AE does a specific job well: vehicle cabin surveillance in environments where standard IP dome cameras are not rated or sized for the task. The combination of 120 dB true WDR, 0.01 Lux low-light performance, IK08 vandal resistance, and IP66 sealing in a compact 100 mm x 90 mm housing is genuinely well-suited to buses, coaches, taxis, and rail carriages. H.265+ compression and up to 256 GB on-board storage make it workable in mobile deployments with limited bandwidth or storage. What it will not do is provide wide-area outdoor perimeter coverage - its 10 m IR range and fixed lens options are matched to interior cabin distances, not long approaches or car park monitoring. It also has no built-in microphone, so audio recording requires a separate input device. For fixed-infrastructure applications such as platforms, terminals, or parking areas, a standard outdoor dome or bullet camera available through Security Australia would be a more appropriate starting point.

Before You Buy

Quick Fit Check

• Good match if: You are installing surveillance inside a bus, coach, taxi, or rail carriage and need a compact dome rated IP66 and IK08 that handles the wide lighting contrast between bright windows and dark cabin interiors using 120 dB true WDR.
• Good match if: Your vehicle deployment requires local recording without a separate DVR, and up to 256 GB on-board microSD storage is sufficient retention for your operational cycle between fleet download events.
• You may need a different model if: Your application is fixed infrastructure - a platform, terminal building, car park, or building exterior. A standard outdoor IP dome or turret camera will give you longer IR range, wider mounting flexibility, and AI analytics options better suited to fixed-site perimeter and access monitoring.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your application is an in-vehicle cabin environment requiring IP66 sealing, IK08 vandal resistance, and 120 dB WDR to handle the severe contrast conditions specific to vehicle interiors - features that a standard indoor dome does not provide.
• You may need a different model if: Your brief is fixed-infrastructure surveillance at a transport hub, terminal, or car park. A standard outdoor dome, turret, or bullet camera will offer longer IR range, broader mounting options, and AI analytics capabilities better matched to fixed-site perimeter and access control work.
• Pairs well with: A vehicle-grade mobile NVR or PoE switch sized to your fleet camera count, combined with on-board storage in each camera for redundant local recording during connectivity gaps.

Common Questions

1. Is this camera specifically designed for vehicle installation, or is it a standard IP dome?

   Yes, this is a purpose-built vehicle mini dome camera. The DS-2XM6122G0-ID/AE sits within Hikvision's XM-series mobile surveillance range, differentiated from standard IP domes by its compact housing dimensions (100 mm x 90 mm), IK08 vandal resistance, IP66 sealing, and 12 VDC power input compatibility - all specified to meet the demands of bus, rail, taxi, and fleet vehicle cabins rather than fixed-building installations.

2. Will this camera work on 12V power from a vehicle DVR?

   Yes. The DS-2XM6122G0-ID/AE accepts 12 VDC with a +/- 25% tolerance, which covers the voltage fluctuations typical of a vehicle's 12V electrical system. It also accepts 802.3af PoE for installations using an onboard PoE switch. Confirm your vehicle DVR or power distribution unit provides sufficient current per port for the camera's power draw before wiring multiple units to a single supply rail.

3. Does this camera have a built-in microphone for audio recording?

   No. The DS-2XM6122G0-ID/AE has no built-in microphone. If audio recording is required - for example, to capture passenger or driver conversations for incident documentation - a separate external audio input device connected to your vehicle DVR's audio input is needed. Note that audio recording in vehicles may be subject to state and territory privacy legislation in Australia; confirm compliance requirements before enabling audio capture.

4. How much footage will 256 GB of on-board storage hold?

   Storage duration depends on resolution, frame rate, compression, and scene complexity. At 1080p with H.265+ compression at a typical bitrate of 1-2 Mbps for a relatively static cabin scene, 256 GB can hold roughly 20 to 40 hours of continuous footage. In practice, most fleet operators using on-board storage download footage at the depot at end of each shift - daily operating hours for a bus or taxi rarely exceed 16 hours, making 256 GB sufficient for a full day's operation with capacity to spare. Security Australia stocks this camera for fleet integration projects; confirm your exact retention requirement with your system integrator before final storage sizing.

5. Which lens should I choose for a standard single-deck bus cabin?

   The 2.8 mm lens (102° horizontal FOV) is the most common choice for full-cabin coverage from a ceiling-centre mounting position in a standard single-deck bus. The 4 mm (77° FOV) suits a narrower cabin or a rear-of-cabin position looking forward along the aisle. The 6 mm (50° FOV) is best used for focused zones such as a driver partition or entry door. These are separate SKUs - select the correct focal length at the time of order as the fixed lens is not field-swappable.

6. Does the DS-2XM6122G0-ID/AE support H.265+ and will my mobile NVR decode it?

   Yes, the camera supports H.265+ as its primary compression mode. However, not all vehicle DVRs and mobile NVRs decode H.265+. If your recorder supports only H.264, you can configure the camera to output H.264 through its stream settings - you will lose the bitrate reduction benefit of H.265+ but the camera will remain fully functional. Check your mobile NVR's codec support list before deploying H.265+ across a multi-camera vehicle system to avoid compatibility issues during commissioning.

7. What does IK08 mean in practice for a vehicle camera?

   IK08 means the housing is rated to withstand an impact energy of 5 joules - equivalent to a deliberate strike with a closed fist or a moderate tool impact. In a public transport context, this protects the camera dome against opportunistic vandalism by passengers. It does not make the camera indestructible under sustained or heavy deliberate attack, but it significantly exceeds the protection level of an unrated standard dome, which would crack or dislodge under similar impact. Combined with the IP66 seal, the housing maintains both structural and ingress protection integrity after an impact event.
