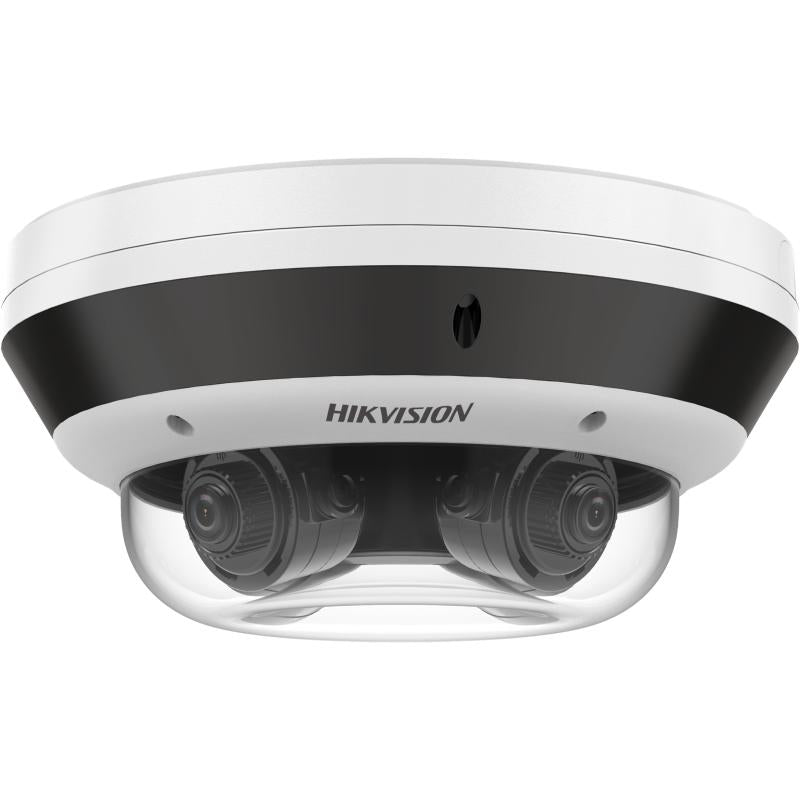

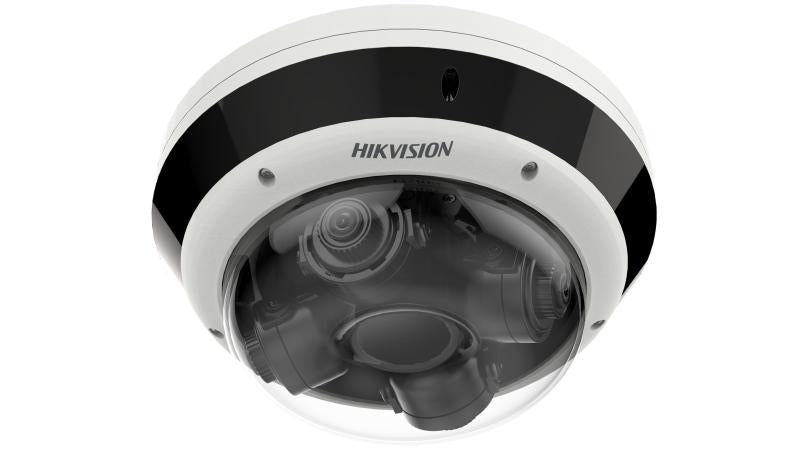

Hikvision DS-2CD6D44G1H-IZS 4-Sensor 4 MP Panoramic Camera 360° Coverage, 4 × Varifocal Lenses, IP67, IK10

Model: DS-2CD6D44G1H-IZS

Who This Is For

When eliminating blind spots with the fewest camera positions is the priority, the Hikvision DS-2CD6D44G1H-IZS earns its place on the specification sheet. This is a ceiling-mounted or pole-top panoramic unit built for installers and security managers who need complete 360-degree situational awareness from a single point - without stitching together four separate camera feeds manually. Four independent 4MP varifocal sensors cover every direction simultaneously, and because each lens is motorised and adjustable, the coverage footprint can be tuned precisely on-site to suit the space. The IK10 rating makes it appropriate for exposed or semi-exposed positions where a standard dome would be a liability. Suited to large open-plan commercial floors, car parks, transit hubs, courtyards, and any site where column or ceiling placement needs to eliminate angular dead zones that a fixed single-sensor camera simply cannot address.

What This Camera Actually Does

Who Buys This Model

• Commercial Fitout Installers: Specifying a single ceiling-drop point in open-plan offices, retail floors, or showrooms where 4 separate cameras would require 4 cable runs and 4 NVR channels - this unit consolidates that into one position.
• Car Park and Facility Managers: Requiring all-direction coverage at column or centre-point positions in multi-level or open-air car parks where angular fixed cameras leave coverage gaps between bays.
• Transport and Transit Operators: Covering platforms, concourses, and interchange areas where pedestrian movement occurs in all directions and a single mounting position must account for the full surround.
• Security Integrators on Multi-Site Contracts: Reducing channel and cabling costs across large projects by replacing clusters of fixed cameras with single panoramic units at strategic positions, without sacrificing per-direction resolution.
• Venue and Event Facility Operators: Covering lobbies, atriums, and gathering areas where crowd density and omnidirectional movement make directional fixed cameras impractical for complete situational coverage.

Honest Assessment

The DS-2CD6D44G1H-IZS does one thing particularly well: it delivers genuine 360-degree coverage with per-direction resolution that a single-sensor fisheye cannot match. The 4MP per sensor arrangement means each quadrant holds its own image quality, and the motorised varifocal lenses give installers real adjustment flexibility during commissioning rather than locking in a fixed angle. IK10 and IP67 ratings are appropriate for the exposed positions this type of camera typically occupies. Where this unit will not serve well is in applications requiring active PTZ tracking of a subject across a scene - this is a fixed panoramic camera and does not pan, tilt, or optically zoom during live operation. It also draws more power than a standard single-sensor dome and will require confirmation of PoE budget at the switch before installation. For applications where active tracking or extreme long-range IR is the primary requirement, a PTZ or dedicated long-range bullet is a more suitable choice. The DS-2CD6D44G1H-IZS is available through Security Australia.

Before You Buy

Quick Fit Check

• Good match if: You need to cover all directions from a single ceiling or pole-top mount point - the 4 independent varifocal sensors deliver 360-degree coverage without gaps and without the resolution compromise of a single-sensor fisheye.
• Good match if: The installation environment involves physical risk to the housing - IK10 impact resistance combined with IP67 weatherproofing makes this appropriate for car parks, transit areas, and outdoor-exposed column positions.
• You may need a different model if: Your primary requirement is active subject tracking across a large area - a PTZ camera with auto-tracking capability is purpose-built for that task and will serve that scenario better than any fixed panoramic unit.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 360-degree coverage with per-direction identification-quality resolution from a single mounting point - the 4 independent 4MP sensors retain full image quality in each quadrant, which a single-sensor fisheye camera cannot match.
• You may need a different model if: Your site requires active real-time tracking of a subject across a large area - a PTZ camera with auto-tracking is the appropriate product type for that task, and a range of PTZ options is available on securityaustralia.com.au.
• Pairs well with: A compatible Hikvision NVR with sufficient licensed channels (minimum 4 available) and a PoE+ managed switch with enough per-port power budget to support this unit reliably.

Common Questions

1. Does this camera use a single channel on my NVR or does it use multiple channels?

   It uses 4 NVR channels - one per sensor. The DS-2CD6D44G1H-IZS outputs 4 independent video streams simultaneously, and each stream occupies its own recording channel on a compatible NVR. Before purchasing, confirm your NVR has at least 4 unused licensed channels available. Recording systems that count connections rather than licensed channels may handle this differently, so check your NVR documentation before deployment.

2. Will this camera work with standard PoE switches, or does it need PoE+?

   It requires PoE+ (IEEE 802.3at). Standard IEEE 802.3af PoE is rated to 15.4W per port, which is insufficient for a camera running 4 sensors and 4 sets of IR illuminators simultaneously. IEEE 802.3at PoE+ delivers up to 30W per port. Using a standard PoE port risks under-powering the unit, which can cause sensors or IR to drop out - often not immediately visible during daytime setup. Verify your switch or injector is PoE+ rated before cabling.

3. How does the image quality of this camera compare to a single-sensor fisheye?

   Significantly better per-direction. A single-sensor fisheye camera stretches one imager across a 360-degree field, which dilutes resolution across the entire frame - the effective resolution in any given direction is a fraction of the sensor's total. The DS-2CD6D44G1H-IZS dedicates a full 4MP sensor to each of the 4 directional quadrants, so each direction captures at full sensor resolution independently. For applications where footage may need to be reviewed forensically, this is a meaningful practical difference.

4. Can the varifocal lenses be adjusted after the camera is installed?

   Yes. The lenses are motorised varifocal, meaning focal length can be adjusted remotely via the camera's web interface or compatible VMS software without physically accessing the unit. This is particularly useful on panoramic cameras where small focal length changes across 4 sensors can meaningfully alter how the overall 360-degree coverage footprint is distributed across the space.

5. Does this camera work in complete darkness?

   Yes, within the operational IR range of the built-in illuminators. Each sensor has its own associated IR illumination, so all 4 directions receive IR coverage simultaneously after dark. IR range is finite and performs best at moderate distances - for large open areas such as expansive car parks or long outdoor approaches, verify the stated IR range is sufficient for the depth of scene in each direction before finalising the mounting position.

6. What does the IK10 rating actually mean in a practical installation context?

   IK10 is the highest impact resistance classification under IEC 62262, indicating the housing can withstand a 20-joule impact - equivalent to a 5kg mass dropped from 400mm. For a panoramic camera installed at a column or ceiling position in a car park, transit area, or public space, this means the housing will withstand incidental contact, thrown objects, or deliberate low-force impact without compromising the camera's integrity. It does not make the unit indestructible, but it is substantially more robust than a standard dome housing.

7. How is the panoramic image displayed in video management software?

   As 4 separate video tiles - one per sensor. The DS-2CD6D44G1H-IZS does not perform on-camera stitching into a single seamless panoramic image. Compatible Hikvision NVRs and iVMS-4200 software can display all 4 streams simultaneously in a quad-view layout, providing the operator with a full 360-degree view. Third-party VMS platforms that support Hikvision's RTSP streams can also handle all 4 feeds, though the layout configuration depends on the software. Confirm your VMS can manage 4 concurrent streams from a single device before specifying this unit. The DS-2CD6D44G1H-IZS is stocked by Security Australia.

Downloads & Resources

No downloads available for this product.
