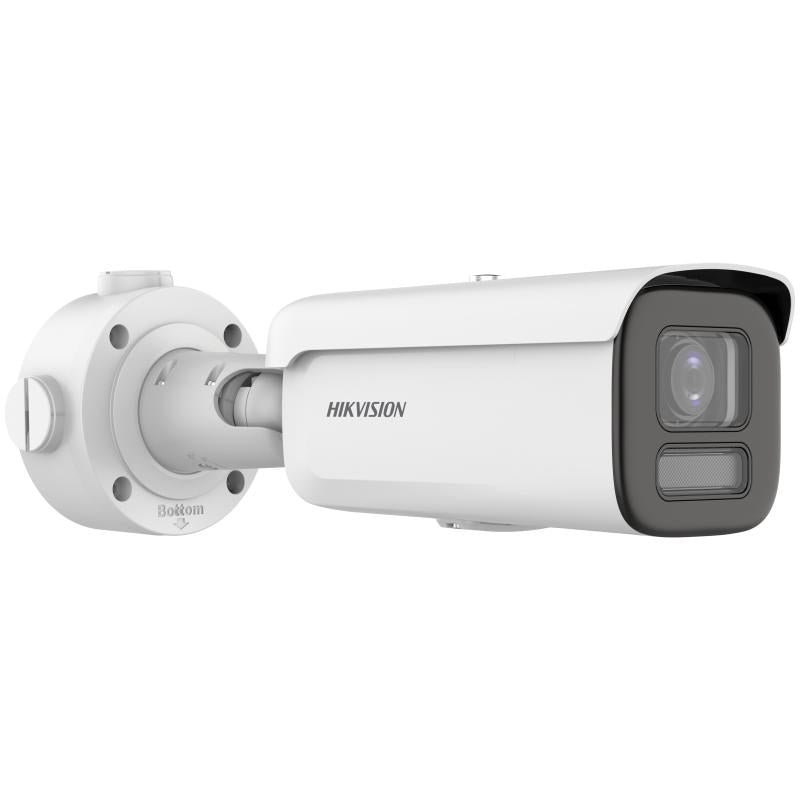

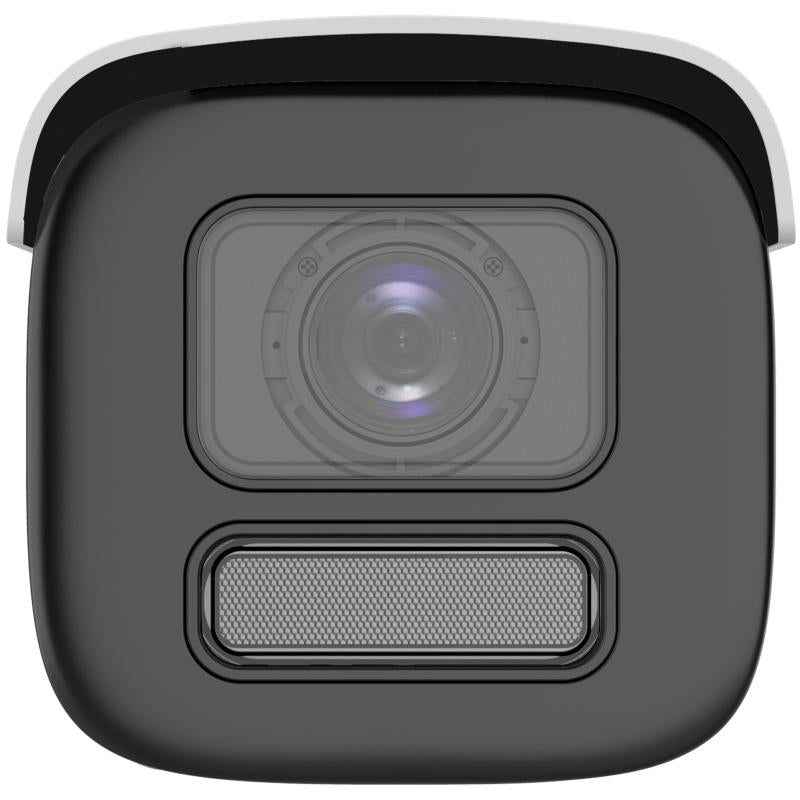

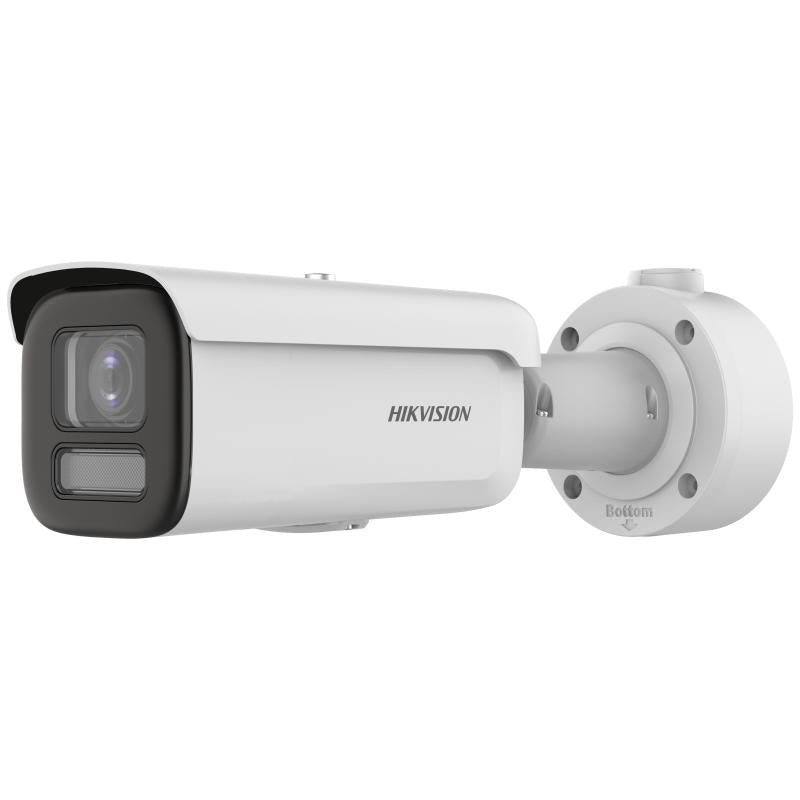

Hikvision DS-2CD3686G2HT-LIZS(Y) 8MP Smart Hybrid Motorised Bullet Camera with Darkfighter, Varifocal 2.7–13.5mm, IR 60m

Model: DS-2CD3686G2HT-LIZS(Y)

Who This Is For

When covering long driveways, perimeter fencing, loading docks, or wide outdoor approaches is the priority, the DS-2CD3686G2HT-LIZS(Y) is built for exactly that job. This is an 8MP motorised bullet camera with DarkFighter low-light capability, Smart Hybrid Light, and a 2.7-13.5mm motorised varifocal lens - giving installers genuine remote focus and zoom adjustment without climbing back up to the mount point. The 60m IR range means the camera covers extended outdoor distances, while the Smart Hybrid Light adds full-colour illumination when an event is detected. AcuSense G2 generation AI filtering cuts false alarms from wind, rain, and animals, so alerts are tied to actual human and vehicle detections. Suited to commercial properties, industrial yards, warehouses, school perimeters, and any site where a fixed focal length camera would either under-cover the scene or over-crop important detail.

What This Camera Actually Does

Who Buys This Model

• Commercial property managers: Specifying perimeter and car park cameras where 8MP resolution and AI filtering replace the need for multiple lower-resolution units covering the same zone.
• Industrial and warehouse security integrators: Installing on loading dock approaches and yard entries where the motorised varifocal lens lets them tune the field of view precisely to the lane or gate without a fixed-focal compromise.
• School and institutional facilities teams: Covering long fence lines and entry roads where 60m IR range and AcuSense reduce overnight false alarm call-outs from animal or wind movement.
• Petrol stations and drive-through operators: Using the Smart Hybrid Light to capture full-colour vehicle detail at night when IR-only cameras would miss clothing and vehicle colour information critical to incident reports.
• Electrical contractors on multi-site retail rollouts: Standardising on a motorised varifocal bullet that can be remotely scoped to the exact coverage zone after install without revisiting the site for physical lens adjustments.

Honest Assessment

The DS-2CD3686G2HT-LIZS(Y) does several things genuinely well for outdoor commercial installations. The motorised varifocal lens removes one of the biggest practical frustrations with bullet cameras - needing to physically access the mount to adjust field of view. DarkFighter handles the kind of poorly lit outdoor environments where standard cameras produce muddy, high-noise footage. The Smart Hybrid Light is a real operational advantage: IR keeps the installation invisible during normal operation, and white light activates only when it matters, providing colour context for incident review. AcuSense G2 AI classification is well-suited to outdoor bullet positions where wind-affected vegetation would otherwise overwhelm a motion-based alert system. Where this camera is not the right fit: indoor installations, ceiling-mount environments requiring a dome housing, and sites that need wide-area panoramic coverage from a single position. For those scenarios, a fisheye or multi-sensor camera available through Security Australia would be the more appropriate choice.

Before You Buy

Quick Fit Check

• Good match if: You are covering a driveway, yard approach, or loading dock entry where the 2.7-13.5mm motorised lens lets you scope the exact corridor of coverage and the 60m IR handles the full depth of the scene.
• Good match if: The site has poor ambient lighting and you need both covert IR operation at night and full-colour event capture - Smart Hybrid Light delivers both from the same camera without a separate floodlight installation.
• You may need a different model if: Your installation requires ceiling mounting in an indoor environment - a dome or turret camera with a lower-profile housing will suit that application better and the team at securityaustralia.com.au can help identify the right model.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need outdoor bullet reach, a motorised varifocal lens for remote focal adjustment, DarkFighter low-light performance, and Smart Hybrid Light full-colour event capture in a single 8MP camera.
• You may need a different model if: Your priority is wide-area coverage from a single point rather than long-range directional coverage - a panoramic or multi-sensor camera type would reduce the number of positions needed for the same square meterage.
• Pairs well with: A Hikvision AcuSense-compatible NVR with PoE+ ports - this ensures the AI metadata from the camera feeds directly into the NVR's event search and smart playback functions without additional configuration.

Common Questions

1. Does this camera need PoE+ or will a standard PoE switch work?

   This camera requires IEEE 802.3at PoE+ rather than standard 802.3af. The combination of a motorised varifocal lens mechanism and dual illuminators (IR and white light LEDs) draws more power than standard 802.3af's 15.4W ceiling can reliably deliver - particularly when the white light activates. Confirm your switch or injector supports 802.3at and check per-port wattage before ordering cabling infrastructure.

2. Will the white light activate constantly or only on detection?

   No, the white light does not run continuously by default. Smart Hybrid Light is event-triggered - the camera operates in IR mode for standard surveillance and switches to white light illumination when an AcuSense detection event (human or vehicle) is confirmed. This means the white light functions as a targeted deterrent and colour-capture tool rather than a permanent floodlight, preserving the camera's covert presence outside of active events.

3. How does the motorised lens adjustment actually work after installation?

   Zoom and focus are adjusted remotely through a connected Hikvision NVR's live view controls or through the camera's own web interface via browser. There is no need to physically access the camera housing. After mounting, the installer connects to the NVR, selects the camera channel, and uses the PTZ-style lens controls to dial in the zoom position and trigger autofocus - the lens motor moves the elements and locks to the set position. This is particularly useful on installations where the mount point is at height and returning to site for a lens tweak would add labour cost.

4. Does AcuSense on the G2 version differ from earlier AcuSense cameras?

   Yes. G2 generation AcuSense improves on the original AcuSense classification accuracy for human and vehicle detection, particularly in challenging outdoor conditions including partial occlusion, low contrast scenes, and small-target detection at longer range. For an outdoor bullet camera covering a wide approach zone, the G2 classification improvement translates directly to fewer missed detections at the far end of the 60m IR range and fewer false positives from environmental movement.

5. Will this camera work in Australian outdoor conditions including coastal environments?

   Yes, for most outdoor Australian environments. The IP67 rating means it is fully protected against dust ingress and against sustained water jets from any direction - adequate for heavy rain, building wash-down proximity, and exposed eave mounting. The operating temperature range of -30°C to 60°C covers all Australian climate zones. For coastal salt-air environments, confirm the mounting hardware and junction box are also rated for marine-grade corrosion resistance as the camera housing alone does not carry a specific salt-mist certification.

6. Does this camera support H.265+ compression and what does that mean for storage?

   Yes. H.265+ is supported and it is the recommended compression setting for most installations using this camera. Compared to H.264, H.265+ can reduce the bitrate of an 8MP stream by 50% or more in static scenes while maintaining the same recorded image quality. On a 24/7 recording schedule, that reduction in bitrate directly extends the effective storage capacity of your NVR's hard drives - relevant given that 8MP streams at full quality would otherwise fill storage significantly faster than lower-resolution cameras. The team at Security Australia can assist with NVR and storage sizing if needed.

7. Is the (Y) suffix version different from the standard model?

   The (Y) designation on Hikvision model numbers typically indicates inclusion of a pre-installed junction box adaptor or a specific connector configuration for the market variant. The core camera specifications - resolution, lens range, IR distance, illumination type, and AI capabilities - remain the same as the base model. Confirm with your supplier documentation if your installation requires a specific junction box or conduit entry point, as the (Y) variant may simplify mounting on certain wall or conduit configurations.
