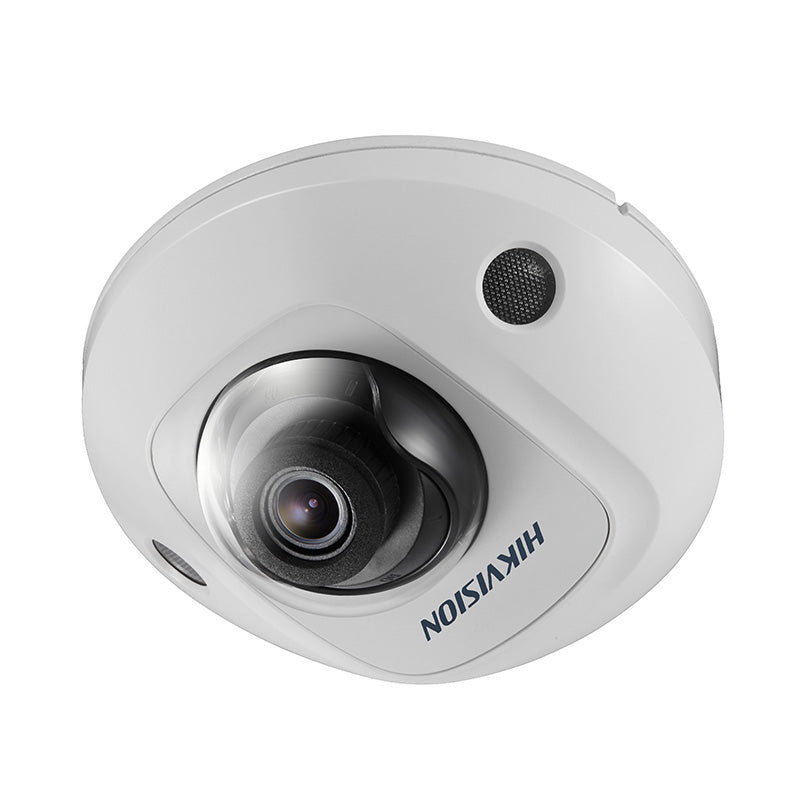

5 MP Fixed Mini Dome Network Camera
The DS-2CD2555FWD-I(W)(S) is designed with a weatherproof housing, making it suitable for both indoor and outdoor environments. It also supports Power over Ethernet (PoE), simplifying installation by eliminating the need for additional power cables. With its high-resolution sensor and advanced image processing capabilities, this mini dome camera is ideal for various security applications, including monitoring retail stores, offices, and public spaces. The camera’s compact size allows for discreet placement, blending seamlessly into its surroundings. Furthermore, it features motion detection and alerts, enhancing its effectiveness in identifying and responding to suspicious activity.
Key Features
Code/SKU: DS-2CD2555FWD-I(W)(S)
Quick Specs:
| Camera | |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Min. Illumination | Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR on |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Lens Type | 2.8, 4, 6 mm |
| FOV | 2.8 mm: horizontal FOV: 97°, vertical FOV: 54°, diagonal FOV: 113% 4 mm: horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92% 6 mm: horizontal FOV: 60°, vertical FOV: 33°, diagonal FOV: 71% |
| Aperture | F2.0 |
| Lens Mount | M12 |
| Illuminator | |
| IR Range | Up to 10 m |
| Wavelength | 850 nm |
| Video | |
| Max. Resolution | 2944 × 1656 |
| Main Stream | 50Hz: 20 fps (2944 × 1656) 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (2944 × 1656) 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240) |
| Video Compression | Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Scalable Video Coding (SVC) | Support H.264 and H.265 encoding |
| Region of Interest (ROI) | Support 1 fixed region for main stream and sub-stream separately |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8kHz/16kHz/32kHz/44.1kHZ/48kHz |
| Audio Compression | G722.1/G711/G726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| User/Host | Up to 32 users. 3 levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 |
| Network Storage | Support Micro SD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR |
| Client | Wired network: Hik-Connect, iVMS-4200, Hik-Central Wi-Fi: iVMS-4200, Hik-Central Wi-Fi connection with Hik-Connect directly is not possible. |
| Web Browser | Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+ |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login |
| Wi-Fi | |
| Encryption Mode | -W: WPA, WPA2 |
| Wi-Fi Protocol | -W: IEEE 802.11b/g/n |
| Frequency Range | -W: 2.412 GHz to 2.4835 GHz |
| Channel Bandwidth | -W: 20 MHz |
| Transfer Rate | -W: 11b: 11 Mbps 11g: 54 Mbps 11n: up to 150 Mbps |
| Wireless Range | -W: Up to 50 m (The performance varies based on actual environment) |
| Image | |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm In (-S) |
| Image Enhancement | BLC/3D DNR/HLC |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| Interface | |
| Audio | -S: 2 inputs: line in or mic in (built-in microphone) 1 output: line out, mono sound, terminal block |
| Alarm | -S: 1 input, 1 output (max. 12 VDC, 30 mA), terminal block |
| On-board Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Hardware Reset | Yes |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event | Line crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection |
| Face Detection | Yes |
| Exception Detection | Scene change detection |
| General | |
| Linkage Method | Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email |
| Firmware Version | V5.6.5 |
| Web Client Language | 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| General Function | Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening |
| Startup and Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25% PoE (802.3af, class 3) |
| Power Consumption and Current | 12 VDC, 0.7 A, max. 7.5 W PoE (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 9.5 W |
| Camera Dimension | Ø120 mm × 67.4 mm (Ø4.7" × 2.7") |
| Camera Weight | Camera: approx. 400 g (0.88 lb.) |
| Approval | Protection: Ingress protection: IP66 (IEC 60529-2013), IK08 (IEC 60529-2013) |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision DS-2CD2555FWD-I 6MP Outdoor Mini Dome Camera H.265+, 10m IR, WDR, IP67, IK8
The Hikvision DS-2CD2555FWD-I(W)(S) is a high-performance 5 MP Fixed Mini Dome Network Camera designed to deliver superior video quality and security. This compact camera offers a resolution of 2560x1920, providing crystal-clear images and detailed video footage. It features a 3-axis adjustment mechanism for flexible installation and optimal positioning. Equipped with a wide dynamic range (WDR) of 120 dB, the camera ensures clear image capture even in challenging lighting conditions. Its built-in infrared (IR) LEDs enable effective night-time surveillance, delivering up to 30 meters of visibility in complete darkness. The camera supports H.265+ video compression, which reduces bandwidth and storage requirements without compromising quality.
Additionally, it has a built-in microphone and speaker for two-way audio communication. The DS-2CD2555FWD-I(W)(S) is designed with a weatherproof housing, making it suitable for both indoor and outdoor environments. It also supports Power over Ethernet (PoE), simplifying installation by eliminating the need for additional power cables. With its high-resolution sensor and advanced image processing capabilities, this mini dome camera is ideal for various security applications, including monitoring retail stores, offices, and public spaces. The camera’s compact size allows for discreet placement, blending seamlessly into its surroundings. Furthermore, it features motion detection and alerts, enhancing its effectiveness in identifying and responding to suspicious activity. The DS-2CD2555FWD-I(W)(S) is also compatible with Hikvision’s comprehensive surveillance software, offering a complete and integrated security solution.
Features
| Video | |
| Max. Resolution | 2944 × 1656 |
| Main Stream | 50Hz: 20 fps (2944 × 1656) 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (2944 × 1656) 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240) |
| Video Compression | Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Scalable Video Coding (SVC) | Support H.264 and H.265 encoding |
| Region of Interest (ROI) | Support 1 fixed region for main stream and sub-stream separately |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8kHz/16kHz/32kHz/44.1kHZ/48kHz |
| Audio Compression | G722.1/G711/G726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
