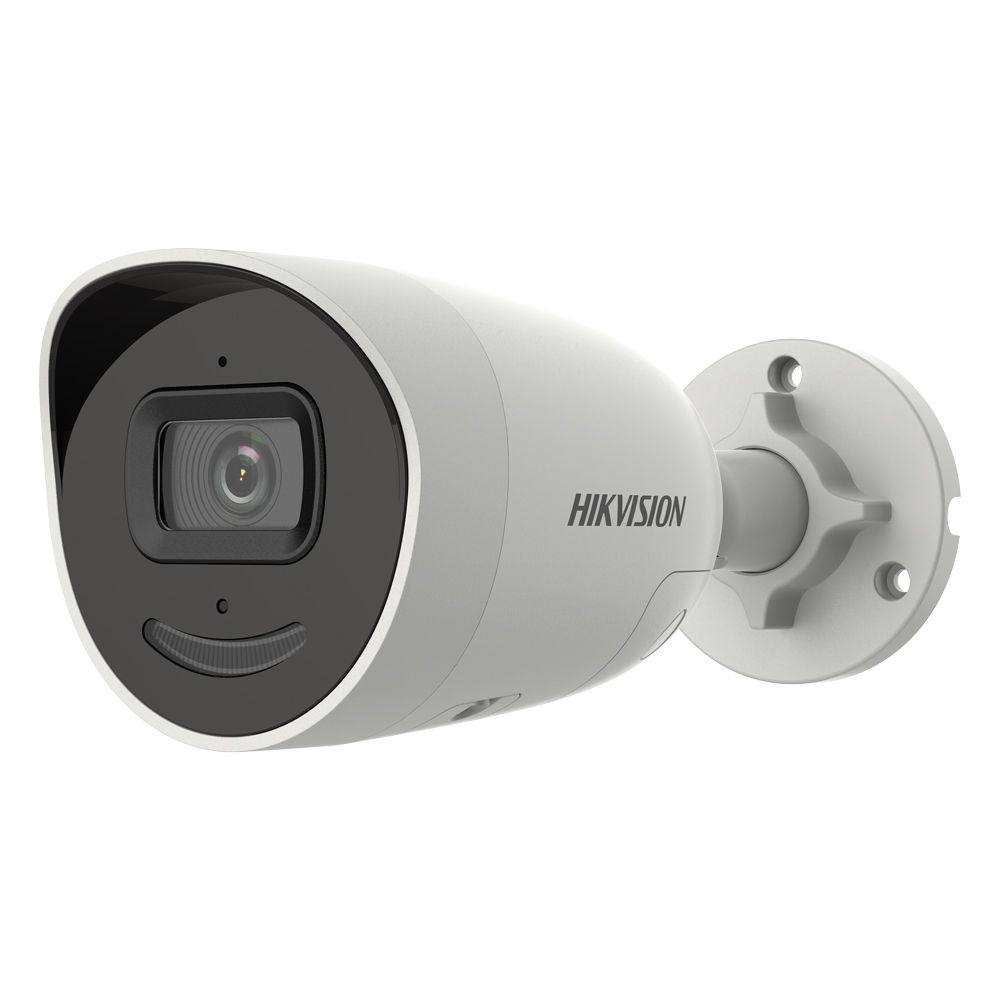

Hikvision DS-2CD2066G2-IU/SL 6MP Outdoor AcuSense Gen 2 Mini Bullet Camera, Mic, IR, Strobe, Audio Alarm, 2.8mm
AcuSense Series Hikvision CameraThe AcuSense Series Hikvision Camera features advanced AI technology for false alarm filtering, an inbuilt speaker, a strobe light, and audio announcements for programmed events. This camera utilizes Darkfighter technology for superior low-light performance, making it an excellent choice for enhanced security and event analytics.
Quick Specs: 6MP resolution, IR 40m, IP67, Built-in Mic, Strobe Light
Key Features:
Code/SKU: DS-2CD2066G2-IU/SL
Quick Specs:
| Camera | |
|---|---|
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 105.1°, vertical FOV 53.4°, diagonal FOV 128.6° 4 mm, horizontal FOV 83.9°, vertical FOV 44.5°, diagonal FOV 100.8° 6 mm, horizontal FOV 47.5°, vertical FOV 26°, diagonal FOV 54.5° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | |
| DORI | 2.8 mm: D: 78.6 m, O: 31.2 m, R: 15.7 m, I: 7.9 m 4 mm: D: 95.6 m, O: 37.9 m, R: 19.1 m, I: 9.6 m 6 mm: D: 160.0 m, O: 63.5 m, R: 32.0 m, I: 16.0 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 (*Third stream is supported under certain settings.) |
| Region Of Interest (ROI) | 1 fixed region(s) for main stream and sub-stream |
| Audio | |
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB |
| Built-In Microphone | Yes |
| Reset Key | Yes |
| Built-In Speaker | Max. power consumption: 1.2 W, max. sound pressure: 10 cm: 95 dB |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), Scene change detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, white light flashing |
| Deep Learning Function | Face Capture |
| General | |
| Power | 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.3 A to 0.2 A, max. 8.0 W |
| Dimension | 72.9 mm × 73.3 mm × 191.1 mm (2.9" × 2.9" × 7.5") |
| Material | Metal |
| Package Dimension | 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6") |
| Weight | Approx. 580 g (1.3 lb.) |
| With Package Weight | Approx. 840 g (1.9 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Heartbeat, anti-flicker, mirror, flash log, password reset via email, pixel counter |
| Approval | |
| EMC | FCC: 47 CFR Part 15, Subpart B CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014 RCM: AS/NZS CISPR 32: 2015 KC: KN32: 2015, KN35: 2015 |
| Safety | UL: UL 62368-1 CB: IEC 62368-1: 2014+A11 CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision DS-2CD2066G2-IU/SL 6MP Outdoor AcuSense Gen 2 Mini Bullet Camera, Mic, IR, Strobe, Audio Alarm, 2.8mm
Hikvision DS-2CD2066G2-IU/SL 6MP Outdoor AcuSense Gen 2 Mini Bullet Camera, Mic, IR, Strobe, Audio Alarm, 2.8mm
Enhance your security system with the Hikvision DS-2CD2066G2-IU/SL, a 6MP AcuSense IP camera designed for advanced perimeter protection and area security. This outdoor mini bullet camera combines powerful features with enhanced AI capabilities to provide reliable surveillance and reduce false alarms.
With inbuilt audio speaker and strobe light features, this camera goes beyond passive monitoring by providing active deterrent capabilities. Darkfighter technology ensures reliable performance in low-light conditions, making it a versatile choice for varying environments.
The DS-2CD2066G2-IU/SL utilizes advanced detection algorithms to distinguish between humans and vehicles, ensuring relevant alerts. Its IP67 rating provides dust and water resistance, ensuring durability for outdoor installations.
Key Features:
Functions:
Real-Time Monitoring:
The camera provides live video streaming with 6MP resolution, enabling accurate monitoring and recording for immediate threat assessment and incident documentation.
AI Surveillance Features:
Employs advanced AI algorithms for intelligent detection, differentiating between types of movements and significantly reducing false alerts from non-threatening activities.
Effective Low-Light Operation:
Darkfighter technology guarantees detailed video capture in dark environments, providing critical footage during nighttime or low-light conditions for enhanced security.
Active Intruder Deterrence:
Strobe light and audible alarm work together to deter intruders, enhancing site security by alerting individuals to potential threats.
Two-Way Audio Functionality:
Enables users to listen and speak through the camera, facilitating immediate responses and interactions with visitors or suspicious individuals at the monitored location.
Flexible Installation Options:
Compact design allows for easy mounting options in various locations, suitable for both residential and commercial security installations without compromising visibility.
Robust Outdoor Performance:
Built to withstand diverse weather conditions, this camera’s IP67 rating ensures protection from dust and moisture for reliable outdoor operations.
Comprehensive Connectivity:
Compatible with various Hikvision surveillance systems, allowing for seamless integration and efficient management of security operations across multiple devices.
Technical Specifications
| Model | DS-2CD2066G2-IU/SL |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Resolution | 6MP (2688 x 1520) |
| Minimum Illumination | Color: 0.003 Lux @ (F1.4, AGC ON); 0 Lux with IR |
| Lens | 2.8mm fixed lens |
| Field of View (FOV) | Horizontal: 103°, Vertical: 55°, Diagonal: 123° |
| IR Range | Up to 60 meters |
| Compression | H.265+, H.265, H.264+, H.264 |
| Audio Features | Built-in microphone and speaker |
| Protection Rating | IP67 |
| Power Supply | 12VDC ± 25%, PoE (802.3af, Class 3) |
| Operating Conditions | -30°C to +60°C (-22°F to +140°F), Humidity 95% or less (non-condensing) |
| Dimensions | Ø105 × 287.6 mm (Ø4.1" × 11.3") |
| Weight | Approx. 1120 g (2.5 lb.) |
