Hikvision AX PRO Duress Alarm Security Kit - Control Panel, Panic Buttons & Sirens

Model: DS-PWA64-DURESSKIT

Who This Is For

Property managers specifying duress alarm coverage for staff-facing environments - medical reception areas, retail counters, late-night service points, or any site where personnel need to call for help without alerting an aggressor - will find the Hikvision AX PRO Duress Alarm Security Kit purpose-built for that scenario. The kit centres on the AX PRO control panel and pairs it with wristband and portable wireless panic buttons that transmit silently over 433 MHz RF, triggering immediate siren activation and real-time notifications by call or message to nominated contacts. With up to 96 wireless zones, 48 network users, triple-path connectivity across TCP/IP, Wi-Fi, and 3G/4G, and a 4520 mAh backup battery providing 12 hours of runtime during a mains failure, this is a system built for sites that cannot afford gaps in coverage when it matters most.

What This System Actually Does

Who Buys This Model

• Medical and allied health practices: Receptionists and practitioners in high-risk consultation environments use the wristband panic button to silently trigger an alarm without escalating a situation at the front desk.
• Retail and hospitality operators: Late-night counters and bottle shops with solo staff benefit from portable panic buttons that can be carried on-person throughout the premises, not fixed to a single desk location.
• Security system installers: Integrators specifying a wireless duress layer over an existing AX PRO installation use this kit to add duress coverage to up to 96 zones without rewiring, using the existing panel infrastructure.
• Property and facilities managers: Sites with multiple staff members across separate zones assign different panic buttons to individual roles, managed through up to 48 network user accounts with role-based access.
• Compliance-driven commercial operators: Businesses in sectors with occupational health and safety obligations around lone worker protection use the 5000-entry audit log to demonstrate documented incident response capability.

Honest Assessment

The AX PRO Duress Kit does what a duress system needs to do: it lets a person call for help without making it obvious they are doing so. The wireless panic buttons, AES-128 encrypted 433 MHz RF, triple-path communication, and real-time phone or message notifications form a coherent package that holds up in commercial environments. The 96-zone capacity and 48-user management mean this scales beyond a single counter to cover an entire floor or multi-room facility. The 12-hour battery backup is a genuine operational advantage.

What this is not: a full intruder detection system in isolation. The kit focuses on duress and personal safety activation. If you need perimeter PIR detection, reed switches on doors and windows, or a monitored graded intrusion system, you are looking at a broader AX PRO deployment beyond what this kit includes. This product is available through Security Australia and suits sites adding a discrete duress layer rather than replacing an existing intruder alarm system from scratch.

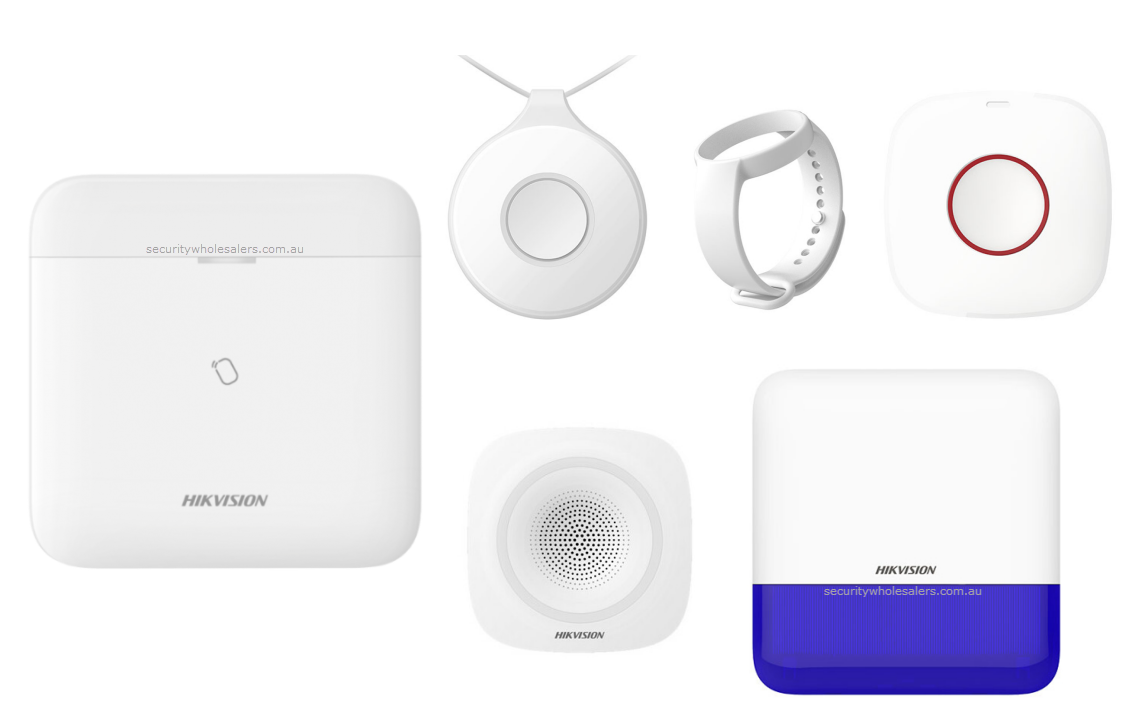

Complete Package Contents

• Wireless panic buttons (wristband format) - 433 MHz RF, AES-128 encrypted
• Portable wireless emergency buttons - 433 MHz RF, AES-128 encrypted
• Siren(s) - for audible alarm output on trigger
• 1 x Hikvision AX PRO Control Panel (DS-PWA64 series) - TCP/IP, Wi-Fi, 3G/4G, up to 96 wireless zones, 4520 mAh backup battery

Before You Buy

Quick Fit Check

• Good match if: You need staff to carry personal panic triggers throughout a premises and activate a silent duress alarm without any visible keypad interaction - the wristband and portable wireless buttons handle exactly this.
• Good match if: Your site already uses or plans to deploy Hikvision AX PRO infrastructure - the panel's 96-zone capacity means this kit slots into a larger wireless zone plan without requiring a separate control panel.
• You may need a different model if: Your brief requires a full graded intruder detection system with PIR sensors, door/window contacts, and monitored perimeter coverage as the primary function - a broader AX PRO system kit with detector accessories would be the more appropriate starting point.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a wireless duress alarm system with wearable and portable panic buttons, encrypted RF signalling, and triple-path connectivity that scales to 96 zones across a commercial premises.
• You may need a different model if: Your primary requirement is perimeter intrusion detection with motion sensors, door contacts, and a full detector kit included - a complete AX PRO intrusion alarm kit would be a more appropriate starting point.
• Pairs well with: Hikvision AX PRO compatible wireless PIR detectors, door/window contacts, and IP cameras for a combined intrusion and duress monitoring system managed through a single control panel.

Common Questions

1. Does this system send a silent alarm or does it always trigger the siren audibly?

   The panic buttons in this kit trigger both the siren and real-time notifications simultaneously. The "silent" aspect of the duress function is that the staff member activates the alarm without needing to interact with a visible keypad or panel - the press of the wristband or portable button is discreet. Whether the siren itself sounds at the premises depends on how the system is configured during commissioning. Consult your installer about silent-only signalling options if audible activation is a concern for your site.

2. Will this work if our internet connection goes down during an emergency?

   Yes, provided a SIM card is installed in the panel. The AX PRO panel supports 3G/4G as a communication fallback alongside TCP/IP and Wi-Fi. If your fixed network fails, the panel can route alarm notifications through a mobile data connection. Note that 3G/4G fallback requires an active SIM with a data plan - this does not come included and must be provisioned separately before commissioning.

3. How many staff members can each have their own panic button assigned to the system?

   The panel supports up to 96 wireless zones and up to 48 network users with role-based access. In practice, the number of panic buttons the system can accommodate sits within that 96-zone pool. Role-based access means each user account can be configured with specific permissions - for example, a manager can have full system access while a staff member's account is limited to their assigned button and alarm notifications only.

4. Does the AES-128 encryption prevent someone from jamming or spoofing the panic signal?

   AES-128 encryption protects against signal interception and replay attacks, meaning a recorded panic signal cannot be replayed to generate false alarms or suppress genuine ones. Jamming - where an RF signal is flooded to block communication - is a separate concern and is not defeated by encryption alone. The triple-path connectivity (TCP/IP, Wi-Fi, 3G/4G) provides some resilience by giving the panel alternative signalling routes if one path is disrupted.

5. Can this panel integrate with an existing Hikvision AX PRO installation we already have on-site?

   Yes, if the existing installation uses an AX PRO panel with available zone capacity. The panic buttons and siren in this kit use the same 433 MHz RF protocol as the broader AX PRO wireless ecosystem, so they can be enrolled into an existing panel's zone pool - provided you have free zones available within the 96-zone maximum. Confirm zone availability with your installer before purchasing the kit as an add-on rather than a standalone system.

6. What happens to the 5000-entry event log if we need to provide it for an insurance claim or incident report?

   The 5000-entry audit log can be accessed through the Web Portal, IVMS-4200, or Hik-ProConnect. Each entry records event type, time, and the zone or user associated with the trigger. For incident documentation, the log provides a timestamped record of all alarm events, arm/disarm actions, and user access. Export capability for formal reporting should be confirmed with your installer during system setup. This functionality is part of the Security Australia supplied AX PRO kit and does not require additional software licences for basic log access.

7. How long does the backup battery last if mains power is cut?

   12 hours. The 4520 mAh lithium backup battery maintains full panel operation - including wireless zone reception, siren output, and communication signalling - for 12 hours during a mains power failure. This is the manufacturer-specified duration under standard operating conditions. Battery life in practice will vary with the number of active zones, how frequently the siren activates, and ambient temperature, given the panel operates between -10°C and +55°C.

Cabling Considerations

• Panel Power: The AX PRO panel requires a mains power connection for primary operation. Use the supplied power adaptor and route the mains cable to a dedicated power point near the panel mounting location.
• Network Cable (TCP/IP): If connecting via wired Ethernet, run a Cat5e or Cat6 cable from the panel to your router or switch. This is the most stable primary communication path and is recommended over Wi-Fi for commercial installations.
• 3G/4G SIM: No physical cable required for mobile fallback - a Nano SIM slot is built into the panel. Ensure the SIM is inserted and the mobile data plan is active before testing alarm notifications over 3G/4G.
• Wireless Devices: Panic buttons and siren communicate wirelessly at 433 MHz RF - no signal cable is required between devices and the panel. Conduct a walk-test at full intended carry distance to verify RF range is sufficient through your building's construction materials before finalising mounting positions.
