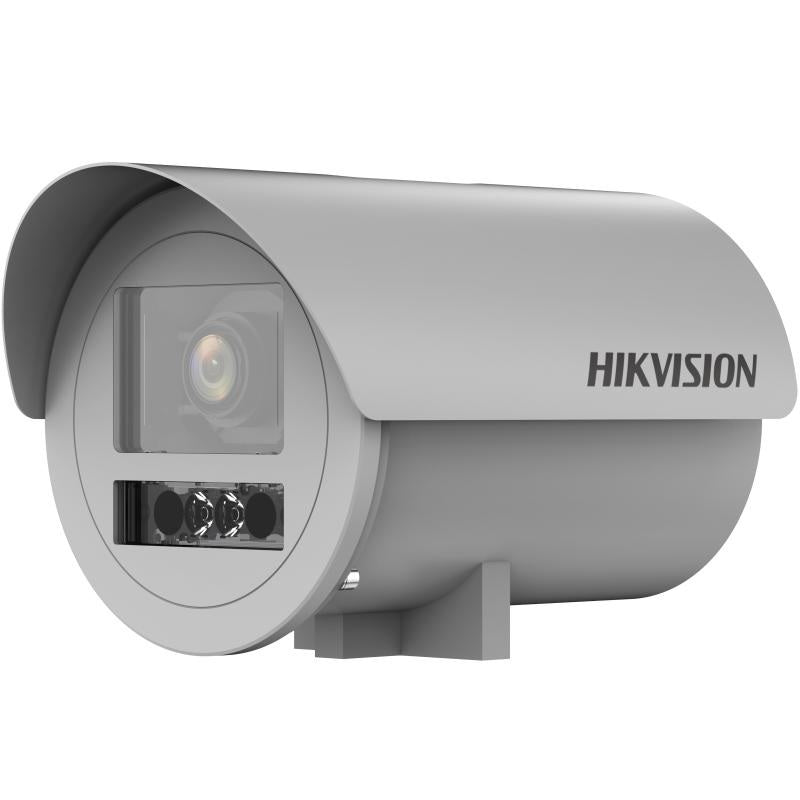

Hikvision ANTI-CORROSION DS-2XC6686G0-P-IZHR 8mp Anpr Bullet Camera, Vari 2.8-12MM, Ir 60m

Model: DS-2XC6686G0-P-IZHRS

Who This Is For

When corrosive environments and vehicle identification are both non-negotiable requirements, most standard ANPR cameras fall short. The Hikvision DS-2XC6686G0-P-IZHR is an 8MP anti-corrosion ANPR bullet camera built for sites where salt air, chemical exposure, or industrial washdown conditions would degrade a conventional housing within months. The motorised 2.8-12mm varifocal lens allows fine focal adjustment without physical access to the camera body - critical when the camera is mounted at height or in a hazardous zone. With 60m IR range and dedicated number plate recognition processing, it suits port facilities, wastewater treatment plants, chemical storage sites, coastal car parks, and any gated industrial entry point where both corrosion resistance and accurate plate capture are operational requirements rather than optional extras. Installers specifying for harsh-environment sites will find this model addresses both challenges in a single unit.

What This Camera Actually Does

Who Buys This Model

• Port and Marine Facility Operators: Facilities exposed to salt-laden air need anti-corrosion-rated hardware at every external camera position. The XC-series housing addresses this directly while still delivering ANPR functionality for vessel crew or freight vehicle access control.
• Industrial Site Security Teams: Chemical plants, wastewater treatment facilities, and processing sites where atmospheric corrosion would degrade standard cameras within 12-24 months. The anti-corrosion rating justifies the specification for long-term asset protection.
• Coastal Commercial Car Park Operators: High-humidity, salt-air environments paired with a need to log vehicle plate data for access control, overstay enforcement, or incident investigation. The 8MP resolution provides plate detail across a full lane width.
• Security Integrators Specifying Harsh-Environment ANPR: Installers who need a single camera to satisfy both the corrosion-resistance requirement from the asset manager and the ANPR requirement from the security team, without installing two separate devices.

Honest Assessment

The DS-2XC6686G0-P-IZHR does a genuinely uncommon thing: it combines a corrosion-resistant housing with onboard ANPR processing and an 8MP motorised varifocal lens in a single bullet unit. For sites where those three requirements converge - coastal industrial, port, or chemical processing environments with vehicle access control needs - this camera removes the need to engineer a workaround using a standard ANPR camera protected by an aftermarket enclosure. The motorised lens is a practical advantage for installations where post-mount focal adjustment needs to happen remotely. What it will not do is cover multiple lanes simultaneously or provide wide-area overview coverage - it is a single-direction, single-lane ANPR instrument. Sites with multi-lane entries or requiring panoramic overview alongside plate capture will need additional cameras. Available through Security Australia, this model suits projects where the corrosion-resistance specification is genuine rather than precautionary.

Before You Buy

Quick Fit Check

• Good match if: You are installing at a coastal, port, or chemical facility where standard camera housings corrode and you need onboard ANPR plate recognition at a controlled vehicle entry point.
• Good match if: Your entry lane has no reliable artificial lighting at night and you need IR-based plate capture to 60m without installing separate illuminators.
• You may need a different model if: You need to cover 2 or more lanes simultaneously, or require a wide-angle overview of the entry area alongside plate capture - a multi-sensor or panoramic camera type would be more appropriate for that scenario.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site has genuine corrosion-risk conditions (salt air, chemical vapour, high-humidity washdown) and you also need onboard ANPR plate recognition - this model handles both without a custom protective enclosure.
• You may need a different model if: Your environment does not carry a corrosion risk - a standard Hikvision ANPR bullet camera would deliver equivalent plate recognition performance without the cost premium of the anti-corrosion housing.
• Pairs well with: A compatible Hikvision ANPR-capable NVR or VMS platform that can receive and process the plate recognition event data, plus a separate wide-angle overview camera for general entry area coverage.

Common Questions

1. Does this camera actually read and output licence plate text, or does it just record video?

   Yes, this camera performs onboard ANPR processing and outputs plate character data as a structured event - not just video. The "P" designation in the model number confirms the dedicated plate recognition function. Plate strings, timestamps, and trigger events are passed to a compatible NVR or VMS. The camera does not rely on server-side software to extract plate text; recognition happens at the camera level, reducing processing load on the recording platform.

2. What vehicle speed is this camera rated to capture plates accurately?

   Hikvision's ANPR bullet cameras in this series are typically rated for controlled low-to-moderate speed approach scenarios - suited to boom gate entries, speed humps, and access control lanes where vehicles are slowing or stopping rather than free-flow highway traffic. For vehicles passing at open-road speeds above approximately 30-40 km/h, a dedicated free-flow ANPR camera with a higher shutter speed optimised for fast capture would be more appropriate. This model is best specified for controlled-approach installations.

3. What does the anti-corrosion rating actually mean in practice?

   The XC-series designation indicates Hikvision has treated the housing, lens mount, and external components specifically to resist corrosion from salt spray, humidity, and chemical vapour - conditions that degrade standard aluminium and plastic camera housings over time. It is a step above a standard IP67-rated camera, which resists water ingress but does not address the surface and material degradation caused by corrosive atmospheres. For standard indoor or suburban outdoor installations, the corrosion-resistance specification is not needed and a standard housing camera would serve equally well.

4. Will this camera work as a general surveillance camera as well, or is it only for ANPR?

   Yes, it functions as a full 8MP surveillance camera regardless of the ANPR mode. The sensor captures continuous video which is recorded to an NVR in the same way as any standard bullet camera. The ANPR function runs in parallel, triggering plate-read events without interrupting the video stream. That said, the lens is typically optimised for plate capture framing, so the field of view when zoomed for ANPR may be narrower than you would set for general overview coverage - consider a separate wide-angle camera if broad area surveillance is also required at that position.

5. How many lanes can this camera cover simultaneously?

   One lane per camera is the practical standard for ANPR bullet cameras. A single fixed lens aimed at a single lane approach delivers the tight framing and plate pixel density needed for reliable recognition. Attempting to cover 2 lanes with one camera by zooming out reduces the pixels-per-plate to a level that compromises recognition accuracy. Multi-lane entries require 1 camera per lane, or a multi-sensor panoramic ANPR system designed specifically for that application.

6. Does the motorised varifocal lens require any special tools to adjust?

   No special tools are needed for focal adjustment. The motorised zoom and focus are controlled via the camera's web interface, your NVR menu, or a compatible VMS - the lens adjusts electronically in response to software commands. This is the key advantage over a manual varifocal lens, where a technician must physically turn the lens barrel and refocus while someone watches a monitor. For elevated or hard-to-reach mounting positions, the motorised function allows full commissioning from ground level after the camera is physically fixed. Security Australia stocks this model for projects where that remote-adjust capability is a genuine installation requirement.

7. What angle should the camera be mounted relative to the vehicle approach lane?

   Horizontal mounting angle should be kept to 30 degrees or less relative to the direction of vehicle travel. Steeper angles cause plate foreshortening where plate characters become harder to resolve, reducing recognition accuracy. Vertical angle is typically set between 15 and 30 degrees downward depending on mounting height and the height of the plates being captured (front plates are lower than rear plates on most vehicles). The 2.8-12mm motorised lens allows fine framing adjustments after the bracket is fixed, making precise angular alignment easier to achieve at commissioning.
