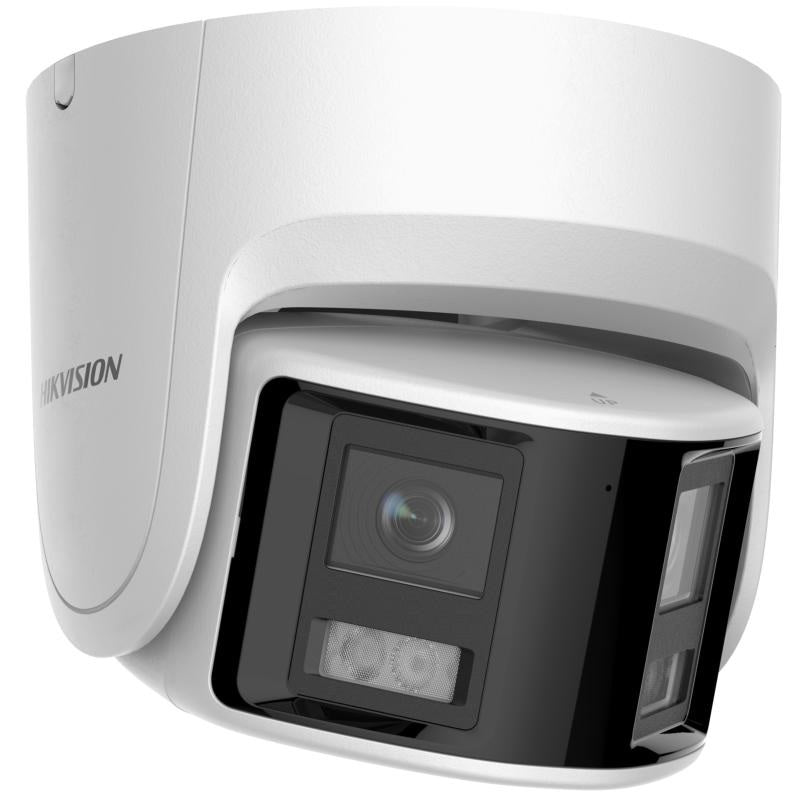

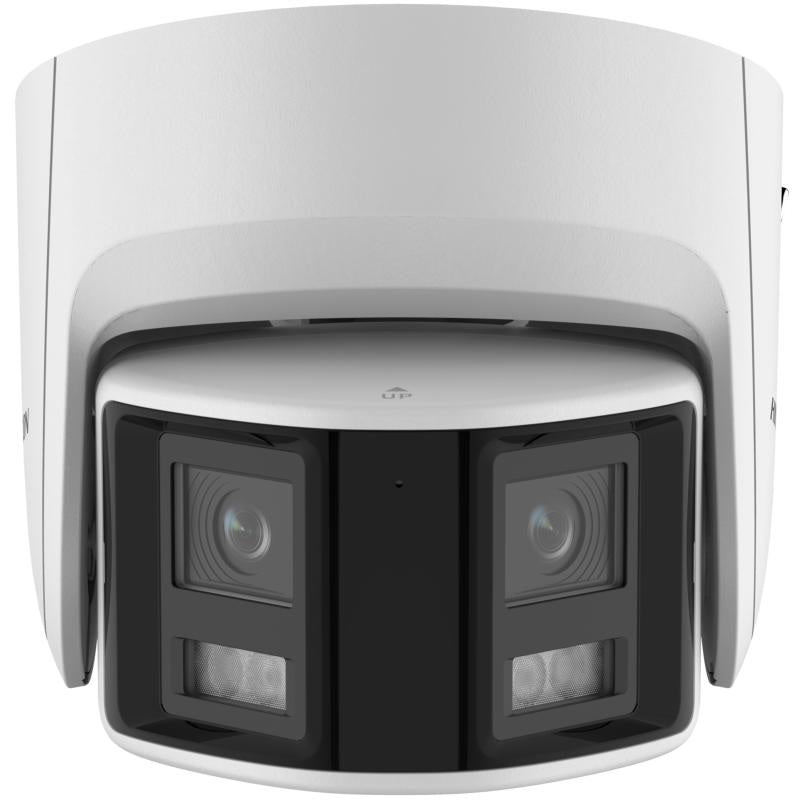

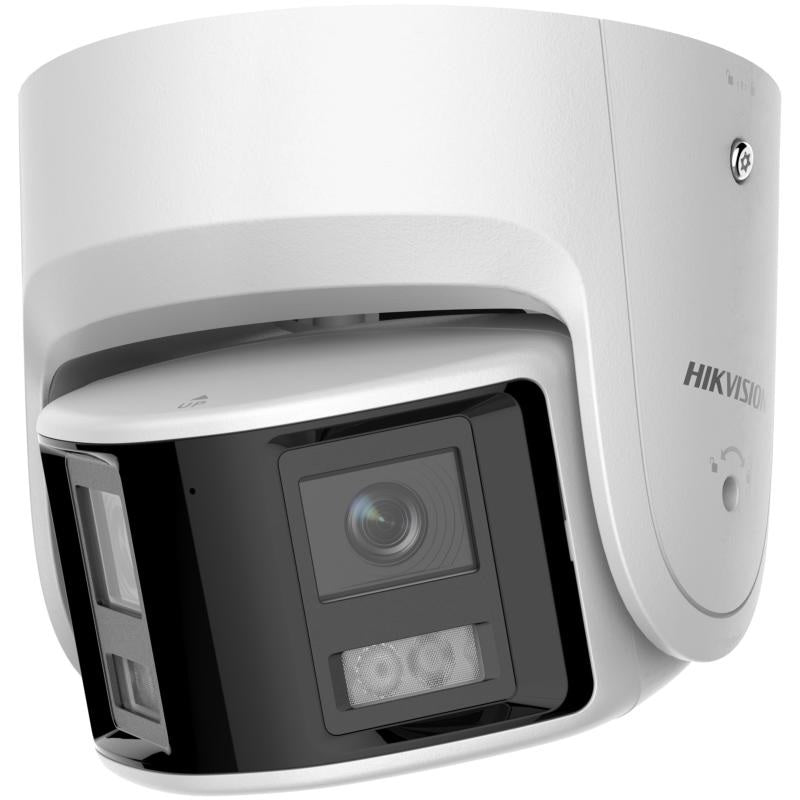

Hikvision DS-2CD2346G2P-ISU-SL PANORAMIC 4mp Turret Camera, Fixed 2.8mm, Ir 30m, Mic

Model: DS-2CD2346G2P-ISU-SL

Who This Is For

For installers and facility managers who need a single camera position to cover a wide panoramic field without running cable to 2 or 3 separate units. The Hikvision DS-2CD2346G2P-ISU-SL is a 4MP panoramic turret designed for locations where a conventional single-lens camera leaves blind spots - think retail floor corners, open-plan reception areas, car park entries, school common areas, and small commercial yards. The fixed 2.8mm lens delivers a wide-angle view, the 30m IR range handles low-light and after-hours monitoring, and the built-in microphone adds an audio layer without requiring a separate device. The turret housing suits eave, soffit, and wall mounting where a discreet profile matters. If your brief calls for broad situational awareness from one mounting point rather than tracking detail across a narrow corridor, this is the camera type to be specifying.

What This Camera Actually Does

Who Buys This Model

• Retail Fit-Out Installers: Specifying cameras for open floor areas and checkout zones where a single panoramic unit replaces 2 narrower cameras and reduces the NVR channel count on the job.
• School and Childcare Facility Managers: Covering wide common areas, corridors, and playgrounds from a single mounting point, with audio capture providing additional incident context.
• Small Commercial Property Owners: Monitoring a car park entry, reception area, or warehouse floor where budget and cabling constraints favour fewer camera runs without sacrificing overall coverage area.
• Hospitality and Venue Operators: Monitoring bar areas, dining floors, or function spaces where a wide field of view is more operationally useful than narrow high-detail coverage of a single lane.

Honest Assessment

The DS-2CD2346G2P-ISU-SL does its job well when the goal is broad situational awareness from a single mounting position. The panoramic field of view genuinely reduces camera count on suitable sites, the 30m IR handles after-hours conditions without additional lighting, and the built-in microphone adds value without complicating the installation. For wide-area overviews in retail, hospitality, education, and small commercial settings, it is a competent and practical choice available through Security Australia. Where it has limits: the fixed 2.8mm lens means there is no ability to optically zoom into a specific zone - if your requirement is identifying faces at a distance or reading number plates across a car park, a higher-resolution camera with a longer focal length or a PTZ will serve that purpose better. Similarly, if you need active deterrence with a strobe or audio challenge on detection events, verify the exact variant before purchasing, as not all SL configurations behave identically across firmware versions.

Before You Buy

Quick Fit Check

• Good match if: You need to cover a wide open area - a retail floor, school common room, or car park entry - from a single cable run, and broad situational awareness is more important than narrow telephoto detail.
• Good match if: Your NVR channel count is a constraint and replacing 2 standard cameras with 1 panoramic unit reduces both hardware cost and recording overhead without leaving coverage gaps.
• You may need a different model if: Your primary requirement is face identification at distance, licence plate capture, or active tracking of a moving subject across a large outdoor area - a PTZ or ANPR-rated camera from the Security Australia range will be more appropriate for those use cases.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need to cover a wide area from a single camera position using a fixed installation with no moving parts, and your recording platform supports PanoVu dewarping.
• You may need a different model if: Your site requires active object tracking, optical zoom into specific zones, or long-range identification at distance - a PTZ camera is the more appropriate product type for those requirements.
• Pairs well with: A Hikvision-compatible NVR with multi-channel dewarping support, particularly one with sufficient storage for the higher bitrate that panoramic cameras typically produce at 4MP.

Common Questions

1. Does this camera show a normal rectangular image or does it look distorted?

   It depends on your recording platform. The DS-2CD2346G2P-ISU-SL produces a wide panoramic image that appears barrel-distorted in its raw form. When connected to a compatible Hikvision NVR or VMS with PanoVu dewarping enabled, the image is corrected into a flattened panoramic view or multiple virtual camera views. Without dewarping, the raw image will look curved - confirm your NVR supports this function before deployment.

2. Will this camera work for monitoring a large outdoor area at night?

   Yes, within 30 metres. The built-in IR illuminators provide usable night vision coverage up to 30m in complete darkness using the 2.8mm wide-angle lens. Beyond that range, IR illumination falls off and image quality at the edges of the frame degrades. For large open outdoor areas exceeding 30m depth, a camera with extended IR or supplementary lighting will perform better.

3. What does the "ISU" in the model number indicate?

   The ISU suffix in Hikvision nomenclature typically indicates the presence of a built-in microphone (audio in), an SD card slot for local storage, and audio output capability. The product listing confirms the built-in microphone. If onboard SD card recording is a requirement for your installation - for example as a backup to NVR recording - verify the exact SD card capacity supported before purchasing.

4. How many NVR channels does a panoramic camera consume?

   Typically 1 channel. The DS-2CD2346G2P-ISU-SL connects as a single IP camera and occupies 1 NVR channel regardless of how many virtual views the dewarping software creates from its image. This is one of the key reasons installers use panoramic cameras - you get multiple viewing angles in the software while only using one physical camera channel and one PoE port on the switch. Contact Security Australia if you need advice on matching NVR channel counts to panoramic camera deployments.

5. What DORI distances apply to a panoramic camera with a fixed 2.8mm lens?

   DORI performance (Detection, Observation, Recognition, Identification) on a 2.8mm wide-angle panoramic camera is weighted heavily toward Detection and Observation at usable distances. The very wide field of view comes at a trade-off: pixel density per metre of coverage is lower than a longer focal length camera, so Identification distances - the standard needed to distinguish an individual's facial features clearly - will be considerably shorter than the raw 30m IR range suggests. This camera is suited to area awareness and detection, not identification at distance.

6. What does the "SL" suffix mean on this model, and does it affect how the camera behaves?

   In Hikvision's naming convention, SL typically refers to a strobe light variant, which may include an integrated visible light deterrent activated by detection events. Confirm the exact behaviour with the product datasheet before installing in sensitive environments such as childcare centres or medical facilities where unexpected strobe activation could cause issues. Review the firmware and detection trigger settings during commissioning to ensure the strobe function is configured appropriately for the site.

Downloads & Resources

No downloads available for this product.
