Hikvision 6MP 4CH ColorVu 3.0 CCTV Kit: 2 LiveGuard Turret Cameras + 4CH M Series PoE NVR

Model: 2x DS-2CD2367G3-LIS2UY/SL + DS-7604NI-NOHDD

Who This Is For

Property managers specifying active deterrence for small commercial sites, retail shopfronts, or residential properties where visible detection and intervention matter more than passive recording. This kit pairs 2 Hikvision DS-2CD2367G3-LIS2UY/SL LiveGuard turret cameras - each capable of triggering a strobe light and audible alarm the moment a person or vehicle is detected - with the 4-channel M Series PoE NVR that powers and records everything through a single cable run per camera. The NVR ships without a hard drive, so you choose storage to match your retention needs. With 2 PoE ports remaining on the NVR, the system is ready to expand to 4 cameras as coverage requirements grow. The full-colour 6MP imaging runs around the clock without infrared switching, so there is no monochrome footage at night - just continuous colour detail on every recorded event.

What This System Actually Does

Who Buys This Model

• Small retail operators: Fitting active deterrence at a shopfront or rear access point where passive recording alone has not been sufficient to discourage after-hours loitering or break-in attempts.
• Residential property owners: Covering a driveway and side gate where full-colour identification of vehicles and individuals at night is a priority, and where a triggered strobe or siren adds a deterrence layer beyond recording.
• Installers starting a small site with planned expansion: Deploying 2 cameras now and using the remaining 2 NVR channels to add coverage later without replacing any core hardware.
• Light industrial and warehouse managers: Monitoring a loading dock or yard entry where after-dark vehicle and personnel movement needs colour-accurate recording and an immediate on-site deterrence response.

Honest Assessment

This kit does two things well that most entry-level packages do not combine: it records in full colour at night through ColorVu 3.0, and it actively responds to detected intrusions through the LiveGuard strobe and siren on the DS-2CD2367G3-LIS2UY/SL cameras. The AI classification between humans and vehicles keeps false activations manageable. The NVR's 4 PoE channels give genuine expansion room, and the single-cable-per-camera PoE design keeps installation straightforward. What this kit will not do is cover large perimeter areas - 2 cameras suit targeted entry points, not broad multi-zone coverage. The NVR ships without a hard drive, which is a separate purchase you need to plan for before installation. If your site needs 4 or more cameras from the outset, a larger kit from the Security Australia range will be a more cost-effective starting point than adding to this one.

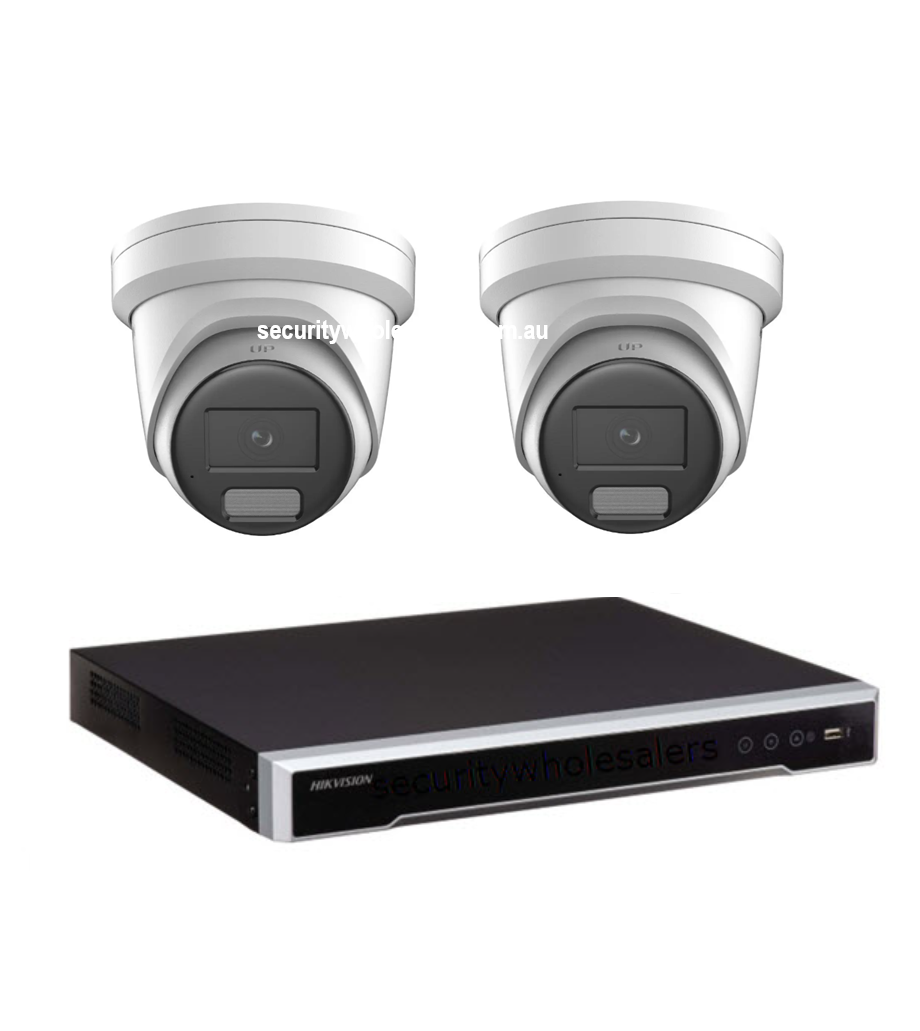

Complete Package Contents

• 2 x Hikvision DS-2CD2367G3-LIS2UY/SL - 6MP ColorVu 3.0 LiveGuard turret camera, full-colour night vision, active deterrence strobe and siren, two-way audio, IP67, PoE
• 1 x Hikvision DS-7604NI-NOHDD - 4-channel M Series PoE NVR, H.265+, no HDD included, supports up to 8MP cameras

Before You Buy

Quick Fit Check

• Good match if: You need full-colour night recording at 1 or 2 targeted entry points - a driveway, rear door, or shopfront - and want an on-site audible and visual deterrence response when a person or vehicle is detected.
• Good match if: You are installing a system now with the intention of adding cameras later - the 4-channel NVR has 2 spare PoE ports ready for future DS-2CD2367G3-LIS2UY/SL or compatible Hikvision cameras without replacing the recorder.
• You may need a different model if: Your site requires 4 or more cameras from day one, or if you need long-range night detection across open ground - a larger kit or a bullet camera kit with extended IR range would be more appropriate for those requirements.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need full-colour night imaging combined with active deterrence (strobe and siren) and two-way audio in a single camera, and your site requires 1 to 4 camera positions.
• You may need a different model if: Your site requires 4 or more cameras from the start, or your primary need is long-range night detection across open ground - a larger multi-camera kit or an IR bullet camera system would be a better fit for those scenarios.
• Pairs well with: A surveillance-grade 2TB or 4TB hard drive (required for recording), and a Cat6 cable run per camera position for best PoE performance at 6MP.

Common Questions

1. Does the strobe and siren activate automatically, or do I have to trigger it manually?

   Automatically - once configured. The DS-2CD2367G3-LIS2UY/SL cameras use AI to classify detected humans or vehicles, and the LiveGuard response (strobe, siren, or both) can be set to trigger on that classification without any manual input. You configure which zones, which detection types, and which responses during initial setup via the NVR interface. Manual triggering through the app is also possible.

2. Will this system record in colour at night without any additional lighting?

   Yes. The ColorVu 3.0 cameras have a built-in white light illuminator that activates in low-light conditions, producing colour footage rather than switching to monochrome infrared. No external lighting is required for the colour recording function, though the illuminator has a finite range - very large dark areas beyond that range will not be illuminated.

3. What hard drive do I need to buy for the DS-7604NI-NOHDD?

   A surveillance-grade (CMR/PMR) HDD rated for 24/7 operation - standard desktop drives are not recommended for continuous CCTV recording. The DS-7604NI-NOHDD accepts a single 3.5-inch SATA HDD. For 2 cameras recording continuously at 6MP with H.265+ compression, a 2TB drive gives roughly 14 to 20 days of storage depending on scene activity. A 4TB drive doubles that retention.

4. Does the two-way audio work remotely through a phone?

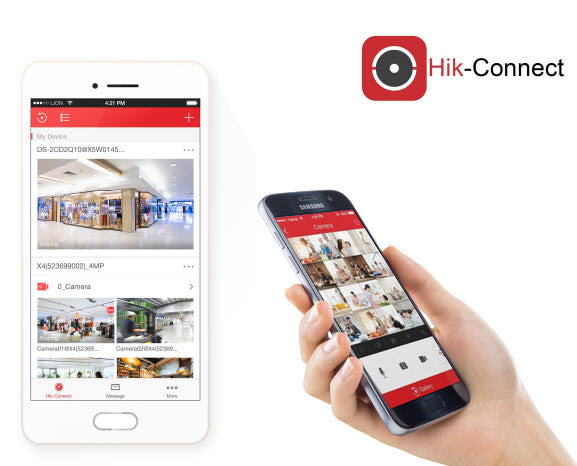

   Yes. The Hik-Connect app on iOS or Android allows you to view the live feed and use the two-way audio function from anywhere with an internet connection. The DS-2CD2367G3-LIS2UY/SL cameras have both a built-in microphone and a built-in speaker, so the conversation is fully two-way through the camera itself - no separate audio hardware is required.

5. Can I add more cameras to this kit later?

   Yes. The DS-7604NI-NOHDD has 4 PoE channels in total. This kit uses 2, leaving 2 ports available for additional compatible Hikvision PoE cameras. You can add up to 2 more cameras - including additional DS-2CD2367G3-LIS2UY/SL units - without replacing the NVR. If you need more than 4 cameras total, an 8-channel NVR would be required.

6. Will the LiveGuard strobe cause false activations in a busy street-facing location?

   It can, without correct zone configuration. The human and vehicle AI classification significantly reduces false triggers compared to standard motion detection, but in a location with constant pedestrian or vehicle traffic you should configure the detection zones carefully to exclude public footpath areas and focus on protected zones such as a doorway or entry point. Security Australia stocks this kit for sites where targeted zone configuration is part of the commissioning process.

7. What cable is needed between the NVR and each camera?

   Cat5e at minimum, Cat6 recommended. Each DS-2CD2367G3-LIS2UY/SL camera receives both power and data over a single network cable connected to the NVR's PoE port - no separate power supply or power cable is needed at the camera end. Maximum recommended cable run for reliable PoE at this resolution is 100 metres per camera position using Cat6.

Cabling Considerations

• Cable Type: Cat6 recommended (Cat5e minimum) for each camera run.
• Max Cable Run: 100 metres per camera from the NVR's PoE port to the camera mounting point.
• PoE Notes: The DS-7604NI-NOHDD supplies PoE directly from the NVR - no separate PoE switch or injector is required for up to 4 cameras. Confirm the NVR's total PoE budget is not exceeded if adding cameras later.
• Wiring Tips: Run a single Cat6 cable from the NVR to each camera mounting point. The DS-2CD2367G3-LIS2UY/SL cameras do not require a separate audio cable - the built-in microphone and speaker use the same network connection.
