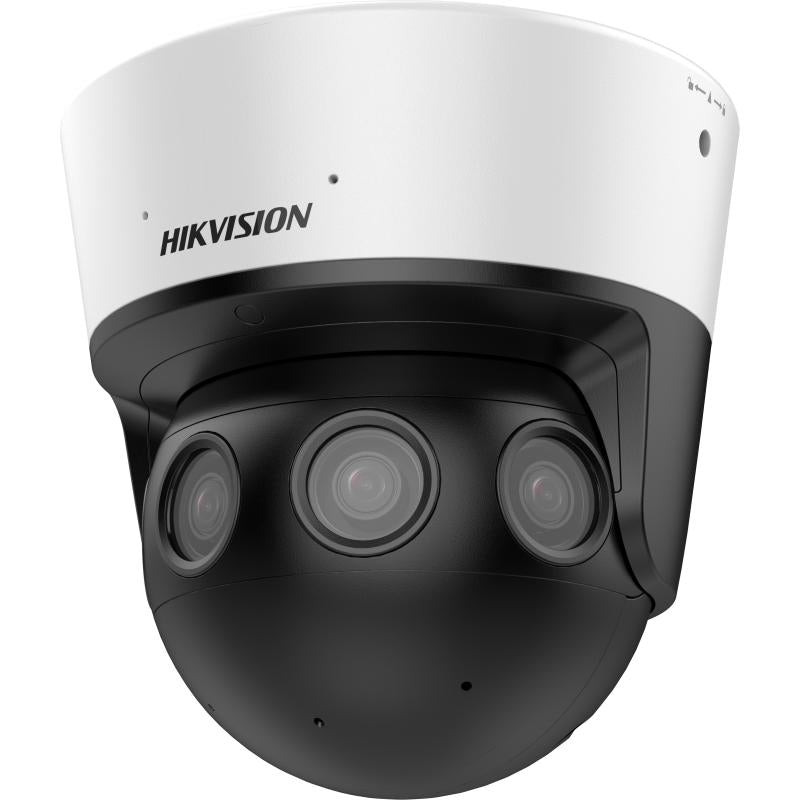

Hikvision 32MP 180° Panovu DS-2CD6984G1-IHSUY/NFC Multisensor 4-Directional Camera, 2.8mm Lens, IR 20m

Model: DS-2CD6984G1-IHS(U)Y(/NFC)

Who This Is For

When wide-area coverage from a single mounting point is the priority, the Hikvision Panovu DS-2CD6984G1 32MP 180 degree multisensor camera changes what a single camera position can achieve. Designed for installers and security managers who need to eliminate blind spots across wide outdoor spaces - car parks, building facades, loading bays, town squares, and transport hubs - this 4-directional camera delivers 32MP of total resolution across 4 independent 8MP sensors, each with a 2.8mm fixed lens, to produce a continuous 180 degree panoramic view. Rather than deploying 3 or 4 individual cameras to cover the same arc, a single unit handles the full sweep with coordinated IR illumination up to 20 metres per sensor. The NFC configuration option also speeds up commissioning in hard-to-reach mounting positions. Suited to mid-to-large site deployments where camera count, conduit runs, and mounting costs all factor into the design.

What This Camera Actually Does

Who Buys This Model

• Commercial property managers: Specifying coverage for open car parks, building frontages, or retail forecourts where a single camera position must account for 180 degrees of activity without blind zones between individual cameras.
• Security system integrators: Reducing camera count and conduit runs on large-site projects - replacing 3 or 4 individual cameras with 1 multisensor unit lowers installation cost and NVR channel usage per covered zone.
• Council and public space operators: Monitoring pedestrian plazas, park entrances, and civic spaces where a discreet single-unit install needs to cover wide arcs of foot traffic in both day and night conditions.
• Transport and logistics facilities: Covering loading dock aprons, yard entry points, and goods receival areas where vehicles and personnel move across a wide horizontal span and full-width visibility is operationally critical.

Honest Assessment

The DS-2CD6984G1 does one thing exceptionally well: it replaces multiple individual camera positions with a single unit that delivers 32MP of combined resolution across a 180 degree panorama. For wide-open outdoor scenes - car parks, forecourts, building facades - this reduces installation complexity, conduit runs, and NVR channel consumption while maintaining per-zone IR coverage to 20 metres. The NFC commissioning option is a genuine practical advantage for elevated or difficult-access mounting positions. Where this camera is not the right tool: it is not a substitute for a PTZ camera on a site requiring operator-controlled directional tracking, and the 2.8mm fixed lens means it is not suited to long-distance narrow-corridor or perimeter monitoring tasks where a bullet or motorised-zoom camera would be more appropriate. Available through Security Australia, this model targets professional integrators and managed site deployments rather than basic residential installs.

Before You Buy

Quick Fit Check

• Good match if: Your site has wide open outdoor areas - car parks, forecourts, or building frontages - where you need 180 degree coverage from a single wall or eave mounting point and want to reduce the number of individual cameras and cable runs.
• Good match if: You are installing in a location with difficult physical access for commissioning, and the NFC configuration variant allows faster setup from a mobile device without temporary wiring.
• You may need a different model if: Your requirement is operator-controlled directional tracking, optical zoom into distant subjects, or monitoring a narrow long-distance approach - a PTZ camera with motorised zoom would be a better fit for those scenarios, and Security Australia stocks a range of PTZ options worth comparing.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need continuous 180 degree wide-area outdoor coverage from a single mounting point with 32MP of combined resolution and independent IR per sensor zone, and want to reduce overall camera count and cable runs on a site.
• You may need a different model if: Your monitoring task requires operator-controlled pan, tilt, and optical zoom tracking of moving subjects across a large area - a PTZ camera with motorised zoom is purpose-built for that application and would be a more suitable product type.
• Pairs well with: A high-channel-count PoE+ NVR with sufficient storage for multiple 8MP streams, and a managed PoE+ switch that can supply adequate power to the multisensor unit at the install location.

Common Questions

1. How many NVR channels does this camera use?

   Four channels - one per sensor. This is one of the most commonly missed planning points with multisensor cameras. Each of the 4 independent 8MP sensors records as a separate channel on your NVR, so a 16-channel NVR installing 4 of these units would be fully occupied by those cameras alone. Confirm your NVR channel count before specifying this model on a multi-camera project.

2. Does this camera cover a full 360 degrees?

   No. The DS-2CD6984G1 covers 180 degrees, not 360. The Panovu 4-directional sensor arrangement produces a continuous 180 degree horizontal panoramic arc. For full 360 degree coverage from a single unit, a different product type - such as a fisheye or 360 degree multisensor camera - would be required. This model is designed for wall, eave, or pole-edge mounting where the forward 180 degree arc is the coverage zone.

3. Will this camera work with a standard PoE switch port?

   Standard IEEE 802.3af PoE (15.4W) is unlikely to be sufficient for a 4-sensor multisensor unit of this type. Verify the specific power draw of the DS-2CD6984G1 against your switch's per-port power budget before installation. PoE+ (IEEE 802.3at, 30W per port) is typically required for cameras with multiple sensors and multiple IR arrays. Using an underpowered switch port can result in the camera failing to boot, cycling, or operating in a degraded state.

4. What does the /NFC variant actually allow you to do during install?

   The /NFC variant allows initial camera configuration using a compatible NFC-enabled mobile device held close to the camera unit, without requiring a physical laptop connection or temporary network cable. This is practically useful for cameras installed at height - on poles, high eaves, or rooftop structures - where returning to the mounting position with a laptop for initial setup adds access cost. Configuration depth via NFC will vary; full settings management is still typically handled via the network interface once the camera is online.

5. Can I view each sensor's feed independently on screen while also seeing the stitched panorama?

   Yes. Each sensor streams independently to the NVR, meaning an operator can call up any individual sensor's channel at full 8MP resolution on one monitor while a stitched or multi-view panoramic display runs on another. This is one of the operational advantages of a multisensor design over a single wide-angle fisheye - individual channel resolution is maintained without dewarping the entire frame just to zoom into one area.

6. How does the 180 degree coverage of this camera compare to a fisheye camera covering the same arc?

   The multisensor approach used in the DS-2CD6984G1 preserves full 8MP resolution per zone, whereas a fisheye camera covering the same angular arc distributes its single sensor's total pixel count across the entire 180 degree scene - resulting in significantly lower resolution per area of coverage. Fisheye cameras also require dewarping software to produce a usable rectilinear image, which introduces processing overhead and some geometric distortion at the extremes. The multisensor design records each zone with its own lens and sensor, avoiding both the resolution dilution and the dewarping step. Part of the Security Australia Hikvision Panovu range, this model is specifically designed for applications where resolution at the edges of a panoramic scene matters.

7. Does this camera work for night-time monitoring without external lighting?

   Yes. Each of the 4 sensors has its own dedicated IR illumination array with a rated range of up to 20 metres per sensor. In complete darkness, all 4 sensor zones remain actively illuminated simultaneously. The 2.8mm wide-angle lens on each sensor means the IR throw covers the broad field of view each sensor is responsible for. For scenes beyond 20 metres or where colour night-time imaging is required, a full-colour or supplemental lighting solution would be a better fit.

Downloads & Resources

No downloads available for this product.
