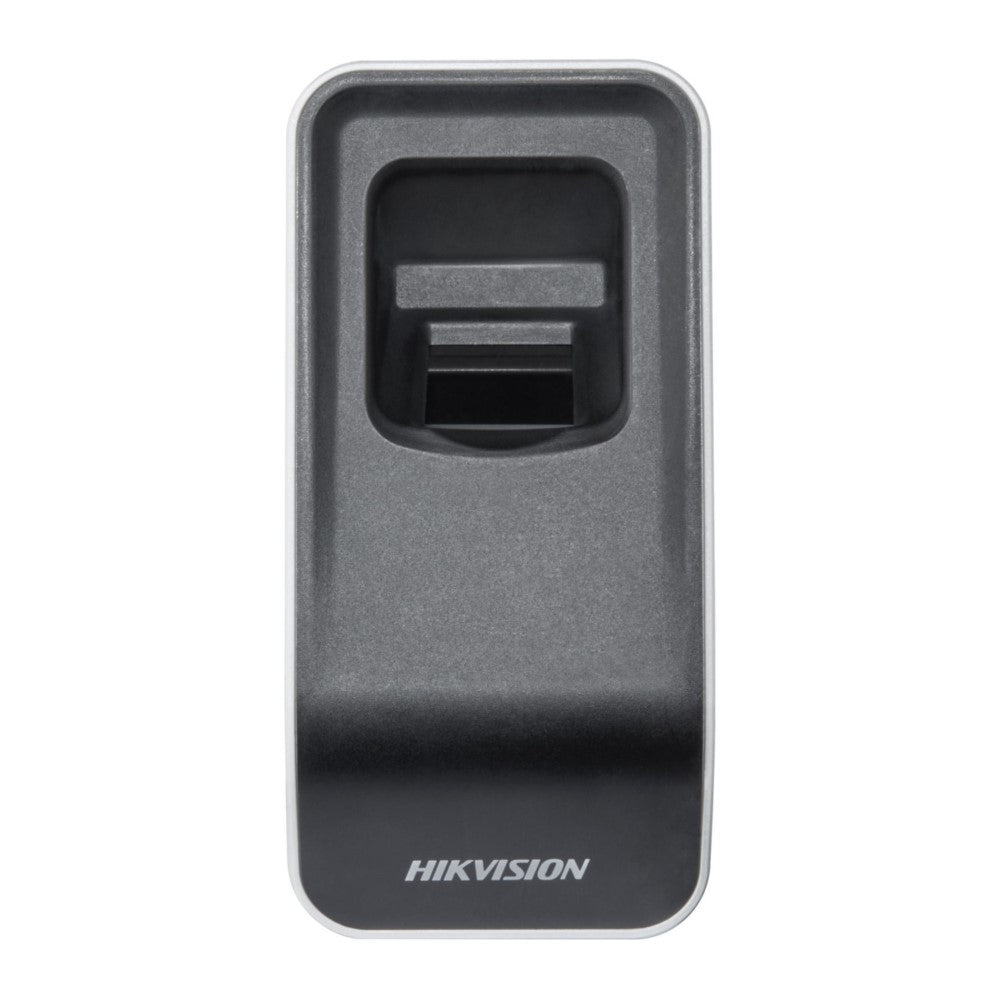

Hikivision DS-K1F820-F Optical Fingerprint Enrollment Scanner Access Control

Model: DS-K1F820-F

Who This Is For

For access control installers and system administrators who need a reliable desktop tool to enrol fingerprint templates into Hikvision access control controllers and modules. The DS-K1F820-F connects directly to a Windows PC via USB 2.0 with no additional drivers required - it supports Plug and Play - making it straightforward to integrate into existing enrolment workflows. It captures fingerprint images at 508 dpi using an optical sensor with red backlight, then uploads or downloads fingerprint characteristic data directly to compatible Hikvision controllers. It also supports checking the completeness of registered fingerprint templates, which helps identify poor-quality enrolments before they cause access issues in the field. At 100 x 48 x 35 mm and powered entirely over USB, this is a compact, desk-based enrolment tool suited to corporate offices, government facilities, schools, and any site running a Hikvision fingerprint-based access control system that requires batch enrolment or ongoing credential management.

Download Product Datasheet (PDF)

What This Device Actually Does

Who Buys This Model

• Access Control Installers: Running batch enrolments across a Hikvision fingerprint access system at handover - the PnP USB connection means it can be unpacked and used at a new site immediately without driver setup.
• Corporate IT and Security Managers: Managing ongoing staff enrolments at a reception or HR desk, using the upload/download function to maintain fingerprint credentials across multiple Hikvision controllers from a single workstation.
• Government and Education Facility Managers: Sites with large user populations that require periodic re-enrolment - the template completeness check allows verification that stored templates meet quality thresholds before users are signed off.
• Security System Integrators: Specifying a dedicated enrolment peripheral separate from the access reader itself, keeping the enrolment process off-site or in a controlled environment rather than enrolling directly at each door location.

Honest Assessment

The DS-K1F820-F does its specific job well: it provides a clean, high-resolution optical enrolment path into Hikvision access control systems without requiring an external power supply or manual driver installation on Windows XP, 7, or 10. The 508 dpi capture resolution and living fingerprint support give a solid foundation for template quality, and the template completeness check is a practical feature that reduces post-installation callbacks caused by poor enrolments. At 100 x 48 x 35 mm it takes up minimal desk space during enrolment sessions. What it will not do is operate as a standalone access reader - it is purely an enrolment and management peripheral requiring a connected Windows PC and compatible Hikvision controller infrastructure. It is also limited to Windows; it is not confirmed for macOS or Linux environments. For sites needing a combined reader and enrolment device, a different product type is more appropriate. The DS-K1F820-F is available through Security Australia as part of the Hikvision access control range.

Before You Buy

Quick Fit Check

• Good match if: You are deploying a Hikvision fingerprint access control system and need a dedicated desktop enrolment device that connects via USB 2.0 with no external power supply or driver installation required.
• Good match if: Your site requires template quality verification before users are activated - the completeness check function allows administrators to confirm registered templates are intact prior to deployment.
• You may need a different model if: You need a device that also functions as a door-mounted fingerprint access reader - a combined reader/controller unit is the more appropriate product type for that application.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a dedicated high-resolution optical enrolment peripheral for a Hikvision fingerprint access system that is USB-powered, PnP, and supports template completeness verification.
• You may need a different model if: You need a device that functions as both an enrolment tool and a live access reader at the door - a combined fingerprint access terminal is the appropriate product type for that application.
• Pairs well with: Hikvision fingerprint-capable access control controllers, access control modules, and Hikvision access control management software.

Common Questions

1. Does this device need an external power supply?

   No. The DS-K1F820-F is powered entirely over USB at 5 VDC / 200 mA, drawing power directly from the connected Windows PC. There is no external power adapter or separate power cable required, which keeps the enrolment desk setup simple and portable.

2. Will this work with Windows 11?

   Not confirmed. The DS-K1F820-F is confirmed compatible with Windows XP, Windows 7, and Windows 10. Windows 11 compatibility is not stated in the product specification. If your enrolment workstation runs Windows 11, check with Hikvision technical support before purchasing to confirm driver and software compatibility.

3. Does this work as a standalone door reader?

   No. The DS-K1F820-F is a USB-connected desktop enrolment peripheral, not a door-mounted access reader. It requires a connected Windows PC to operate and communicates with Hikvision access controllers via software. For a device that reads fingerprints at the door and grants or denies access, a Hikvision fingerprint access terminal is the correct product type to specify.

4. What resolution does the optical sensor capture at?

   The sensor captures at 508 dpi, producing a fingerprint template of 256 x 288 pixels. This resolution is standard for access control enrolment applications and provides sufficient ridge detail for reliable matching at Hikvision fingerprint readers during normal access events.

5. Will this scanner work with non-Hikvision access control systems?

   This is not confirmed. The DS-K1F820-F is specified and documented as a Hikvision access control enrolment tool, designed to upload and download fingerprint data to compatible Hikvision controllers and modules. Compatibility with third-party access control platforms is not stated. If you are running a non-Hikvision system, contact Security Australia to confirm whether an alternative enrolment device is more appropriate for your platform.

6. What does the template completeness check actually do?

   It allows the software to verify that a registered fingerprint template is intact and usable. In practical terms, this means an administrator can audit enrolled templates - for example after a controller migration or bulk import - and identify any records that are corrupted or incomplete before those users attempt to access a door and are unexpectedly denied.

7. Can fingerprint templates be copied between different Hikvision controllers using this device?

   Yes, in principle. The device supports both download and upload of fingerprint characteristic data, which means templates can be downloaded from one compatible Hikvision controller and uploaded to another. This is useful for multi-controller sites or when replacing a controller. Confirm that both controllers are compatible with the DS-K1F820-F via Hikvision's software documentation before relying on this workflow.
