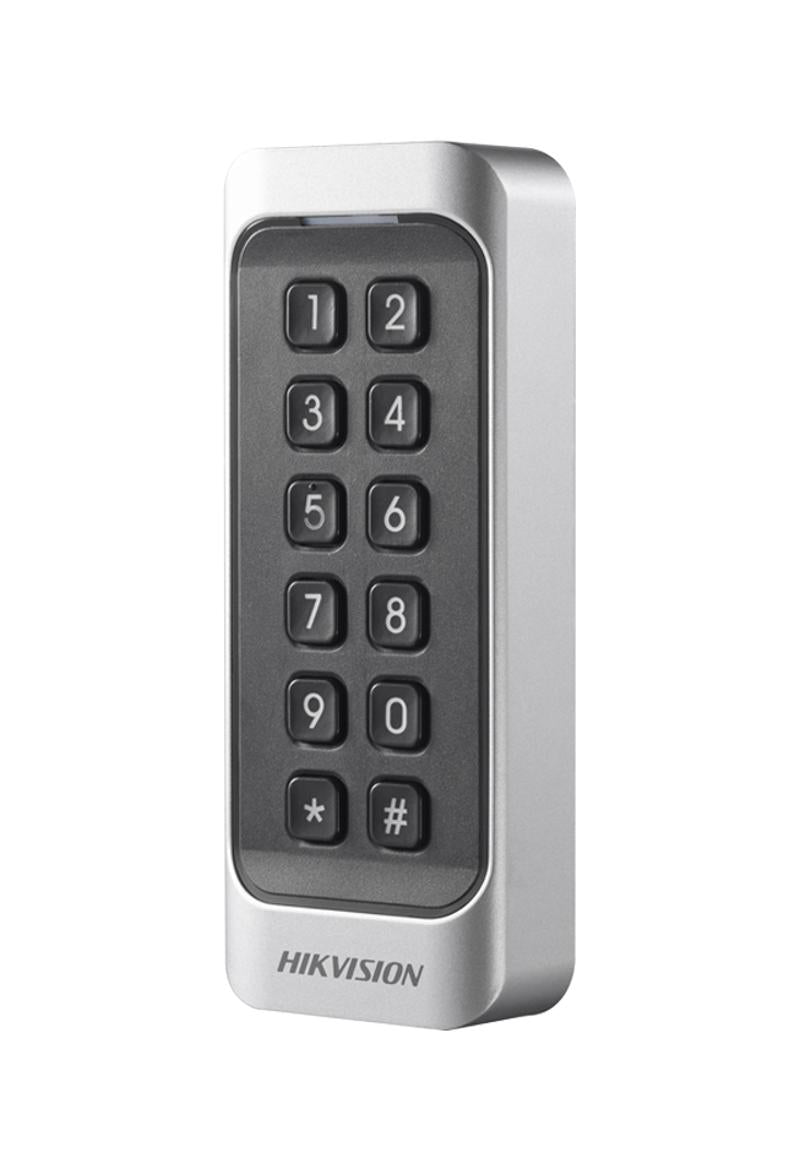

Hikivision DS-K1107AMK Card Reader with Keypad Access Control

Model: DS-K1107AMK

Who This Is For

Security integrators specifying access control for commercial doors, stairwell entries, or secured office suites where both card and PIN authentication is required will find the Hikvision DS-K1107AMK a practical, wired reader choice. It combines a 13.56 MHz Mifare card reader with a backlit keypad, allowing site managers to enforce dual-factor entry - card plus PIN - on sensitive access points without deploying a separate reader and keypad. The unit connects to Hikvision access control panels via Wiegand output and is rated for outdoor installation, making it suitable for building perimeters, car park boom gates, server room entries, and any access point that sees variable weather. It suits integrators who need a compact, surface-mount reader that works within an existing Hikvision access ecosystem and supports tamper detection as a standard feature.

What This Reader Actually Does

Who Buys This Model

• Commercial Fitout Installers: Specifying readers for office tenancy doors, server rooms, and lift lobbies where card-plus-PIN is a client or insurance requirement on restricted zones.
• Hikvision Access Panel Integrators: Deploying multi-door systems using Hikvision access controllers, needing a reader that connects cleanly via Wiegand without protocol conversion or third-party middleware.
• Body Corporate and Strata Managers: Sourcing replacement or additional readers for apartment building entry points and car park gates where Mifare fobs are already issued to residents.
• Industrial and Logistics Site Managers: Mounting readers at external yard gates, loading dock entries, and demountable office blocks where IP65 weather resistance and tamper detection are baseline requirements.

Honest Assessment

The DS-K1107AMK does its core job well - it reads Mifare cards reliably, supports PIN entry for dual-factor scenarios, outputs clean Wiegand data, and handles outdoor conditions with an IP65 rating. For Hikvision-based access systems, it fits directly into the ecosystem without configuration friction. The tamper alarm and backlit keypad are practical inclusions that add real value in unattended outdoor installs. What this reader will not do is operate as a standalone controller - it has no onboard decision-making and requires a compatible access control panel to process credentials and drive a lock output. It also does not support Bluetooth mobile credentials or biometric verification; if fingerprint or face recognition at the door is a project requirement, a different reader type from the Hikvision range would be needed. The DS-K1107AMK is available through Security Australia and suits straightforward card and PIN installations where wired Wiegand connectivity to a panel is already planned.

Before You Buy

Quick Fit Check

• Good match if: You are adding a reader to an existing Hikvision access control panel installation and need card-plus-PIN capability at an outdoor entry point - the Wiegand output and IP65 rating cover both requirements in a single unit.
• Good match if: Your site already issues Mifare credentials and you need a replacement or additional reader that accepts existing cards and fobs without re-issuing or re-programming the credential stock.
• You may need a different model if: Your project requires biometric verification, Bluetooth mobile credentials, or a standalone reader with onboard access decision-making - a biometric or smart reader model from the access control range would be more appropriate for those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a Wiegand-output Mifare reader with an integrated keypad for card-plus-PIN authentication at an outdoor or indoor door connected to a Hikvision access panel.
• You may need a different model if: Your project requires biometric verification at the reader, mobile Bluetooth credentials, or a standalone reader with onboard access control logic - a biometric access terminal or smart reader with built-in controller would better suit those requirements.
• Pairs well with: A Hikvision multi-door access control panel, a compatible electric strike or magnetic lock, and a Hikvision video intercom system for visitor verification at the same entry point.

Common Questions

1. Does the DS-K1107AMK work as a standalone access controller, or does it need a panel?

   No. The DS-K1107AMK is a reader only - it outputs credential data via Wiegand but has no onboard logic to make access decisions or directly drive a lock output. It must be connected to a compatible Hikvision access control panel or another Wiegand-capable access controller to function as part of a working access system.

2. What card types does the DS-K1107AMK read?

   It reads Mifare cards and fobs operating at 13.56 MHz. This is the standard frequency used by most commercial access credentials in Australia. It does not read older 125 kHz EM or HID proximity cards, so if your site uses low-frequency proximity credentials, you would need to confirm card compatibility before deploying this reader.

3. Can I use the keypad for PIN-only access without a card?

   Yes. The reader supports PIN-only authentication mode, so users without a card can still be granted access by entering a valid PIN. This is useful for contractor access scenarios where issuing a physical card is impractical, and it can be configured alongside card-only or card-plus-PIN modes for different user groups on the same door.

4. Is the DS-K1107AMK suitable for outdoor installation?

   Yes. The IP65 rating means it is fully protected against dust ingress and direct water jets, making it appropriate for external mounting on building facades, gate pedestals, and covered outdoor entries. The operating temperature range of -40°C to 60°C also covers Australian climate conditions from alpine to tropical environments.

5. Will this reader work with non-Hikvision access control panels?

   In most cases, yes. The Wiegand output (W26/W34) is a broadly supported industry standard, and many third-party access control panels accept Wiegand readers. However, full feature support - including tamper alarm integration and RS-485 communication - is confirmed when paired with a Hikvision access panel. For third-party panel compatibility, check your panel's Wiegand input specifications before ordering. The DS-K1107AMK is stocked by Security Australia and support queries on compatibility can be directed to the team before purchase.

6. How does the tamper alarm work on the DS-K1107AMK?

   The tamper alarm is triggered when the reader is physically removed from its mounting surface or the housing is forced open, activating a tamper output signal that the connected access panel can act on. This is particularly useful for externally mounted readers at unattended entry points, where physical interference with the hardware is a risk that needs to be flagged to a monitoring system or site manager.

Cabling Considerations

• Cable Type: Shielded multi-core cable recommended for the Wiegand data run - typically a 4-6 core shielded cable to carry power, ground, data lines, and tamper signal.
• Max Cable Run: Wiegand signal integrity is typically reliable to 100 m; beyond this distance, signal degradation can cause read errors. For longer runs, use RS-485 communication where the access panel supports it.
• Power Notes: The reader requires 12 VDC. Power is typically sourced from the access control panel or a local PSU at the door - confirm voltage drop on the cable run, particularly for runs approaching 100 m, to ensure the reader receives adequate voltage at the end of the line.
• Wiring Tips: Keep Wiegand data lines (D0/D1) physically separated from high-current lines like lock power to avoid signal interference. At the reader end, seal all cable entry points with weatherproof silicone or gland fittings to preserve the IP65 rating - unsupported penetrations are a common cause of moisture ingress and premature reader failure in outdoor installs.
