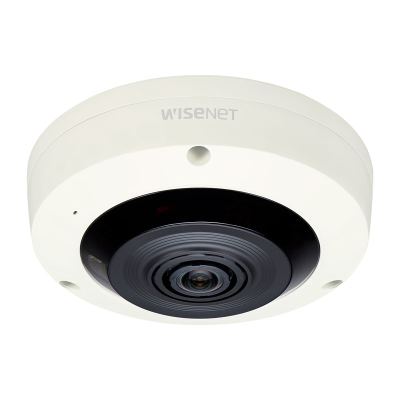

Hanwha Wisenet XNF-8010R 6MP Indoor Fisheye Camera, H.265, 30fps, 120dB WDR, 15m IR, 1.6mm
X Series 6 MP sensor 360° Indoor Fisheye
The XNF-8010R utilizes H.265 compression with WiseStream II technology, optimizing bandwidth and storage efficiency. It also offers various viewing modes, including panoramic, double panoramic, and quad view, allowing flexible monitoring options. With enhanced cybersecurity features, the camera is protected against unauthorized access. The XNF-8010R includes a built-in microphone for audio monitoring and is equipped with a suite of analytics, such as heat mapping and people counting, enhancing situational awareness. It supports Power over Ethernet (PoE), simplifying installation.
Key Features
- 2048 x 2048 resolution, 30fps
- Fisheye lens 1.6mm (192?X192?) W/ simple focus
- Built-in IR for up to 49? or 15m
- Triple Codec: H.265, H.264 and MJPEG multiple streaming
- WiseStream II compression technology
- WDR 120dB @30fps
- Loitering, directional detection, fog detection, tampering, motion detection, object enter or exit an area
- Sound classification, heatmap, people counting and queue line management
- Dual SD card slots
- Power: PoE or 12VDC
Code/SKU: XNF-8010R
Quick Specs:
- Smart Codec: Manual (5 areas), WiseStreamⅡ
- Bitrate Control:
- H.264/H.265: CBR or VBR
- MJPEG: VBR
- Streaming: Multiple streaming (Up to 10 profiles)
| Video | |
|---|---|
| Imaging Device | 1/1.8" 6M CMOS |
| Resolution | Original view: 2048x2048, 1280x1280, 1080x1080, 960x960, 768x768, 720x720, 640x640, 480x480 Single panorama: 2048x512, 1920x480, 1280x320, 640x160, 704x176 Double panorama: 2048x1024, 1920x960, 1280x640, 640x320, 704x352 Quad view: 2048x1536, 1600x1200, 1280x960, 1024x768, 800x600, 640x480, 704x576 Q1/2/3/4: 1024x768, 800x600, 640x480 |
| Max. Framerate | H.264/H.265 : 30fps/25fps@2048x2048(60Hz/50Hz) MJPEG : Max 15fps |
| Min. Illumination | Color: 0.1 Lux (F1.6, 1/30sec), BW: 0 Lux (IR LED On) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 714x480(N), 702x576(P) for Installation USB: Micro USB Type B, for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 1.6mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 192˚ / V: 192˚ / D: 192˚ |
| Min. Object Distance | 0.3m |
| Focus Control | Simple remote control focus via network |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, Quadrangle zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Business Intelligence | People counting, Queue management, Heatmap |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
| Audio In | Selectable(mic in/line in/built-in mic) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Viewable Length | 15m(49.21ft) |
| Radiometry | |
| Temperature Accuracy | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, SRTP(Unicast) |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 512GB |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | EN55011:2009+A1:2010, EN50581:2012,EN50121-3-2:2015, EN61000-4-2:2009, EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014 EN61000-4-6:2009, EN50155:2007 |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 12W 12VDC: Max 11W |
| Mechanical | |
| Color / Material | Ivory / Aluminum |
| Product Dimensions / Weight | Ø146x54.8mm(Ø5.75x2.16"), 730g(1.61 lb) |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Have a question?
Hanwha Wisenet XNF-8010R 6MP Indoor Fisheye Camera, H.265, 30fps, 120dB WDR, 15m IR, 1.6mm
The Hanwha Vision XNF-8010R is a high-performance indoor fisheye camera featuring a 6 MP sensor that delivers clear, detailed images. Designed for 360° coverage, it ensures comprehensive surveillance with minimal blind spots. This camera is part of the X Series, known for advanced imaging technologies and superior video quality. It supports day and night functionality with an integrated IR illuminator for clear images even in low-light conditions. The XNF-8010R utilizes H.265 compression with WiseStream II technology, optimizing bandwidth and storage efficiency. It also offers various viewing modes, including panoramic, double panoramic, and quad view, allowing flexible monitoring options.
With enhanced cybersecurity features, the camera is protected against unauthorized access. The XNF-8010R includes a built-in microphone for audio monitoring and is equipped with a suite of analytics, such as heat mapping and people counting, enhancing situational awareness. It supports Power over Ethernet (PoE), simplifying installation. The camera is NDAA compliant, making it suitable for use in sensitive government applications. Its compact design and sleek aesthetics make it ideal for indoor environments where discreet surveillance is required. The camera also offers intelligent video analytics, including tampering detection and virtual line crossing. Additionally, it is compatible with Hanwha Vision's SSM and Wisenet Wave VMS for seamless integration into existing security systems.
Features
- 6 MP Sensor for high-resolution image quality
- 360° Panoramic View for full coverage
- Day & Night functionality with built-in IR LEDs
- Advanced WDR (Wide Dynamic Range) up to 120dB for enhanced visibility in high contrast scenes
- Multiple viewing modes including panoramic, double panorama, quad view, and single view
- Intelligent Video Analytics (IVA) with features like motion detection, tampering, and loitering detection
- Built-in MicroSD/SDHC/SDXC slot (up to 128 GB) for edge storage
- IP66-rated weather-resistant housing for outdoor installation
- IK10-rated vandal-resistant housing for enhanced durability
- PoE (Power over Ethernet) for simplified installation
- ONVIF compliant for integration with third-party systems
Specifications
- Image Sensor: 6 MP (3072 x 2048) CMOS
- Lens: Fixed Fisheye Lens, 1.05mm
- IR Range: Up to 15m (49.21 ft)
- WDR: 120dB
- Frame Rate: Up to 30fps at 6 MP resolution
- Compression: H.265, H.264, MJPEG
- Audio: Built-in microphone, audio input/output
- Video Out: No
- Network: Ethernet (RJ-45) 10/100 BASE-T
- Edge Storage: MicroSD/SDHC/SDXC slot (up to 128 GB)
- Operating Conditions: -40°C to +55°C (-40°F to +131°F), Humidity 0~100%
- Power Supply: PoE, 12V DC
- Power Consumption: Max. 8W
Additional Details
| General | |
|---|---|
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 512GB |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | EN55011:2009+A1:2010, EN50581:2012,EN50121-3-2:2015, EN61000-4-2:2009, EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014 EN61000-4-6:2009, EN50155:2007 |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 12W 12VDC: Max 11W |
| Mechanical | |
| Color / Material | Ivory / Aluminum |
| Product Dimensions / Weight | Ø146x54.8mm(Ø5.75x2.16"), 730g(1.61 lb) |
