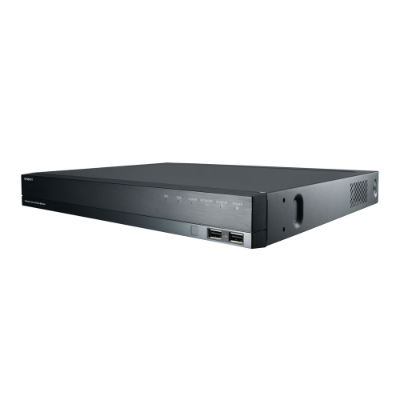

Hanwha Wisenet 16 CH PoE NVR
The QRN-1610S is equipped with an HDMI output, supporting up to 4K video display, which is ideal for large surveillance installations. It includes advanced video analytics, enhancing the effectiveness of security operations by enabling intelligent event detection. The NVR supports RAID 1 for data redundancy, ensuring continuous recording even in the event of a hard drive failure. It also offers ample storage capacity with the ability to accommodate multiple hard drives, catering to extensive recording needs.
Key Features
Code/SKU: QRN-1610S
Quick Specs:
| Inputs | |
|---|---|
| Signal Type | Inputs |
| Max. 16CH | |
| Resolution | 8MP ~ CIF |
| Protocols | Wisenet, ONVIF |
| Local Display | HDMI: 3840 x 2160, 1920x1080, 1280x720; VGA: 1920x1080, 1280x720 |
| Multi Screen Display | [Local Monitor] 1 / 2V / 3V / 4 / 9 / 16 Sequence; [Web] 1 / 4 / 9 / 16 / 4 / Sequence |
| Resolution | 8MP(60fps), 5MP(90fps), 3MP(120fps), 2MP(240fps), 720p(480fps), D1(480fps) |
| Local Display | |
|---|---|
| Multi Screen Display | Resolution Embedded |
| Linux | |
| Compression | H.265, H.264, MJPEG |
| Record Rate (Analog) | Max. 128Mbps |
| Resolution | 8MP ~ CIF |
| Mode | Normal, Schedule (Continuous/Event), Event (Pre/Post) |
| Event Trigger | Alarm Input, Video Loss, Camera Event (Alarm, MD, Video Analytics, Defocus) |
| Event Action | e-Mail, PTZ Preset, Alarm Out, Buzzer, Monitor Out |
| Playback Bandwidth | Max. 32Mbps (16CH simultaneously) |
| User | Max. 4 Users (Local 1, Remote 3) |
| Simultaneous Playback | Max. 16CH (Network); Max. 8CH (Local Monitor) |
| Fisheye Dewarping | N/A (processed on Web / CMS) |
| Mode | Date & Time (Calendar), Event Log list, Text Search, Smart Search |
| Resolution | 8MP ~ CIF |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down |
| Storage | |
|---|---|
| Supported HDD | Up to 6TB |
| HDD Slot | SATA 2ea (Max. 12TB) |
| External | RAID |
| File Backup | BU/Exe (GUI), JPG/AVI (Network) |
| Function | Multi channel (Up to 8CH) Play, Date-Time/Title display |
| Network & Audio | |
|---|---|
| Wired (LAN) | |
| WiFi | |
| 3G/LTE | |
| Input/Output | 16 CH (network) |
| Compression | G.711, G.726, AAC (16/48KHz) |
| Audio Communication | 2-Way |
| Compatibility & Control | |
|---|---|
| Supported OS | Windows 7, 8, 10, Mac OS X 10.9, 10.10, 10.11 |
| Supported Browser | Plug-in free web viewer - Supported Browser: Google Chrome 47, MS Edge 20; Plug-in Webviewer - Supported MS Explorer 11, Apple Safari 9 (Mac OS X only) |
| Register | Auto, Manual |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup, Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
| Control | Via GUI, Webviewer, SPC-2000 |
| Preset | 300 Presets |
| Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI (SUNAPI) |
| Control | Live (Multi-Profile Support), Playback |
| Max. Remote Users | Search (3), Live Unicast (10) |
| Failover | ARB |
| Support | Indicator |
| Log List | Max. 20,000 (System Log, Event Log each) |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hanwha Wisenet QRN-1610S NEW-Q 16ch 4K PoE NVR, H.265, 128Mbps, 3TB HDD (2 SATA 12TB max)
The Hanwha Wisenet QRN-1610S is a 16-channel PoE Network Video Recorder (NVR) designed for reliable and efficient video surveillance management. With support for up to 8MP resolution recording, it ensures high-definition video capture for detailed monitoring. The device features built-in PoE ports, allowing easy and cost-effective camera installation by supplying power and data through a single cable. It supports H.265, H.264, and MJPEG compression formats, optimizing storage efficiency without compromising video quality. The NVR comes with a user-friendly interface, making it easy to configure and operate. It also offers extensive network integration capabilities, including remote access through mobile applications and web browsers, ensuring flexible monitoring options.
The QRN-1610S is equipped with an HDMI output, supporting up to 4K video display, which is ideal for large surveillance installations. It includes advanced video analytics, enhancing the effectiveness of security operations by enabling intelligent event detection. The NVR supports RAID 1 for data redundancy, ensuring continuous recording even in the event of a hard drive failure. It also offers ample storage capacity with the ability to accommodate multiple hard drives, catering to extensive recording needs. The QRN-1610S is compatible with a wide range of Wisenet cameras, ensuring seamless integration within the Hanwha Vision ecosystem. Additionally, it features easy scalability, allowing users to expand their surveillance system as needed. The device supports multiple recording modes, including continuous, scheduled, and event-based recording, providing flexibility in how surveillance footage is captured. It also includes robust cybersecurity features, protecting the system from unauthorized access. Overall, the Hanwha Wisenet QRN-1610S is a versatile and powerful NVR solution suitable for various surveillance environments.
Features
Specifications
| Supported OS | Windows 7, 8, 10, Mac OS X 10.9, 10.10, 10.11 |
| Supported Browser | Plug-in free web viewer - Supported Browser: Google Chrome 47, MS Edge 20; Plug-in Webviewer - Supported MS Explorer 11, Apple Safari 9 (Mac OS X only) |
| Register | Auto, Manual |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup, Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
| Control | Via GUI, Webviewer, SPC-2000 |
| Preset | 300 Presets |
| Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI (SUNAPI) |
| Control | Live (Multi-Profile Support), Playback |
| Max. Remote Users | Search (3), Live Unicast (10) |
| Failover | ARB |
| Support | Indicator |
| Log List | Max. 20,000 (System Log, Event Log each) |
