  • Sku: QNV-7012R
  • Vendor: SecurityAustralia

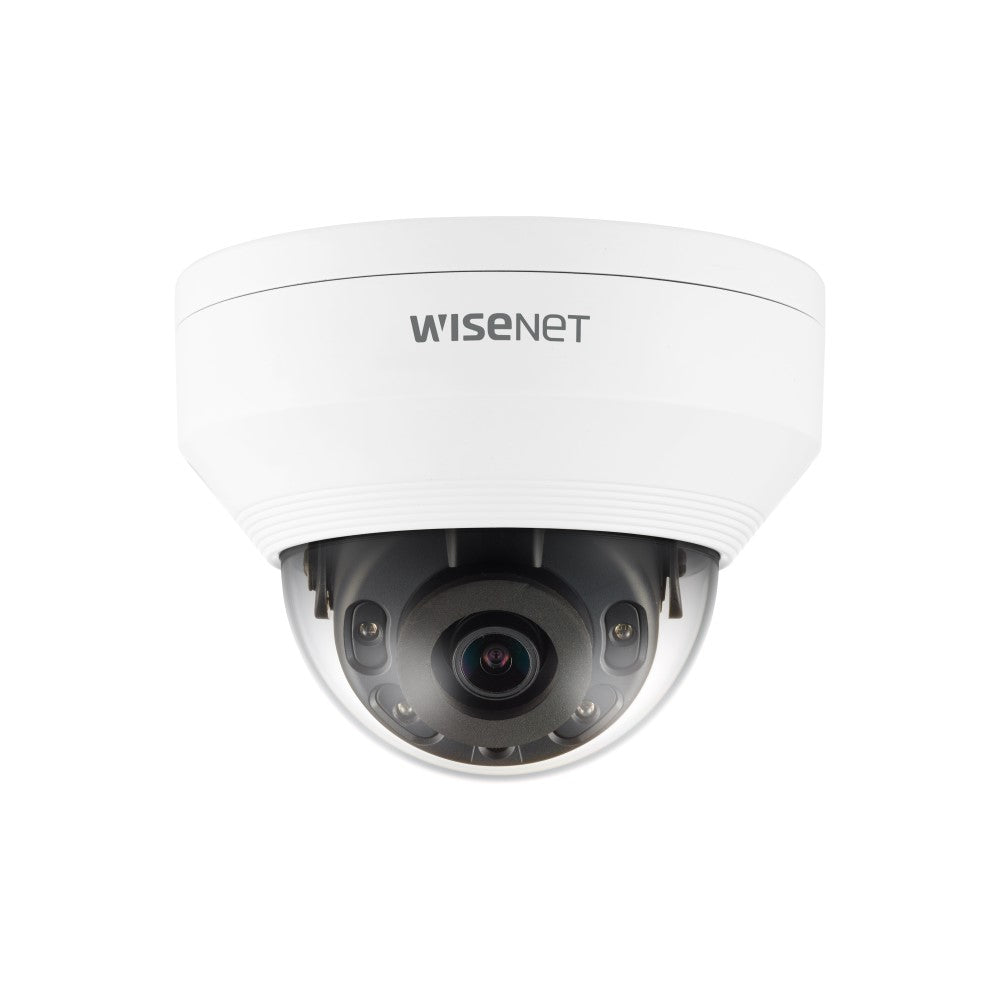

Hanwha Wisenet QNV-7012R 4MP Outdoor Dome Camera, H.265, 20fps, 120dB WDR, 30m IR, 2.8mm (replaces QNV-7010R)

$450.00 AUD
$420.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING

4MP IR Vandal Dome Camera

The QNV-7012R supports H.265 compression technology, optimizing storage and bandwidth efficiency. Its weatherproof housing ensures reliable performance in various outdoor conditions. Installation is simplified by its flexible mounting options, which accommodate different placement needs. The camera includes built-in smart analytics, such as motion detection and line crossing, for enhanced security monitoring. Its sleek, dome-shaped design is both discreet and aesthetically pleasing.

Key Features

  • Maximum 4MP resolution
  • Color: 0.15Lux (F2.0, 1/30sec); B/W: 0Lux (IR LED On)
  • 2.8mm fixed focal length
  • H.265, H.264, MJPEG codec supported; Multiple streaming
  • Motion detection, Tampering, Defocus detection
  • Hallway view (90°/270°), LDC support
  • Micro SD/SDHC/SDXC memory slot (up to 128GB)
  • IR viewable length: 20m (65.62ft)
  • IP66, IK10, PoE, 12VDC

Code/SKU: QNV-7012R
Quick Specs:

  • Ethernet: RJ-45 (10/100BASE-T)
  • Video Compression:
    • H.265/H.264: Main/High, MJPEG
  • Audio Compression:
    • G.711 u-law / G.726 Selectable
    • G.726 (ADPCM): 8KHz
    • G.711: 8KHz
    • G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
  • Smart Codec: Manual (5 areas), WiseStreamⅡ
  • Bitrate Control:
    • H.264/H.265: CBR or VBR
    • MJPEG: VBR

Specifications

Video
Imaging Device 1/3" CMOS
Resolution 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 15fps (@4MP Max. 2fps)
Min. Illumination Color : 0.15Lux (F2.0, 1/30sec)
B/W : 0Lux (IR LED On)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Lens
Focal Length (Zoom Ratio) 2.8mm fixed focal
Max. Aperture Ratio F2.0
Angular Field of View H: 108°, V: 60°, D: 122°
Focus Control Fixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~350° / 0°~67° / 0°~355°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR
Motion Detection 4ea, polygonal zones
Privacy Masking 6ea, rectangular zones
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum/Maximum/Anti flicker (1/5~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Motion detection, Tampering, Defocus detection , Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction)
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
Handover(PTZ preset)
Audio In Selectable(mic in/line in)
Light Type IR LED (850nm)
Light Viewable Length 20m (65.62ft)
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression H.265/H.264 : Main/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Smart Codec Manual (5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(6 users) / Multicast
Multiple streaming(Up to 3 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Application Programming Interface ONVIF Profile S/G/T, SUNAPI (HTTP API)
Security
OS / Firmware Protect Firmware encryption
User authentication Digest Authentication, Prevent brute-force attack
Network authentication 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Secure Communication HTTPS, SRTP, WSS(Websocket secure)
Access Control Access control based on IP address
Data Protect Authentication information encryption, ZIP compression encryption
Audit User Access/System/Event log management
Device ID Device Certificate(Hanwha Private Root CA)
Secure Storage SDcard partition encrypt
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
Memory 512MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C~+55°C (-40°F ~ +131°F) / 0~95% RH
*Start up should be done at -30°C or above
Storage Temperature / Humidity -40°C~+60°C (-40°F~+140°F) / 0~95% RH
Certification IP66, IK10
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption PoE: Max 10.7W, typical 8.1W
12VDC: Max 9.1W, typical 6.5W
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product Dimensions / Weight ø120.3x91.7mm(ø4.74x3.61"), 510g(1.12 lb)
Compatible Conduit hole / Gangbox - SBD-120GP : Single, Double, 4"Octagon
Hanging Mount (Dome) SBP-122HMW
Backbox SBV-120GW
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) 37.5m(123.17ft)
Observe (63PPM/ 19PPF) 15.0m(49.27ft)
Recognize (125PPM/ 38PPF) 7.5m(24.63ft)
Identify (250PPM/ 76PPF) 3.8m(12.32ft)

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Hanwha Wisenet QNV-7012R 4MP Outdoor Dome Camera, H.265, 20fps, 120dB WDR, 30m IR, 2.8mm (replaces QNV-7010R)

$450.00 AUD
$420.00 AUD
 per

The 4MP IR Vandal Dome Camera QNV-7012R from Hanwha Vision is a robust surveillance solution designed for high-security environments. This camera boasts a high-resolution 4MP sensor, ensuring clear and detailed footage even in challenging conditions. Its infrared capabilities allow for effective monitoring in complete darkness, with a range that enhances its versatility. The camera is built with a vandal-resistant design, making it ideal for areas prone to tampering or vandalism. It features a wide viewing angle, which provides extensive coverage and minimizes blind spots. The QNV-7012R supports H.265 compression technology, optimizing storage and bandwidth efficiency. Its weatherproof housing ensures reliable performance in various outdoor conditions. Installation is simplified by its flexible mounting options, which accommodate different placement needs.

The camera includes built-in smart analytics, such as motion detection and line crossing, for enhanced security monitoring. Its sleek, dome-shaped design is both discreet and aesthetically pleasing. Additionally, the QNV-7012R integrates seamlessly with Hanwha Vision's broader surveillance ecosystem, allowing for centralized management and monitoring. The camera's advanced IR LEDs offer clear night vision, up to 30 meters away. With its durable construction, it is suitable for both commercial and residential settings. The QNV-7012R combines high performance with a user-friendly interface, making it a reliable choice for comprehensive security solutions.

Features

  • Maximum 4MP resolution
  • Color: 0.15Lux (F2.0, 1/30sec); B/W: 0Lux (IR LED On)
  • 2.8mm fixed focal length
  • H.265, H.264, MJPEG codec supported; Multiple streaming
  • Motion detection, Tampering, Defocus detection
  • Hallway view (90°/270°), LDC support
  • Micro SD/SDHC/SDXC memory slot (up to 128GB)
  • IR viewable length: 20m (65.62ft)
  • IP66, IK10, PoE, 12VDC
Technical Specifications:
Video
Imaging Device 1/3" CMOS
Resolution 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 15fps (@4MP Max. 2fps)
Min. Illumination Color : 0.15Lux (F2.0, 1/30sec)
B/W : 0Lux (IR LED On)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Lens
Focal Length (Zoom Ratio) 2.8mm fixed focal
Max. Aperture Ratio F2.0
Angular Field of View H: 108°, V: 60°, D: 122°
Focus Control Fixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~350° / 0°~67° / 0°~355°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR
Motion Detection 4ea, polygonal zones
Privacy Masking 6ea, rectangular zones
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum/Maximum/Anti flicker (1/5~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Motion detection, Tampering, Defocus detection , Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction)
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
Handover(PTZ preset)
Audio In Selectable(mic in/line in)
Light Type IR LED (850nm)
Light Viewable Length 20m (65.62ft)
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression H.265/H.264 : Main/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Smart Codec Manual (5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(6 users) / Multicast
Multiple streaming(Up to 3 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Application Programming Interface ONVIF Profile S/G/T, SUNAPI (HTTP API)
Security
OS / Firmware Protect Firmware encryption
User authentication Digest Authentication, Prevent brute-force attack
Network authentication 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Secure Communication HTTPS, SRTP, WSS(Websocket secure)
Access Control Access control based on IP address
Data Protect Authentication information encryption, ZIP compression encryption
Audit User Access/System/Event log management
Device ID Device Certificate(Hanwha Private Root CA)
Secure Storage SDcard partition encrypt
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
Memory 512MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C~+55°C (-40°F ~ +131°F) / 0~95% RH
*Start up should be done at -30°C or above
Storage Temperature / Humidity -40°C~+60°C (-40°F~+140°F) / 0~95% RH
Certification IP66, IK10
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption PoE: Max 10.7W, typical 8.1W
12VDC: Max 9.1W, typical 6.5W
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product Dimensions / Weight ø120.3x91.7mm(ø4.74x3.61"), 510g(1.12 lb)
Compatible Conduit hole / Gangbox - SBD-120GP : Single, Double, 4"Octagon
Hanging Mount (Dome) SBP-122HMW
Backbox SBV-120GW
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) 37.5m(123.17ft)
Observe (63PPM/ 19PPF) 15.0m(49.27ft)
Recognize (125PPM/ 38PPF) 7.5m(24.63ft)
Identify (250PPM/ 76PPF) 3.8m(12.32ft)
