  • Sku: HAN-PNM-8082VT
  • Vendor: SecurityAustralia

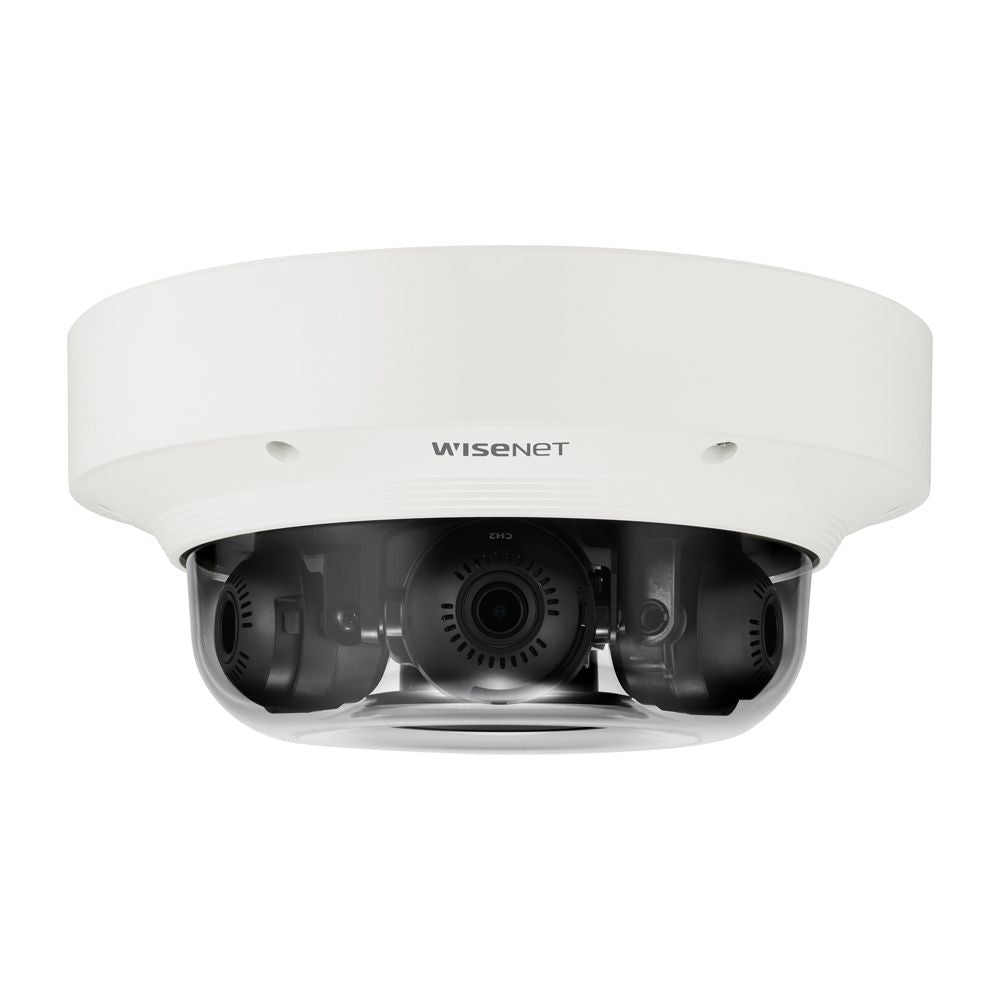

Hanwha Wisenet HAN-PNM-8082VT 3x 2MP Outdoor Multi Sensor & Directional Camera, 3 - 6mm **SPECIAL ORDER**

$1,730.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING

2MP x 3ch Multi-directional Camera

The PNM-8082VT is ideal for areas requiring broad visibility, such as intersections or large open spaces. The camera supports advanced WDR (Wide Dynamic Range) and low-light performance, ensuring clear images even in challenging lighting conditions. It is equipped with powerful IR LEDs that provide night vision capabilities up to 30 meters, enhancing security during nighttime operations. The camera's modular design allows for independent control of each lens, offering tailored views and precise coverage.

Key Features

  • 2MP x 3ch Multi-directional camera
  • Max. 30fps (H.265, H.264, MJPEG)
  • 3.0~6.0mm(2x) motorized varifocal lens
  • H.265, H.264, MJPEG codec, Multi streaming
  • Video analytics, WiseStreamⅡ
  • IP66, IK10, NEMA4X

Code/SKU: PNM-8082VT
Quick Specs:

  • Max. Aperture Ratio: F2.2 (Wide) - F3.1 (Tele)
  • Angular Field of View: H: 107˚ (Wide) ~ 56.3˚ (Tele) / V: 57˚ (Wide) ~ 31.5˚ (Tele) / D: 126˚ (Wide) ~ 64.3˚ (Tele)
  • Min. Object Distance: 0.5m (1.64ft)

Specifications

Video
Imaging Device 1/2.8" CMOS x 3CH
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.04lux(F2.2, 1/30sec)
BW: 0.004lux(F2.2, 1/30sec)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Lens
Focal Length (Zoom Ratio) 3~6mm(2x) motorized varifocal
Max. Aperture Ratio F2.2(Wide)-F3.1(Tele)
Angular Field of View H: 107˚(Wide)~56.3˚(Tele) / V: 57˚(Wide)~31.5˚(Tele) / D: 126˚(Wide)~64.3˚(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus
Lens Type Fixed iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0~360˚ / 0~73˚ / 0~90˚
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range extreme WDR(150dB)
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones
- Color: Grey, Green, Red, Blue, Black, White
- Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror
Analytics Defocus detection, Directional detection,Motion detection, Enter/Exit,Tampering, Virtual line
Alarm Triggers Analytics, Network disconnect
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC at event triggers
Handover
Network
Ethernet Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Device Certificate(Hanwha Techwin Root CA)
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 2slot 512GB(256GBx2)
Memory 4GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity Normal : -40°C~+55°(-40°F ~ +131°F) / Intermittent : -40°C~+60°C(-40°F ~ +140°F)
Less than 95% RH(Non condensing)
Storage Temperature / Humidity -50°C~+60°C(-58°F~+140°F) / Less than 90% RH
Certification IP66, IK10, NEMA4X
Input Voltage PoE+
Power Consumption Max : 16.5W, Typical : 8.2W
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product Dimensions / Weight Ø251x116.5mm / 3Kg
Compatible Conduit hole / Gangbox 3/4"
Hanging Mount (Dome) SBP-276HMW
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 28.4m(11.18ft) / Tele: 71.8m(28.27ft)
Observe (63PPM/ 19PPF) Wide: 11.4m(4.49)ft) / Tele: 28.7m(11.30ft)
Recognize (125PPM/ 38PPF) Wide: 5.7m(2.24ft) / Tele: 14.4m(5.67ft)
Identify (250PPM/ 76PPF) Wide: 2.8m(1.10)ft) / Tele: 7.8m(3.07ft)

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Hanwha Wisenet HAN-PNM-8082VT 3x 2MP Outdoor Multi Sensor & Directional Camera, 3 - 6mm **SPECIAL ORDER**

$1,730.00 AUD
 per

The Hanwha Vision PNM-8082VT is a versatile 2MP x 3ch Multi-directional Camera designed for comprehensive surveillance coverage. It features three adjustable camera modules, each offering 2MP resolution, allowing for flexible monitoring in multiple directions from a single device. With its compact design, the PNM-8082VT is ideal for areas requiring broad visibility, such as intersections or large open spaces. The camera supports advanced WDR (Wide Dynamic Range) and low-light performance, ensuring clear images even in challenging lighting conditions. It is equipped with powerful IR LEDs that provide night vision capabilities up to 30 meters, enhancing security during nighttime operations.

The camera's modular design allows for independent control of each lens, offering tailored views and precise coverage. It also supports H.265 compression, reducing bandwidth and storage requirements while maintaining high-quality video. The PNM-8082VT is compatible with various mounting options, making it adaptable to different installation environments. Built with weather-resistant housing, the camera is suitable for both indoor and outdoor use, withstanding harsh weather conditions. It also features intelligent analytics, including motion detection and tampering alerts, to enhance proactive monitoring. The camera integrates seamlessly with Hanwha Vision’s management software, providing a comprehensive security solution. Additionally, its vandal-resistant design ensures durability and reliability in high-risk areas. The PNM-8082VT supports Power over Ethernet (PoE), simplifying installation by reducing the need for additional power cables. Overall, this multi-directional camera offers a robust and flexible surveillance solution for various applications.

Features

  • 2MP x 3ch Multi-directional camera
  • Max. 30fps (H.265, H.264, MJPEG)
  • 3.0~6.0mm(2x) motorized varifocal lens
  • H.265, H.264, MJPEG codec, Multi streaming
  • Video analytics, WiseStreamⅡ
  • IP66, IK10, NEMA4X
Technical Specifications:
Video
Imaging Device 1/2.8" CMOS x 3CH
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.04lux(F2.2, 1/30sec)
BW: 0.004lux(F2.2, 1/30sec)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Lens
Focal Length (Zoom Ratio) 3~6mm(2x) motorized varifocal
Max. Aperture Ratio F2.2(Wide)-F3.1(Tele)
Angular Field of View H: 107˚(Wide)~56.3˚(Tele) / V: 57˚(Wide)~31.5˚(Tele) / D: 126˚(Wide)~64.3˚(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus
Lens Type Fixed iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0~360˚ / 0~73˚ / 0~90˚
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range extreme WDR(150dB)
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones
- Color: Grey, Green, Red, Blue, Black, White
- Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror
Analytics Defocus detection, Directional detection,Motion detection, Enter/Exit,Tampering, Virtual line
Alarm Triggers Analytics, Network disconnect
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC at event triggers
Handover
Network
Ethernet Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Device Certificate(Hanwha Techwin Root CA)
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 2slot 512GB(256GBx2)
Memory 4GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity Normal : -40°C~+55°(-40°F ~ +131°F) / Intermittent : -40°C~+60°C(-40°F ~ +140°F)
Less than 95% RH(Non condensing)
Storage Temperature / Humidity -50°C~+60°C(-58°F~+140°F) / Less than 90% RH
Certification IP66, IK10, NEMA4X
Input Voltage PoE+
Power Consumption Max : 16.5W, Typical : 8.2W
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product Dimensions / Weight Ø251x116.5mm / 3Kg
Compatible Conduit hole / Gangbox 3/4"
Hanging Mount (Dome) SBP-276HMW
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 28.4m(11.18ft) / Tele: 71.8m(28.27ft)
Observe (63PPM/ 19PPF) Wide: 11.4m(4.49)ft) / Tele: 28.7m(11.30ft)
Recognize (125PPM/ 38PPF) Wide: 5.7m(2.24ft) / Tele: 14.4m(5.67ft)
Identify (250PPM/ 76PPF) Wide: 2.8m(1.10)ft) / Tele: 7.8m(3.07ft)
