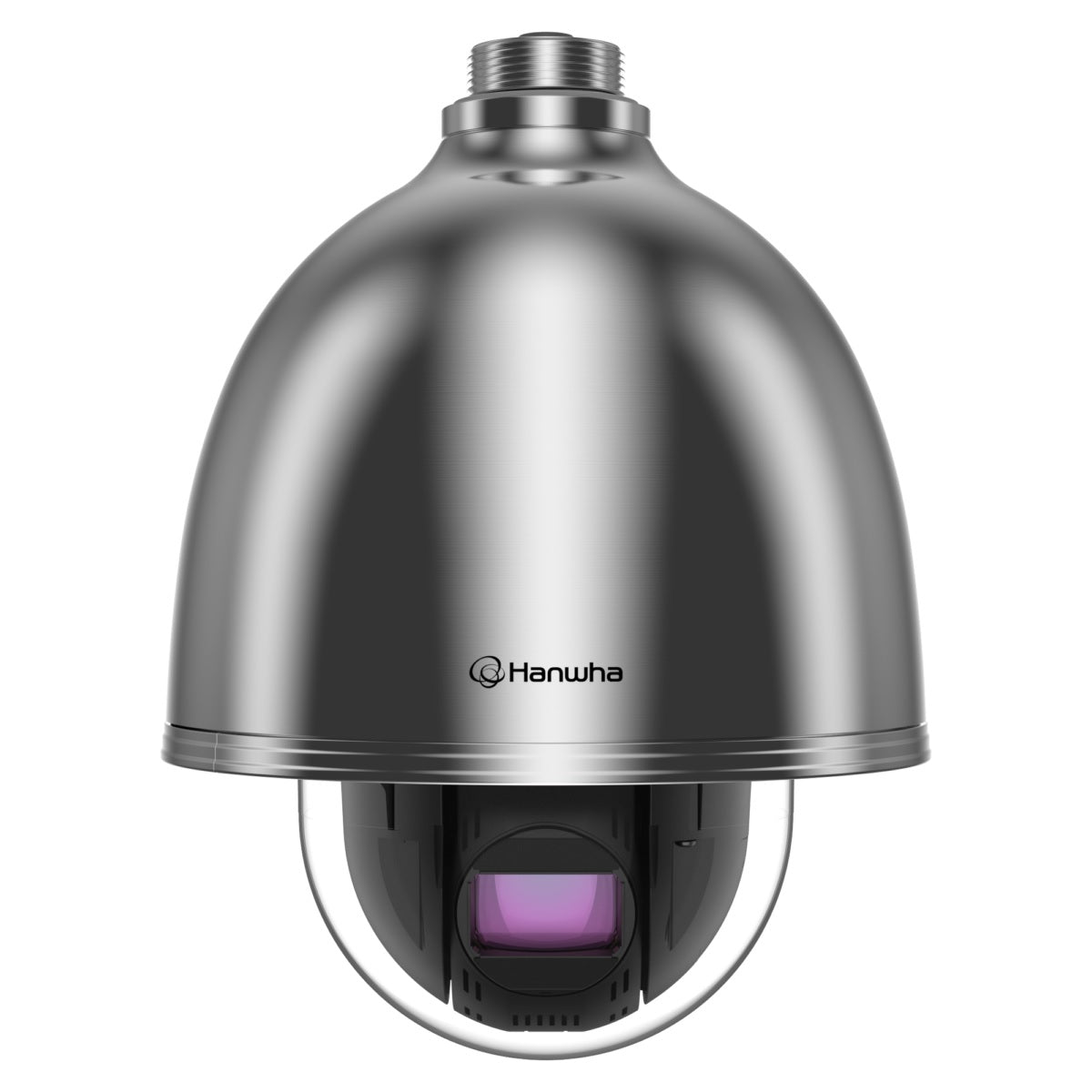

Hanwha Vision HV-QNP-6320HS Q Series 2MP H.265 NW Stainless PTZ 32x Camera
2MP H.265 Stainless 32x PTZ Camera
The QNP-6320HS excels in monitoring large areas and tracking moving subjects. It incorporates intelligent video analytics to detect and alert users to potential security threats. The camera supports remote access and control, allowing users to adjust settings and view live footage from anywhere. Integration with existing security systems is streamlined through various connectivity options.
Key Features
- Maximum 2MP (1920 x 1080) resolution
- 4.44 ~ 142.6 (32x) optical zoom
- H.265, H.264, MJPEG codec support, multiple streaming
- WiseStreamII, Day & Night (ICR), WDR (120dB)
- Directional detection, tampering, motion detection
- Audio detection, digital auto tracking
- Micro SD/SDHC/SDXC slot, 256GB capacity
- IP66/IP67, IK10, NEMA4X, PoE, Material: SUS316L
Code/SKU: QNP-6320HS
Quick Specs:
- Camera Title: Displayed up to 85 characters
- Direction Indicator: Support
- Day & Night: Auto (ICR)
- Backlight Compensation: BLC, HLC, WDR, SSDR
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The 2MP H.265 Stainless 32x PTZ Camera, model QNP-6320HS, from Hanwha Vision is designed for high-performance surveillance with its robust 32x optical zoom capability. This PTZ (pan-tilt-zoom) camera provides high-definition 2-megapixel resolution, ensuring clear and detailed images. The advanced H.265 video compression technology enhances efficiency, reducing bandwidth and storage requirements while maintaining quality. Its stainless steel construction ensures durability and resistance to harsh environmental conditions, making it suitable for both indoor and outdoor applications.
With a wide field of view and precision control, the QNP-6320HS excels in monitoring large areas and tracking moving subjects. It incorporates intelligent video analytics to detect and alert users to potential security threats. The camera supports remote access and control, allowing users to adjust settings and view live footage from anywhere. Integration with existing security systems is streamlined through various connectivity options. This model is ideal for high-security environments such as airports, stadiums, and industrial facilities. Overall, the QNP-6320HS combines advanced technology with rugged design to provide reliable and comprehensive surveillance solutions.
Features
- Maximum 2MP (1920 x 1080) resolution
- 4.44 ~ 142.6 (32x) optical zoom
- H.265, H.264, MJPEG codec support, multiple streaming
- WiseStreamII, Day & Night (ICR), WDR (120dB)
- Directional detection, tampering, motion detection
- Audio detection, digital auto tracking
- Micro SD/SDHC/SDXC slot, 256GB capacity
- IP66/IP67, IK10, NEMA4X, PoE, Material: SUS316L
Technical Specifications:
| Video | |
|---|---|
| Imaging Device | 1/2.8" CMOS |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.05Lux(F1.6, 1/30sec, 30IRE) BW: 0.005Lux(F1.6, 1/30sec, 30IRE) |
| Lens | |
| Focal Length (Zoom Ratio) | 4.44~142.6mm(32x) zoom (digital 32x, total 1024x zoom) |
| Optical Zoom | 32x |
| Max. Aperture Ratio | F1.6(Wide)~F4.4(Tele) |
| Angular Field of View | H: 64.66°(Wide)~2.29°(Tele) V: 38.08°(Wide)~1.30°(Tele) |
| Min. Object Distance | Wide: 1.5m(4.92ft) / Tele: 2m(6.56ft) |
| Focus Control | Oneshot AF, Focus save |
| Lens Type | DC auto iris |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
2MP H.265 Stainless 32x PTZ Camera
The QNP-6320HS excels in monitoring large areas and tracking moving subjects. It incorporates intelligent video analytics to detect and alert users to potential security threats. The camera supports remote access and control, allowing users to adjust settings and view live footage from anywhere. Integration with existing security systems is streamlined through various connectivity options.
Key Features
- Maximum 2MP (1920 x 1080) resolution
- 4.44 ~ 142.6 (32x) optical zoom
- H.265, H.264, MJPEG codec support, multiple streaming
- WiseStreamII, Day & Night (ICR), WDR (120dB)
- Directional detection, tampering, motion detection
- Audio detection, digital auto tracking
- Micro SD/SDHC/SDXC slot, 256GB capacity
- IP66/IP67, IK10, NEMA4X, PoE, Material: SUS316L
Code/SKU: QNP-6320HS
Quick Specs:
- Camera Title: Displayed up to 85 characters
- Direction Indicator: Support
- Day & Night: Auto (ICR)
- Backlight Compensation: BLC, HLC, WDR, SSDR
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Video | |
|---|---|
| Imaging Device | 1/2.8" CMOS |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.05Lux(F1.6, 1/30sec, 30IRE) BW: 0.005Lux(F1.6, 1/30sec, 30IRE) |
| Lens | |
| Focal Length (Zoom Ratio) | 4.44~142.6mm(32x) zoom (digital 32x, total 1024x zoom) |
| Optical Zoom | 32x |
| Max. Aperture Ratio | F1.6(Wide)~F4.4(Tele) |
| Angular Field of View | H: 64.66°(Wide)~2.29°(Tele) V: 38.08°(Wide)~1.30°(Tele) |
| Min. Object Distance | Wide: 1.5m(4.92ft) / Tele: 2m(6.56ft) |
| Focus Control | Oneshot AF, Focus save |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan Range | 360° Endless |
| Pan Speed | Preset: 700°/sec, Manual: 0.024°/sec~200°/sec |
| Tilt Range | 105°(90°~-15°) |
| Tilt Speed | Preset: 300°/sec, Manual: 0.024°/sec~200°/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.2° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | Support |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, 4point quadrangle zones - Color: Grey/Green/Red/Blue/Black/White - Solid/Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Analytics events - Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line * Audio detection(Via optional I/O box SPM-4210) |
| Alarm Triggers | Analytics, Network disconnect * Alarm input((Via optional I/O box SPM-4210) |
| Alarm Events | When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) * Alarm output / Audio clip playback(Via optional I/O box SPM-4210) |
| Auto Tracking | Support |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), NTCIP1205 |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Security | |
| OS / Firmware Protect | Firmware encryption |
| User authentication | Digest Authentication, Privent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | IP address filtering |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot Max. 256GB |
| Memory | 1GB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -35°C~+55°(-31°F ~ +131°F) / * Start up should be done at above -25°C 0~95% RH(non-condensing) |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~95% RH |
| Certification | IP66/IP67, IK10, NEMA4X |
| Input Voltage | PoE+(IEEE802.3at, Class4) |
| Power Consumption | PoE+: Max. 23W, typical 14W |
| Mechanical | |
| Color / Material | Silver / Stainless(SUS316L) |
| Product Dimensions / Weight | Ø227x299.2mm(8.94x11.78"), 5.4 kg(11.93 lb) |
| Wall Mount | SBP-300WMS1, SBP-300WMS |
| Pole Mount | SBP-300PMS |
| Corner Mount | SBP-300KMS |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A IC Regulation ICES-003 Issue 7 Class A CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 |
| Environment | IEC/EN 63000 IEC/EN 60529 IP66/67, IEC/EN 62262 IK10 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 60.7m(199.1ft) / Tele: 1921.3m(6303.4ft) |
| Observe (63PPM/ 19PPF) | Wide: 24.3m(79.6ft) / Tele: 768.5m(2521.4ft) |
| Recognize (125PPM/ 38PPF) | Wide: 12.1m(39.8ft) / Tele: 384.3m(1260.7ft) |
| Identify (250PPM/ 76PPF) | Wide: 6.1m(19.9ft) / Tele: 192.1m(630.3ft) |
