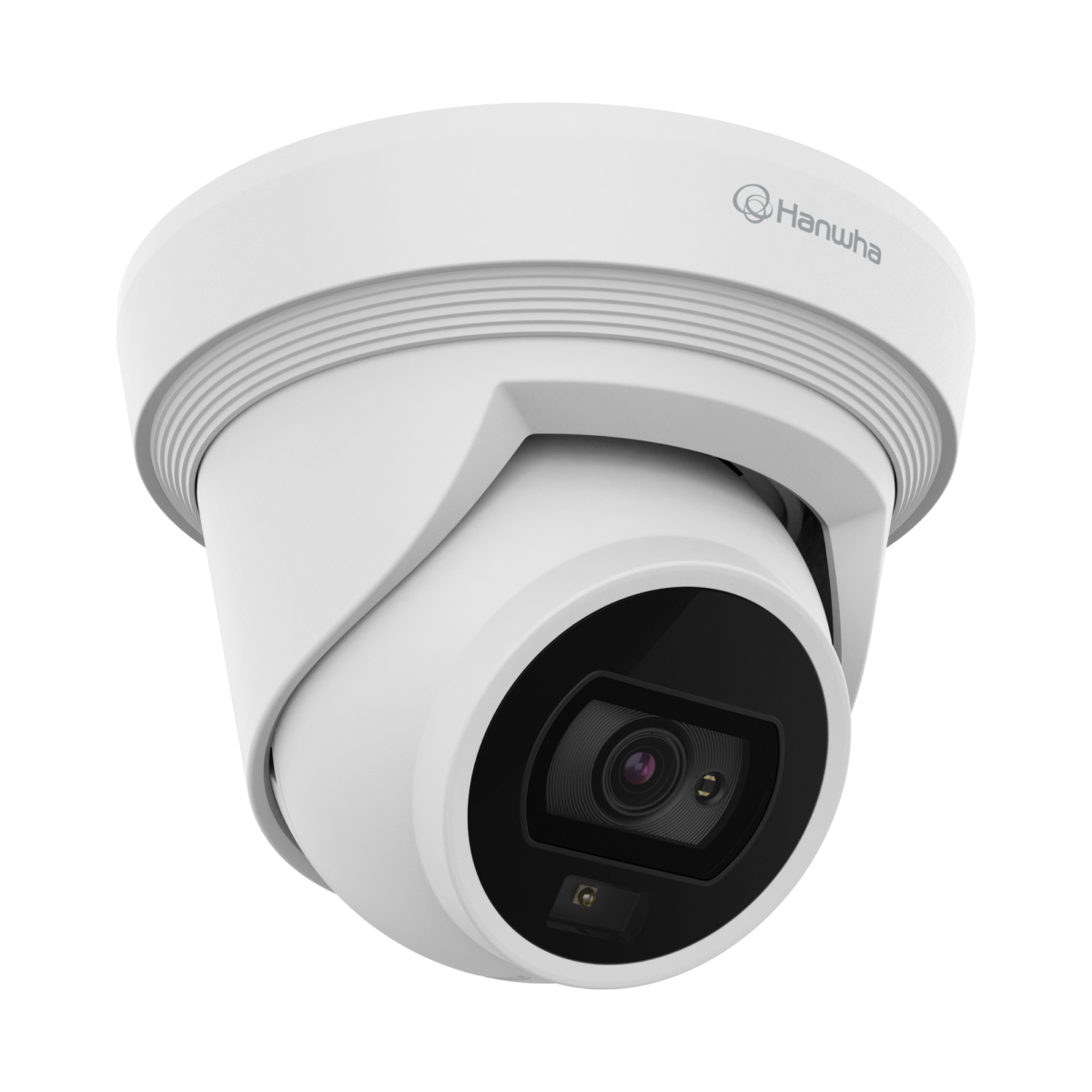

Hanwha Vision QNE-C9013RL 8MP / 4K H.265 IR Flateye Camera
8MP H.265 AI IR Flateye Camera
This model features a robust 8-megapixel resolution, providing crisp and clear images even in challenging conditions. It incorporates H.265 compression technology, which significantly reduces bandwidth and storage requirements while maintaining excellent image quality. The AI capabilities of this camera enhance its performance by offering advanced analytics and intelligent detection features. It includes integrated IR illumination, ensuring effective night vision and clear images in complete darkness.
Key Features
- Max. 8 Megapixel (3840x2160) resolution
- 3.0mm fixed lens
- Color: 0.034 Lux (F1.6, 1/30 sec)
- Black & White: 0.0034 Lux (F1.6, 1/30 sec, 30 IRE), 0 Lux (IR LED on)
- Max. 30 fps @ 8 MP (H.265 / H.264)
- Codecs: H.265, H.264, MJPEG; WiseStreamⅢ (Based on AI engine); Multiple streaming
- Features: Day & Night, WDR (120 dB), WiseNRⅡ (Using AI engine)
- Object Classification, Attributes, and DetectionShot
- Micro SD / SDHC / SDXC memory slot (Max. 256 GB)
- Hallway view; WiseStreamⅢ (Based on AI engine)
- ONVIF Profile S/G/T/M, SUNAPI (HTTP API)
- LDC, PoE
- IR Viewable length:
- White LED: 30 m (98.42 ft)
- IR: 30 m (98.42 ft)
Code/SKU: QNE-C9013RL
Quick Specs:
- Ethernet: RJ-45 (10/100BASE-T)
- Video Compression: H.265/H.264 (Main/High), MJPEG
- Smart Codec:
- Manual (5 areas)
- WiseStreamⅢ (Based on AI engine)
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The Hanwha Vision QNE-C9013RL is an advanced 8MP H.265 AI IR Flateye camera designed for high-resolution surveillance needs. This model features a robust 8-megapixel resolution, providing crisp and clear images even in challenging conditions. It incorporates H.265 compression technology, which significantly reduces bandwidth and storage requirements while maintaining excellent image quality. The AI capabilities of this camera enhance its performance by offering advanced analytics and intelligent detection features. It includes integrated IR illumination, ensuring effective night vision and clear images in complete darkness. The camera’s Flateye design allows for a sleek and unobtrusive installation, making it suitable for a variety of environments. Its wide field of view captures more of the scene, reducing the number of cameras needed for comprehensive coverage.
Built to withstand harsh conditions, the QNE-C9013RL offers durability and reliability for outdoor and indoor applications. The camera supports flexible installation options, making it adaptable to different mounting requirements. Its user-friendly interface simplifies setup and operation, providing an intuitive experience for users. The QNE-C9013RL is equipped with multiple smart features, including motion detection and facial recognition, enhancing its security capabilities. Its high-quality construction ensures long-term performance and minimal maintenance. The camera’s design is both functional and aesthetically pleasing, blending seamlessly with various architectural styles. With its advanced technology and robust features, the QNE-C9013RL is ideal for both commercial and residential security applications. This camera exemplifies Hanwha Vision’s commitment to innovation and quality in surveillance technology.
Features
- High-Resolution Imaging: Provides clear and detailed images with high resolution.
- Integrated IR LED: Equipped with built-in IR LEDs for enhanced night vision up to a certain distance.
- Wide Dynamic Range (WDR): Enhances image quality in varying lighting conditions.
- H.265 Compression: Utilizes H.265 compression technology for reduced bandwidth and storage requirements.
- Motorized Varifocal Lens: Allows for flexible zoom and focus adjustments.
- Weatherproof Design: Designed for outdoor use with an IP66 rating for protection against dust and water.
- PoE (Power over Ethernet): Simplifies installation by allowing power and data to be transmitted over a single Ethernet cable.
- Advanced Analytics: Includes features such as motion detection and other analytics for improved security monitoring.
Specifications
- Resolution: 4K (8 MP)
- Lens: Motorized Varifocal Lens, 2.8mm to 12mm
- IR Range: Up to 30 meters (depending on the model and conditions)
- Wide Dynamic Range (WDR): True WDR, up to 120 dB
- Compression: H.265, H.264, MJPEG
- Network Interface: 10/100/1000 Mbps Ethernet
- Power Supply: PoE (802.3at), DC 12V
- Operating Temperature: -30°C to +60°C
Additional Details
| General | |
|---|---|
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 2GB RAM, 1GB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+60°C(-40°F~+140°F) / 0~95% RH * Start up should be done at above -30°C Humidity control /w Air sheet |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~95% RH |
| Certification | IP66/IP67, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE: Max 10.0W, typical 4.5W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø140.0x99.6mm(ø5.51x3.92"), 790g(1.74 lb) |
| Compatible Conduit hole / Gangbox | Conduit hole : None Gangbox : Single, Double, 4" Octagon |
| Hanging Mount (Dome) | SBP-140HMW |
| Backbox | SBV-140BW |
| Ceiling Mount (Assy) | SBP-300CMW1/900CMW, SBP-150CMI/300CMI, SBP-300CMTW, SBP-300CMTS |
| Wall Mount | SBP-140WMW, SBP-300WMW/WMW1, SBP-390WMW2 |
| Pole Mount | SBD-140PMW, SBP-300PMW2, SBD-140PMB |
| Parapet Mount | SBP-300LMW, SBP-156LMW1 |
| Corner Mount | SBP-300KMW1, SBD-140KMB |
| Tilt Mount | SBV-140TMW |
| Cabinet | SBP-300NBW |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
8MP H.265 AI IR Flateye Camera
This model features a robust 8-megapixel resolution, providing crisp and clear images even in challenging conditions. It incorporates H.265 compression technology, which significantly reduces bandwidth and storage requirements while maintaining excellent image quality. The AI capabilities of this camera enhance its performance by offering advanced analytics and intelligent detection features. It includes integrated IR illumination, ensuring effective night vision and clear images in complete darkness.
Key Features
- Max. 8 Megapixel (3840x2160) resolution
- 3.0mm fixed lens
- Color: 0.034 Lux (F1.6, 1/30 sec)
- Black & White: 0.0034 Lux (F1.6, 1/30 sec, 30 IRE), 0 Lux (IR LED on)
- Max. 30 fps @ 8 MP (H.265 / H.264)
- Codecs: H.265, H.264, MJPEG; WiseStreamⅢ (Based on AI engine); Multiple streaming
- Features: Day & Night, WDR (120 dB), WiseNRⅡ (Using AI engine)
- Object Classification, Attributes, and DetectionShot
- Micro SD / SDHC / SDXC memory slot (Max. 256 GB)
- Hallway view; WiseStreamⅢ (Based on AI engine)
- ONVIF Profile S/G/T/M, SUNAPI (HTTP API)
- LDC, PoE
- IR Viewable length:
- White LED: 30 m (98.42 ft)
- IR: 30 m (98.42 ft)
Code/SKU: QNE-C9013RL
Quick Specs:
- Ethernet: RJ-45 (10/100BASE-T)
- Video Compression: H.265/H.264 (Main/High), MJPEG
- Smart Codec:
- Manual (5 areas)
- WiseStreamⅢ (Based on AI engine)
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Video | |
|---|---|
| Imaging Device | 1/2.8" CMOS |
| Resolution | 3840x2160, 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps(@8MP Max. 5fps) |
| Min. Illumination | Color: 0.034Lux (F1.6, 1/30sec) BW: 0.0034Lux (F1.6, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.0mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 108°/ V: 59°/ D: 127° |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Fixed |
| Lens Type | Fixed IRIS |
| Mount Type | M12 |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~75° / 0°~360° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ, WiseNRⅡ(Based on AI engine) |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 32ea, 4point quadrangle zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Classified object type: Person/Vehicle(Type:car/bus/truck/motorcycle/bicycle) Attributes: Person, Vehicle(Type:car/bus/truck/motorcycle/bicycle) Support DetectionShot Analytics events based on AI engine - Motion detection*, Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit) Analytics events - Defocus detection, Tampering, Virtual area(Appear/Disappear) * Some of the video analytics only works with people and vehicle detection |
| Business Intelligence | Based on AI engine: People counting, Vehicle counting, Queue management, Heatmap |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) - Light alarm |
| Light Type | Dual light (White warm light, IR) |
| IR Viewable Length | White LED : 30m(98.42ft) IR : 30m(98.42ft) |
| IR Wavelength | long-life 850 nm IR LED |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅢ(Based on AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 5 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) |
| Security | |
| OS / Firmware Protect | Secure boot, Signed firmware, Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | Access control based on IP address |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log management |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 2GB RAM, 1GB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+60°C(-40°F~+140°F) / 0~95% RH * Start up should be done at above -30°C Humidity control /w Air sheet |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~95% RH |
| Certification | IP66/IP67, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE: Max 10.0W, typical 4.5W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø140.0x99.6mm(ø5.51x3.92"), 790g(1.74 lb) |
| Compatible Conduit hole / Gangbox | Conduit hole : None Gangbox : Single, Double, 4" Octagon |
| Hanging Mount (Dome) | SBP-140HMW |
| Backbox | SBV-140BW |
| Ceiling Mount (Assy) | SBP-300CMW1/900CMW, SBP-150CMI/300CMI, SBP-300CMTW, SBP-300CMTS |
| Wall Mount | SBP-140WMW, SBP-300WMW/WMW1, SBP-390WMW2 |
| Pole Mount | SBD-140PMW, SBP-300PMW2, SBD-140PMB |
| Parapet Mount | SBP-300LMW, SBP-156LMW1 |
| Corner Mount | SBP-300KMW1, SBD-140KMB |
| Tilt Mount | SBV-140TMW |
| Cabinet | SBP-300NBW |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471 |
| Environment | IEC/EN 63000 IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 55.8m(183.07ft) |
| Observe (63PPM/ 19PPF) | 22.3m(73.23ft) |
| Recognize (125PPM/ 38PPF) | 11.2m(36.61ft) |
| Identify (250PPM/ 76PPF) | 5.6m(18.31ft) |
