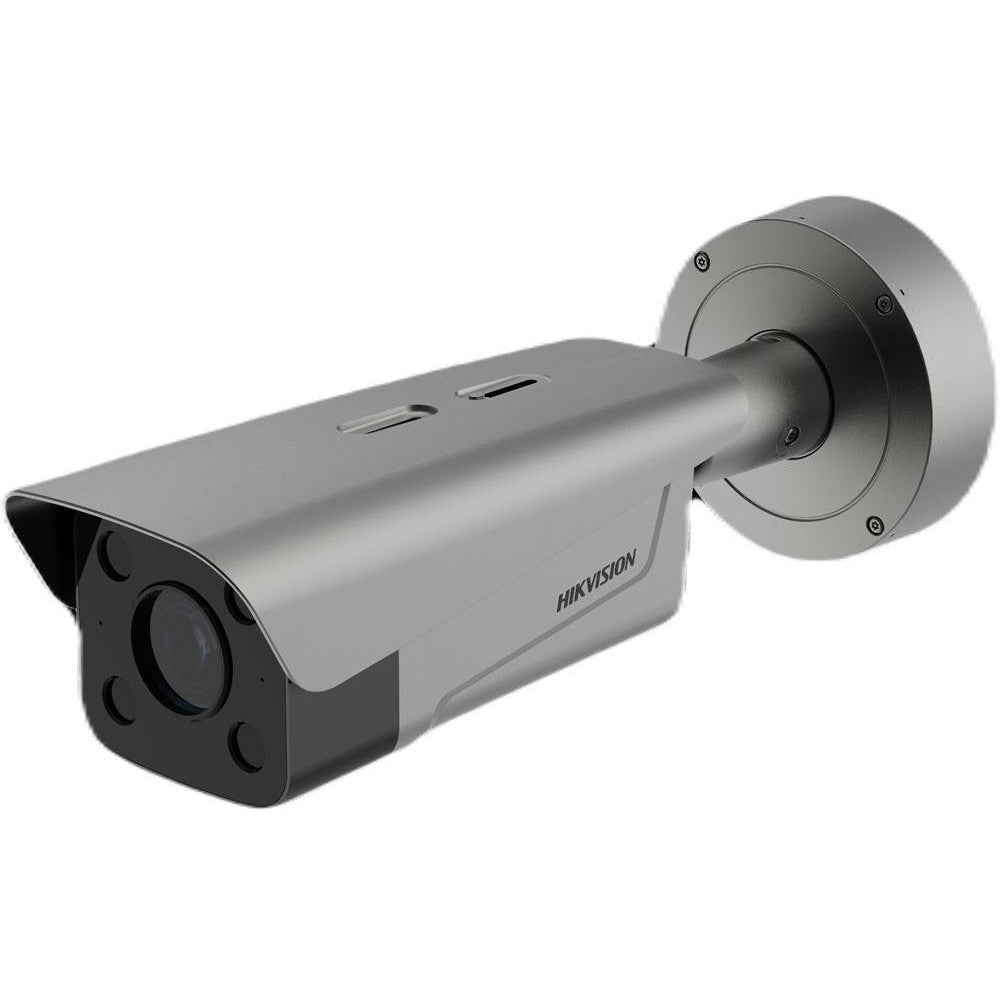

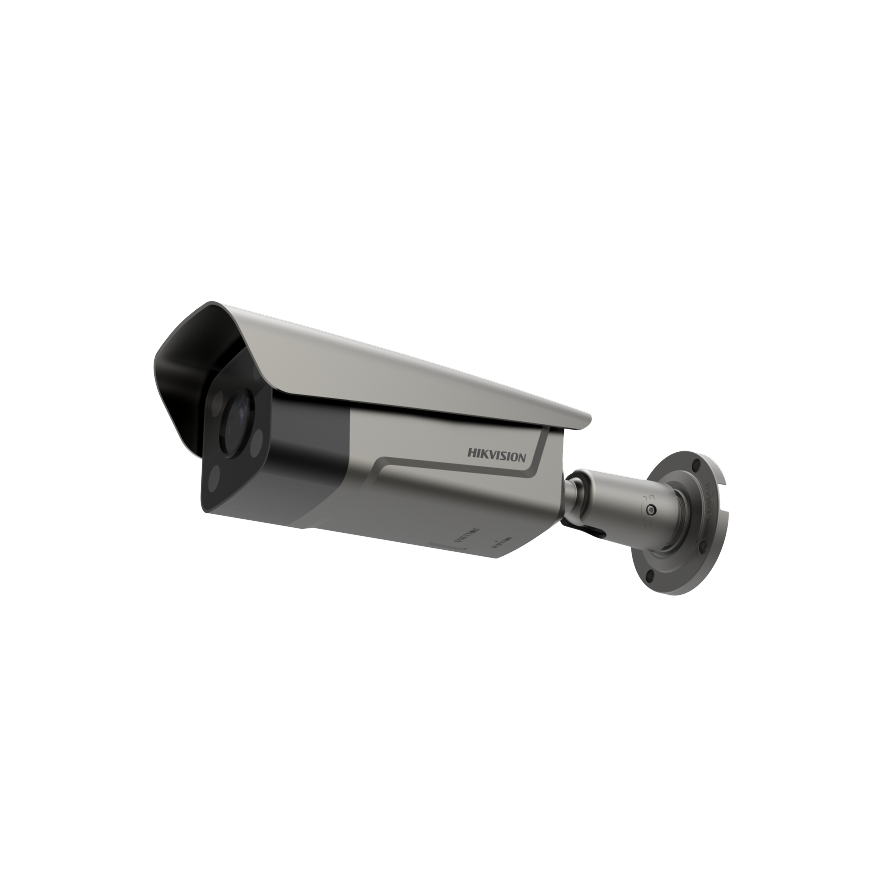

DS-TCG406-E 5 MP Intelligent Entrance ANPR Camera

Model: DS-TCG406-E

Who This Is For

For installers and facility managers who need verified vehicle identification at a controlled entry point, the DS-TCG406-E is a 5 MP intelligent entrance ANPR camera built specifically for single-lane access scenarios where licence plate capture is the primary requirement. This is not a general-purpose outdoor camera - it is purpose-engineered for boom gate lanes, car park entries, and residential estate access points where the system needs to read plates accurately, log vehicle movements, and trigger barrier or access control events. The varifocal lens allows the installer to frame a single lane tightly and dial in plate coverage at the correct distance, while the 5 MP sensor provides the resolution density needed for reliable character recognition. If you are specifying an entrance management or vehicle access system and need a dedicated capture point rather than an add-on feature, the DS-TCG406-E is the correct starting point for that conversation.

What This Camera Actually Does

Who Buys This Model

• Car Park Operators: Managed car parks and strata complexes using boom gates where plate-triggered access replaces fob or PIN entry for registered tenants and authorised vehicles.
• Gated Estate Installers: Security integrators specifying vehicle access for residential estates or industrial precincts where a single controlled lane entry point needs plate capture tied to a barrier or intercom system.
• Logistics and Warehouse Facilities: Sites with defined vehicle access windows where management needs an auditable log of which vehicles entered and exited, linked to driver or fleet records.
• Commercial Property Managers: Office buildings or retail centres adding vehicle access management to an existing Hikvision IP system, where a purpose-built ANPR camera integrates cleanly with an existing NVR and VMS setup.

Honest Assessment

The DS-TCG406-E does one thing that general-purpose cameras cannot: it reads and acts on licence plate data at the camera level. The 5 MP sensor and purpose-built entrance design mean plate capture is optimised from the ground up rather than being a secondary feature bolted onto a surveillance camera. The varifocal lens removes the guesswork from installation geometry, which matters when a misaligned capture zone translates directly into missed reads and access failures. It suits fixed-approach, low-speed entrance lanes - the kind of controlled environment where a vehicle stops or slows at a boom gate. It is not suited to free-flow traffic monitoring, multi-lane roads, or high-speed approaches where a fixed entrance camera cannot trigger fast enough or cover the required angle. If the requirement is multi-lane or highway-speed ANPR, a different product category is needed. Available through Security Australia, this camera is best evaluated as part of a planned vehicle access system rather than as a standalone addition.

Before You Buy

Quick Fit Check

• Good match if: You are managing a single controlled entry lane - boom gate, car park barrier, or estate entrance - where vehicles slow or stop and a reliable plate read is needed to trigger access or build an entry log.
• Good match if: You are expanding an existing Hikvision IP system and need a dedicated ANPR capture point that integrates with an NVR or VMS for event-based plate logging without adding a separate recognition server.
• You may need a different model if: The requirement involves multiple lanes simultaneously, free-flow traffic at road speeds, or ANPR across a wide approach angle - those scenarios call for a multi-sensor panoramic or dedicated traffic ANPR system, both of which are available at securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single-lane entrance camera that performs plate recognition on the device itself and can trigger access control events without a separate ANPR server or software licence.
• You may need a different model if: The site has multiple simultaneous lanes, vehicles approaching at road speed without slowing, or a requirement to read plates across a wide area - those scenarios call for a multi-sensor panoramic or dedicated traffic ANPR platform, both available at securityaustralia.com.au.
• Pairs well with: A compatible Hikvision NVR or video management system with ANPR event handling, and a boom gate or access controller with a trigger input for plate-based allow/deny operation.

Common Questions

1. Does this camera read plates without a separate ANPR software licence?

   Yes. The DS-TCG406-E processes licence plate recognition at the camera level, meaning the read function does not depend on a separate server-based ANPR software subscription for its core capture operation. Plate data and event triggers are handled on-device. Integration of that data into allow/deny lists or VMS dashboards does require a compatible Hikvision NVR or software platform, but the recognition engine itself runs on the camera.

2. Will this camera work for free-flow traffic or multi-lane roads?

   No. The DS-TCG406-E is an entrance camera designed for fixed-approach, single-lane scenarios where vehicles slow to a stop or near-stop. Free-flow traffic monitoring at road speed requires a dedicated traffic ANPR camera with higher shutter speeds and multi-lane coverage capability. Attempting to use an entrance camera on a moving traffic lane will produce inconsistent read results. If your requirement involves road-speed or multi-lane capture, a different product type is the correct specification.

3. What approach angle is required for reliable plate reads on the DS-TCG406-E?

   Entrance ANPR cameras in this category perform best when the horizontal angle of incidence to the plate face is kept within approximately 30 degrees. Beyond that, character distortion reduces recognition accuracy. The DS-TCG406-E's varifocal lens allows the installer to frame the lane correctly, but mounting position and the angle of the camera relative to the vehicle's approach vector must be assessed during site survey. Cameras mounted too far off-axis from the vehicle centreline will generate higher misread rates regardless of resolution.

4. Can this camera trigger a boom gate or barrier directly?

   Yes, when integrated with a compatible access controller. The DS-TCG406-E is designed as part of a vehicle access system - it sends plate read events to a connected NVR or access control platform, which then issues the trigger to the barrier or gate hardware. The camera itself identifies the plate; the access controller manages the output relay to the boom gate. Confirm your barrier controller accepts input from a Hikvision ANPR event source before finalising the system design. Security Australia can assist with clarifying compatible system combinations.

5. Does the 5 MP resolution on this camera actually improve ANPR accuracy compared to a 2 MP camera?

   Yes, in practical terms for entrance ANPR. At 5 MP, more pixels are available across the plate face at a given capture distance, which means the recognition engine has more character detail to work from. This matters most for visually similar characters - 0 versus Q, 8 versus B, I versus 1 - where a 2 MP image may not have enough detail at the plate level to distinguish them reliably. The 5 MP sensor also allows the varifocal to be set at a slightly greater capture distance while still maintaining sufficient plate pixel density for accurate reads.

6. Does this camera have two-way audio?

   No confirmed built-in speaker and microphone are specified for the DS-TCG406-E. This is an entrance ANPR camera - its design priority is plate capture, not audio communication. If a two-way audio intercom function is needed at the entry point alongside vehicle recognition, a separate IP intercom station is the appropriate pairing.

7. How is the varifocal lens adjusted on this camera - remotely or manually?

   The DS-TCG406-E is tagged as a varifocal camera consistent with Hikvision's TCG series, which typically uses a motorised varifocal lens adjustable through the camera's web interface or via a connected NVR during commissioning. This avoids the need to physically access the lens housing after mounting to fine-tune the zoom and focus - the installer can frame the lane from the ground using the NVR display and confirm the capture zone before locking the settings. Verify the specific adjustment method in the product datasheet for the exact firmware version supplied.

Downloads & Resources

No downloads available for this product.
