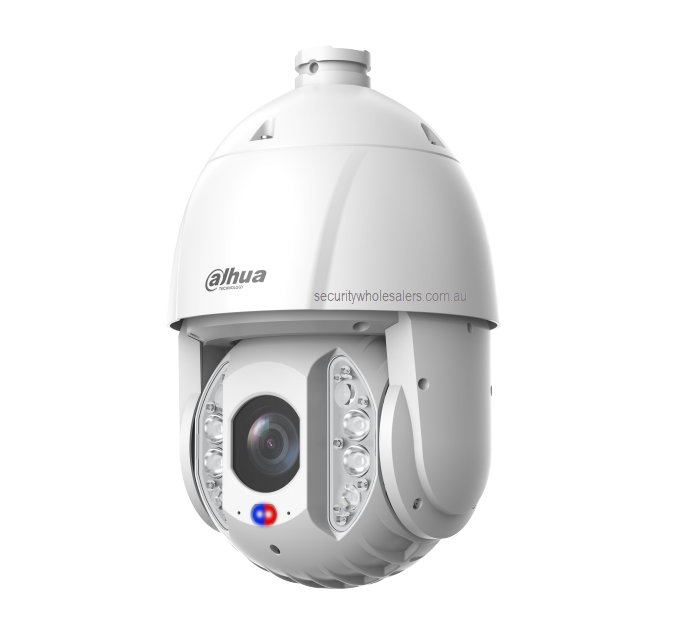

Dahua SD6E445MB-HNR-A-PV1 4MP 45x Smart Dual Illumination Active Deterrence Network PTZ Camera

Model: SD6E445MB-HNR-A-PV1

Who This Is For

When covering expansive outdoor areas from a single camera position is the priority, the Dahua SD6E445MB-HNR-A-PV1 is built for exactly that demand. Security integrators and commercial site managers specifying surveillance for large perimeters, transport hubs, industrial yards, or open public spaces will find this camera's 45x optical zoom and dual illumination system - 250m IR and 100m warm light - well matched to long-range monitoring requirements where fixed cameras simply cannot cover the ground. The active deterrence features, including red and blue warning lights and audible alarms, make it suitable for unattended or after-hours sites where a visible response to detected intrusion matters. The built-in dual microphone and speaker support real-time two-way communication, adding a remote intervention layer. With IP67 and IK10 ratings, this is a camera designed for demanding outdoor environments where weather and physical contact are genuine concerns.

Download Product Datasheet (PDF)

What This Camera Actually Does

Who Buys This Model

• Industrial Site Security Managers: Manufacturing yards, port facilities, and logistics terminals where long perimeter runs and large open areas require zoom capability to cover ground that fixed cameras cannot reach cost-effectively.
• Local Government and Infrastructure Operators: Councils and utilities monitoring parks, reserves, water treatment facilities, or transport interchanges after hours, where active deterrence and two-way audio provide a remote response without on-site staff.
• Commercial Property Security Integrators: Installers specifying camera positions on large retail centres, fuel depots, or distribution centres where a single PTZ must cover wide patrol routes and then zoom to confirm detail on demand.
• Construction Site Operators: Sites requiring overnight deterrence with active warning lights and alarm sounds triggered by AI-detected intrusion, reducing false alarm fatigue while maintaining a real response for genuine detections.
• School and Institution Facilities Teams: After-hours monitoring of school grounds or institution campuses where the IK10 vandal rating and active deterrence reduce both physical camera damage and on-site incidents.

Honest Assessment

The SD6E445MB-HNR-A-PV1 does several things at a high level in a single housing: 45x optical zoom for genuine long-range detail, dual illumination for both discreet IR and full-colour night coverage, confirmed IK10 vandal resistance, and active deterrence with lights and audio. The AcuPick human and vehicle search function adds practical post-event review capability that most PTZ cameras at this category do not offer as standard. Where this camera will not serve well is in fixed wide-area surveillance where you need simultaneous coverage of multiple zones - a multi-sensor panoramic or a static wide-angle camera array will outperform a single PTZ when no operator is available to direct the lens. Patrol presets help but cannot replace true simultaneous multi-zone monitoring. If your site needs both coverage breadth and zoom precision in an unmonitored environment, discuss a hybrid approach with Security Australia before specifying this as the sole device.

Before You Buy

Quick Fit Check

• Good match if: You are monitoring a large open area - yard, carpark, or perimeter fence line - from a single elevated mount point and need optical zoom to identify detail at range, with IR illumination confirmed to 250m.
• Good match if: Your site requires an active deterrence response to after-hours intrusion detections - the confirmed red and blue warning lights, audible alarm, and two-way audio allow a remote operator to respond without physical presence.
• You may need a different model if: Your priority is unattended simultaneous coverage of multiple fixed zones with no operator directing the PTZ - a multi-sensor panoramic camera will provide continuous wide-area coverage without relying on preset patrol cycles.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site requires a single camera position to cover a large area with operator-directed zoom, active deterrence lighting and audio, and AI-assisted footage search - all in one confirmed IP67/IK10 outdoor housing.
• You may need a different model if: Your requirement is continuous simultaneous coverage of multiple fixed zones with no operator directing the camera - a multi-sensor panoramic camera provides always-on wide-area coverage that a PTZ on patrol presets cannot fully replicate.
• Pairs well with: A compatible Dahua WizMind NVR with AcuPick support, ensuring the AI search and active deterrence management functions operate as confirmed on this camera.

Common Questions

1. Does this camera work as a standalone deterrent, or does it need an operator watching at all times?

   No, it does not need a live operator to trigger the deterrence response. The Xinghan AI detection can trigger the red and blue warning lights and audible alarm automatically on confirmed intrusion detections - no operator input is required at the moment of the event. A monitoring station or remote access via the network allows operators to follow up with two-way audio if needed, but the initial deterrence response is automated.

2. Will this camera's two-way audio work reliably in a large outdoor environment?

   Yes, within practical range. The SD6E445MB-HNR-A-PV1 has a confirmed built-in dual microphone and built-in speaker, which supports genuine two-way audio communication. The dual microphone arrangement improves voice pickup clarity compared to a single mic. In very large open outdoor areas, the speaker output should be considered for its coverage radius relative to the distance of the person being addressed - this is a hardware characteristic of any camera-integrated speaker versus a dedicated PA system.

3. What does 45x optical zoom actually mean in practical coverage terms?

   45x optical zoom means the camera can magnify a distant subject to 45 times the size it appears at the widest field of view, entirely through the lens mechanism with no digital interpolation degrading the image. In practical terms, this allows a single camera to monitor a wide carpark entrance at low magnification, then instantly zoom in to read a licence plate or confirm a face at the far end of a 200m+ approach without repositioning the camera or losing image resolution. The optical zoom is the critical differentiator from digital zoom, which simply enlarges and degrades existing pixels.

4. How does AcuPick actually work for searching footage after an incident?

   AcuPick lets operators select a target - a person or vehicle - from a live or recorded frame, then searches the stored footage for other appearances of that target based on AI-extracted appearance attributes. Rather than scrubbing through hours of recording manually, the system returns timestamped clips where a matching human or vehicle appears. This is particularly useful in large sites where the PTZ has been patrolling multiple zones and the incident timeline is unclear. AcuPick requires a compatible NVR that supports this function alongside the camera - confirm NVR compatibility before specifying. The SD6E445MB-HNR-A-PV1 is part of the Security Australia range of WizMind products.

5. Does the IK10 rating mean the camera housing is fully tamper-proof?

   No, IK10 means the housing is confirmed to withstand 20 joules of impact - the highest classification in the IEC 62262 scale - but it does not mean the camera is impervious to all forms of physical attack. IK10 protects against impacts such as being struck with a fist, tool, or thrown object. It does not protect against sustained cutting, power tools, or removal of the mounting bracket. For pole or wall mounts at accessible heights, consider security mount hardware separately.

6. What PoE standard does this PTZ camera require?

   PTZ cameras with dual illumination, motorised zoom, and active deterrence hardware at this specification level typically require PoE+ (IEEE 802.3at, up to 30W) rather than standard PoE (IEEE 802.3af, 15.4W). Running a high-specification PTZ on a standard PoE port can cause under-powering, which may present as illuminators not reaching rated distance, erratic pan/tilt behaviour, or the camera resetting during operation. Confirm the exact power draw from the Dahua datasheet for this model and ensure your switch or injector provides sufficient budget per port before installation - do not assume PoE compatibility based on the physical RJ45 connector alone.

7. Does the AI on this camera reduce false alarms compared to standard motion detection?

   Yes, meaningfully so. The Xinghan AI models on the SD6E445MB-HNR-A-PV1 classify detected objects as human or vehicle rather than triggering on any pixel change in the scene. Standard motion detection responds to lighting changes, moving foliage, insects near the lens, and reflected light - all of which would trigger the active deterrence system unnecessarily. AI classification filters these out at the camera level before a deterrence or alert event is sent. This matters practically in outdoor environments where standard PIR or pixel-based motion detection produces high false alarm rates overnight.

Downloads & Resources

• Product Spec Sheet (PDF)
