- Sku: DH-AC-PFA117
- Vendor: SecurityAustralia

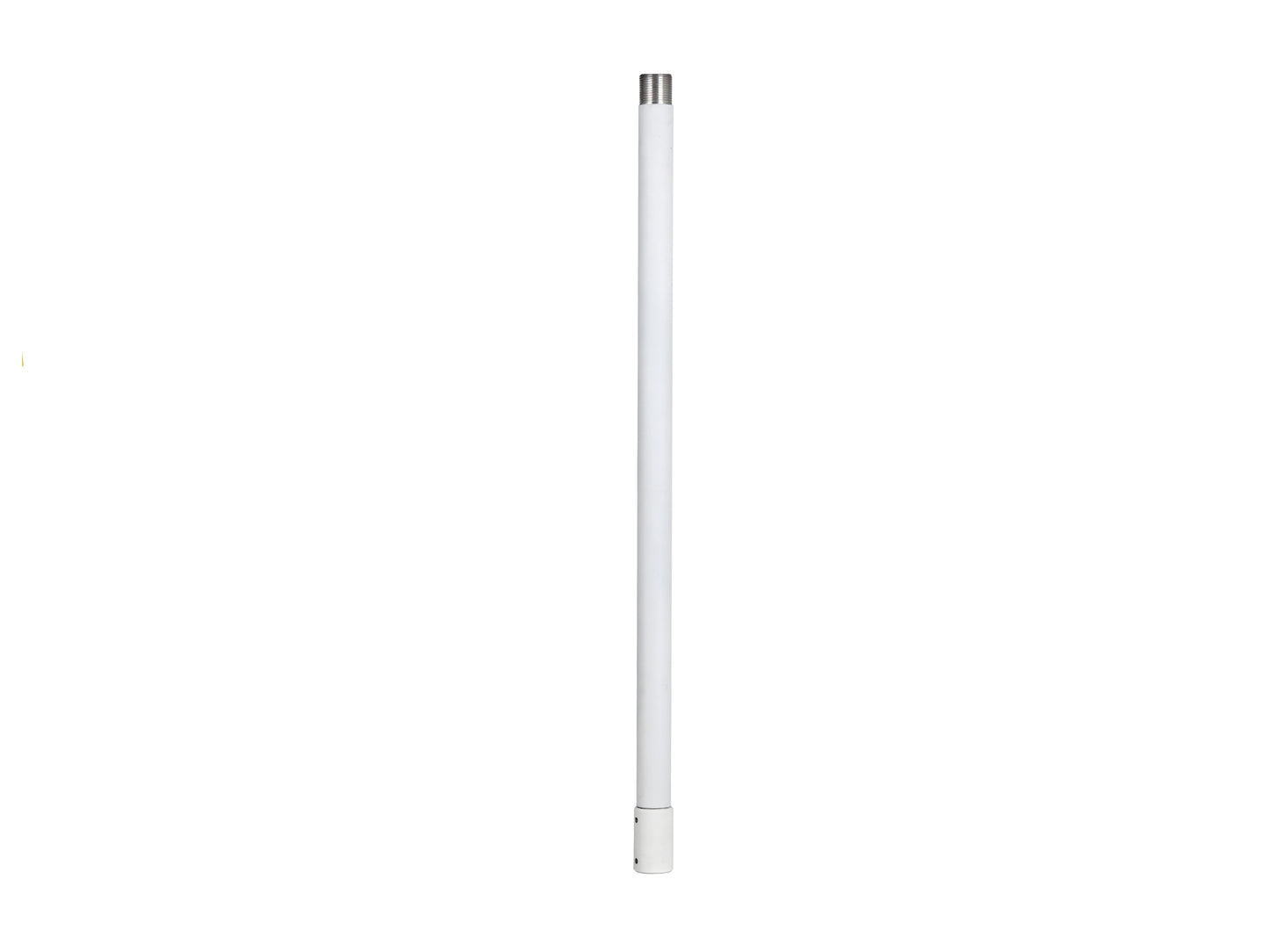

Dahua PFA117 Ceiling Mount Bracket
Built as a ceiling mount extension bracket for compatible Dahua dome cameras, the PFA117 is an aluminium drop-arm bracket designed to lower and reposition cameras below ceiling surfaces where direct flush-mounting isn't suitable. At 780mm in length and rated to carry up to 2kg, it provides a stable, adjustable mounting point for improved camera sightlines. Compatible with the DH-PFB220C ceiling mount box.
Why This Model
- 780mm extension arm: The generous drop length allows cameras to be positioned well below ceilings, soffits, or raised structures where a flush mount would produce a poor viewing angle.
- Aluminium construction: A full-aluminium build keeps the bracket lightweight at 0.65kg while maintaining a 2kg load bearing capacity, suited to most compact dome cameras.
- Wide temperature tolerance: Rated from -40°C to +60°C, the PFA117 can be used in uncontrolled indoor environments such as warehouses, car parks, and cold storage facilities.
| Model | DH-PFA117 |
| General | |
| Material | Aluminum |
| Dimension | 42mmx780mm (1.65”x30.71”) |
| Weight | 0.65kg(1.43lb) |
| Load Bearing | 2kg(4.41lb) |
| Color | White |
| Operating Temperature | -40℃~+60℃(-40℉~+140℉) |
| Humidity | <90% RH |
| Applicable Model | DH-PFB220C |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Have a question?
Dahua PFA117 Ceiling Mount Bracket
Model: DH-AC-PFA117
Who This Is For
For installers who need to extend camera drop distance from a ceiling surface, the Dahua PFA117 is a dedicated ceiling mount bracket that adds 780mm of standoff length between the mounting point and the camera head. It is designed specifically for use with the DH-PFB220C pendant adapter, making it the right bracket when a dome or turret camera needs to hang clear of a ceiling void, structural beam, or decorative ceiling feature. Typical applications include high-ceilinged lobbies, warehouse interiors, stairwells, and commercial atriums where a flush ceiling mount would place the camera too close to the surface to achieve the required angle of view. The aluminium construction keeps weight low at 0.65kg while the bracket itself handles a rated load of 2kg - sufficient for the compact dome and turret cameras it is sized to support.
What This Bracket Actually Does
Extended Drop Length
At 780mm long and 42mm in diameter, the PFA117 provides a substantial ceiling standoff. This is useful in high-bay environments where a flush mount would result in the camera looking nearly straight down, eliminating useful field of view coverage along walls and approaches.
Aluminium Construction
The bracket is machined from aluminium, keeping the assembly lightweight while maintaining structural rigidity. At 0.65kg, the bracket itself adds minimal load to the ceiling fixing point, which matters when working with suspended ceiling grids or lightweight plasterboard.
2kg Rated Load Capacity
The PFA117 is rated to carry up to 2kg, which covers the compact dome and turret camera bodies it is intended to support. Confirming your camera's weight against this rating before installation ensures the bracket is used within its specified limits.
Wide Temperature Range
Rated from -40°C to +60°C, the bracket remains dimensionally stable across the full range of conditions found in Australian commercial and industrial interiors, including uninsulated warehouses and cold storage facilities where temperature swings are significant.
Clean White Finish
The white powder-coat finish integrates with standard commercial ceiling colours. In environments such as retail premises, offices, and healthcare facilities, this reduces visual intrusion compared to raw metal or black-finished hardware.
Who Buys This Model
- Security Installers: Specifying pendant-mount camera installations in high-ceiling commercial spaces where a flush bracket would result in a near-vertical camera angle and poor scene coverage.
- Facilities Managers: Completing Dahua camera installations in atriums, stairwells, or lobbies where the DH-PFB220C pendant adapter is already in use and the PFA117 provides the required drop extension.
- Warehouse and Industrial Site Operators: Mounting cameras in high-bay environments where ceiling heights make standard brackets impractical and an extended drop places the camera within effective IR and field-of-view range of the monitored area.
- Integrators Replacing Legacy Hardware: Matching an existing Dahua bracket configuration during system upgrades, where the 780mm drop length and PFB220C compatibility are a known requirement from the original installation design.
Honest Assessment
The PFA117 does one specific job well - it extends a ceiling-mounted Dahua camera assembly by 780mm to solve a genuine installation problem in high-ceiling spaces. The aluminium build, 2kg load rating, and broad operating temperature range are appropriate for the camera types this bracket is sized to carry. The white finish suits commercial interiors without drawing attention to the hardware. Where this bracket falls short is equally straightforward: at 780mm it is a fixed-length extension with no adjustability, so if your required drop is shorter or longer you will need to assess whether this or a different bracket length suits the job. It is also specified for use with the DH-PFB220C adapter, so compatibility with other mounting interfaces should be confirmed before ordering. Available through Security Australia, the PFA117 is a single-purpose accessory - assess your ceiling height, required camera position, and camera weight before ordering.
Before You Buy
Installer Note: The PFA117 is specified for use with the DH-PFB220C pendant adapter - confirm this adapter is part of your camera assembly before ordering. Also verify your camera body weight does not exceed the 2kg load rating. The 780mm drop length is fixed, so measure your required standoff from ceiling to desired camera position before committing to this bracket.
Ceiling Fixing Note: The bracket and camera combined weight must be fully accounted for in the ceiling anchor selection. Suspended grid ceilings typically require a secondary structural fixing point above the grid - the bracket's 0.65kg weight plus camera load should be transferred to a solid structural element, not a ceiling tile or lightweight grid rail alone.
Quick Fit Check
- Good match if: You are installing a compatible Dahua dome or turret camera with the DH-PFB220C pendant adapter in a space where a 780mm ceiling drop is needed to achieve the correct camera angle and scene coverage.
- Good match if: Your camera body is within the 2kg load limit and the installation environment falls within the -40°C to +60°C operating temperature range - covering the full range of Australian commercial and industrial indoor conditions.
- You may need a different model if: Your required drop length is significantly shorter than 780mm, your camera weight exceeds 2kg, or you are mounting a larger PTZ or multi-sensor camera that requires a heavier-duty pendant bracket with a higher load rating.
Key Features & Technical Specifications
Real-World Scenarios
How It Compares
- Choose this if: You need a fixed 780mm ceiling drop extension for a Dahua dome or turret camera using the DH-PFB220C pendant adapter, and your camera weight is within the 2kg load rating.
- You may need a different model if: Your required drop is shorter or longer than 780mm, or your camera assembly exceeds 2kg - a different bracket or adjustable pendant arm from the Dahua accessories range would be more appropriate for those situations.
- Pairs well with: Compact Dahua dome and turret cameras in the sub-2kg range, used in conjunction with the DH-PFB220C pendant adapter.
Common Questions
-
Does the PFA117 work with any Dahua camera, or only specific models?
It is specified for use with the DH-PFB220C pendant adapter - any camera compatible with that adapter and within the 2kg load limit can use this bracket. The bracket itself does not attach directly to a camera body; it forms the standoff extension between the ceiling and the PFB220C adapter assembly. Confirm your camera's pendant adapter compatibility before ordering. -
What is the maximum weight this bracket can carry?
The rated load bearing capacity is 2kg. This figure covers the camera body and any adapter hardware attached below the bracket. Cameras approaching or exceeding 2kg - such as larger multi-sensor or PTZ units - require a bracket with a higher load rating and should not be installed on the PFA117. -
Will this bracket work for outdoor pendant camera installations?
No. The PFA117 is rated for indoor applications. While its operating temperature range of -40°C to +60°C covers harsh indoor environments, it does not carry an IP or weather resistance rating. Outdoor pendant installations require a bracket with confirmed ingress protection for exposure to rain and moisture. -
Can the drop length be adjusted or cut down on site?
No. The PFA117 is a fixed-length bracket at 780mm. It is not designed to be field-modified. If 780mm is longer than required for your installation, a shorter Dahua pendant bracket from the accessories range would be the correct selection. The Security Australia accessories range includes multiple bracket options across different lengths. -
How does the cable route through this bracket?
The 42mm diameter aluminium tube is hollow, allowing the camera cable to route internally through the bracket. This keeps cabling concealed within the pendant for a clean finished appearance - relevant in retail, hospitality, and commercial environments where surface-run cables are not acceptable. -
Does this bracket include the ceiling rose or mounting plate?
The PFA117 bracket itself does not include a complete ceiling rose or camera adapter. It is the pendant extension tube designed to be used in conjunction with the DH-PFB220C adapter. Confirm all required components are included in your accessory order to avoid incomplete installations on site.
Downloads & Resources
No downloads available for this product.
