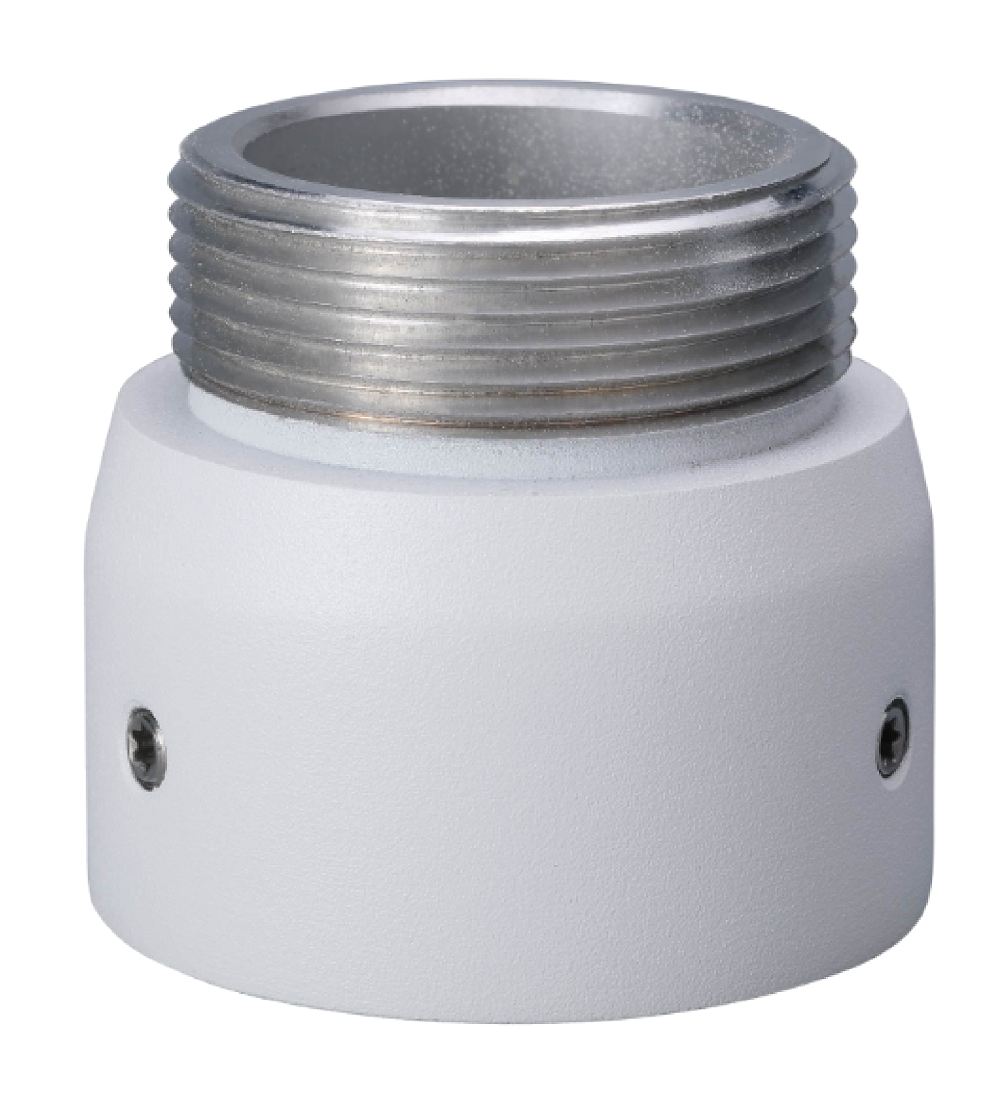

Dahua DH-PFA110 Dahua Mount Adapter

Model: DH-PFA110

Who This Is For

When adapting an existing pipe or conduit entry point to suit a Dahua camera mount is the priority, the DH-PFA110 mount adapter is the piece that makes it work. Installers retrofitting cameras onto older conduit-terminated brackets, or mounting Dahua turret and dome cameras onto G1 1/2-inch pipe threads, use this adapter to bridge the gap between the pipe entry and the camera base. The aluminium construction keeps weight minimal at 0.2kg while handling up to 5.0kg of camera load, covering the full weight range of Dahua's standard compact cameras. The white finish blends with typical ceiling and soffit installations. Rated for operating temperatures from -40°C to +60°C, it suits both indoor plant environments and exposed outdoor eave mounts across Australian climates without material degradation.

What This Adapter Actually Does

Who Buys This Model

• Security installers completing Dahua camera jobs: Needed when the existing bracket or conduit entry uses a G1 1/2-inch pipe thread and the camera base requires a flat or compatible adapter plate to mount cleanly.
• Contractors retrofitting cameras to legacy conduit brackets: Older bracket infrastructure often terminates in a pipe thread rather than a flat mounting plate - this adapter makes those brackets compatible with current Dahua camera housings without replacing the bracket entirely.
• Facilities teams managing multi-site Dahua deployments: Keeping a stock of PFA110 adapters on-hand avoids job delays when a bracket-to-camera mismatch is discovered on site, particularly across warehouse, retail, or commercial property portfolios.
• Integrators working in temperature-extreme environments: Cold-storage facilities, rooftop plant rooms, and outdoor industrial sites where thermal cycling rules out plastic adapters - the aluminium construction and -40°C to +60°C rating suit these conditions directly.

Honest Assessment

The DH-PFA110 does one job - it adapts a G1 1/2-inch pipe thread entry to accept a compatible Dahua camera mount - and it does that job with a properly rated aluminium body, a confirmed 5.0kg load capacity, and a temperature range that covers genuinely demanding installation environments. For installers who regularly encounter pipe-thread bracket terminations on Dahua jobs, having this adapter available through Security Australia removes a common on-site hold-up. What it will not do is adapt to non-G1 1/2-inch pipe threads - if your bracket uses a different thread standard, a different adapter model will be required. It is also not a tilt or swivel arm; camera angle adjustment still depends on the camera housing itself or an additional positioning bracket. This is a structural interface component, not a positioning solution.

Before You Buy

Quick Fit Check

• Good match if: Your installation uses a bracket or conduit entry with a G1 1/2-inch pipe thread and you need a rated adapter to connect a Dahua camera housing cleanly and securely.
• Good match if: The install environment is temperature-extreme - cold stores, rooftop mounts, or exposed outdoor brackets - and you need an aluminium adapter rated to -40°C to +60°C rather than a plastic alternative.
• You may need a different model if: Your bracket terminates in a different thread size or uses a flat-plate or junction-box mount - a different Dahua accessory adapter from the PFA range is likely the more suitable fit for those configurations.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your bracket or conduit entry uses a G1 1/2-inch pipe thread and you need a rated aluminium adapter to mount a Dahua camera housing cleanly - particularly in outdoor or temperature-extreme environments.
• You may need a different model if: Your mounting surface is a flat junction box, a wall plate, or a conduit entry with a different thread size - other Dahua PFA-series accessories address those configurations and are worth reviewing on the full accessories range.
• Pairs well with: Dahua compact dome, turret, or bullet camera housings within the 5.0kg load limit, mounted on pole, wall, or ceiling brackets that terminate in a G1 1/2-inch pipe thread.

Common Questions

1. What pipe thread size does the DH-PFA110 accept?

   G1 1/2-inch BSP (British Standard Pipe). This is the confirmed thread specification for the PFA110 - it will not fit G3/4, G1, or metric conduit threads. If you are unsure of the thread on your existing bracket, measure the outer diameter of the male thread (approximately 47.8mm for G1 1/2) before ordering.

2. How much weight can the PFA110 safely hold?

   5.0kg (11.02lb). This comfortably covers the weight range of Dahua's standard compact dome, turret, and bullet camera housings. If you are mounting a heavier PTZ or large housing exceeding 5.0kg, a heavier-duty bracket adapter will be required.

3. Will this adapter work in outdoor or harsh environments?

   Yes. The aluminium body and operating temperature range of -40°C to +60°C make it suitable for outdoor exposed brackets, rooftop mounts, and cold-storage environments. The humidity rating of less than 90% RH also means it handles humid coastal or industrial installations without degradation.

4. Does the PFA110 allow camera angle adjustment?

   No. The DH-PFA110 is a fixed interface adapter - it connects the pipe thread to the camera base but does not provide tilt, swivel, or pan adjustment. Camera angle adjustment relies on the camera housing's own gimbal or an additional positioning bracket used in conjunction with this adapter.

5. Is the PFA110 compatible with all Dahua cameras?

   Compatibility depends on the camera housing's base mount interface. The PFA110 is designed for Dahua cameras whose housing accepts this adapter type - check the accessory compatibility list for your specific camera model before purchasing. Security Australia can assist with confirming compatibility if you provide your camera model number.

6. What are the physical dimensions of the PFA110?

   59mm x 53mm (2.32" x 2.09"). At 0.2kg the adapter adds negligible mass to the bracket assembly. The compact footprint means it sits unobtrusively between the bracket thread and the camera base without creating a large visible gap or an awkward camera standoff height.

Downloads & Resources

No downloads available for this product.
