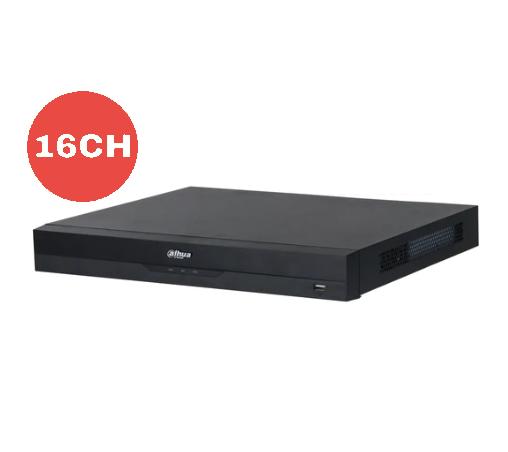

Dahua NVR5216-16HP-AI/ANZ-PRO 16 Channel WizMind Network Video Recorder
- Sku: NVR5216-16HP-AI/ANZ-PRO
- Vendor: SecurityAustralia
Why This Model
- 16 built-in PoE ports: Power and connect up to 16 IP cameras directly from the recorder, removing the cost and complexity of a dedicated PoE switch in most installs.
- WizMind AI analytics: Supports perimeter protection, face recognition, and people counting at the recorder level, meaning intelligent alerts work across all connected cameras from a single device.
- Up to 32MP resolution support: Future-proofs the installation by accommodating high-resolution Dahua cameras without requiring a recorder upgrade as site needs grow.
Free shipping - Enjoy free shipping when your order exceeds $100!
All orders are despatched within the next business day!
Best local support in Aus! We back all products with a 3 year manufacturer warranty.
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Product Overview
Model: NVR5216-16HP-AI/ANZ-PRO
Who This Is For
When a fully integrated AI recording platform with built-in PoE switching is the priority, the Dahua WizMind NVR5216-16HP-AI/ANZ-PRO is the recorder that system designers reach for. This 16-channel unit is built for installers who need to consolidate camera power and data through a single device without adding a separate PoE switch to the rack or cabinet. The ANZ-PRO designation confirms it is configured for the Australian and New Zealand market, with local compliance and firmware alignment. Small-to-medium commercial sites - warehouses, strata blocks, medical centres, schools, and multi-tenancy retail - are the natural fit, particularly where WizMind AI analytics such as perimeter protection, face detection, and IVS are being deployed across the camera network. With support for resolutions up to 32MP and H.265+ compression, this recorder handles high-density, high-resolution setups without forcing a compromise between image quality and storage duration.
What This Camera Actually Does
16-Port Built-In PoE
Every camera channel has a dedicated PoE port, so a separate PoE switch is not required. This simplifies rack design, reduces points of failure, and keeps the installation clean - one cable per camera from panel to mounting point, carrying both power and data.
WizMind AI Processing
The recorder runs Dahua WizMind analytics including perimeter protection, intrusion detection, face detection, and IVS rules. AI events are processed and searchable at the NVR level, which reduces reliance on cloud infrastructure and keeps response times local.
Up to 32MP Resolution Support
Cameras up to 32MP resolution are supported across all 16 channels, meaning multi-sensor panoramic cameras and high-resolution turrets can be added to the same system without the recorder becoming the bottleneck in image quality.
H.265+ Compression
H.265+ encodes footage more efficiently than standard H.264, significantly reducing the storage space required per camera. On a 16-camera system, this difference in compression directly extends retention periods on the same HDD capacity - a practical cost consideration at planning stage.
4K HDMI Output
The primary HDMI output supports 4K display, so live view on a large-format monitor or security console screen is rendered at full resolution. This matters on reception desks, control rooms, or monitoring stations where operators need to read detail without zooming in.
Dual HDD Bays
2 internal HDD bays allow storage to be scaled at installation or expanded later. Pairing two large-capacity surveillance-grade drives delivers meaningful retention across all 16 channels at high resolution, with H.265+ compression further stretching usable duration.
Who Buys This Model
- Commercial Installers: Specifying a clean, all-in-one recording and PoE solution for retail centres, schools, or office buildings where running a separate PoE switch adds cost and cabinet space.
- Strata and Property Managers: Deploying 16-camera systems across common areas, car parks, and building entries where AI-driven event search saves time during incident review.
- Warehouse and Logistics Operators: Running perimeter protection and intrusion detection analytics across loading zones and yard entrances, with the AI processed locally at the recorder.
- Medical and Education Facilities: Sites requiring structured camera layouts with centralised recording, searchable AI events, and local storage to limit reliance on cloud infrastructure for sensitive footage.
- System Integrators Upgrading Existing Sites: Replacing older recorders on 16-camera systems where WizMind AI compatibility with current Dahua cameras is the primary driver of the upgrade.
Honest Assessment
The NVR5216-16HP-AI/ANZ-PRO delivers well where it is designed to: a 16-channel, PoE-integrated recording platform with on-device WizMind AI analytics, H.265+ compression, and 32MP camera support. The built-in PoE eliminates a separate switch from the BOM on most 16-camera jobs, and the ANZ-PRO configuration is aligned for Australian deployments. AI event search and perimeter protection analytics work at the recorder level, which suits sites that want useful detections without cloud dependency. The dual HDD bay design does cap local storage expansion - sites expecting rapid storage growth or very long retention periods across 16 high-resolution channels may need to plan HDD capacities carefully or consider a higher-bay NVR model. This recorder is also built for IP camera systems only; it will not accept analogue or HDCVI inputs. Available through Security Australia, it suits integrators and site managers who want a purpose-built WizMind AI recorder rather than a general-purpose NVR with analytics bolted on.
Before You Buy
Storage Planning: With 16 channels and support for cameras up to 32MP, HDD selection has a direct impact on retention. Use Dahua's storage calculator before specifying HDD capacity - H.265+ compression helps significantly, but 16 channels of 4MP or 8MP continuous recording still demands proper planning. Surveillance-grade HDDs (not desktop drives) are required for continuous write operations.
PoE Budget: The 16HP designation confirms 16 PoE ports, but total PoE power budget is shared across all ports. If you are running power-hungry cameras such as PTZ units, TiOC models with IR and strobe, or multi-sensor panoramics, calculate the combined draw across all 16 ports and confirm it sits within the unit's total PoE budget before finalising the camera selection.
Quick Fit Check
- Good match if: You are installing up to 16 Dahua WizMind IP cameras and want AI analytics, PoE connectivity, and recording managed from a single unit.
- Good match if: You need perimeter protection or face recognition at the NVR level without relying on individual camera-side processing alone.
- You may need a different model if: Your site requires more than 16 channels - a 32-channel NVR would be a better fit for larger deployments.
Key Features & Technical Specifications
Real-World Scenarios
How It Compares
- Choose this if: You need a 16-channel IP NVR with integrated PoE switching, WizMind AI analytics processed on-device, and support for cameras up to 32MP - all in one unit without a separate PoE switch.
- You may need a different model if: Your site requires more than 2 HDDs for long-term retention across 16 high-resolution channels, or you need to record more than 16 cameras - a higher-channel NVR with additional HDD bays will serve those requirements better.
- Pairs well with: WizMind-compatible IP cameras (turret, bullet, or multi-sensor), surveillance-grade HDDs sized for your required retention period, and a UPS to protect the recorder and PoE-powered cameras from power interruption.
Common Questions
-
Does this NVR require a separate PoE switch to power the cameras?
No. The NVR5216-16HP-AI/ANZ-PRO has 16 built-in PoE ports - one for each camera channel - so a separate PoE switch is not required. Each camera receives both power and data through a single Cat5e or Cat6 cable connected directly to the recorder. This simplifies installation significantly on 16-camera systems and reduces the number of active network devices in the cabinet. -
Will this recorder work with non-Dahua IP cameras?
Partially. The NVR5216-16HP-AI/ANZ-PRO supports ONVIF-compliant IP cameras from third-party manufacturers, but WizMind AI features - perimeter protection, face detection, IVS - only function when used with compatible Dahua cameras. Third-party cameras connected via ONVIF will record standard video but will not pass AI event data to the recorder's analytics engine. -
What is the maximum incoming bandwidth this recorder supports?
320Mbps. This is the total throughput the recorder can handle across all 16 channels simultaneously. On a 16-camera system using 4MP cameras at standard H.265+ bitrates, this bandwidth ceiling is unlikely to be reached in normal operation. However, if you are running 8MP or higher cameras on all 16 channels with high-quality settings enabled, it is worth calculating the combined bitrate at the specification stage. -
How many hard drives can I install, and what capacity is supported?
2 HDDs. The NVR5216-16HP-AI/ANZ-PRO has 2 internal HDD bays. Dahua supports surveillance-grade drives in each bay - standard desktop drives are not recommended for the continuous write operations of a 16-channel recorder. The exact maximum HDD capacity per bay should be confirmed against the current Dahua HDD compatibility list, as supported capacities are updated as larger drives become available. Consult the Security Australia team if you are planning a specific retention period and need help sizing the drives correctly. -
Does this recorder support 4K live view output?
Yes. The primary HDMI output supports 4K resolution, so the live view grid and playback can be displayed on a 4K monitor at full resolution. The VGA output operates at a lower resolution and is suited for secondary or legacy monitor connections rather than a primary operator display. -
Does this NVR support analogue or HDCVI cameras?
No. The NVR5216-16HP-AI/ANZ-PRO is an IP-only recorder. It will not accept analogue coaxial or HDCVI camera inputs. Sites upgrading from an older coaxial camera system will need to replace the cameras with IP models when migrating to this recorder. -
What does the ANZ-PRO designation mean for Australian buyers?
It indicates this unit is the Australia and New Zealand professional market variant. ANZ-PRO models are configured with firmware and settings aligned for local market requirements, and they carry local compliance credentials. This is the correct variant to specify for Australian commercial installations rather than a grey-market or international firmware version.
