Dahua KIT-DHI-7INWHT2101E-P 7inch Touch Screen IP Intercom Kit

The Dahua 7-inch Touch Screen IP Video Intercom Kit is a sophisticated doorbell solution for both homes and offices. With this kit, you can receive notifications on Dahua's official DMSS app when visitors press the door station. Additionally, the 7-inch IPC indoor monitor allows you to view visitors directly, and it can be elegantly mounted in your living room. The outdoor station, designed for surface mounting, offers an adjustable viewing angle of up to 100 degrees and includes ICR 5m night vision for clear imaging in low light. This IP video intercom system utilizes RJ45 Ethernet cables for installation, ensuring a seamless and reliable connection.

Dahua Intercom Kit includes:

IP Indoor Monitor

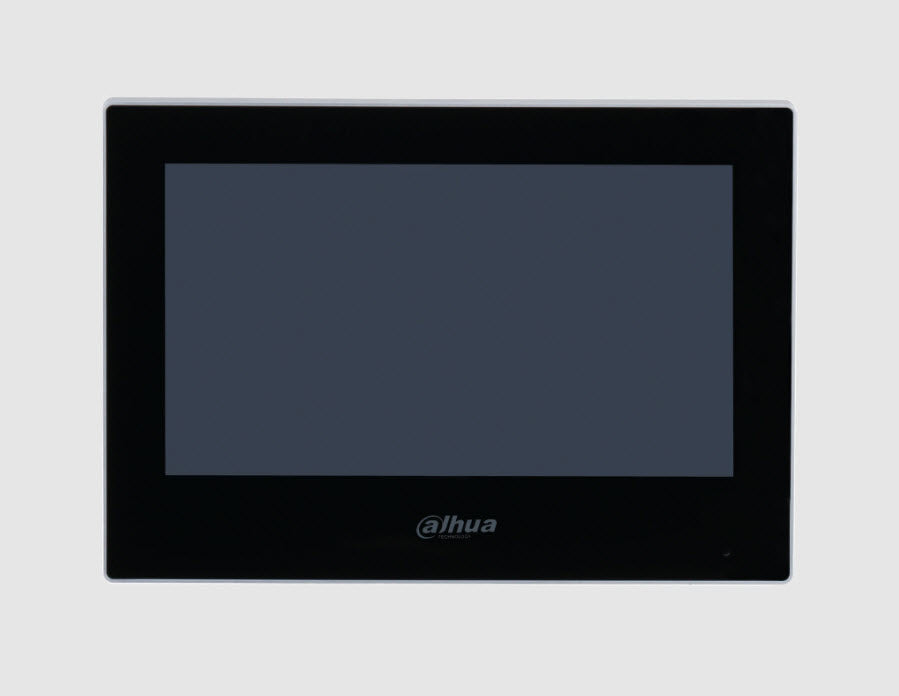

The Dahua IP Indoor Monitor VTH2621G(W)-P is a sleek and modern device designed for high-quality video intercom communication. It features a 7-inch capacitive touchscreen with a resolution of 1024×600, offering clear and vibrant visuals. The monitor supports two-way audio communication with noise suppression and echo cancellation, ensuring crystal-clear conversations. It can be connected to a network via PoE, simplifying installation by combining power and data through a single cable.

Key Features

• 7" TFT capacitive touch screen, 1024 × 600.
• 6-channel alarm input and 1-channel alarm output.
• Standard PoE.
• Door station and IPC monitor.
• H.265 and H.264 video decoding.
• High performance & cost-effective.

Code/SKU: DHI-VTH2621G-P
Quick Specs:

• Network Protocol: RTSP; RTP; SIP; DNS; SSH
• ROM: 128 MB
• RAM: 128 MB
• CPU: Dual core 1.2 GHz

IP Villa Outdoor Station

The Dahua IP Villa Outdoor Station, model VTO2101E-P-S1, is a high-performance intercom system designed for residential use. It features a sleek, weather-resistant design suitable for outdoor installation, ensuring durability in various environmental conditions. The device includes a 2-megapixel camera with a wide-angle lens, providing clear and detailed video surveillance of visitors. It supports two-way audio communication, allowing homeowners to converse with visitors at the door via a built-in speaker and microphone.

Key Features

• HD CMOS camera
• Zinc alloy panel, IP65, IK10
• ICR Night vision & Voice indication
• Video & Audio messaging
• TCP/IP, SIP
• Surface mounted
• IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)

Code/SKU: VTO2101E-P-S1
Quick Specs:

• Image Sensor: 1/2.7” 2MP CMOS
• Focal Length: 2.8mm
• Angle of View: H:77°, V:55°, D:100°
• Angle of View Adjustment: Horizontal: -45° – +45°

10-Port PoE Switch

The SW-2110-P is a fast uplink switch that offers high performance at a low cost, with easy installation and a seamless upgrade to enhance your network to 100Mbps. It boosts the speed of your network server and backbone connections, making a Gigabit connection to a server or uplink essential.

Key Features

• Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
• Support port traffic control
• Support for secure mode, all downlink ports can communicate only with uplink ports
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable

Code/SKU: SW-2110-P
Quick Specs:

• Dimensions (W×D×H): 220mm x 150mm x 44mm (8.7" × 5.9" × 1.7")
• Weight: <1.22kg
• Power supply: AC: 100-240V, 50/60Hz
• PoE: 802.3at/af
