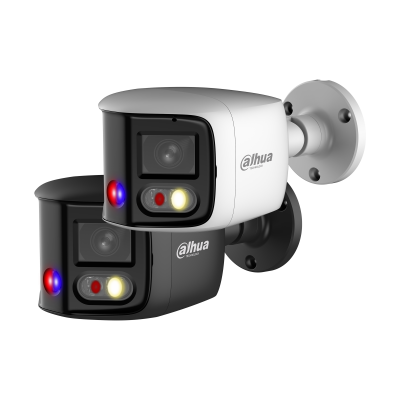

Dahua IPC-PFW3849S-A180-AS-PV 8MP 180° TiOC Duo Splicing Bullet WizSense Network Camera

Model: IPC-PFW3849S-A180-AS-PV

Who This Is For

Installers working on sites where a single fixed bullet camera leaves blind spots at the corners of a coverage zone will find the Dahua IPC-PFW3849S-A180-AS-PV solves the problem without adding a second camera position. The 180-degree duo splicing design fuses two 4MP sensors into a single stitched 8MP panoramic image, giving you wall-to-wall coverage of driveways, loading bay entries, car park rows, and building perimeters from one mounting point. The TiOC 2.0 active deterrence layer - full-colour warm-light illumination, a strobe light, and a built-in siren - means the camera does not just record an intrusion event, it actively responds to one. WizSense AI with SMD 4.0 classifies humans and vehicles before triggering, keeping false alarms from leaves and small animals out of the workflow. This suits commercial property managers, logistics operators, and security integrators who need wide-angle active deterrence on a single cable run.

What This Camera Actually Does

Who Buys This Model

• Logistics and Warehousing Sites: Loading dock entries and yard perimeters where one camera position needs to cover the full width of a bay entrance or vehicle staging area - the 180-degree duo splicing view handles this without needing 2 cameras angled outward.
• Commercial Car Parks and Driveways: Property managers who want full-colour night footage of vehicle colour and licence plate area across a wide entry lane, with active deterrence to interrupt after-hours access attempts without dispatching security.
• Construction Sites and Vacant Land: Temporary installations on sites with no existing lighting where the warm-light full-colour capture provides usable footage regardless of ambient light, and the siren response discourages opportunistic theft.
• Security Integrators Reducing Camera Count: Installers specifying systems where minimising cable runs and camera positions is a client priority - replacing 2 standard fixed cameras with 1 wide-angle active deterrence unit simplifies the infrastructure without sacrificing coverage width.

Honest Assessment

The IPC-PFW3849S-A180-AS-PV does several things well: the 180-degree duo splicing panoramic view genuinely replaces 2 standard fixed cameras at a wide entry point, the full-colour warm-light imaging delivers usable colour footage at night without IR washout, and the TiOC 2.0 active deterrence adds a real-time intervention capability that standard recording cameras do not offer. SMD 4.0 classification keeps false alarm rates low enough for the deterrence system to remain credible over time. Where this camera is less suited: if your priority is long-distance recognition of individuals at 30 metres or more down a corridor or fence line, a dedicated bullet camera with a narrower lens and longer IR range will outperform a wide-angle splicing unit at that task. The 180-degree field also means each half of the image covers a narrower effective depth than a single-lens camera of equivalent resolution. Available through Security Australia, this model suits wide-area active deterrence applications more than long-range identification scenarios.

Before You Buy

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need wide-area 180-degree panoramic coverage with full-colour 24/7 imaging and AI-triggered active deterrence from a single wall-mount bullet housing and one cable run.
• You may need a different model if: Your priority is long-range identification of individuals at distances beyond 20-25 metres - a dedicated long-range IR bullet with a narrower lens will resolve detail at distance more effectively than a wide-angle splicing unit of equivalent megapixel count.
• Pairs well with: An AI-capable NVR with WizSense support and per-port PoE+ budget, allowing full SMD 4.0 alert filtering, perimeter rule configuration, and two-way audio management from a single interface.

Common Questions

1. Does this camera require PoE+ or will a standard PoE switch port work?

   This camera requires IEEE 802.3at PoE+ to operate all features. A standard 802.3af port delivers a maximum of 15.4W, which is insufficient when the dual sensors, warm-light illuminators, active strobe, and siren are running simultaneously. Confirm each port on your switch or NVR delivers PoE+ before planning the installation - connecting through an 802.3af-only port may result in reduced function or the camera failing to power on reliably.

2. How does the duo splicing work - is it a fisheye with dewarping or two separate lenses?

   It uses 2 separate physical lenses and 2 independent CMOS sensors, not a single fisheye optic. Each sensor captures a standard fixed-lens image, and the camera's on-board processor stitches both streams along a vertical join into a single 8MP panoramic output. This approach avoids the heavy barrel distortion and centre-to-edge resolution loss of a fisheye design - the image at the edges of the 180-degree frame is not dewarped from a curved projection, it is captured by a dedicated lens aimed at that area from the start.

3. Will the TiOC strobe and siren trigger on every motion event, including passing cars and animals?

   No. The active deterrence is tied to the WizSense SMD 4.0 AI classification layer, not raw motion. The camera must first classify the moving object as a human or vehicle before triggering the strobe and siren. Motion from animals, swaying vegetation, and changes in ambient lighting does not meet the classification threshold and does not trigger the deterrence output. Perimeter rules and time schedules can further refine when deterrence activates - for example, limiting it to after-hours intrusion events only.

4. Does this camera record in colour at night without any external lighting?

   Yes. The TiOC 2.0 design uses built-in warm-light illuminators that activate automatically in low-light conditions, so the camera produces full-colour footage at night under its own illumination. You do not need external floodlights or ambient site lighting for the colour capture to function. The warm-light output also serves as the visible deterrence strobe when an AI-classified intrusion is detected, so the illumination and deterrence functions share the same hardware.

5. Can perimeter zones and tripwires be drawn over the full 180-degree panoramic view?

   Yes. Detection zones are configured over the stitched panoramic image, so you can draw intrusion boundaries or tripwire lines across the complete 180-degree field including areas on either side of the splice join. This means you can restrict alerts to a specific gate, lane, or threshold within the wide-angle view rather than triggering on any movement anywhere in the full frame - which is important for sites where only part of the panoramic coverage area needs to be monitored after hours.

6. Is there a visible splice or join line in the recorded image?

   There is a vertical stitch seam at the centre of the panoramic frame where the 2 sensor images are joined. On most installations this is not visible as a hard line under normal viewing conditions, but subjects crossing through the stitch zone may appear briefly misaligned or duplicated at the join boundary. Mounting the camera so the seam falls over open ground, a wall, or another low-activity area minimises this effect. Placing the seam directly over a door frame, vehicle lane centre, or pedestrian walkway is not recommended. This point is worth discussing with clients who have specific forensic review requirements.

7. Will this camera work with non-Dahua NVRs or third-party VMS platforms?

   It will work with ONVIF-compatible recorders and platforms for basic live view and recording. However, WizSense AI features including SMD 4.0 classification, perimeter protection rule configuration, and active deterrence management are fully supported only on Dahua NVRs and VMS platforms that specifically support the WizSense protocol. On a third-party ONVIF system you will still receive video, but AI-driven alert filtering and deterrence scheduling will need to be managed through the camera's own web interface rather than centrally through the recorder. Stocked by Security Australia, this camera is most commonly paired with a compatible Dahua WizSense NVR to access the full feature set.

Downloads & Resources

• Product Spec Sheet (PDF)
