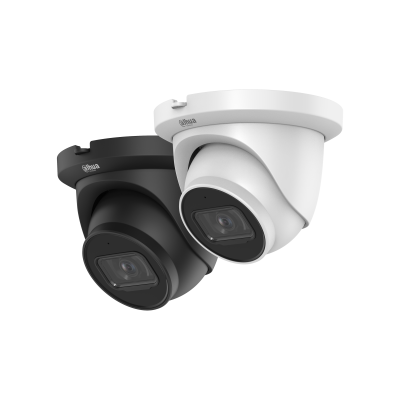

Dahua IPC-HDW5842TM-ASE-S3 8MP WizMind S-Series Fixed-Focal Eyeball Network Camera

Model: DH-IPC-HDW5842TM-ASE

Who This Is For

Property managers specifying camera upgrades for mixed-use sites - retail tenancies, strata complexes, childcare facilities, or small commercial buildings - where 4K resolution and AI-driven detection need to coexist with a clean, unobtrusive profile. The Dahua IPC-HDW5842TM-ASE is an 8MP WizMind S-Series fixed-focal eyeball camera designed for eave, soffit, and wall-mount positions where a turret form factor keeps the housing compact while still delivering serious performance. The WizMind S classification means SMD Plus intelligent motion filtering and perimeter protection rules are built in, reducing nuisance alerts from trees, insects, and passing vehicles. With a built-in microphone and speaker, onboard SD card storage, and IP67 weatherproofing, this camera suits installers who want a single compact housing that handles daytime 4K detail and IR night coverage up to 50 metres without additional accessories.

What This Camera Actually Does

Who Buys This Model

• Strata and body corporate managers: Specifying cameras for carpark entries, bin enclosures, and common-area corridors where IP67 weatherproofing and a compact turret profile meet both performance and aesthetic requirements.
• Retail and hospitality operators: Installing above entry doors or POS areas where 8MP resolution enables facial detail and SMD Plus reduces the constant motion alerts triggered by customer foot traffic and window reflections.
• Childcare and education facility managers: Where the combination of two-way audio, face detection, and IK10 vandal resistance provides layered capability without requiring multiple device types across access points and outdoor play areas.
• Security integrators building out WizMind ecosystems: Pairing this camera with Dahua WizMind NVRs to take advantage of deep-learning event search, face recognition database matching, and perimeter protection rules already embedded in the camera firmware.

Honest Assessment

The IPC-HDW5842TM-ASE earns its place in the WizMind S-Series by combining genuine 4K resolution with AI event filtering in a housing that suits eave and wall mounting without protruding bulk. The SMD Plus classification is the practical standout - sites that have tolerated high false-alert rates from standard motion cameras will notice a significant reduction without any reduction in sensitivity to actual human or vehicle movement. IR performance to 50 metres is adequate for most domestic and light commercial applications. Where this camera does not fit: if your application demands full-colour night imaging without IR, you need a camera with white-light illuminators or a TiOC variant. For high-traffic outdoor approaches requiring IR beyond 80 metres, a bullet-form camera with extended illumination will serve better. The eyeball housing also suits moderate vandal risk but is not the right choice where sustained physical attack is a genuine threat - an IK10-rated dome housing offers greater structural protection. Available through Security Australia with full Dahua warranty support.

Before You Buy

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 4K resolution with built-in AI filtering, two-way audio, and edge storage in a compact eyeball housing rated for outdoor use - particularly where a WizMind NVR is already in the system.
• You may need a different model if: Your site requires full-colour night imaging - a TiOC or white-light variant will deliver colour footage in darkness rather than IR monochrome. For long approaches beyond 50 metres, a bullet-format camera with extended IR will produce better results.
• Pairs well with: A Dahua WizMind-compatible NVR to activate SMD Plus event search, face detection logs, and IVS rule management from a central interface. A PoE switch supporting 802.3af simplifies single-cable installation across multiple camera positions.

Common Questions

1. Does this camera work with a standard PoE switch?

   Yes. The IPC-HDW5842TM-ASE supports IEEE 802.3af PoE, meaning any compliant 802.3af switch or injector will power it over a single Cat5e or Cat6 cable. No separate power supply or second cable run is required, which keeps installation straightforward for multi-camera deployments.

2. Will this camera work with a non-Dahua NVR?

   Partially. The camera streams standard H.265/H.264 video to any ONVIF-compatible NVR, so basic recording functions. However, SMD Plus human/vehicle classification, perimeter protection IVS rules, face detection event logs, and AI-based search all require a Dahua WizMind-compatible NVR to display and use that metadata. The AI happens at the camera, but a Dahua NVR is needed to surface it.

3. What does SMD Plus actually do differently from standard motion detection?

   Standard motion detection triggers on any pixel change - light shifts, insects at night, and blowing foliage all count as events. SMD Plus uses deep-learning classification to confirm whether the moving object is a human or vehicle before generating an alert. Sites that previously received dozens of false notifications overnight typically see that number drop to only confirmed human or vehicle detections, without any adjustment to the camera's sensitivity level.

4. Does this camera record if the NVR goes offline?

   Yes. The onboard MicroSD card slot allows continuous or event-triggered local recording independent of network or NVR availability. If the NVR loses power or the network connection drops, the camera continues writing footage to the card. When connectivity is restored and the NVR is back online, footage can be retrieved from the SD card directly.

5. Is the two-way audio usable without an NVR on-site?

   Yes, with limitations. Two-way audio is accessible through the Dahua DMSS mobile app when the camera is connected to the internet, allowing remote operators to listen and speak through the camera's built-in microphone and speaker without an NVR present. For permanent monitoring station use, a WizMind-compatible NVR or DSS platform is the more practical interface.

6. What is the 120dB WDR rating and when does it matter?

   120dB True WDR means the camera simultaneously exposes for bright and dark areas of the same frame, then combines them. This matters most in scenes with strong backlight - a shopfront entrance facing morning sun, a carpark exit facing the sky, or an interior door with a bright window behind it. Without WDR at this level, the subject in shadow would be underexposed and unidentifiable. The IPC-HDW5842TM-ASE handles these conditions without requiring manual exposure adjustment, which is part of why it is part of the Security Australia WizMind S stocking range.
