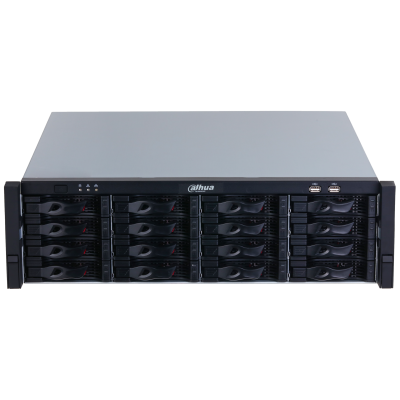

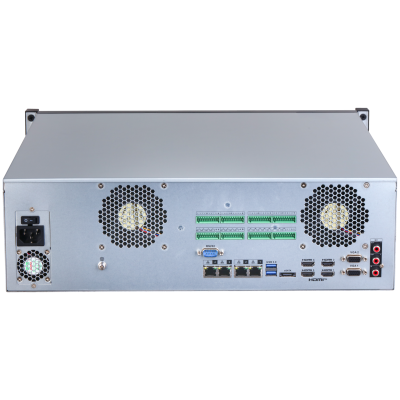

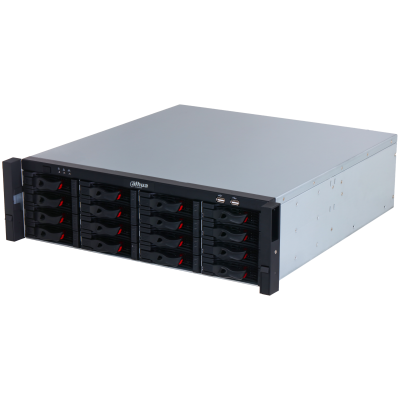

Dahua DHI-NVR616H-64-AI/ANZ 64‑Channel 3U 16‑HDD WizMind NVR with AI & AcuPick
- Sku: NVR616H-64-AI/ANZ
- Vendor: SecurityAustralia
Why This Model
- AcuPick smart search: Lets operators locate a specific person or vehicle across 64 channels in seconds rather than scrubbing through hours of footage manually - critical in high-camera-count environments.
- 16-HDD bay capacity: Supports massive on-site storage expansion without external infrastructure, making it suitable for extended retention requirements across large or regulated sites.
- WizMind AI integration: Native compatibility with Dahua's full WizMind camera range means advanced perimeter protection, face recognition, and ANPR features work out of the box without third-party middleware.
Free shipping - Enjoy free shipping when your order exceeds $100!
All orders are despatched within the next business day!
Best local support in Aus! We back all products with a 3 year manufacturer warranty.
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Product Overview
Model: NVR616H-64-AI/ANZ
Who This Is For
When a large-scale surveillance infrastructure demands a central recording platform that handles AI processing, mass storage, and high-bandwidth camera feeds without compromise, the NVR616H-64-AI/ANZ is the unit installers specify. Designed for enterprise, government, education, and multi-site commercial deployments, this 64-channel WizMind NVR supports up to 16 HDDs in a 3U rack-mount chassis - making it suited to data centre racks, server rooms, and dedicated security equipment rooms. The integrated AI engine powers AcuPick, enabling operators to retrieve footage of a specific person or vehicle from across dozens of cameras in seconds rather than hours. Installers managing large camera counts across warehouses, university campuses, hospitals, or mixed-use commercial precincts will find this NVR handles the bandwidth and AI workload that mid-range recorders cannot sustain.
What This Camera Actually Does
AcuPick Target Retrieval
Operators can select a person or vehicle from any live or recorded frame, and AcuPick searches all connected camera feeds for matching appearances. What previously took an operator hours of scrubbing footage is compressed into seconds - directly useful after incidents where re-identification across camera zones is required.
64-Channel IP Recording
Records up to 64 IP cameras simultaneously with support for resolutions up to 32MP. The high incoming bandwidth capacity accommodates a full complement of high-resolution cameras without frame-dropping or resolution compromise - critical when every camera position needs to deliver forensic-quality footage.
16-HDD Capacity with RAID
Sixteen internal HDD bays provide substantial raw storage headroom for long-retention recording across all 64 channels. RAID support (including RAID 0, 1, 5, 6, and 10) allows installers to configure for redundancy, protecting footage against drive failure in installations where continuity of evidence is mandatory.
WizMind AI Engine
The onboard WizMind processor handles AI functions including perimeter protection, intrusion detection, and face detection at scale across connected WizMind-compatible cameras. AI analytics run on the NVR itself, reducing dependence on edge-device processing and centralising alarm management for large camera deployments.
3U Rack-Mount Chassis
The 3U form factor installs cleanly into standard 19-inch equipment racks alongside networking gear and patch panels. For installations with a dedicated security equipment room or shared IT rack, this housing keeps cabling organised and the unit secured, with no desk or shelf space required.
4K HDMI Display Output
HDMI output at 4K resolution supports a high-resolution monitor wall or single operator workstation display at full clarity. Security control rooms and reception monitoring stations benefit from the ability to display multiple camera feeds simultaneously without resolution degradation on a large-format 4K screen.
Who Buys This Model
- Commercial security integrators: Specifying a central recording backbone for 30-64 camera deployments across retail precincts, office towers, or mixed-use developments where AI analytics and long retention are both contractual requirements.
- Government and institutional facilities managers: Running large camera networks across hospitals, universities, or council facilities where RAID-protected storage and forensic-quality footage retrieval via AcuPick are operationally essential.
- Warehouse and logistics operators: Needing a 64-channel recorder that handles a full site camera count - loading docks, yard cameras, internal aisles - with sufficient HDD bays to retain weeks of footage without overwriting.
- IT and security convergence teams: Where the 3U rack-mount chassis fits into an existing server room infrastructure and the system needs to be managed alongside network equipment by a technically capable team.
- Installers upgrading legacy DVR infrastructure: Who need a high-channel-count IP NVR capable of supporting the full resolution of modern Dahua WizMind cameras without bandwidth bottlenecks or processing limitations.
Honest Assessment
The NVR616H-64-AI/ANZ does its best work in genuinely large deployments - 64 channels, RAID-protected storage across 16 HDD bays, and AcuPick make it a strong specification for installations where the volume of footage and the speed of incident review both matter. The WizMind AI engine at this channel count is a meaningful operational advantage over NVRs that simply record without analysing. What it will not do is provide PoE power to cameras directly - a separate managed PoE switch infrastructure is required for camera connectivity, which adds cost and planning complexity that smaller installations may not justify. Sites running fewer than 16-20 cameras will find a lower-channel NVR delivers the same outcome at a fraction of the cost and footprint. This unit is available through Security Australia and is suited to integrators who are comfortable with rack installation, RAID configuration, and enterprise network design rather than plug-and-play setups.
Before You Buy
Storage Planning: With 64 channels recording at high resolution, HDD fill rates are significant. Calculate your required retention period before ordering drives - 16 bays gives headroom, but at full channel capacity with 4MP or higher cameras, a 30-day retention target may require 8TB or larger drives across most bays. Factor RAID overhead into your usable capacity calculation if redundancy is required.
Network Infrastructure: This NVR has no onboard PoE. All 64 camera feeds arrive over your network via managed PoE switches. Ensure your switch infrastructure and network backbone can handle the aggregate bandwidth of your full camera complement - underspecified switching is the most common cause of dropped frames and recording gaps in large NVR deployments.
Key Features & Technical Specifications
Real-World Scenarios
How It Compares
- Choose this if: You need 64 channels, AI-powered footage retrieval via AcuPick, RAID-protected mass storage across 16 HDD bays, and a rack-mount form factor for a dedicated security equipment room or server rack environment.
- You may need a different model if: Your camera count is under 20, or you need onboard PoE to power cameras directly from the recorder - a lower-channel PoE NVR will deliver a simpler, more cost-effective result for smaller sites without the complexity of a separate switching layer.
- Pairs well with: Dahua WizMind IP cameras (turret, bullet, PTZ, or fisheye), enterprise managed PoE switches sized to your camera count, and a 4K security monitor for the HDMI output in a control room environment.
Common Questions
-
Does this NVR power cameras directly via PoE?
No. The NVR616H-64-AI/ANZ has no onboard PoE ports. All 64 IP cameras connect via your network infrastructure - typically through managed PoE switches that handle power delivery and feed camera data to the NVR over Gigabit Ethernet. Budget for and plan your PoE switch layer as a separate line item in any installation quote. -
How does AcuPick actually work in an investigation?
AcuPick uses AI-based appearance matching across all connected camera feeds. An operator selects a target - a person or vehicle - from any live view or recorded footage frame, and AcuPick searches recorded footage across the entire camera network for matching appearances, returning time-stamped results ranked by similarity. The search runs across all 64 channels simultaneously. It does not require a pre-enrolled database - the target image is taken on the spot from existing footage, which means it is functional immediately after an incident without prior enrolment or setup. -
Will this NVR work with non-Dahua IP cameras?
Yes, with limitations. The NVR616H-64-AI/ANZ supports ONVIF-compatible third-party cameras for basic recording. However, AI features including AcuPick and WizMind perimeter analytics are only available when paired with compatible Dahua WizMind cameras. Non-Dahua cameras will record normally but will not contribute to or benefit from the AI processing capabilities of this recorder. -
What RAID configurations does the 16-HDD setup support, and which should I use?
RAID 0, 1, 5, 6, and 10 are all supported. RAID 5 is the most common choice for surveillance NVRs at this scale - it provides single-drive fault tolerance with acceptable usable capacity overhead across 16 bays. RAID 6 tolerates 2 simultaneous drive failures and is suited to installations where footage continuity is operationally critical. RAID 0 offers maximum capacity with no redundancy and is not appropriate for any installation where footage loss would be a compliance or legal issue. Configure RAID before drives are populated with footage, as changing RAID type requires a rebuild. -
Does this NVR work for sites that need 30-day or 60-day footage retention?
Yes, depending on drive configuration. With 16 bays populated with high-capacity surveillance-grade HDDs, long-retention recording across a full 64-channel deployment is achievable. The exact retention period depends on camera resolution, frame rate, compression settings (H.265+ reduces storage consumption significantly), and motion-triggered versus continuous recording. Run a storage calculator with your specific camera resolutions and frame rates before finalising your HDD selection - this is standard practice for any large NVR deployment through Security Australia or any integrator. -
How many AI channels does the WizMind engine process simultaneously?
The onboard AI engine processes WizMind analytics - including perimeter protection, intrusion detection, and AcuPick indexing - across multiple channels concurrently. The number of simultaneously active AI channels is dependent on camera type and the specific AI feature in use. For AcuPick specifically, the search function queries recorded footage across all connected channels but operates as a retrieval task rather than a continuous real-time stream, which means it does not compete with live AI analytics for processing resources. Confirm the specific concurrent AI channel count for your planned camera mix with your installer before finalising camera-to-NVR ratios. -
Can multiple operators access this NVR simultaneously for live viewing and playback?
Yes. The NVR616H-64-AI/ANZ supports concurrent user access via the Dahua client software (DSS/DMSS) and web browser, allowing multiple authorised operators to view live feeds, review playback, and run AcuPick searches simultaneously. User permission levels are configurable, so access can be tiered - for example, control room staff with full access and supervisors with playback-only access. The number of concurrent remote streams is subject to available outgoing bandwidth from your network.
