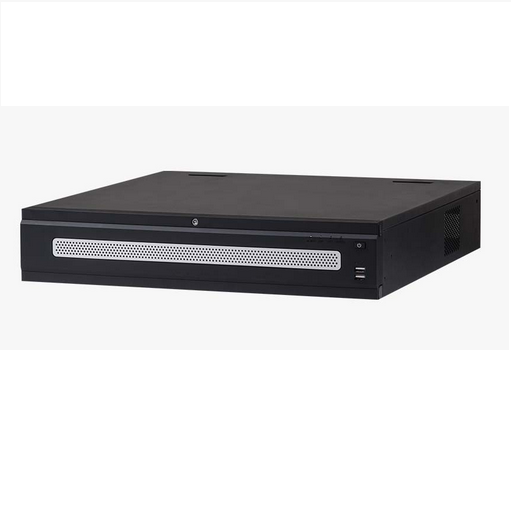

Dahua DHI-NVR608-32-4KS2 32 Channel Ultra 4K H.265 Network Video Recorder

Model: NVR608-32-4KS2

Who This Is For

When managing a large-scale IP camera deployment is the priority, the Dahua DHI-NVR608-32-4KS2 is built for integrators and security managers who need a high-channel NVR capable of handling demanding multi-site or single-site installations. Designed around 32 camera channels with a 320 Mbps incoming bandwidth ceiling, it suits commercial buildings, warehouses, logistics facilities, and education campuses where camera counts are high and resolution cannot be compromised. The 8 SATA III bays supporting up to 80TB of onboard storage mean retention policies of weeks or months are achievable without off-site backup dependency. Built-in RAID support and hot-swappable drives make this a practical choice for installations where unplanned downtime carries real operational cost. If you are specifying a rack-mounted NVR that will anchor a serious 4K surveillance infrastructure, this is the recorder to plan your system around.

What This NVR Actually Does

Who Buys This Model

• Commercial Integrators: Specifying a rack-mount NVR for 20-32 camera deployments across warehouses, logistics centres, or multi-tenancy commercial buildings where 320 Mbps bandwidth and RAID support are non-negotiable.
• Education Campus Security Managers: Running 4K cameras across car parks, entry points, and common areas where long retention periods and hot-swap drives minimise after-hours maintenance windows.
• Healthcare and Government Facilities: Where footage integrity and RAID redundancy are compliance requirements, and a single drive failure cannot result in lost recordings.
• Retail Chain Security Teams: Centralising 4K camera streams from a high-traffic flagship store or distribution centre into a single recorder with IVS analytics for after-hours perimeter monitoring.

Honest Assessment

The DHI-NVR608-32-4KS2 handles high-channel 4K deployments well. The 320 Mbps incoming bandwidth is genuinely suited to a full 32-camera build using 4K or high-bitrate 8MP streams. The 8 SATA III bays and RAID 0/1/5/6/10 support put it in a different class from prosumer-grade recorders, and hot-swappable drives make it a practical fit for installations where maintenance windows are limited. H.265 compression and ANR round out a recorder designed for sustained, high-integrity operation.

It will not suit smaller deployments - a 4 or 8 channel system would be overspending here. This NVR has no built-in PoE ports, so camera power must come from a separate PoE switch or injectors, which adds to the installation scope and budget. If you need an all-in-one PoE NVR for a smaller site, a different recorder type available through Security Australia will be a better fit.

Before You Buy

Quick Fit Check

• Good match if: You are deploying 20 or more IP cameras at 4K or 8MP and need a recorder with the bandwidth headroom (320 Mbps) and RAID redundancy to handle long-term, uninterrupted operation.
• Good match if: Your site has compliance or operational requirements around footage integrity - RAID 5 or RAID 6 keeps recordings intact through a drive failure without pulling the system offline.
• You may need a different model if: Your camera count is below 16 or you need built-in PoE ports - a mid-range PoE NVR will cover both requirements at lower cost and installation complexity.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a 32-channel 4K recorder with genuine RAID redundancy, hot-swap drives, and 80TB storage headroom for a high-stakes commercial or institutional deployment.
• You may need a different model if: Your site has 16 or fewer cameras, or you want integrated PoE ports to simplify cabling - a mid-range PoE NVR handles both at a lower overall system cost.
• Pairs well with: Managed PoE switches (24- or 48-port, rated to match your camera power budget), and surveillance-rated SATA HDDs sized to your RAID configuration and retention requirements.

Common Questions

1. Does this NVR have built-in PoE ports to power cameras directly?

   No. The NVR608-32-4KS2 is a non-PoE recorder - it has no built-in PoE switching. All 32 cameras must be powered separately via a managed PoE switch connected to the same network, or via individual PoE injectors at each camera location. At 32 channels, a 24- or 48-port managed PoE switch is the standard approach and allows centralised power management and per-port monitoring.

2. Will this NVR handle a full 32-camera build using 4K cameras without bandwidth problems?

   Yes. The confirmed 320 Mbps incoming bandwidth ceiling is designed for exactly this scenario. A single 4K camera stream typically runs between 8-16 Mbps depending on compression and motion level - 32 cameras at 10 Mbps average sits well within the 320 Mbps ceiling. H.265 compression further reduces per-stream bitrates compared to H.264, giving you more headroom across the full channel count.

3. What RAID configurations does this recorder support and which should I use?

   It supports RAID 0, 1, 5, 6, and 10 across the 8 SATA III bays. RAID 0 offers no redundancy - avoid it for surveillance. RAID 5 is the most common choice, tolerating 1 drive failure across 3 or more drives. RAID 6 tolerates 2 simultaneous failures and suits high-stakes environments like healthcare or government. RAID 10 mirrors and stripes across pairs of drives for both redundancy and speed. Your choice affects usable storage - factor this into HDD sizing before purchase.

4. What happens to footage if the network connection drops during recording?

   ANR (Automatic Network Replenishment) fills the gap. When the NVR loses connection to a camera, that camera continues recording locally to its own SD card. Once the network link restores, the NVR pulls the buffered footage from the card and writes it into the timeline - eliminating the recording gap. ANR requires the connected cameras to have SD card slots and cards installed, which is worth confirming during camera selection.

5. Can I replace a failed hard drive without shutting down the recorder?

   Yes. The NVR608-32-4KS2 supports hot-swappable HDDs, meaning a failed drive can be pulled and replaced while the recorder continues operating. When used in a RAID 5 or RAID 6 configuration, recording continues uninterrupted during the replacement and the array rebuilds onto the new drive automatically. This is a key operational feature for facilities where any recording downtime carries compliance or liability consequences.

6. Does this NVR work with non-Dahua IP cameras?

   Yes, with caveats. The NVR608-32-4KS2 supports ONVIF-compliant IP cameras from other manufacturers. However, advanced features such as IVS analytics, ANR, and smart search typically require Dahua cameras to function fully. Third-party cameras added via ONVIF generally provide basic recording and live view. If IVS tripwire and intrusion detection are important to your setup, Dahua IP cameras will ensure full feature compatibility. The full range of compatible cameras is available through Security Australia.
