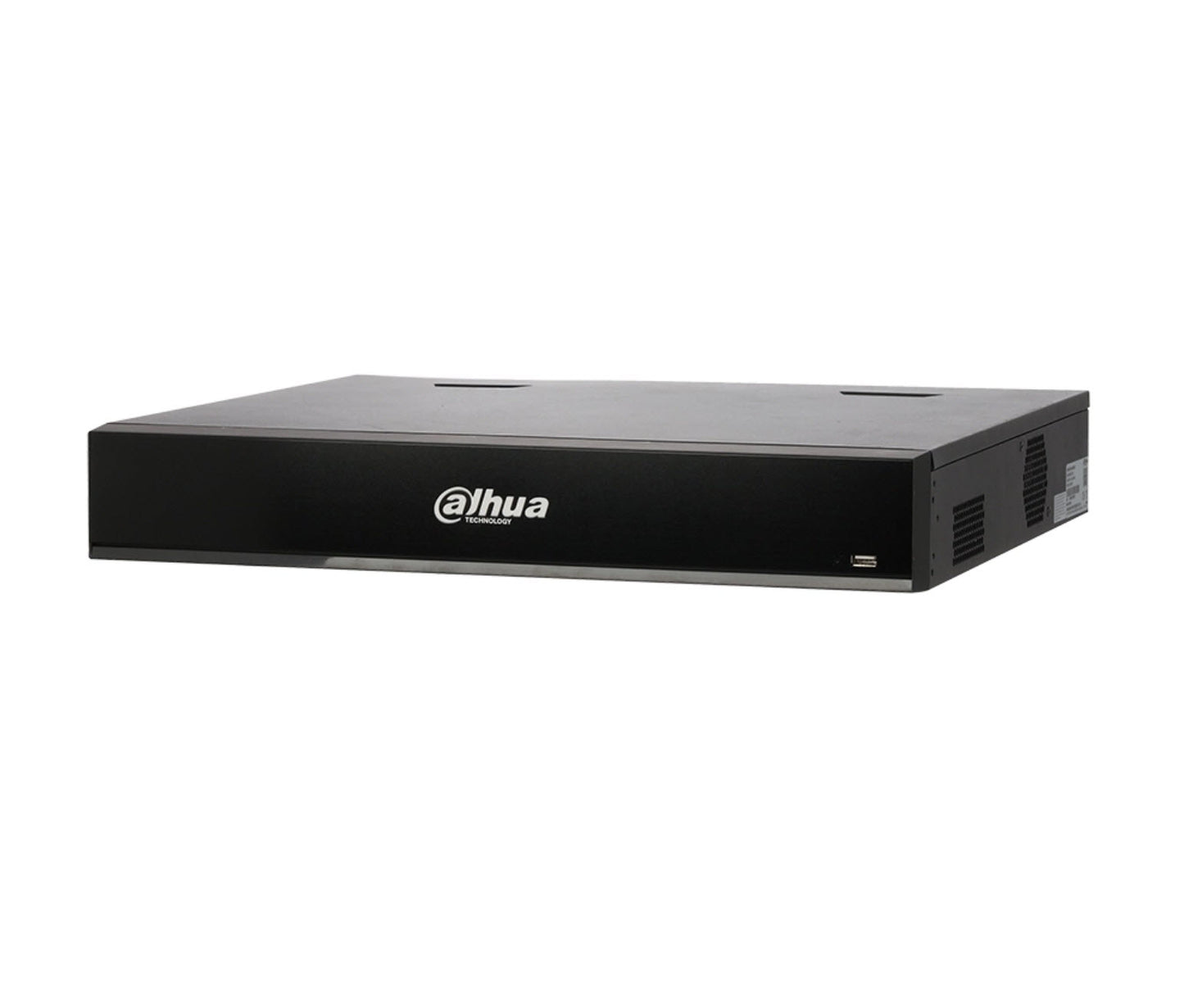

Dahua DHI-NVR5432-16P-I 32ch AI NVR 16MP recording,16xPOE Face Capture, Face Recognition, People Counting, ANPR, POS, P2P

Model: DHI-NVR5432-16P-I-NOHDD

Who This Is For

Property managers specifying enterprise-grade surveillance for large commercial sites, multi-tenancy buildings, or critical infrastructure will find the Dahua DHI-NVR5432-16P-I a purpose-built platform rather than a scaled-up consumer recorder. With 32 IP camera channels, 16 built-in PoE ports (ports 1-8 supporting ePoE and EoC for extended cable runs), and on-device AI processing covering face recognition, perimeter protection, people counting, ANPR, and video metadata, this unit is aimed squarely at integrators and security managers who need analytics running at the recorder level - not reliant on camera firmware alone. The 1.5U rack-mount form factor suits server room deployments, and the 4 SATA bays support up to 10TB per drive. This is a recorder for sites where accountability, forensic search speed, and multi-analytic workloads matter.

What This NVR Actually Does

Who Buys This Model

• Security integrators deploying enterprise sites: Need a single recorder that handles 32 channels with on-board AI analytics - face recognition, perimeter protection, and metadata indexing - without requiring a separate analytics server or per-camera licence fees.
• Retail and hospitality operators managing multiple zones: Use people counting and video metadata to produce occupancy reports and staff accountability logs from a centralised 1.5U rack unit across up to 32 camera positions.
• Facility and property managers running vehicle-access sites: Leverage ANPR-by-camera integration to maintain searchable vehicle entry/exit logs and blocklist/allowlist enforcement across carparks, loading docks, and gated entries.
• Installers migrating existing coax infrastructure: Take advantage of ePoE and EoC support on ports 1-8 to run IP cameras over legacy coaxial cable runs, avoiding full rewiring costs on established sites.
• Corporate and institutional security teams: Require face database management with up to 200,000 images across 20 databases, stranger-mode alerting, and up to 128 concurrent user accounts for tiered access control across operations teams.

Honest Assessment

The DHI-NVR5432-16P-I does a lot of genuine work at the recorder level. On-device face recognition at 16 pictures per second, 12-channel perimeter protection with human/vehicle filtering, ANPR aggregation, and rich metadata extraction are all meaningful analytics that reduce operator workload and improve forensic search speed. The 4K secondary HDMI output, 4 storage bays, ePoE/EoC capability on 8 ports, and Smart H.265+ compression are practical advantages for large-site installs. Where this unit has clear limits: the AI bandwidth cap of 160 Mbps when analytics are active reduces headroom compared to the full 320 Mbps recording bandwidth, and with only 4 SATA bays, sites with long retention requirements will need to plan storage carefully. This is not a budget NVR and is not suited to small residential or single-floor office deployments - those sites are better served by an 8 or 16 channel unit. Available through Security Australia, this recorder is intended for integrators and professional security managers who understand channel planning and AI workload allocation.

Before You Buy

Quick Fit Check

• Good match if: You are deploying 17-32 IP cameras on a commercial site and need on-device face recognition, perimeter protection with human/vehicle filtering, and ANPR aggregation without adding a separate analytics server to the rack.
• Good match if: Your site has legacy coax cabling on some runs and you need to connect IP cameras without full rewiring - ports 1-8 support ePoE and EoC, making the DHI-NVR5432-16P-I one of the few recorders that can bridge old infrastructure to a modern IP system.
• You may need a different model if: Your channel count exceeds 32, you need more than 4 HDD bays for extended retention, or your site requires redundant power supplies - a higher-tier enterprise NVR with expanded bay count and dual PSU would be more appropriate for those requirements.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a 32-channel rack NVR with on-device face recognition (200,000-image database), multi-analytic AI processing, and 16 built-in PoE ports including ePoE/EoC support for sites with legacy cabling infrastructure.
• You may need a different model if: Your site requires more than 32 channels, more than 4 HDD bays for extended multi-week retention, or redundant dual power supplies for mission-critical uptime - a higher-tier enterprise NVR chassis would suit those requirements better.
• Pairs well with: Dahua WizMind face detection cameras (for full 16-channel picture-stream face recognition), Dahua ANPR cameras on vehicle access points, and Dahua fisheye cameras with dewarping handled at the NVR level for wide-area open floor coverage.

Common Questions

1. Does this NVR do face recognition on its own or do I need special cameras?

   It depends on the mode. For video stream face recognition, any compatible Dahua IP camera on up to 4 channels will work - the NVR processes faces from the live stream itself. For the higher-throughput 16-channel picture stream mode, you need cameras with an onboard face detection (FD) function that captures and sends face snapshots directly to the NVR. The 200,000-image database and 16 face pictures per second processing rate apply once the correct camera type is paired on the correct channel.

2. Will the AI analytics slow down or drop my camera streams?

   Yes, but the impact is predictable and manageable. When AI functions (face recognition, perimeter protection, metadata) are active, the DHI-NVR5432-16P-I's recording bandwidth reduces from 320 Mbps to 160 Mbps. For 32 cameras at 4MP, that leaves approximately 5 Mbps per channel - workable with Smart H.265+ compression but tight. If you are running 8MP or higher resolution cameras on multiple channels simultaneously, you will need to reduce stream bitrates or recording resolution on non-AI-critical channels to stay within the 160 Mbps AI mode ceiling.

3. What does ePoE and EoC support on ports 1-8 actually mean for my installation?

   It means you can connect IP cameras over distances and cable types that standard PoE cannot reach. ePoE extends the camera connection range significantly beyond the 100m Cat cable limit over twisted-pair; EoC (Ethernet over Coax) lets you run the camera signal and power over existing coaxial cable. Only ports 1-8 on the DHI-NVR5432-16P-I support these modes - ports 9-16 are standard IEEE 802.3af/at PoE only. This is particularly useful when upgrading legacy CCTV sites where coax runs are already in place.

4. Does the ANPR function read plates directly on this NVR, or does it need specific cameras?

   It requires specific ANPR cameras. The DHI-NVR5432-16P-I aggregates and manages ANPR data from compatible Dahua ANPR cameras - it does not process number plate recognition from standard camera streams on its own. The NVR handles blocklist/allowlist configuration, event triggering, and searchable vehicle logs once the ANPR camera sends recognised plate data to it. If your access points do not have dedicated Dahua ANPR cameras connected, the ANPR functions in this unit will not activate. Check camera compatibility with the Security Australia team before specifying cameras for ANPR positions.

5. How many channels can run perimeter protection (tripwire/intrusion) at once?

   12 channels simultaneously, with up to 10 IVS rules configurable per channel. That means across those 12 channels you can define up to 120 separate tripwire or intrusion zone rules. The human/vehicle secondary classification runs on all active perimeter protection channels, filtering confirmed events from false triggers. The remaining 20 channels (up to 32 total inputs) record normally but do not have IVS perimeter rules assigned concurrently.

6. Can I connect non-Dahua cameras to this NVR?

   Yes, for standard recording and monitoring. The DHI-NVR5432-16P-I supports ONVIF 2.4 and is listed as compatible with Panasonic, Sony, Samsung, Axis, Pelco, Arecont, and Canon cameras, among others. However, AI analytics functions - face recognition, perimeter protection with human/vehicle classification, metadata extraction, ANPR aggregation, and people counting - are designed for Dahua WizMind-compatible cameras. Third-party cameras connected via ONVIF will record and display normally, but the on-device AI workloads will not process their streams.

7. How do I search recorded footage by a person's clothing description or vehicle colour?

   Through the video metadata AI search function. The NVR indexes attributes in real time as it records: for people, this includes top/bottom clothing colour, hat, bag, gender, and age estimate; for vehicles, plate number, type, colour, logo, and seatbelt status. In playback, you enter one or more attribute filters and the NVR returns matching clips from the selected channels and time range. This is significantly faster than scrubbing timelines for a specific individual - particularly useful for post-incident reviews across multiple cameras covering a large area.
