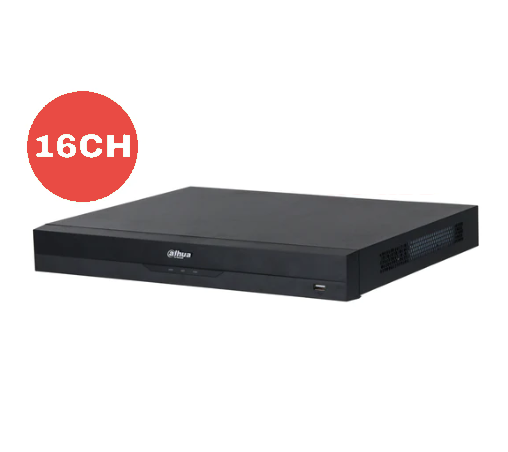

Dahua DHI-NVR5416-16P-AI/ANZ 16 Channel AI Wizsense Network Video Recorder 4 x HDD bays

Model: DHI-NVR5416-16P-AI/ANZ

Who This Is For

When a 16-channel AI-capable recorder with onboard PoE switching is the centrepiece of a commercial or multi-site installation, the Dahua NVR5416-16P-AI/ANZ is the unit most installers reach for. It is built for integrators and security contractors specifying systems across warehouses, commercial buildings, aged care facilities, schools, and mid-size retail sites - anywhere that needs centralised AI processing without relying on camera-side intelligence alone. The 16 built-in PoE ports eliminate the need for a separate network switch in most single-floor runs, and the 4-bay HDD capacity supports up to 4 drives for extended retention across all 16 channels. The ANZ variant is configured for Australian and New Zealand distribution and power standards. This recorder suits buyers who are moving from basic NVRs to AI-driven systems and want SMD Plus filtering, perimeter protection, and face detection managed at the recorder level.

What This Camera Actually Does

Who Buys This Model

• Security Integrators: Contractors building 16-camera commercial systems who want a single head-end unit that handles PoE switching, AI processing, and high-resolution recording without needing additional networking hardware at the rack.
• Aged Care and Healthcare Facilities: Operators who need extended video retention across interior and exterior zones, often to satisfy insurance requirements or duty-of-care documentation, using the 4-bay storage capacity for continuous long-term recording.
• Retail and Hospitality Groups: Multi-premises businesses standardising on a common NVR platform for staff deployment and maintenance consistency, where AI-based SMD Plus filtering reduces after-hours false alarm call-outs.
• School and Education Administrators: Facilities specifying campus-wide systems that require perimeter protection alerts across car parks, entry points, and building perimeters - managed centrally from a single AI-capable recorder.
• IT Managers Upgrading Existing Dahua Networks: Sites already running Dahua IP cameras that are stepping up from a basic NVR to gain recorder-level AI without replacing their existing camera infrastructure.

Honest Assessment

The NVR5416-16P-AI/ANZ does the fundamentals well at the commercial tier: 16 PoE channels on a single unit, recorder-side AI that works with cameras that lack onboard intelligence, H.265+ compression that meaningfully extends retention on a 4-bay storage build, and support for cameras up to 12MP so the head-end doesn't become the bottleneck in a staged upgrade. The ANZ variant is correctly configured for local distribution, which matters for warranty support. Where this unit reaches its limits: sites needing more than 16 channels will need a second recorder or a higher-channel model, and the 4 HDD bays, while substantial, are not unlimited - storage planning is essential before specifying retention targets. For very large enterprise deployments with centralised VMS management, a server-based recording platform may serve better. The NVR5416-16P-AI/ANZ is available through Security Australia for buyers who need a capable, AI-equipped 16-channel recorder at the commercial grade.

Before You Buy

Quick Fit Check

• Good match if: You're deploying 9-16 PoE cameras on a single site and want AI-based false alarm filtering managed centrally at the recorder.
• Good match if: The installation requires extended local storage retention and the flexibility to add drives progressively across 4 bays.
• You may need a different model if: Your site has fewer than 9 cameras - an 8-channel NVR will deliver the same AI capability at a lower price point.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 16 PoE channels, recorder-side AI processing including SMD Plus and perimeter protection, 4-bay storage capacity, and 12MP recording support - all in a single 1.5U rack unit built for commercial deployment.
• You may need a different model if: Your site requires more than 16 channels - a 32-channel or higher NVR model will serve better rather than running 2 units in parallel. Alternatively, if your cameras all carry onboard AI (WizSense or full-colour models with built-in SMD), a non-AI recorder at this channel count may represent better value since the AI processing is already at the camera edge.
• Pairs well with: Dahua WizSense fixed turret or bullet cameras connected via the PoE ports, surveillance-rated SATA HDDs in all 4 bays, and a rack-mount UPS for power continuity.

Common Questions

1. Does this NVR work with non-Dahua IP cameras?

   Yes, with limitations. The NVR5416-16P-AI/ANZ supports ONVIF-compliant third-party cameras for basic recording. However, AI features including SMD Plus, perimeter protection, and face detection are only available with compatible Dahua cameras. Third-party cameras added via ONVIF will record normally but will not trigger AI-based alarm events through the recorder's WizSense engine.

2. Will this NVR power PTZ cameras from its PoE ports?

   It depends on the PTZ model's power draw. The NVR5416-16P-AI/ANZ supports IEEE 802.3af and 802.3at PoE on its 16 camera ports. Most compact PTZ cameras operate within 802.3at limits (up to 30W per port), but high-speed or larger dome PTZ units may exceed that and require a separate PoE+ injector or switch rather than the NVR's onboard ports. Always check the PTZ camera's power consumption spec against the NVR's per-port and total PoE budget before connecting.

3. How much storage do I actually need for 16 cameras?

   It varies significantly based on resolution, frame rate, compression, and motion activity. As a practical guide, 16 cameras recording at 4MP with H.265+ at 15fps continuous will consume roughly 3-5TB per day depending on scene complexity. With 4 x 8TB surveillance drives (32TB total) that supports approximately 6-10 days of continuous recording. For 30-day retention at that resolution, 4 x 12TB or higher capacity drives are recommended. Use Dahua's online storage calculator or contact your installer to generate a site-specific estimate before purchasing drives.

4. What does SMD Plus actually do differently from standard motion detection?

   SMD Plus classifies detected motion as either human, vehicle, or neither - and only triggers alarms for the categories you configure. Standard motion detection triggers on any pixel change, including shadows, headlight sweeps, animals, and foliage movement. SMD Plus running on the NVR5416-16P-AI/ANZ filters those events out, which in practice means far fewer false alarm notifications overnight and a more searchable event log when reviewing footage after an incident.

5. Can this NVR record all 16 channels simultaneously at full resolution?

   Yes. The NVR5416-16P-AI/ANZ supports up to 320 Mbps incoming bandwidth across all 16 channels simultaneously. At typical deployment resolutions of 4MP or 8MP per camera with H.265+ compression, all 16 channels record concurrently at full frame rate without dropping resolution or frames. The 320 Mbps ceiling would only become a constraint on systems running multiple 12MP cameras at high frame rates, which is an uncommon configuration in standard commercial installs.

6. Does the NVR support remote viewing on a phone or PC?

   Yes. The NVR5416-16P-AI/ANZ is compatible with Dahua's DMSS mobile app for iOS and Android, and with DSS/SmartPSS software for PC-based monitoring. Remote access requires either a P2P cloud connection through the Dahua platform or port forwarding and a static IP or DDNS address through your network. The ANZ variant is supported under the same app ecosystem used across Security Australia's Dahua product range.

7. Is this NVR rack-mountable and what rack space does it need?

   Yes. The NVR5416-16P-AI/ANZ is a 1.5U rack-mount unit, designed for standard 19-inch equipment racks. At 1.5U it occupies less rack space than a 2U unit while still accommodating 4 full-size 3.5-inch HDDs internally. Rack ears are included. For installations without a rack, it can also be placed on a shelf, though a rack or secure cabinet is strongly recommended for commercial deployments where tamper resistance and cable management matter.
