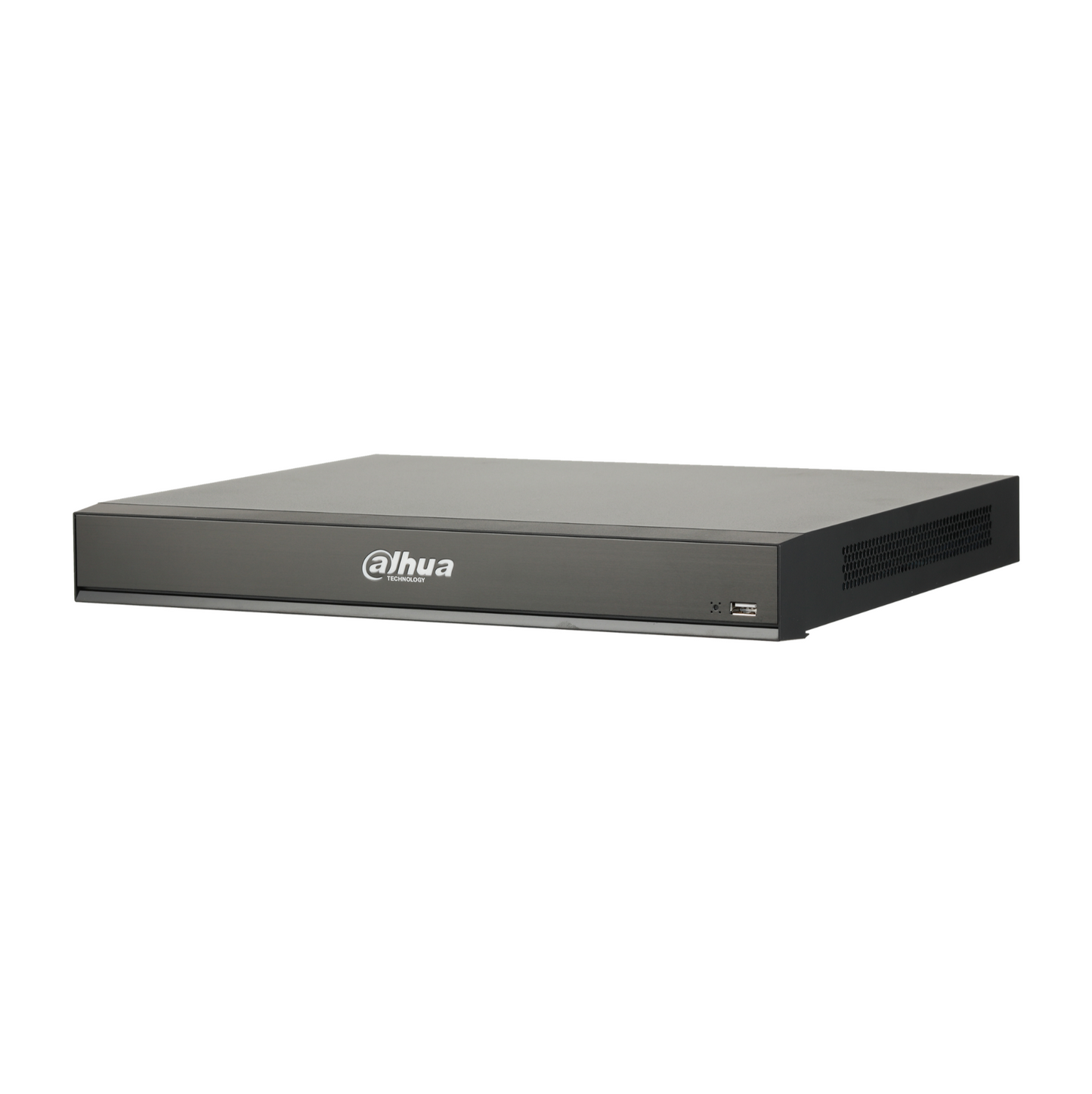

Dahua DH-XVR7108HE-4KL-I 8 Channel Penta-brid 4K Mini 1U WizSense Digital Video Recorder

$430.00 AUD
$304.34 AUD
 per
Spend $100.00 to FREE SHIPPING

8 Channel Penta-brid 4K Mini 1U Digital Video Recorder

The 8 Channel Penta-brid 4K Mini 1U Digital Video Recorder, model DH-XVR7108HE-4KL-I, from Dahua Security, offers versatile compatibility with various camera types including HDCVI, AHD, TVI, CVBS, and IP. It supports up to 8 channels of high-definition video recording at 4K resolution, ensuring clear and detailed footage. The recorder features a compact 1U design, making it suitable for installations with limited space.

Key Features

  • H.265+/H.265 dual-stream video compression
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Supports 16/32 channels of IPC access, each channel up to 8MP input; Max 64/128Mbps Incoming Bandwidth
  • IoT & POS functionalities
  • Perimeter Protection and SMD Plus
  • Up to 2 channels video stream (analog channel) human face recognition

Code/SKU: DH-XVR7108HE-4KL-I
Quick Specs:

  • Database Management: Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.

  • Database Application: Each database can be applied to video channels independently.

  • Trigger Events: Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.

Specifications

System

Main Processor

Embedded Processor

Operating System

Embedded LINUX

Perimeter Protection

Perimeter protection

1.AI by DVR: Detection alarm for human and vehicle. Filter misinformation such as leaves and light.
2.Function configuration: Set at most 10 rules such as area intrusion and tripwire intrusion.
3.Performance: 2 channels

Live View

1. Rule box inspection: Configure the rule box and object inspection box.

2.Smart panel: Display object classification (human, vehicle), event types, triggering time, image matting and object types. Attribute is not supported.

3. Counting: Count people in Peopletotal. Count motor vehicles in Vehicle. Support exporting of associated event playback before and after 10 seconds.

Playback

1. Search conditions: According to channels, time, event types and target types.

2.Functions: Support search of associated event playback or snapshot before and after 10 seconds.

3. Snapshot capacity: 500,000

Face Recognition

Performance

1. UP to 12 face pictures/sec processing (modeling and comparing).

2. Up to 2 channels video stream (analog channel ) human face recognition.

3. Up to 10 face databases with 10,000 face images in total.

4. Up to 300,000 face detection events in total.

5. Up to 300,000 face Recognition events in total.

Stranger Mode

Detect strangers' faces (not in device's face database).Similarity threshold can be set manually.

AI Search

Up to 8 target face images search at same time, similarity threshold can be set for each target face image.

Database Management

Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.

Database Application

Each database can be applied to video channels independently.

Trigger Events

Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.

SMD Plus

SMD Plus

1. AI by DVR: Motion detection alarm for human and vehicle. Filter misinformation such as leaves and light.

2. Performance: 8/16 channels , AI by DVR

Preview

Preview: Configure and inspect detection box

Playback

1.Playback: Search videos through channels, time and target types.
2.Functions: Support search of associated event playback before and after 10 seconds.

Video and Audio

Analog Camera Input

8/16 Channel, BNC

HDCVI Camera

4K, 6MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps

AHD Camera

5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps

TVI Camera

5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps

CVBS Camera

PAL/NTSC

IP Camera Input

8+8/16+16 Channel, each channel up to 8MP

Audio In/Out

8/16 Channel Input, 1 Channel Output, RCA

Two-way Talk

Reuse audio in/out, RCA

Recording

Compression

H.265+/H.265/H.264+/H.264

Resolution

4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF, QCIF

Record Rate

Main stream: All channel 4K(1fps–7fps); 6MP(1fps–10fps); 5MP(1fps–12fps); 4MP/3MP(1fps–15fps); 4M-N/1080P/720P/960H/D1/CIF/QCIF (1fps–25/30fps);

Sub steram:960H(1fps–15fps);

D1/CIF/QCIF(1fps–25/30fps)

Bit Rate

32Kbps–6144Kbps Per Channel

Record Mode

Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval

1–60 min (default: 60 min), Pre-record: 1 sec–30 sec, Post-record: 10sec–300 sec

Audio Compression

AAC(only for the 1st channel), G.711A, G.711U, PCM

Audio Sample Rate

8KHz, 16 bit Per Channel

Audio Bit Rate

64Kbps Per Channel

Display

Interface

1 HDMI, 1 VGA

Resolution

HDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720

VGA: 1920×1080, 1280×1024, 1280×720

Multi-screen Display

When IP extension mode not enabled:

8CH: 1/4/8/9

16CH: 1/4/8/9/16

When IP extension mode enabled:

8CH: 1/4/8/9/16

16CH: 1/4/8/9/16/25

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network

Interface

1 RJ-45 Port (1000M)

Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server,P2P, IP Search (Support IP camera, DVR, NVS, etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 16.12, CGI Conformant

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis

Alarm input

8/16

Relay Output

3

Playback and Backup

Playback

8CH: 1/4/9

16CH: 1/4/9/16

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Storage

Internal HDD

1 SATA Port, up to 10TB capacity for each disk

eSATA

N/A

Auxiliary Interface

USB

2 USB Ports (1 USB 2.0 , 1 USB 3.0)

RS232

N/A

RS485

1 Port, for PTZ Control

Electrical

Power Supply

8CH: DC 12V/2A

16CH: DC 12V/3A

Power Consumption

8CH: <10W (Without HDD)

16CH: <15W (Without HDD)

Construction

Dimensions

Mini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2")

Net Weight

1.45kg (3.2lb) (without HDD)

Gross Weight

2kg (4.4lb)

Installation

Desktop installation

Environmental

Operating Conditions

-10°C to +55°C (+14°F to +131°F), 0–90% RH

Storage Conditions

-20°C to +70°C (-4°F to +158°F), 0–90% RH

Third-party Support

Third-party Support

Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications

Certifications

FCC: Part 15 Subpart B

CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Dahua DH-XVR7108HE-4KL-I 8 Channel Penta-brid 4K Mini 1U WizSense Digital Video Recorder

$430.00 AUD
$304.34 AUD
 per

The 8 Channel Penta-brid 4K Mini 1U Digital Video Recorder, model DH-XVR7108HE-4KL-I, from Dahua Security, offers versatile compatibility with various camera types including HDCVI, AHD, TVI, CVBS, and IP. It supports up to 8 channels of high-definition video recording at 4K resolution, ensuring clear and detailed footage. The recorder features a compact 1U design, making it suitable for installations with limited space. With advanced video compression technologies like H.265+, it efficiently reduces storage requirements while maintaining high image quality. The device supports up to 8TB of storage via a single HDD, providing ample space for extended recording periods. It includes robust network capabilities for remote access and management through Dahua's proprietary software.

The DH-XVR7108HE-4KL-I supports real-time video preview and playback, enhancing surveillance efficiency. The recorder also features motion detection, alarm triggering, and email notifications to alert users of potential security events. Built with durability and reliability in mind, it ensures consistent performance in various environments. Additionally, the unit offers multiple user management levels and access controls for secure operation. The compact design and advanced features make this recorder a suitable choice for both residential and small business applications.

Features

  • H.265+/H.265 dual-stream video compression
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Supports 16/32 channels of IPC access, each channel up to 8MP input; Max 64/128Mbps Incoming Bandwidth
  • IoT & POS functionalities
  • Perimeter Protection and SMD Plus
  • Up to 2 channels video stream (analog channel) human face recognition



Functions

Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc., enabling the system to perform secondary recognition for targets and improve alarm accuracy.

SMD Plus
SMD Plus, or Smart Motion Detection Plus, is an advanced version of SMD that enhances alarm accuracy using deep-learning algorithms. It analyzes the shapes of people and vehicles based on motion detection, sending alarms only when there is an intrusion by people or vehicles.

Smart H.265+
Smart Codec H.265+ reduces bit rate and storage requirements by up to 80% compared to H.264, eliminating the need for new cameras.

HDCVI/AHD/TVI/CVBS Auto-detect
The XVR automatically recognizes the signal from the front camera without manual settings, making operation more user-friendly and convenient.

Coaxial Audio/Upgrade/Alarm
The integrated design minimizes wiring issues, making installation more cost-effective and convenient.

Long Distance Transmission
The HDCVI system supports long-distance transmission over coaxial cable and UTP: up to 700m for 4K/4MP, 800m for 1080P, and 1200m for 720P.

IoT Functionality
HDCVI IoT integrates sensors with monitoring video to provide multi-dimensional surveillance, generate analysis reports, and prevent risks in advance.

POS Functionality
This feature includes POS ticket information overlay and search capabilities, making it widely applicable for retail programs.

Smart Fan Design
The smart fan automatically adjusts based on CPU temperature, effectively reducing fan noise for a better user experience.

Spot Output
Designed for a secondary monitor, this feature allows operators to view specific cameras or video inputs from high-security areas on a separate display.

Smart Search
Extracts and classifies people and vehicles from large video datasets, facilitating quick historical data retrieval and analysis. Optional playback for persons and vehicles enables fast target search and saves event retrieval time.

Technical Specifications:

System

Main Processor

Embedded Processor

Operating System

Embedded LINUX

Perimeter Protection

Perimeter protection

1.AI by DVR: Detection alarm for human and vehicle. Filter misinformation such as leaves and light.
2.Function configuration: Set at most 10 rules such as area intrusion and tripwire intrusion.
3.Performance: 2 channels

Live View

1. Rule box inspection: Configure the rule box and object inspection box.

2.Smart panel: Display object classification (human, vehicle), event types, triggering time, image matting and object types. Attribute is not supported.

3. Counting: Count people in Peopletotal. Count motor vehicles in Vehicle. Support exporting of associated event playback before and after 10 seconds.

Playback

1. Search conditions: According to channels, time, event types and target types.

2.Functions: Support search of associated event playback or snapshot before and after 10 seconds.

3. Snapshot capacity: 500,000

Face Recognition

Performance

1. UP to 12 face pictures/sec processing (modeling and comparing).

2. Up to 2 channels video stream (analog channel ) human face recognition.

3. Up to 10 face databases with 10,000 face images in total.

4. Up to 300,000 face detection events in total.

5. Up to 300,000 face Recognition events in total.

Stranger Mode

Detect strangers' faces (not in device's face database).Similarity threshold can be set manually.

AI Search

Up to 8 target face images search at same time, similarity threshold can be set for each target face image.

Database Management

Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.

Database Application

Each database can be applied to video channels independently.

Trigger Events

Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.

SMD Plus

SMD Plus

1. AI by DVR: Motion detection alarm for human and vehicle. Filter misinformation such as leaves and light.

2. Performance: 8/16 channels , AI by DVR

Preview

Preview: Configure and inspect detection box

Playback

1.Playback: Search videos through channels, time and target types.
2.Functions: Support search of associated event playback before and after 10 seconds.

Video and Audio

Analog Camera Input

8/16 Channel, BNC

HDCVI Camera

4K, 6MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps

AHD Camera

5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps

TVI Camera

5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps

CVBS Camera

PAL/NTSC

IP Camera Input

8+8/16+16 Channel, each channel up to 8MP

Audio In/Out

8/16 Channel Input, 1 Channel Output, RCA

Two-way Talk

Reuse audio in/out, RCA

Recording

Compression

H.265+/H.265/H.264+/H.264

Resolution

4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF, QCIF

Record Rate

Main stream: All channel 4K(1fps–7fps); 6MP(1fps–10fps); 5MP(1fps–12fps); 4MP/3MP(1fps–15fps); 4M-N/1080P/720P/960H/D1/CIF/QCIF (1fps–25/30fps);

Sub steram:960H(1fps–15fps);

D1/CIF/QCIF(1fps–25/30fps)

Bit Rate

32Kbps–6144Kbps Per Channel

Record Mode

Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval

1–60 min (default: 60 min), Pre-record: 1 sec–30 sec, Post-record: 10sec–300 sec

Audio Compression

AAC(only for the 1st channel), G.711A, G.711U, PCM

Audio Sample Rate

8KHz, 16 bit Per Channel

Audio Bit Rate

64Kbps Per Channel

Display

Interface

1 HDMI, 1 VGA

Resolution

HDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720

VGA: 1920×1080, 1280×1024, 1280×720

Multi-screen Display

When IP extension mode not enabled:

8CH: 1/4/8/9

16CH: 1/4/8/9/16

When IP extension mode enabled:

8CH: 1/4/8/9/16

16CH: 1/4/8/9/16/25

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network

Interface

1 RJ-45 Port (1000M)

Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server,P2P, IP Search (Support IP camera, DVR, NVS, etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 16.12, CGI Conformant

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis

Alarm input

8/16

Relay Output

3

Playback and Backup

Playback

8CH: 1/4/9

16CH: 1/4/9/16

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Storage

Internal HDD

1 SATA Port, up to 10TB capacity for each disk

eSATA

N/A

Auxiliary Interface

USB

2 USB Ports (1 USB 2.0 , 1 USB 3.0)

RS232

N/A

RS485

1 Port, for PTZ Control

Electrical

Power Supply

8CH: DC 12V/2A

16CH: DC 12V/3A

Power Consumption

8CH: <10W (Without HDD)

16CH: <15W (Without HDD)

Construction

Dimensions

Mini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2")

Net Weight

1.45kg (3.2lb) (without HDD)

Gross Weight

2kg (4.4lb)

Installation

Desktop installation

Environmental

Operating Conditions

-10°C to +55°C (+14°F to +131°F), 0–90% RH

Storage Conditions

-20°C to +70°C (-4°F to +158°F), 0–90% RH

Third-party Support

Third-party Support

Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications

Certifications

FCC: Part 15 Subpart B

CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

Recently viewed products

SECURITY AUSTRALIA - YOUR TRUSTED SOURCE FOR SECURITY EQUIPMENT

Discover our wide range of security equipment designed to keep you safe and secure.

We offer competitive prices to trades and commercial projects. Speak to one of our experienced consultants if you require a custom quote on larger orders.

Sales Support & Enquiry Form

Got a question or just want to chat?
