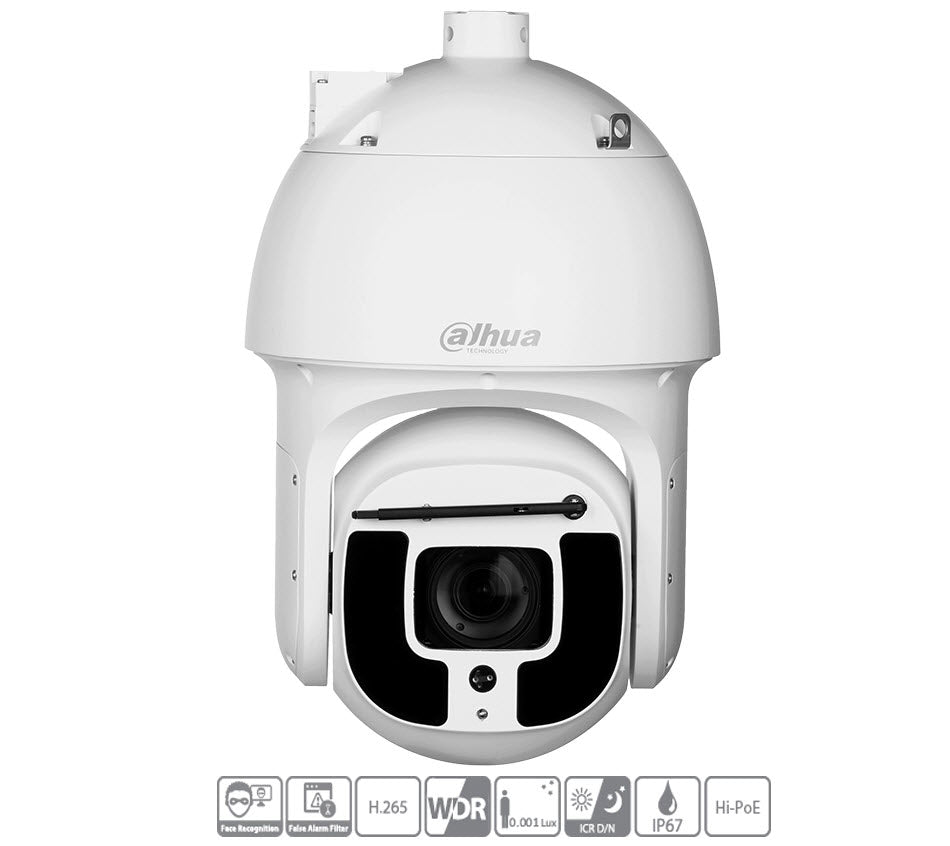

Dahua DH-SD8A840WA-HNF 4K 40x Starlight IR PTZ AI Network Camera

Model: DH-SD8A840WA-HNF

Who This Is For

For security integrators and infrastructure operators who need a single camera to cover what would otherwise require a dozen fixed units, the Dahua DH-SD8A840WA-HNF is a long-range 4K PTZ built around a 40x optical zoom and 500 m IR illumination. This is not a camera for a driveway or retail backroom - it is specified for airports, ports, mining sites, transport corridors, and critical infrastructure perimeters where the distance between a camera mount and the point of interest is measured in hundreds of metres. The 1/1.8" STARVIS CMOS sensor keeps colour detail down to 0.002 Lux, so it performs through dusk and early morning shifts without switching to black and white. Deep-learning auto tracking, face recognition, and perimeter protection analytics are all processed on-board, reducing the load on the VMS and allowing the camera to act autonomously on operator-defined rules across a wide outdoor zone.

What This Camera Actually Does

Who Buys This Model

• Critical Infrastructure Operators: Ports, water treatment facilities, and energy sites where a single PTZ must patrol a large perimeter, respond to alarms autonomously via auto tracking, and deliver 4K detail at distances no fixed camera can match.
• Transport and Road Corridor Managers: Highway intersections, rail yards, and freight precincts where the 40x zoom and 4400 m detection DORI distance allow one camera to monitor approaching traffic well before it reaches a checkpoint.
• Mining and Resources Site Managers: Remote outdoor sites operating in temperatures down to -40 degrees C, where IP67 ingress protection, 8 kV lightning resistance, and 500 m IR night coverage reduce the number of camera positions and the associated cabling runs.
• Security Integrators Specifying Enterprise VMS Systems: Installers whose VMS platform supports Dahua metadata ingestion or ONVIF Profile S/T, and who need a PTZ that can deliver searchable face and vehicle attribute data without a separate analytics server.
• City Surveillance Contractors: Public safety projects requiring face recognition with a built-in database of up to 10,000 facial images, where on-camera processing offloads the central server and reduces network bandwidth consumption through H.265 compression.

Honest Assessment

The DH-SD8A840WA-HNF does long-range outdoor surveillance at a level that fixed cameras cannot approach. The combination of 40x optical zoom, 4K resolution, 500 m IR, and deep-learning analytics on a single unit is genuinely useful for large-scale sites where cable runs, camera count, and monitoring workload are real constraints. The Starlight+ sensor's 0.002 Lux colour performance is a measurable advantage over standard sensors in low ambient light, and the on-board face recognition and metadata output reduce the dependency on central analytics servers. This camera is available through Security Australia as part of the Dahua WizMind range. Where it will not serve as well: it is not a cost-effective answer for small retail or residential installs where a fixed 4K turret covers the zone adequately at a fraction of the price. It also requires Hi-PoE power delivery - a standard 802.3af PoE switch will not power it, and that must be accounted for in the infrastructure design before specifying this unit.

Before You Buy

Quick Fit Check

• Good match if: Your site has a large open perimeter, approach road, or wide outdoor zone where a single camera needs to detect, track, and identify subjects at distances beyond 200 m - the 40x optical zoom and 4400 m DORI detection range are built for exactly this.
• Good match if: You need autonomous camera response to intrusion events without continuous operator PTZ control - the deep-learning auto tracking locks onto classified targets and follows them across the scene, then returns to the guard tour when the event clears.
• You may need a different model if: Your application is a confined indoor space, a retail aisle, or a corridor where a fixed dome or turret covers the zone completely - a PTZ of this class is over-specified for close-range static monitoring, and a fixed AI camera will deliver better value and simpler installation in those scenarios. Browse the fixed AI camera range on securityaustralia.com.au for those applications.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site requires active tracking across a large outdoor zone, long-range IR beyond 200 m, 40x optical zoom at 4K resolution, and on-board AI analytics including face recognition and vehicle metadata - all in a single weatherproof housing rated to -40 degrees C.
• You may need a different model if: Your application is a fixed-angle zone where the camera never needs to pan, tilt, or zoom - a 4K fixed AI turret or dome will deliver equivalent image quality at the target location with simpler installation, lower cost, and no Hi-PoE infrastructure requirement. Browse the fixed outdoor AI camera range on securityaustralia.com.au for those applications.
• Pairs well with: A Hi-PoE managed network switch with sufficient per-port power budget, a Dahua-compatible NVR or VMS platform with WizMind metadata support, and fixed wide-angle cameras covering blind spots directly below the PTZ mount point that the camera cannot cover while positioned at extended zoom distances.

Common Questions

1. Will this camera work on a standard PoE switch port?

   No. The DH-SD8A840WA-HNF requires Hi-PoE power delivery. A standard IEEE 802.3af port supplies 15.4 W, which is insufficient for a PTZ of this class. Confirm the per-port power output of your switch and ensure each port serving this camera meets the Hi-PoE requirement before purchasing the switch infrastructure. Using an underpowered port will result in the camera failing to initialise or operating with reduced functionality.

2. What is the optical zoom ratio and what does 40x actually mean for identification distance?

   The optical zoom is 40x, covering a focal range of 5.6 mm to 223 mm. At maximum telephoto, the horizontal field of view narrows to 2.0 degrees. According to the confirmed DORI ratings, the camera achieves identification-level detail - defined as being able to distinguish individual facial features - at a distance of 440 m. Observation-level detail, where a person's actions and general appearance are clear, is rated to 1740 m. These figures are based on the EN 62676-4 standard and assume adequate lighting or IR illumination at the relevant distance.

3. Does this camera track subjects automatically without an operator controlling the PTZ?

   Yes. The deep-learning auto tracking function classifies moving targets as human or vehicle and locks the camera's pan, tilt, and zoom onto the subject autonomously. The camera adjusts zoom to maintain subject size in frame as the target moves and returns to a preset guard position when tracking ends or the target leaves the scene. This allows the camera to function as an active surveillance unit without requiring a dedicated operator at a joystick.

4. How does the perimeter protection differ from standard motion detection on this camera?

   The perimeter protection on the DH-SD8A840WA-HNF uses deep-learning classification to confirm a target is a human or vehicle before triggering an alarm. Standard video motion detection responds to any pixel change - wind, rain, lighting transitions, and animals all generate alerts. The deep-learning filter on this camera is designed to suppress those false triggers, meaning alarm events passed to the monitoring station or VMS represent a higher proportion of genuine human or vehicle activity.

5. Does this camera produce colour images at night without additional lighting?

   Yes, in two distinct ways. At very low ambient light levels down to 0.002 Lux, the Starlight+ sensor produces colour images using available light only - no IR required. Below that threshold, the 10 built-in IR illuminators extend coverage to 500 m in complete darkness, though IR illumination produces black and white images at zero lux. For sites where colour retention at night is critical, consider whether there is sufficient ambient lighting within the target zone to stay above the 0.002 Lux threshold.

6. What metadata types does this camera output and how is it accessed?

   The camera generates structured metadata for 4 target categories: human face, human body, motor vehicle, and non-motor vehicle. Face metadata includes attributes such as gender, estimated age, glasses, mask, and beard presence. Human body metadata covers hat presence, top colour, and bottom colour. Motor vehicle metadata includes plate colour, vehicle type, and vehicle colour. Non-motor vehicle metadata covers type, colour, and estimated passenger count. This metadata is accessed through a compatible VMS platform that supports Dahua WizMind metadata streams - contact Security Australia to confirm which VMS platforms have been tested for compatibility with this camera model.

7. Will this camera operate in the temperature extremes found on Australian remote and industrial sites?

   Yes. The confirmed operating temperature range is -40 degrees C to +70 degrees C, which covers the most demanding Australian conditions including alpine winter installs and exposed outback enclosures in peak summer. The IP67 rating confirms protection against dust ingress and water immersion, and the 8 kV lightning protection addresses the elevated strike risk on remote pole mounts in high-exposure areas.

8. Does this camera work with non-Dahua NVRs and VMS platforms?

   For basic video recording, yes. The DH-SD8A840WA-HNF is ONVIF compliant, so any ONVIF Profile S or T compatible recorder will capture video streams. PTZ control via ONVIF is also supported on compatible platforms. However, the advanced WizMind features - searchable metadata, face recognition database access, deep-learning alert classifications, and smart tracking triggers - require a Dahua-native or Dahua-certified VMS integration. If your project runs a third-party VMS, verify specific WizMind feature support with your VMS vendor before committing to this camera.

Downloads & Resources

No downloads available for this product.
