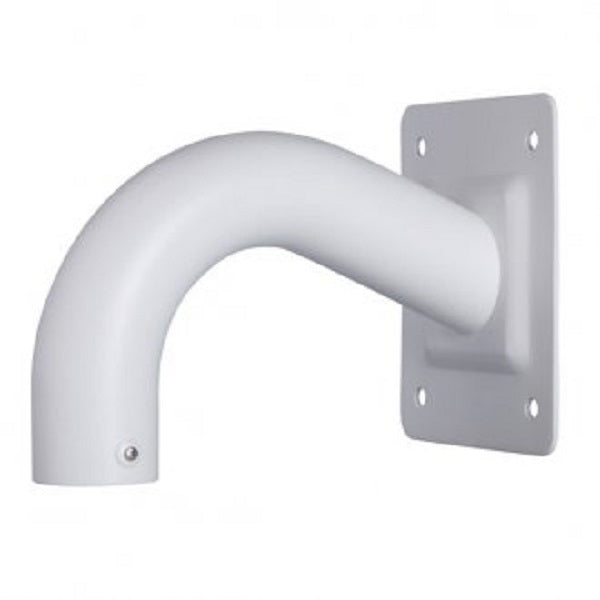

Dahua DH-PFB300S Wall Mount Goose Neck PTZ Bracket
Built as a wall mount goose neck bracket for PTZ and compatible camera installations, the DH-PFB300S provides a stable, corrosion-resistant mounting solution suited to both indoor and outdoor environments. Constructed from aluminium alloy with a G1 1/2" pipe thread, it supports loads up to 3 kg and operates across a wide temperature range of -40 to 60°C.
Why This Model
- Aluminium alloy construction: Resists corrosion over time, making it a reliable long-term mounting option in exposed outdoor locations without risk of rust or structural degradation.
- 3 kg load capacity: Accommodates a broad range of Dahua PTZ and dome cameras, reducing the need to source a separate heavy-duty bracket for most standard installations.
- Wide operating temperature (-40 to 60°C): Handles extreme heat and cold without performance compromise, suitable for Australian climates from alpine to tropical environments.
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
Model: DH-PFB300S
Who This Is For
For installers and integrators who need a purpose-built wall mount solution for Dahua PTZ cameras, the DH-PFB300S Goose Neck Wall Mount Bracket is designed to position a PTZ at the correct standoff distance from a wall surface - giving the camera's pan and tilt mechanism the clearance it needs to operate without obstruction. The extended goose neck profile brings the camera away from the mounting surface, which is essential for PTZ units that require 360-degree pan travel. Built from aluminium alloy with a G1 1/2" pipe thread, it handles up to 3 kg and is rated for outdoor operation from -40°C to 60°C. This bracket suits installers fitting PTZ cameras to building facades, perimeter walls, fence lines, and elevated wall positions where a low-profile flat bracket would restrict camera movement or create vibration issues.
What This Camera Actually Does
Goose Neck Standoff
The extended arm positions the camera head away from the wall face. This clearance is critical for PTZ units - it prevents the camera housing from contacting the wall surface during pan travel and keeps cable management tidy behind the arm.
Aluminium Alloy Construction
The aluminium body resists corrosion without the weight penalty of steel. At 0.49 kg, the bracket itself adds minimal load to the mounting surface while maintaining structural rigidity under the 3 kg rated load capacity.
G1 1/2" Pipe Thread
The standardised G1 1/2" threaded connection point is compatible with Dahua PTZ camera bases that use the same thread spec. This removes adapter guesswork and provides a solid, play-free mechanical connection between bracket and camera.
Wide Temperature Rating
Rated from -40°C to 60°C, this bracket performs in harsh Australian conditions - from the far north tropics through to alpine or cold-climate industrial sites - without concern about thermal expansion causing joint movement or bracket failure.
Who Buys This Model
- Security Integrators: Installing Dahua PTZ cameras on external building walls where the camera needs clearance from the surface for full pan rotation without housing contact.
- Industrial Site Managers: Specifying PTZ mounting hardware for perimeter fence lines and yard entry points that experience temperature extremes, relying on the -40°C to 60°C rating.
- Replacement & Retrofit Buyers: Replacing a damaged or corroded bracket on an existing Dahua PTZ installation without needing to change the camera - the G1 1/2" thread ensures a direct-fit replacement.
- Commercial Property Installers: Fitting PTZ cameras to rendered brick or concrete facades where a goose neck profile allows the camera to clear gutters, eaves, or wall protrusions that a flat bracket cannot accommodate.
Honest Assessment
The DH-PFB300S does its job well as a purpose-built wall mount for Dahua PTZ cameras. The aluminium construction keeps weight low, the 3 kg load rating covers the majority of mid-range PTZ units in Dahua's lineup, and the temperature range makes it genuinely suitable for outdoor use across Australia year-round. The G1 1/2" thread connection is a direct fit with compatible Dahua PTZ bases, which simplifies installation and reduces the chance of loose connections over time. What this bracket will not do is support heavier commercial PTZ units above 3 kg - those installations require a heavier-duty pole or wall mount rated for greater load. It is also not a pole mount or corner mount, so buyers with those positioning requirements should check the broader bracket range available through Security Australia. For standard Dahua PTZ wall installations, this bracket is a clean, appropriately specified solution.
Before You Buy
Installer Note: Confirm your PTZ camera's base thread is G1 1/2" before ordering. Not all Dahua PTZ models share the same base thread spec, and some larger units exceed the 3 kg load rating of this bracket. Also check your wall substrate - aluminium brackets mounted to lightweight cladding or hollow-cavity masonry need appropriate anchor selection to handle both the static load and any vibration from the PTZ drive motors during pan/tilt movement.
Quick Fit Check
- Good match if: You are wall-mounting a compatible Dahua PTZ camera weighing 3 kg or under and need the camera positioned off the wall face to allow clear pan travel.
- Good match if: The installation is outdoors in a high-temperature or cold-climate environment - the -40°C to 60°C rating and corrosion-resistant aluminium handle those conditions without additional treatment.
- You may need a different model if: Your PTZ camera exceeds 3 kg or requires a pole mount, corner mount, or pendant configuration - a heavier-duty or differently configured bracket type will be more appropriate for those installations.
Key Features & Technical Specifications
Real-World Scenarios
How It Compares
- Choose this if: You need a wall mount with a goose neck standoff for a Dahua PTZ camera up to 3 kg that requires clearance from the mounting surface for unobstructed pan travel.
- You may need a different model if: Your PTZ camera exceeds the 3 kg load rating, or you need a pole mount, corner mount, or ceiling pendant configuration - a bracket type suited to those mounting positions will be more appropriate.
- Pairs well with: Mid-range Dahua PTZ cameras with G1 1/2" base thread compatibility, installed as part of a perimeter or wide-area PTZ surveillance system.
Common Questions
-
Will this bracket fit any Dahua PTZ camera?
Not all Dahua PTZ models - compatibility depends on the camera's base thread spec. The DH-PFB300S uses a G1 1/2" pipe thread connection, so the PTZ camera must have a matching G1 1/2" base thread. Check your camera's datasheet for the base thread specification before ordering. The bracket also has a 3 kg load limit, so confirm your PTZ unit's weight is within that rating. -
Can this bracket be used outdoors year-round in Australia?
Yes. The aluminium alloy construction resists corrosion, and the operating temperature range of -40°C to 60°C covers Australian conditions from tropical coastal environments through to cold alpine or inland sites. Humidity tolerance up to 90% means it is suited to high-moisture coastal installs without protective coating requirements. -
Why does a PTZ bracket need a goose neck design?
PTZ cameras need clearance between the housing and the wall surface so the pan mechanism can rotate freely without obstruction. A flat bracket positions the camera base flush to the wall, which can restrict pan travel or cause the camera body to contact the mounting surface during rotation. The goose neck arm on the DH-PFB300S offsets the camera by 228 mm (bracket length), providing that operational clearance. -
What is the maximum camera weight this bracket supports?
3 kg. The load capacity is a confirmed specification. Most entry to mid-range Dahua PTZ cameras fall within this rating, but larger outdoor PTZ units can exceed it. Check your camera's listed weight in its datasheet. If the camera exceeds 3 kg, a heavier-duty wall mount bracket type is required for a safe and stable installation. -
Does this bracket include mounting hardware?
The DH-PFB300S is designed with user-friendly installation in mind and includes mounting hardware for wall attachment. For solid masonry or concrete surfaces, use appropriate anchor bolts rated for the combined load of the bracket plus camera. The bracket itself weighs 0.49 kg, so total wall load including a 3 kg camera is under 3.5 kg - well within standard masonry anchor ratings. The range is available through Security Australia if you need to pair this bracket with a compatible Dahua PTZ camera.
Downloads & Resources
No downloads available for this product.
What This Product Does
Built as a wall mount goose neck bracket for PTZ and compatible camera installations, the DH-PFB300S provides a stable, corrosion-resistant mounting solution suited to both indoor and outdoor environments. Constructed from aluminium alloy with a G1 1/2" pipe thread, it supports loads up to 3 kg and operates across a wide temperature range of -40 to 60°C.
Why This Model
- Aluminium alloy construction: Resists corrosion over time, making it a reliable long-term mounting option in exposed outdoor locations without risk of rust or structural degradation.
- 3 kg load capacity: Accommodates a broad range of Dahua PTZ and dome cameras, reducing the need to source a separate heavy-duty bracket for most standard installations.
- Wide operating temperature (-40 to 60°C): Handles extreme heat and cold without performance compromise, suitable for Australian climates from alpine to tropical environments.
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Material | |
| Pipe Thread Size | |
| Load Capacity | |
| Temperature | |
| Humidity | |
| Dimensions | |
| Weight |
