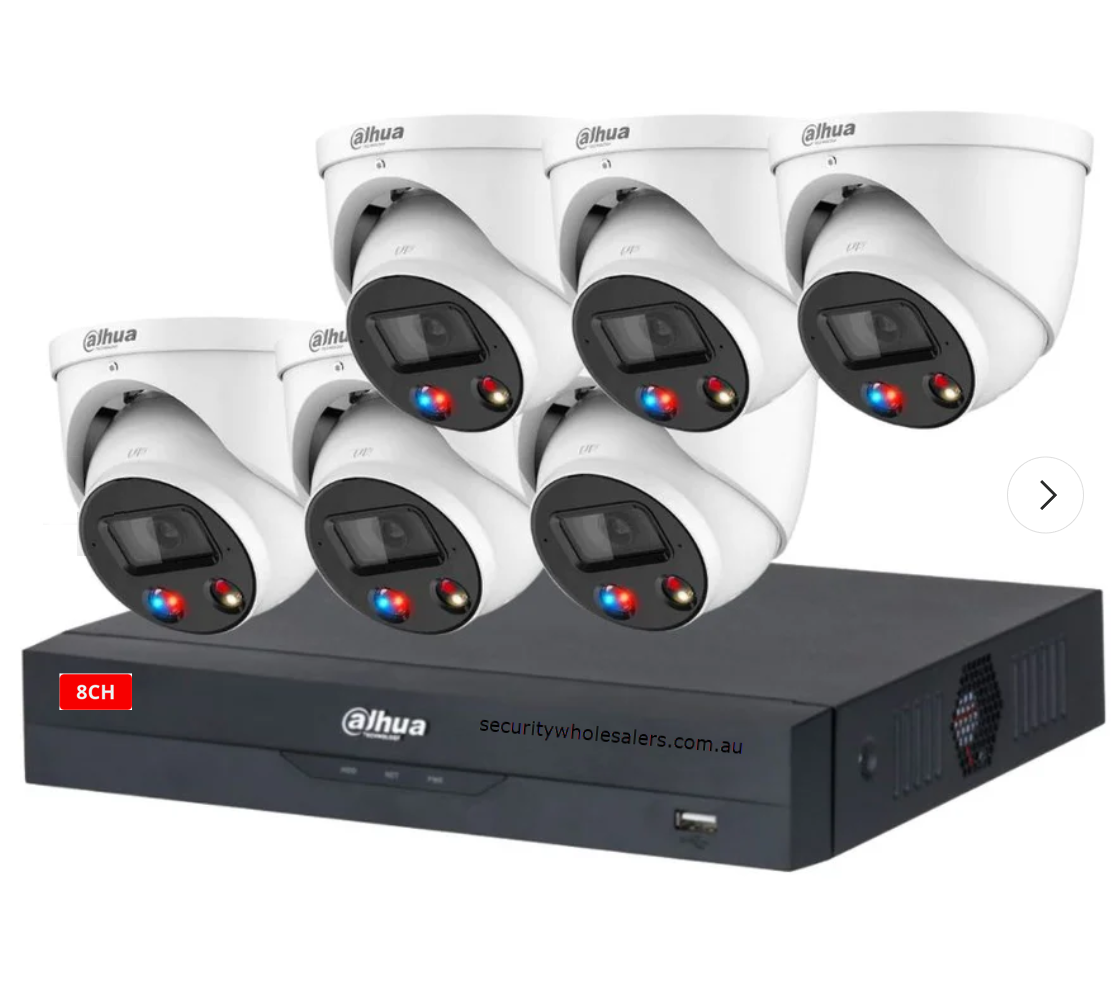

Dahua 6 x BLACK 8MP TIOC with SMD4.0 DH-IPC-HDW3849H-AS-PV-ANZ Active Deterrance Turret Kit with 8CH NVR Wizsense

Model: TIOC2.0TURRETx6+DHI-NVR4108HS-P-4KS2-1

Who This Is For

When active deterrence across multiple entry points is the priority - not just recording after the fact - this kit delivers a complete, pre-matched system. The Dahua 8MP TiOC WizSense Turret Kit pairs 6 black-finish active deterrence cameras with an 8-channel PoE NVR, designed for properties that need both full-colour night detection and an audible and visual alarm response the moment a human or vehicle is confirmed. It suits residential properties with large blocks, small commercial premises with multiple access points, rural retreats, warehouses, and construction compounds where a passive recording camera simply is not enough. The black housing blends with dark soffits and fascias, and the PoE architecture means each camera runs on a single Cat6 cable back to the NVR - no separate power runs required. If you are specifying a site that needs intelligent alarm response built in from day one, this kit is sized and configured to cover it.

What This System Actually Does

Who Buys This Model

• Rural and semi-rural homeowners: Properties with long driveways, paddock gates, sheds, and multiple access points where 6 cameras are needed and a passive recording system is not enough deterrence on its own.
• Small business operators: Retail premises, hospitality venues, or trade workshops that need after-hours deterrence built into the camera itself - especially where a monitoring company is not practical or affordable.
• Construction site managers: Temporary or semi-permanent installations covering compound perimeters, plant storage, and site entry where the active strobe and siren provides on-site response without personnel present.
• Property managers specifying multi-tenancy sites: Carparks, unit complexes, and strata-managed properties where the black turret housing suits dark building profiles and SMD 4.0 reduces false alarm events from residents triggering monitoring systems.
• Security integrators doing residential upgrades: Installers transitioning clients from basic CCTV recording setups to an active response system, where the PoE kit architecture keeps cabling simple and the 2 spare NVR ports allow staged expansion.

Honest Assessment

This kit does something most camera bundles do not - it responds to confirmed threats automatically, without waiting for a human to review footage. The combination of SMD 4.0 classification, warm-light activation, and siren-plus-strobe deterrence on each of the 6 cameras makes it genuinely suited to unmonitored sites that need a visible, audible response in the moment. The 8MP resolution across all cameras is a practical advantage for post-incident review, and the matched PoE NVR means the system is fully functional from installation day with no third-party compatibility concerns. Two-way audio on every camera adds a layer of live intervention that most entry-level kits omit entirely. Where this kit has limits: the fixed focal lens on each camera means coverage geometry must be planned carefully at install - you cannot optically zoom to extend range after the fact. For large open areas requiring long-range detection beyond 30 m, a bullet camera with extended IR or a PTZ would serve those specific positions better. Available through Security Australia, this kit suits most multi-point perimeter applications without overcomplicating the install.

Complete Package Contents

• 6 x Dahua DH-IPC-HDW3849H-AS-PV-ANZ - 8MP TiOC WizSense Active Deterrence Turret Camera, Black, IP67, SMD 4.0, Dual Illumination, Two-Way Audio, PoE
• 1 x Dahua DHI-NVR4108HS-P-4KS2 - 8-Channel WizSense PoE NVR, 4K, 1HDD Bay, Compact 1U

Before You Buy

Quick Fit Check

• Good match if: You need automatic on-camera deterrence - siren and strobe - triggered by confirmed human or vehicle detection across 6 locations, without relying on manual monitoring or a third-party response service.
• Good match if: Your site is fully cabled with Cat5e or Cat6 and you want a single PoE NVR running all cameras from one central point, with 2 spare ports available if you add cameras later.
• You may need a different model if: Your perimeter has long open approaches requiring IR coverage beyond 30 m or optical zoom capability - a bullet or PTZ camera kit would be better suited to those positions, and Security Australia stocks both types.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need active deterrence built into every camera position - automatic siren and strobe on confirmed human or vehicle detection - combined with full-colour night capture and two-way audio, all managed through a single matched PoE NVR.
• You may need a different model if: Your site has long open approaches where IR range beyond 30 m is needed, or specific positions require optical zoom to cover distance - a bullet or PTZ camera kit would be better suited to those requirements.
• Pairs well with: A surveillance-rated NAS or external HDD for extended recording retention, a PoE switch for sites where camera runs exceed the NVR's port count, or a professional monitoring service for escalated alarm response.

Common Questions

1. Will the siren and strobe trigger on my dog or a possum on the fence?

   No. SMD 4.0 classifies detected motion by target type and only triggers the active deterrence response on confirmed human or vehicle targets. Animals, foliage movement, and lighting changes are filtered out before any alarm is raised. This is the core difference between SMD 4.0 and basic motion detection - the classification happens in the camera's processor, not after the fact.

2. Does this kit work without an internet connection?

   Yes. The NVR records locally to the installed HDD continuously without any internet connection required. Remote viewing via the DMSS app does require internet access, but on-site recording, deterrence triggering, and NVR playback all function entirely on the local network.

3. How does Smart Dual Illumination actually switch between IR and warm light at night?

   The camera runs IR illumination as its default night mode. When SMD 4.0 detects and classifies a human or vehicle entering the scene, it automatically activates the warm white illuminator - switching the camera to full-colour capture for that event. Once the target leaves the monitored area, warm light deactivates and the camera returns to IR mode. This means full-colour footage is captured precisely when it is most useful, without the warm light running continuously and causing light pollution or wasted power.

4. Can I use two-way audio to speak to someone at my property through the camera?

   Yes. Each DH-IPC-HDW3849H-AS-PV-ANZ has dual built-in microphones and a built-in speaker, with two-way talk supported through the DMSS mobile app and the connected NVR. You can hear and speak in real time to anyone within range of the camera's microphone and speaker - useful for issuing a live warning to an intruder or communicating with a delivery driver without opening an entry point.

5. Does the TiOC active deterrence require any configuration or does it work out of the box?

   Basic deterrence works with minimal setup, but the system performs best with accurate zone configuration. After installing the NVR and cameras, you should define Intrusion or Tripwire detection zones in the NVR or camera interface to match the actual area you want monitored - for example, a driveway approach rather than the full camera field of view. The one-tap arming and disarming feature, controllable via the alarm input or the DMSS app, allows you to schedule deterrence active hours so the siren does not trigger during normal business operating times.

6. How much HDD storage do I need for 6 cameras recording at 8MP?

   At minimum, a 4TB surveillance-rated HDD is recommended for approximately 7-14 days of continuous recording across 6 cameras at 8MP with H.265+ compression enabled. The exact retention period depends on scene complexity, motion activity, and the recording schedule you configure. H.265+ significantly reduces bitrate compared to standard H.264, so enabling it on the NVR has a meaningful impact on storage longevity. The NVR supports 1 internal HDD bay - the drive must be purchased separately and is not included in this kit. Stocked by Security Australia, compatible HDD options are available to pair with this kit.

7. What is the maximum cable run from each camera back to the NVR?

   For PoE over Cat5e or Cat6, the standard maximum is 100 m per camera run. Beyond that distance, a PoE extender or a separate PoE switch positioned closer to the cameras would be required. All 6 cameras in this kit are powered and connected via PoE, so there are no separate power cable runs to manage - a single Cat6 cable per camera handles both data and power back to the NVR's built-in PoE ports.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for all camera runs - especially in environments with electrical interference or runs approaching the 100 m limit.
• Max Cable Run: 100 m per camera from the NVR's PoE port. Plan cable routes before installation, accounting for conduit bends and wall penetrations that add to total run length.
• PoE Notes: All 6 cameras run on standard IEEE 802.3af PoE. The NVR's built-in PoE ports supply power directly - no separate PoE injectors or switch required for the included cameras. The 2 spare NVR ports will also supply standard PoE if you expand the system.
• Wiring Tips: Run cable through conduit where exposed to the elements or mechanical damage - particularly for roofline runs to eave-mounted cameras. Label each cable at both ends at installation time. If any run exceeds 90 m, test link speed before finalising the installation to confirm stable PoE negotiation.
