  • Sku: DH-5MP8CH
  • Vendor: SecurityAustralia

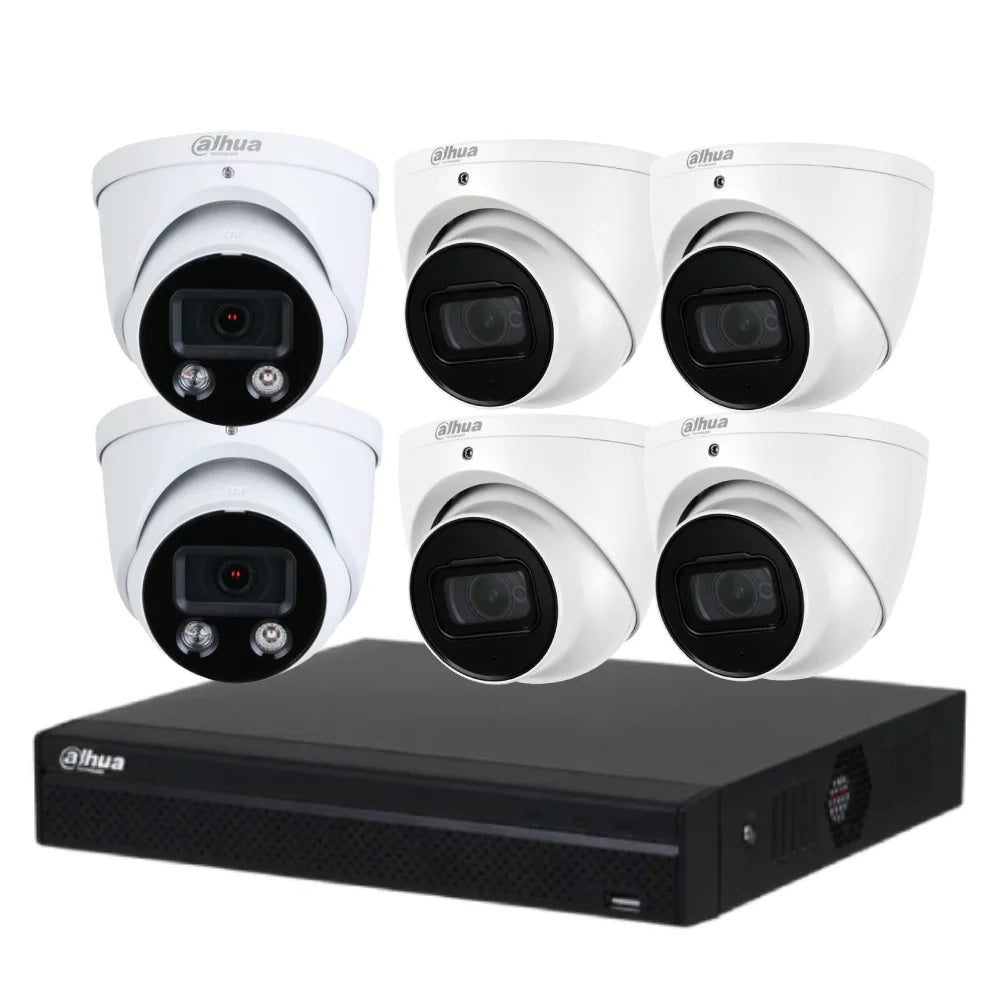

Dahua 5MP + 8 Channels Kit: 2 x 6MP TiOC and 4 x 5MP Turret Cameras with 8CH NVR

$1,053.07 AUD
 per
Tax included.
Shipping calculated at checkout.
In stock!
Spend $100.00 to FREE SHIPPING

Free shipping - Enjoy free shipping when your order exceeds $100!

All orders are despatched within the next business day!

Best local support in Aus! We back all products with a 3 year manufacturer warranty.

The Dahua 5 MP + 8 Channels Kit includes 2 6MP TiOC cameras and 4 5MP turret cameras, providing comprehensive surveillance coverage. This kit is paired with an 8-channel Network Video Recorder (NVR), ensuring ample storage and management for all connected cameras.

Dahua Camera Kit includes:

4 x Dahua 5MP Starlight IP Dome Camera 2.8mm Built-in Mic IR 30m

With upgraded H.265 encoding technology, the Dahua 5MP Starlight IP Dome Camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better colourful images in an environment of low illumination. It supports SD card storage, waterproof function, dust-proof function, complying with the standards of IP67.

Key Features

  • 5MP, 1/2.7'' CMOS image sensor, low illuminance, high image definition
  • Outputs max. 5MP (2592x1944) @20 fps, and supports 2688x1520 (2688x1520) @25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in IR LED, max IR distance: 30 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent detection: Intrusion, tripwire
  • Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
  • Supports max. 256 GB Micro SD card, built-in MIC
  • 12V DC/PoE power supply
  • IP67 protection

Code/SKU: DH-IPC-HDW2531EMP-AS-0280B-S2-AUS
Quick Specs: Image Sensor: 1/2.7” 5Megapixel progressive CMOS; Max. Resolution: 2592 (H) × 1944 (V); Lens Type: Fixed



2 x 6MP Dahua Smart Dual Illumination Active Deterrence Fixed-focal Eyeball WizSense Network Camera

This 6MP Dahua camera is equipped with dual illumination (warm light and IR), advanced video compression, and intelligent monitoring features. It offers superior performance for residential and commercial surveillance.

Key Features

  • 6MP 1/2.7'' CMOS image sensor, low luminance, and high definition image.
  • Outputs max. 6 MP (3200 x 1800) @25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
  • ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
  • Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker; support two-way talk.
  • 12 VDC/PoE power supply.
  • IP67 protection.
  • Sound and light alarm (red and blue lights).
  • SMD 4.0.
  • One press arming/disarming through alarm input

Code/SKU: DH-IPC-HDW3649H-AS-PV-ANZ
Quick Specs: H.265, IR 30m, Warm Light 30m, 120dB WDR, IP67, PoE, Built-in Dual Mics



1 x 8 Channel Compact 1HDD 1U 8PoE Network Video Recorder

The Dahua NVR4000-4KS2/L is introduced as the Lite series NVR that supports 4K and H.265 encoding technology with excellent performance at an affordable price. For applications where image details are highly required, it delivers the capability of 4K resolution processing. The NVR can be served as edge storage, central storage, or backup storage with an intuitive shortcut operation menu for remote management and control.

Key Features

  • New 4.0 user interface, Security baseline 2.1
  • H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch
  • Max. decoding capability: 8x1080p@30 fps. Supports adaptive decoding
  • Supports mainstream cameras of ONVIF and RTSP protocols
  • P2P remote surveillance, video play on mobile device
  • VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K
  • AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD
  • Supports remote configuration and management of IPC, such as set ting parameters, getting information, and upgrading IPC of the same model in batches

Code/SKU: DHI-NVR4108HS-8P-4KS2/L
Quick Specs: Main Processor: Industrial-grade embedded processor; OS: Embedded Linux; Operation Interface: Web/operating in local GUI

Addons

Dahua DH-PFA130-E...
$21.00 $24.00
Dahua DH-PFB204W ...
$17.00 $30.00
4TB HDD - Surveil...
$156.00 $286.00
3TB HDD - Surveil...
$156.00 $209.00
6TB HDD - Purple ...
$300.00 $418.00

Specifications

Camera

Image Sensor

1/2.7” 5Megapixel progressive CMOS

Max. Resolution

2592 (H) × 1944 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.008 Lux @ F1.6

S/N Ratio

> 56 dB

Illumination Distance

30 m

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed

Mount Type

M12

Focal Length

2.8 mm
3.6 mm

Max. Aperture

F1.6
F1.6

Field of View

2.8 mm:

Horizontal 103.0° × Vertical 71.0° × Diagonal 132.0°

3.6 mm:

Horizontal 84.0° × Vertical 58.0° × Diagonal 110.0°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 0.9 m
3.6 mm: 1.6 m

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

56 m

22.4 m

11.2 m

5.6 m

3.6 mm

80 m

32.0 m

16.0 m

8.0 m

Smart event

IVS

Tripwire; intrusion

Video

Video Compression

H.265; H.264; H.264B; MJPEG (only supported

by the sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main stream:
2592 × 1944 (1 fps-20 fps)
2688 × 1520 (1 fps-25/30 fps)
Sub stream:
704 × 576 (1 fps-25 fps)
704 × 480 (1 fps-30 fps)

Stream Capability

2 streams

Resolution

2592×1944(2592×1944); 2688×1520(2688×1520); 3M(2048×1536); 2304×1296(2304×1296); 1080p(1920×1080); 1.3M (1280 × 960); 720p(1280×720); D1(704× 576/704×480); VGA(640×480); CIF(352×288/352×240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–8192 kbps

H.265: 12 kbps–8192 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Supports 90°/270° with 2592 × 1944 resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711A; G.711Mu; G.726

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec

User/Host

20

Storage

FTP; Micro SD card (support max. 256 G); NAS; SFTP

Browser

IE

Chrome

Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 7.2W

Environment

Operating Conditions

-40°C to +60°C (-40°F to +140°F)/less than ≤ 95%

Storage Temperature

-40°C to +60°C (-40°F to +140°F)

Protection

IP67

Structure

Casing

Metal + Plastic

Dimensions

100.9 mm × Φ109.9 mm (3.97" × Φ4.33")

Net Weight

0.39 kg (0.9 lb)

Gross Weight

0.56 kg (1.2 lb)



System

Main Processor

Industrial-grade embedded processor

OS

Embedded Linux

Operation Interface

Web/operating in local GUI

Perimeter Protection by Camera

Performance

4 channels

AI Search

Search for pictures by channel, time and event type

Face Detection by Camera

Performance

4 channels

Face Attributes

6 attributes: Gender, age, glasses, expression, mouth mask, and beard

AI Search

Search for pictures by channel, time and face attributes

SMD Plus by Camera

Performance

4 channels

AI Search

Search by target classification (human, vehicle)

Video

Access Channel

4

Network Bandwidth

Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps

Resolution

8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1

Decoding Capability

8 × 1080p@30 fps

Video Output

1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI

Multi-screen Display

1 , 4 views

Third-party Camera Access

ONVIF; RTSP

Compression

Video

Smart H.265/H.265/Smart H.264/H.264/MJPEG

Audio

PCM/G711A/G711U/G726/AAC

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register

Mobile Phone Access

Android; iOS

Interoperability

ONVIF(profile T/S/G); CGI; SDK

Browser

Chrome; IE9 or later; firefox

Record Playback

Multi-channel Playback

Up to 4 channels for playback

Record Mode

Manual record; alarm recording; SMD recording; smart recording

Storage

Local HDD; network

Backup

USB storage device

Playback Function

1. Play/pause/stop/slow/quick/backward/by frame
2. Full screen, backup (video clip/file), partial zoom in, and audio on/off

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm

Anomaly Alarm

Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception

Intelligent Alarm

Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms

Alarm Linkage

Recording, snapshot, audio, buzzer, log, preset, and email

External Port

Audio Input

1 × RCA input

Audio Output

1 × RCA output

HDD

1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature

USB

2 (1 × front USB2.0; 1 × back USB2.0)

HDMI

1 (supports up to 4K resolution output)

VGA

1

Network

1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port

POE

4

General Parameter

Power Supply

48 V/53 VDC, 1.25 A/1.13 A

Power Consumption

< 10 W (HDD not included, idling)
Total output power of PoE is 36W, the maximum output power of a single port is 25.5W

Net Weight

0.86 kg (1.90 lb)

Gross Weight

1.86 kg (4.10 lb)

Product Dimensions

260 mm × 232.3 mm × 50.3 mm (10.24" × 9.14" × 1.98") (W × L × H)

Package Dimensions

117 mm × 373 mm × 307 mm (4.61" × 14.69" × 12.09") (W × L × H)

Operating Conditions

–10 °C to +55 °C (+10 °F to +131 °F)

Storage Conditions

0 °C to +40 °C (32 °F to 104 °F)

Operating Humidity

10℅~93℅

Storage Humidity

30%~85%

Operating Altitude

3000 m (9842.52 ft)

Installation

Desktop mounted

Certifications

CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4
FCC: Part 15 Subpart B

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Dahua 5MP + 8 Channels Kit: 2 x 6MP TiOC and 4 x 5MP Turret Cameras with 8CH NVR

$1,053.07 AUD
 per

The Dahua 5MP + 8 Channels Kit includes 2 6MP TiOC camera and 4 5MP turret cameras. This comprehensive surveillance system offers high-resolution video capture for enhanced security. The 8-channel NVR allows for efficient management and storage of the video feeds from all cameras.

With upgraded H.265 encoding technology, the Dahua 5MP Starlight IP Dome Camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better colourful images in an environment of low illumination. It supports SD card storage, waterproof function, dust-proof function, complying with the standards of IP67.

The Dahua Smart Dual Illumination Active Deterrence Fixed-focal Eyeball WizSense Network Camera features advanced AI-powered functions, including face detection, perimeter protection, and smart motion detection. It comes with dual illumination technology, providing optimal lighting for clear images both day and night. The camera supports active deterrence with built-in siren and red/blue light to warn intruders. Its fixed-focal lens ensures consistent image quality with a resolution of 6 megapixels. Designed for robust security, it is suitable for various applications, from residential to commercial use.

Powered with the 8 Channel Compact 1U 1HDD 8PoE Network Video Recorder network video recorder delivers excellent performance and high recording quality that is ideally suitable for IP video surveillance applications. This professional NVR adopts a powerful processor, providing the capability of 4K resolution processing for applications where image details are highly required. Additionally, the NVR can be served as edge storage, central storage or backup storage with an intuitive shortcut operation menu for remote management and control.

Features:

  • Records up to 5MP, 1/2.7'' CMOS image sensor, low illuminance, high image definition.
  • Outputs max. 5MP (2592x1944) @20 fps, and supports 2688x1520 (2688x1520) @25/30 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in Infrared LED, with a maximum range of 30 meters.
  • Equipped with a Built-in Microphone
  • Supports Starlight technology, generates clear images in near-complete darkness.
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Intelligent Video Surveillance (IVS) technology supports smart functions such as tripwire and intrusion detection.
  • Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection.
  • Supports MicroSD Card Storage up to 256 Gigabytes.
  • Supports Power-Over-Ethernet (PoE) installations.
  • Resilient "Weather-Proof" Ingress Protection Rating (IP67).



Functions:

Smart (H.265+ & H.264+)

With an advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video and reduces the cost of storage and transmission.

Wide dynamic range (WDR)

With advanced Wide Dynamic Range (WDR) technology, Dahua network camera provides clear details in the environment of strong brightness contrast. The bright and dark areas can get clear video even in a high brightness environment or with backlight shadow.

Starlight

Dahua Starlight technology mainly applies to the environment of low illumination, and it can provide clear colorful video. Even in the environment of min. illumination, the technology can guarantee the good image effect

Intelligent Video Analysis (IVS)

With an advanced video algorithm, Dahua camera supports intelligent detection, such as tripwire and intrusion, and so on.

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict tests on dust and soak. It has a dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes

Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to an outdoor environment with unstable voltage.



Enhance your security with the Dahua Camera System Kit. Experience superior clarity, advanced analytics, and reliable performance. Upgrade your surveillance system today!

Recently viewed products

SECURITY AUSTRALIA - YOUR TRUSTED SOURCE FOR SECURITY EQUIPMENT

Discover our wide range of security equipment designed to keep you safe and secure.

We offer competitive prices to trades and commercial projects. Speak to one of our experienced consultants if you require a custom quote on larger orders.
