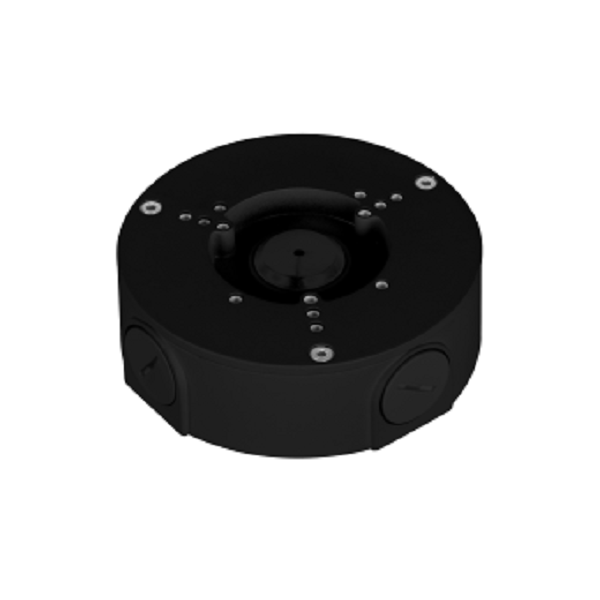

Dahua DH-PFA130-E Dahua Water proof Junction Box

Model: DH-PFA130-E

Who This Is For

When weatherproofing the cable entry point is the priority, the Dahua DH-PFA130-E junction box is the part that finishes the job properly. Installers mounting compatible Dahua bullet or turret cameras on external walls, eaves, or soffits use this box to conceal and protect the cable connection between the wall surface and the camera base. The aluminium housing is IP66 rated, which means water jetting and heavy rain will not compromise the wiring inside. The G3/4 inch pipe thread accepts standard conduit, keeping the installation tidy and meeting the expectations of commercial and residential clients who want a clean finished result. At 0.35 kg and rated to carry up to 3.0 kg of load, it is light enough to handle easily on a ladder but solid enough to support the camera mounted above it. Operating from -40 degrees C to 60 degrees C, it handles Australian outdoor temperature ranges without issue.

What This Actually Does

Who Buys This Model

• CCTV Installers: Specifying a clean, conduit-fed cable entry on external wall mounts where exposed cabling would fail a client's site standards or council requirements.
• Commercial Property Electricians: Working alongside security installers who need a weatherproof termination point that accepts standard G3/4 conduit already run through the wall cavity.
• Dahua System Integrators: Completing a uniform Dahua accessory stack across a site where matching components, load ratings, and IP ratings across every mount point matters for warranty and documentation.
• Facility Managers: Replacing a deteriorated plastic junction box on an existing outdoor camera run where the original housing has cracked or the seals have failed after years of sun and rain exposure.

Honest Assessment

The DH-PFA130-E does its job well: it provides a genuinely weatherproof, structurally solid cable management point for outdoor Dahua camera installations. The aluminium body resists UV and physical impact better than ABS plastic alternatives, and the IP66 rating is appropriate for exposed Australian outdoor conditions. The G3/4 conduit thread is a practical inclusion that most budget junction boxes omit, and the load rating gives confidence that the box is designed to carry the weight of a camera, not just protect a cable splice. What it will not do is function as a universal mount - compatibility should be confirmed against your specific Dahua camera model before ordering. It is also not an arm or pole adapter; if you need standoff distance from the wall or a corner mount, a different accessory type is required. Available through Security Australia, this is a purpose-built finishing component, not a workaround.

Before You Buy

Quick Fit Check

• Good match if: You are mounting a compatible Dahua camera on an exterior wall and need an IP66-rated, conduit-ready junction box to weatherproof the cable entry point cleanly.
• Good match if: Your installation requires a G3/4 conduit connection and a load-bearing aluminium housing that will not degrade under prolonged UV and rain exposure.
• You may need a different model if: You need a wall arm, corner mount, or pole adapter to reposition the camera away from the surface - a mounting bracket accessory from the Dahua range will serve that purpose better than a junction box alone.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need an IP66-rated aluminium junction box with a G3/4 conduit thread that is confirmed compatible with Dahua camera mounts and rated to carry camera load.
• You may need a different model if: Your installation requires a wall arm, tilt bracket, corner adapter, or pole mount - a dedicated mounting bracket accessory will handle repositioning and angle adjustment, which this junction box is not designed to provide.
• Pairs well with: Compatible Dahua outdoor bullet or turret cameras, and standard G3/4 conduit fittings from an electrical supplier for a fully enclosed cable run.

Common Questions

1. Will the DH-PFA130-E work with my Dahua camera?

   Compatibility depends on your specific Dahua camera model. The PFA130-E is designed to work with a range of compatible Dahua cameras, but not all models share the same base footprint or mounting thread pattern. Check the accessory compatibility list in your camera's Dahua datasheet or contact Security Australia before ordering to confirm the fit.

2. Is the IP66 rating sufficient for exposed outdoor installation in Australia?

   Yes. IP66 is appropriate for fully exposed outdoor locations, including those subject to heavy rain and direct water spray. The rating confirms protection against powerful water jets from any direction, which covers typical Australian outdoor conditions including coastal sites with wind-driven rain.

3. Does this junction box accept standard conduit?

   Yes, with an important qualification. The pipe thread is G3/4 inch, which is a metric thread standard. It is not the same as imperial 3/4 inch NPT conduit fittings. Confirm with your conduit supplier that you are using G3/4 compatible fittings before proceeding with the installation.

4. Can this box support the weight of a Dahua camera mounted above it?

   Yes. The DH-PFA130-E is rated to bear a load of 3.0 kg, which is sufficient for the compatible Dahua cameras this accessory is designed to accompany. The load rating applies to the camera weight bearing down on the box structure - the box itself weighs 0.35 kg and is fixed to the wall surface via its own mounting points.

5. Will this junction box handle extreme temperatures at an outdoor site?

   Yes. The operating temperature range is -40 degrees C to +60 degrees C, which covers both extreme summer heat in inland Australian environments and cold conditions in alpine or refrigerated facility applications. The aluminium housing does not warp, crack, or degrade across this temperature range the way plastic housings can over repeated seasonal cycling.

6. Does this box also function as a wall arm or tilt bracket?

   No. The PFA130-E is a junction box only - it provides a weatherproof cable termination point and a mounting base for the camera directly above it. It does not provide angular adjustment, standoff distance from the wall, or pole or corner mounting. If camera positioning requires any of those functions, a separate Dahua mounting bracket accessory is needed in addition to or instead of this box.

Downloads & Resources

No downloads available for this product.
