Dahua 24/7 WizColour 16CH CCTV Kit – 10x WizColor Turrets with SMD 4.0 + 16CH PoE NVR (DH-IPC-HDW2549EMP-S-PRO-ANZ, DHI-NVR4216-16P-AI/ANZ)

Model: 10xDH-IPC-HDW2549EMP-S-PRO-ANZ-Wizcolor & 16CH NVR-1-1-1

Who This Is For

When full-colour night footage across a large property is the priority, this kit is built for exactly that. The Dahua 24/7 WizColour 16CH CCTV Kit pairs 10 WizColor turret cameras with a 16-channel AI PoE NVR, giving installers and property owners a pre-matched system ready for sites that need genuine colour at night - not black-and-white IR footage. Suited to commercial properties, warehouses, hospitality venues, schools, strata complexes, and large residential installations where identifying clothing colour, vehicle colour, or facial features after dark is a practical requirement. The included NVR supports all 16 PoE ports, so the 10 cameras connect directly with a single Cat5e or Cat6 run each, and 6 channels remain open for future expansion. Buyers planning a multi-building rollout or phased upgrade will find this kit a strong starting point without needing to immediately fill every channel.

What This Camera Actually Does

Who Buys This Model

• Hospitality and retail managers: Sites where after-dark colour footage is needed to identify patrons, vehicles, or incidents in car parks and entry areas - IR greyscale is not sufficient for these use cases.
• School and childcare facility administrators: Multi-building campuses with numerous outdoor coverage points benefit from the 16-channel capacity and SMD 4.0 filtering, which reduces nuisance alerts from foot traffic outside school hours.
• Strata managers and body corporate installers: Complexes covering shared driveways, car parks, lobbies, and perimeter fencing where 10 camera positions is a realistic starting count and future channel expansion is expected.
• Security integrators managing commercial fit-outs: The pre-matched camera-and-NVR combination reduces compatibility risk and simplifies commissioning on larger sites where selecting and pairing components individually adds procurement time.

Honest Assessment

This kit does the hard work of matching cameras to NVR before the buyer is involved - the 10 WizColor turrets and the 16-channel PoE NVR are confirmed compatible, and the built-in PoE ports mean the install starts without sourcing a separate switch. The full-colour 24/7 imaging is the standout capability: on sites where after-dark colour detail genuinely changes what footage is useful for, these cameras are a practical choice over standard IR models. SMD 4.0 filtering at the camera edge also reduces NVR storage consumption and notification fatigue on busy sites. What this kit will not do is cover very long outdoor approaches where a bullet camera with extended IR throw is a better fit, or provide optical zoom for monitoring a specific distant point. Buyers needing PTZ capability, ANPR, or thermal imaging will require additional or different camera types alongside this system. Available through Security Australia, the kit suits sites planning a staged build-out where 6 spare NVR channels represent genuine future value.

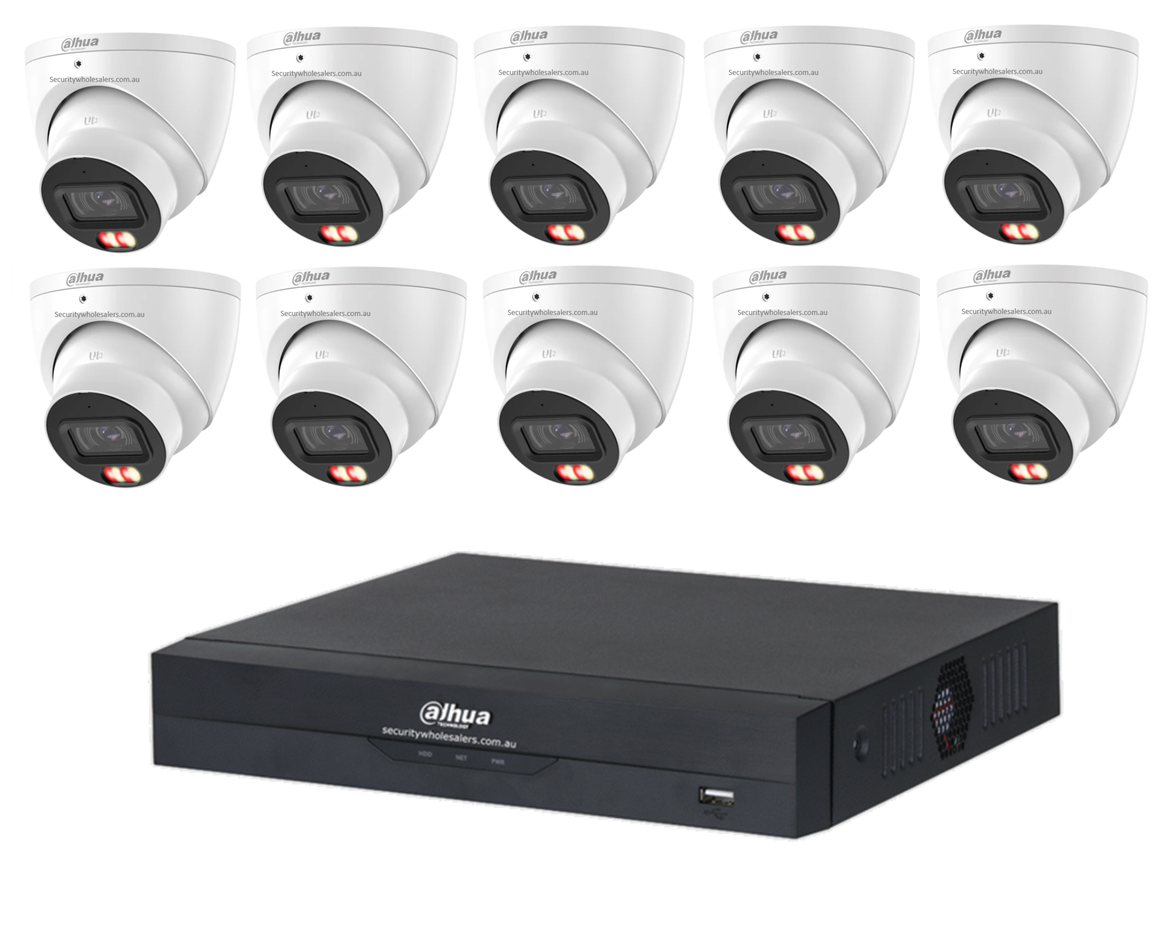

Complete Package Contents

• 10 x Dahua DH-IPC-HDW2549EMP-S-PRO-ANZ - WizColor 5MP turret camera, full-colour 24/7, SMD 4.0, PoE
• 1 x Dahua DHI-NVR4216-16P-AI/ANZ - 16-channel PoE NVR, AI processing, 16 built-in PoE ports

Before You Buy

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site requires colour footage after dark across 8-16 camera positions, and you want a pre-matched camera-and-NVR system with built-in PoE and room to expand.
• You may need a different model if: Your application involves long outdoor approaches of 50 metres or more where a bullet-style camera with extended IR range provides better coverage geometry, or if covert night-time operation is required and visible warm light cannot be present.
• Pairs well with: A surveillance-grade NAS or dedicated CCTV hard drive for the NVR, a PoE-capable managed switch for camera runs beyond standard NVR port distances, and a UPS to maintain recording during power interruptions.

Common Questions

1. Does this kit include a hard drive?

   No. The DHI-NVR4216-16P-AI/ANZ ships without a hard drive installed. You will need to purchase and install a compatible surveillance-grade HDD separately before the system can record. HDD capacity selection depends on your intended recording resolution, frame rate, number of active cameras, and how many days of footage you need to retain. Running 10 cameras at full 5MP resolution on continuous recording will require considerably more storage than a motion-triggered setup with SMD 4.0 enabled.

2. Will this system work for night-time colour footage without any external lighting?

   Yes. WizColor cameras use built-in warm supplemental light to produce colour footage in complete darkness. The cameras do not rely on external lighting to maintain colour - the onboard light activates to illuminate the scene when ambient light is insufficient. Note that this warm light is faintly visible at night, so these cameras are not suited to covert installation requirements.

3. Do I need a separate PoE switch to power the 10 cameras?

   No. The DHI-NVR4216-16P-AI/ANZ has 16 built-in PoE ports, and all 10 cameras in this kit connect directly to the NVR via a single Cat5e or Cat6 cable each. A separate PoE switch is not required for the supplied cameras. If you later add cameras on runs that cannot reach the NVR directly, a managed PoE switch may be needed for those additional positions.

4. What does SMD 4.0 actually do, and does it reduce false alerts?

   Yes. SMD 4.0 (Smart Motion Detection 4.0) classifies detected motion as either a human or a vehicle at the camera level before triggering an alert or recording event. Objects that do not match either classification - such as animals, foliage movement, or lighting changes - are filtered out. For sites with high ambient movement such as trees near car parks, this materially reduces nuisance notifications compared to standard pixel-based motion detection.

5. Can I add more cameras to this system later?

   Yes. The 16-channel NVR has 6 ports unused after the 10 supplied cameras are connected. You can add up to 6 additional Dahua IP cameras to those spare channels without replacing the NVR. The NVR's built-in PoE budget should be reviewed before adding cameras to confirm the total PoE load does not exceed the NVR's rated output - high-power cameras may reduce the number of additional units that can be powered directly from the NVR ports. The team at Security Australia can assist with compatibility checks before you purchase additional cameras.

6. Does the NVR support remote viewing on a phone or tablet?

   Yes. The DHI-NVR4216-16P-AI/ANZ supports remote access via the Dahua DMSS mobile application on iOS and Android. Remote viewing requires the NVR to have a network connection and appropriate port forwarding or P2P cloud access configured during setup. Video stream quality during remote viewing is subject to the upload bandwidth available at the installation site.

7. Are the cameras in this kit rated for outdoor installation in Australian conditions?

   Yes. The DH-IPC-HDW2549EMP-S-PRO-ANZ carries an IP67 ingress protection rating, making it suitable for direct outdoor exposure including rain, dust, and humidity typical of Australian residential and commercial environments. The turret housing is appropriate for eave, soffit, and external wall positions. For environments with elevated risk of deliberate tampering, a camera with a confirmed IK vandal rating should be considered instead.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for runs approaching maximum distance or in environments with higher interference risk.
• Max Cable Run: 100 metres per camera from NVR PoE port to camera (standard IEEE 802.3 PoE limit). Runs beyond 100 metres require a mid-span PoE injector or managed PoE switch at an intermediate point.
• PoE Notes: All 16 NVR ports are PoE-capable. Check the NVR's total PoE power budget before adding cameras beyond the 10 supplied - the total wattage draw across all ports must remain within the NVR's rated PoE output capacity.
• Wiring Tips: Route cables through conduit on external walls and roof spaces to protect against UV degradation and vermin damage. Use outdoor-rated Cat6 where cables are exposed to direct sunlight or moisture. Label each run at both ends before terminating to simplify future fault-finding across a 10-camera install.

Downloads & Resources

No downloads available for this product.
