Dahua 24/7 WizColor 16CH CCTV Kit – 8x WizColor Turrets with SMD 4.0 + 16CH PoE NVR (DH-IPC-HDW2549EMP-S-PRO-ANZ, DHI-NVR4216-16P-AI/ANZ)

Model: 8x DH-IPC-HDW2549EMP-S-PRO-ANZ WizColor Turret + DHI-NVR4216-16P-AI/ANZ

Who This Is For

When full-colour night coverage across multiple zones is the priority, this Dahua WizColor 16CH kit is built around that single requirement. It combines 8 WizColor turret cameras - each producing colour footage around the clock using warm supplemental light - with a 16-channel PoE NVR that leaves 8 spare channels for future expansion. The DH-IPC-HDW2549EMP-S-PRO-ANZ cameras include SMD 4.0 for filtering out false alerts caused by animals or foliage, which is a meaningful advantage for sites that need consistent, actionable notifications rather than constant motion triggers. It suits small-to-medium commercial properties, retail premises, residential acreages, and childcare or aged care facilities where the operator needs colour detail at night without relying on a separate IR or white-light camera selection process. Everything in the kit connects via PoE, so cabling is straightforward and the system is ready to scale as the site grows.

What This Camera Actually Does

Who Buys This Model

• Retail and hospitality operators: Sites where staff or management need colour detail after dark - car parks, loading areas, alley access points - and where false-alert fatigue from basic motion detection has been a past problem.
• Residential acreage and lifestyle property owners: Large lots with multiple entry points, sheds, or outbuildings where 8 cameras cover primary zones now and the spare NVR channels allow a further 8 cameras to be added as the property develops.
• Childcare, aged care, and education facilities: Sites requiring colour footage around the clock - not just daytime - for duty-of-care documentation and incident review, with SMD 4.0 reducing nuisance alerts that would otherwise require frequent manual investigation.
• Small commercial and industrial premises: Workshops, warehouses, and trade yards that want a complete, install-ready system on a structured cabling run, with room to scale without buying new core equipment.
• Security integrators completing mid-tier commercial jobs: Installers who need a proven kit that ships pre-matched, reduces on-site configuration time, and leaves expansion headroom they can sell to the client as a future upgrade path.

Honest Assessment

This kit genuinely delivers on its core promise: colour video at night from a compact turret housing, across 8 camera positions, all running back to a single PoE NVR. SMD 4.0 is a real and meaningful step above basic pixel-change motion detection - sites that have dealt with constant false alerts from trees or passing vehicles will notice the difference immediately. The 16-channel NVR leaving 8 spare ports is a legitimate expansion advantage, not a marketing claim, and the AI-assisted footage search saves real time during incident review. What this kit will not do: it is not a long-range surveillance system. The turret cameras are built for moderate distances in residential and light commercial environments, not extended perimeter monitoring where a bullet camera with a varifocal lens would be more appropriate. It also does not include audio recording capability unless the cameras are confirmed to include a built-in microphone - check the technical specifications before specifying for audio-sensitive applications. Available through Security Australia, this kit suits sites where colour night detail and manageable alert volume are the primary drivers.

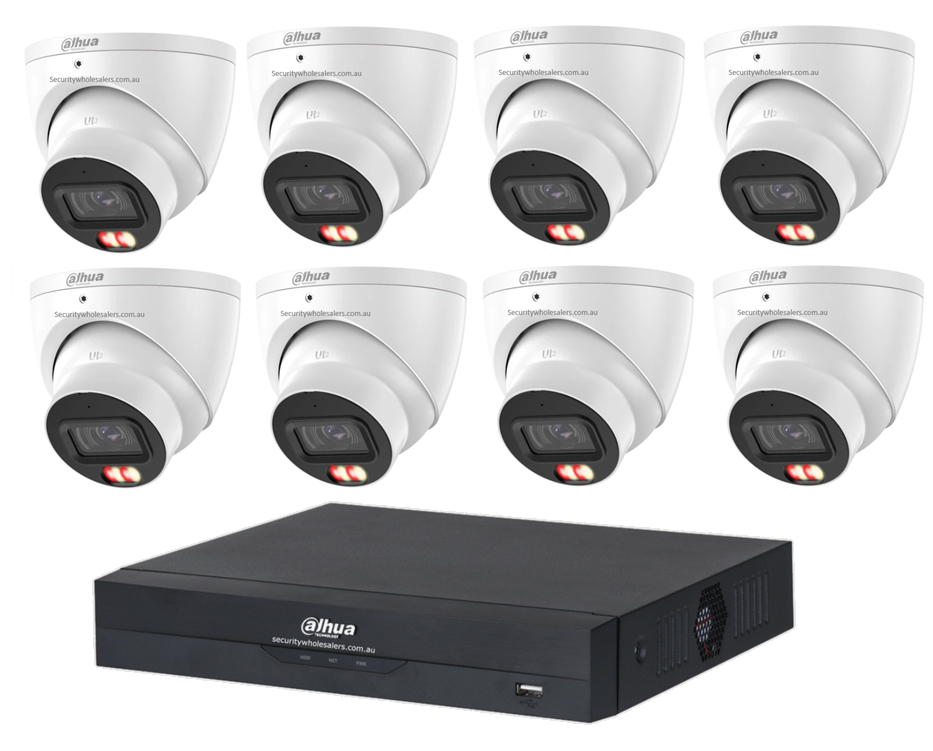

Complete Package Contents

• 8 x Dahua DH-IPC-HDW2549EMP-S-PRO-ANZ - WizColor 5MP turret camera, SMD 4.0, IP67, PoE
• 1 x Dahua DHI-NVR4216-16P-AI/ANZ - 16-channel PoE NVR with AI, 16 PoE ports

Before You Buy

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Colour night footage is non-negotiable, SMD 4.0 false-alert reduction is a specific requirement, and you need a pre-matched 8-camera system with meaningful expansion headroom built into the NVR from day one.
• You may need a different model if: The site requires long-range perimeter monitoring - a kit based on varifocal bullet cameras with extended IR range would be better suited to approaches of 40 metres or more, or large open lots where a turret's fixed focal length is a limiting factor.
• Pairs well with: A surveillance-rated NAS or network storage solution if longer retention periods are required beyond what a single internal NVR drive can store, or a PoE extender for camera positions beyond 100 metres of cable run.

Common Questions

1. Does this kit include a hard drive for recording?

   No - the DHI-NVR4216-16P-AI/ANZ does not include a hard drive as standard. You will need to purchase and install a surveillance-rated HDD separately. For 8 WizColor cameras recording continuously, a minimum of 4TB is recommended to achieve roughly 7 days of retention at full resolution using H.265+ compression. Confirm drive compatibility with the NVR specifications before purchasing.

2. Will this system produce colour footage at night, or does it switch to black and white?

   Yes - WizColor cameras produce colour video at night. Unlike standard IR cameras that switch to greyscale in low light, the DH-IPC-HDW2549EMP-S-PRO-ANZ uses a warm supplemental light source to illuminate the scene and maintain colour output around the clock. This means clothing, vehicle, and environmental colour detail is retained in darkness, not converted to IR greyscale.

3. What does SMD 4.0 actually do differently from standard motion detection?

   SMD 4.0 classifies motion targets as either human or vehicle before triggering an alert. Standard pixel-change motion detection triggers on any movement in the frame - a cat, a swaying tree, or passing headlights across a wall. SMD 4.0 filters those out and only notifies on confirmed human or vehicle-shaped targets, which meaningfully reduces false alert volume on sites with background movement.

4. Can I add more cameras to this system later?

   Yes. The DHI-NVR4216-16P-AI/ANZ has 16 PoE ports and 16 recording channels. This kit ships with 8 cameras connected, leaving 8 PoE ports and 8 channels unused. Up to 8 additional compatible IP cameras can be added directly to the NVR without purchasing any additional switching or recording hardware, as long as each camera run stays within 100 metres of Cat5e or Cat6 cable.

5. Does this kit work with the Dahua DMSS app for remote viewing?

   Yes. The DHI-NVR4216-16P-AI/ANZ supports remote access via the Dahua DMSS mobile application on iOS and Android. Live view, playback, and push notifications can be configured through DMSS once the NVR is connected to the local network and internet access is set up. Network configuration - including port forwarding or P2P setup - will be required during installation.

6. Are the cameras in this kit rated for outdoor use in Australian weather?

   Yes. The DH-IPC-HDW2549EMP-S-PRO-ANZ carries an IP67 weather rating, which means it is dust-tight and protected against sustained water immersion. It is suitable for outdoor mounting under eaves, on soffits, or on external walls exposed to rain. The ANZ suffix indicates the product is configured for the Australian and New Zealand market. Contact Security Australia if you are specifying for a coastal or high-humidity environment where additional housing protection may be worth considering.

7. Does the 16-channel NVR in this kit support AI search functions across all 8 cameras?

   Yes. The DHI-NVR4216-16P-AI/ANZ has onboard AI processing that supports SMD-based smart search across all connected channels. This allows the operator to filter recorded footage by event type - people or vehicle detections - across any or all of the 8 cameras simultaneously, rather than reviewing continuous footage channel by channel. This function is particularly useful for incident investigation where the time of an event is approximate.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for all camera runs.
• Max Cable Run: 100 metres per camera from NVR PoE port to camera. Runs exceeding this distance require a PoE extender or a local PoE switch fed via fibre or a longer structured cable to a secondary switch.
• PoE Notes: All 8 cameras draw IEEE 802.3af PoE from the NVR's built-in PoE ports - no external power supplies or injectors are needed at camera positions. The NVR's PoE budget should be confirmed against total connected camera load when expanding beyond the initial 8-camera configuration.
• Wiring Tips: Run cables to all 16 planned camera positions during the initial fit-out, even for positions not being used immediately. Terminating spare runs at the NVR location costs far less during construction than re-opening walls or ceilings for future camera additions.
