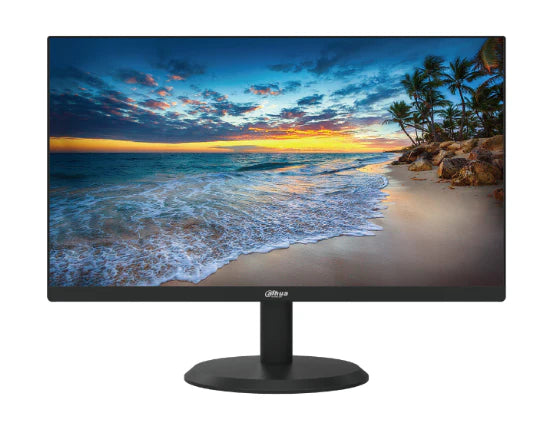

Dahua DHL22-L200 21.5″ Full HD Security Monitor with inbuilt speakers
- Sku: DHL22-L200
- Vendor: SecurityAustralia
Why This Model
- Built-in speakers: Integrated audio output means no separate speaker hardware is required, reducing desk clutter and simplifying wiring at the monitoring station.
- Full HD 1080p panel: A 1920x1080 resolution display ensures camera footage is rendered with enough clarity to identify faces, plates, and scene detail without upscaling artefacts.
- Security-optimised design: Engineered specifically for continuous 24/7 CCTV monitoring rather than general office use, making it a more reliable long-term choice than a consumer-grade screen.
Free shipping - Enjoy free shipping when your order exceeds $100!
All orders are despatched within the next business day!
Best local support in Aus! We back all products with a 3 year manufacturer warranty.
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Product Overview
Model: DHL22-L200
Who This Is For
For installers and integrators who need a dedicated security display that works out of the box with Dahua NVRs and DVRs - without sourcing a separate consumer monitor and hoping for compatibility. The DHL22-L200 is a 21.5-inch Full HD security monitor built specifically for surveillance control points: guard booths, reception desks, small control rooms, and back-of-house monitoring stations in retail, commercial, and light industrial sites. The inbuilt speakers mean audio playback from cameras with audio output is supported without adding a separate speaker unit to the install. At 21.5 inches and Full HD resolution, the screen is sized for close-range operator use - clear enough for reviewing footage at a desk without the footprint of a larger panel. It is a practical choice when the monitoring station needs a clean, purpose-built display rather than a repurposed office screen.
What This Monitor Actually Does
Full HD Display at 21.5 Inches
The 1920x1080 Full HD panel renders multi-camera grid views at a resolution where individual feeds are readable at normal desk distance. At 21.5 inches, the screen footprint suits monitoring desks without dominating the workspace or requiring a wall bracket at typical operator stations.
Inbuilt Speakers
The integrated speakers mean audio from NVRs or DVRs with audio output plays directly through the monitor. No separate desktop speaker unit is needed, which simplifies cable management at the monitoring station and reduces the number of components to power and position.
Purpose-Built for Surveillance Systems
Designed as a security display rather than a repurposed consumer or office screen, the DHL22-L200 is matched to Dahua recorder outputs. This avoids the compatibility guesswork that comes with pairing a generic monitor to a security recorder, particularly for HDMI or VGA signal handshakes.
Compact Footprint for Desk Monitoring
The 21.5-inch size sits in a practical middle ground - large enough for an operator to monitor multiple camera feeds simultaneously, but compact enough for reception counters, guard desks, and back-office monitoring points where available bench space is limited.
Who Buys This Model
- Security Installers Completing Dahua NVR/DVR Installations: Specifying a matched Dahua display alongside a recorder to deliver a tested, compatible package to the end client without sourcing a third-party monitor.
- Retail and Small Commercial Site Managers: Setting up a back-of-house monitoring point at a reception desk or manager's office where a compact dedicated security screen is preferred over repurposing a PC monitor.
- Guard Booth and Reception Desk Installs: Sites that need a self-contained display with audio output from the recorder audible at the monitoring station, handled by the inbuilt speakers without extra hardware.
- Small Control Room Builds: Integrators building out a modest control room or monitoring desk where several 21.5-inch displays are used in a multi-screen array to cover multiple recorder outputs in a space-efficient layout.
Honest Assessment
The DHL22-L200 does its primary job well: it provides a Full HD security display with inbuilt speakers that integrates cleanly into a Dahua recorder setup. The 21.5-inch size and 1920x1080 resolution are well suited to desk-level monitoring positions where an operator reviews live or recorded footage at close range. The inbuilt speakers remove one component from the install and keep the desk setup tidy. Where this monitor will not serve as well is in larger control rooms that need 27-inch or larger panels for viewing from across a room, or in multi-monitor video wall configurations that typically demand commercial-grade large-format displays with tiling capabilities. It is also not a touchscreen, so any NVR interaction requires a mouse and keyboard. Available through Security Australia, the DHL22-L200 is a straightforward desk monitor solution for standard Dahua system installs rather than a high-end control room display.
Before You Buy
Installer Note: Confirm the video output type on your Dahua NVR or DVR before ordering - check whether your recorder outputs HDMI, VGA, or both, and match the cable to the DHL22-L200's available inputs. For audio playback through the inbuilt speakers, the recorder must have an audio output connected to the monitor's audio input; audio does not pass through HDMI from all recorder models automatically.
Mounting Note: At 21.5 inches the DHL22-L200 is desk-stand or VESA-mount capable on most configurations of this size - verify the VESA pattern against your bracket if wall or arm mounting is planned for the monitoring station rather than desk placement.
Quick Fit Check
- Good match if: You need a dedicated desktop monitor for an NVR, DVR, or video management workstation and want integrated audio without adding external speakers.
- Good match if: You are setting up a compact monitoring station where a 21.5-inch form factor suits the available desk or rack shelf space.
- You may need a different model if: Your installation requires a larger format display for wall-mounted or multi-operator viewing - a 32-inch or larger commercial security monitor would be more suitable.
Key Features & Technical Specifications
Real-World Scenarios
How It Compares
- Choose this if: You are completing a Dahua NVR or DVR installation and need a dedicated Full HD security monitor with inbuilt speakers at a desk monitoring station without sourcing and testing a third-party display for compatibility.
- You may need a different model if: Your control room requires screens larger than 21.5 inches for viewing from across a room, or you need a commercial-grade video wall panel with multi-display tiling - a larger security monitor in the 27-inch or 32-inch range would be more appropriate for those applications.
- Pairs well with: A Dahua NVR or DVR recorder as the video source, and a Dahua PoE switch or camera system feeding that recorder - keeping the entire chain within a single ecosystem.
Common Questions
-
Will this monitor work with a non-Dahua recorder?
Yes, in most cases. The DHL22-L200 is a standard Full HD monitor and will accept signal from any recorder that outputs a compatible video signal (HDMI or VGA as applicable). It is designed and tested for use with Dahua recorders, which removes compatibility uncertainty in a Dahua system, but the display itself is not locked to Dahua hardware. -
Do the inbuilt speakers require a separate audio cable from the recorder?
Yes. Audio does not pass automatically through all HDMI connections from security recorders. To use the inbuilt speakers, confirm that your Dahua NVR or DVR has an audio output (typically a 3.5mm or RCA jack) and connect it to the monitor's audio input with the appropriate cable. Check your recorder's rear panel before installation. -
Is 21.5 inches large enough to monitor multiple camera feeds simultaneously?
Yes, for desk-level use. At 1920x1080 Full HD, the DHL22-L200 can display a 4, 8, or 16-channel grid layout from the recorder with individual feeds that are readable at normal operator distance. For viewing from more than 2-3 metres away, or for high-channel-count systems where individual feed detail is critical, a larger display in the 27-32 inch range would be more suitable. -
Does this monitor have a VESA mount pattern for wall or arm mounting?
This should be confirmed against the full product datasheet, as VESA compatibility details are not specified in the available product data. Most 21.5-inch monitors in this class support a standard 100x100mm VESA pattern, but verify the specification before purchasing a mounting arm or wall bracket for this display. -
Is this monitor suitable for 24/7 continuous operation in a security monitoring role?
It is purpose-built as a security monitor, which means it is intended for continuous display use in surveillance applications - unlike consumer desktop monitors that are rated for intermittent office use. For confirmed duty-cycle ratings and operational temperature range, refer to the Dahua product datasheet for the DHL22-L200, available through Security Australia or the Dahua product library. -
Can I use this monitor as a second screen on a PC as well as a security display?
Technically yes, if your PC has a compatible video output. However, this monitor is optimised and specified as a dedicated security display for use with a recorder. Using it as a dual-purpose PC screen means the recorder has no dedicated monitoring point during PC use - most installations treat these as separate, dedicated devices rather than shared screens.
Downloads & Resources
No downloads available for this product.
