Bosch Blue Line PIR Detector 12m BPR2-W12

$36.40 AUD
Tax included.
Shipping calculated at checkout.
In stock!
Spend $100.00 to FREE SHIPPING

Free shipping - Enjoy free shipping when your order exceeds $100!

All orders are despatched within the next business day!

Best local support in Aus! We back all products with a 3 year manufacturer warranty.

  • Wall-to-Wall Coverage: Provides superior motion detection performance within a 12 m × 12 m coverage area.
  • Dynamic Temperature Compensation: Ensures accurate motion detection in varying environmental conditions.
  • Flexible Mounting Height: No manual adjustments required, reducing installation time and minimizing false alarms.

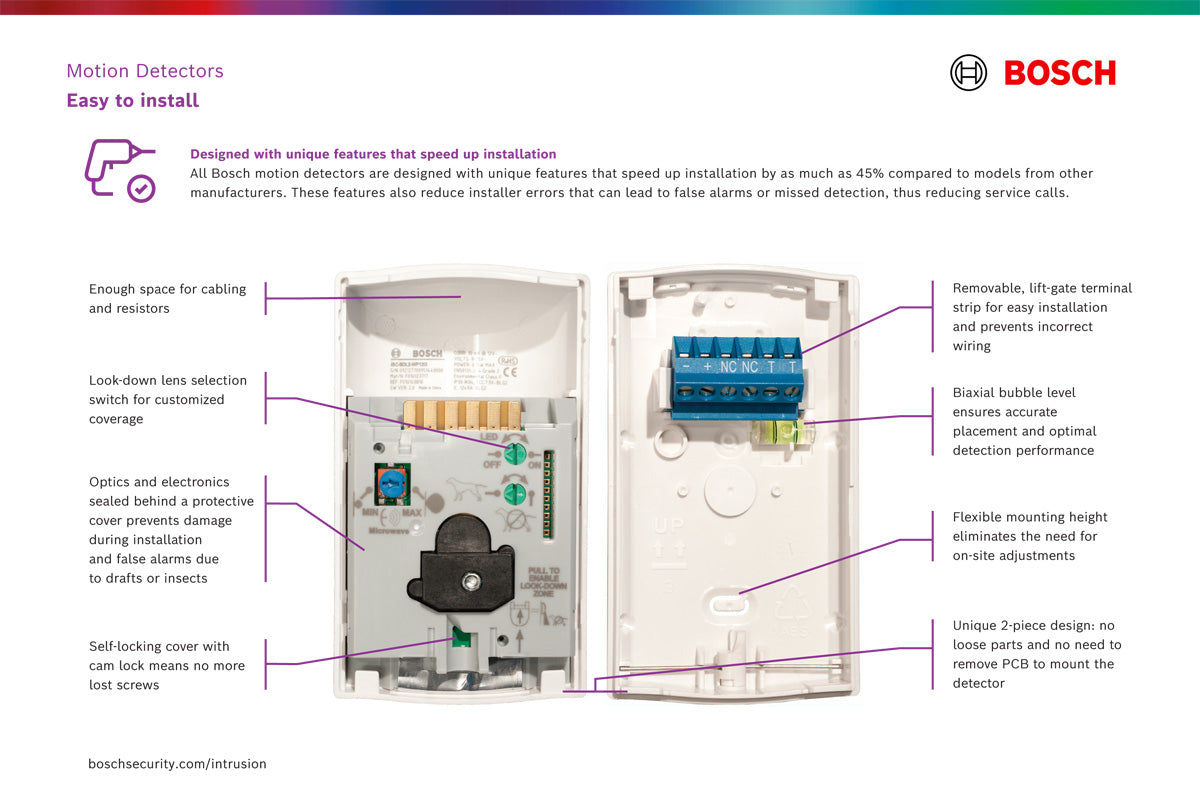

  • Self-Locking Enclosure: Integrated bubble level for faster and more precise installation.

Specifications

Technical specificationsElectricalCurrent (standby/alarm): 10 mA at 12 VDCVoltage (operating): 9 VDC to 15 VDCEnvironmentalEnvironment Complies with EN50130-5 Class IIRelative Humidity: 0 to 95%, non-condensingFor UL Listed product installations, 0 to 85%, non-condensingTemperature (operating): -30°C to +55°C (-20°F to +130°F)For UL Listed product installations, 0°C to +49°C (+32°F to +120°F)MechanicalColor: whiteDimensions: 105 mm x 61 mm x 44 mm(4.2 in. x 2.4 in. x 1.7 in.)Material: High-impact ABS plasticRadio FrequencyInterference (RFI) ImmunityNo alarm or setup on critical frequencies in the range from 150 kHz to 2 GHz at field strengths less than 30 V/m.OutputsRelay: Solid state, supervised, Form A normally-closed (NC) contacts rated for ≤100 mA, 25 VDC, 2.5 W, <20 Ω closedTamper: Normally-closed (NC) contacts (with cover on) rated for ≤100 mA, 25 VDC, 2.5 WConnect tamper circuit to 24-hour protection circuit

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Bosch Blue Line PIR Detector 12m BPR2-W12

$36.40 AUD

Bosch Blue Line Gen2 PIR Motion Detector – High-Precision Intrusion Detection

The **Bosch Blue Line Gen2 PIR Motion Detector** is designed to provide **sharp, accurate motion detection** with minimal false alarms. Featuring **dual Fresnel lenses** and an advanced **77-zone, 7-layer detection pattern**, this detector ensures **comprehensive coverage** and **superior response to intrusions**. Its **easy installation and flexible mounting options** make it an ideal choice for **both residential and commercial security applications**.

Key Features:

  • Advanced Dual Fresnel Lens System: Produces **sharply focused images** throughout the field of view.
  • High-Density Detection Pattern: **77-zone, 7-layer coverage** ensures **enhanced motion detection**.
  • Selectable Lookdown Zones: Provides **3 additional detection zones** for better close-range security.
  • Reliable False Alarm Immunity: **Advanced signal processing** helps distinguish real threats from environmental factors.
  • Easy Installation: **No field adjustments required**, simplifying setup for quick deployment.
  • Flexible Mounting Options: Can be installed on **walls, corners, or ceilings** for optimal positioning.

What’s Included:

  • 1 x **Bosch Blue Line Gen2 PIR Motion Detector**
  • 1 x **Hardware Pack**, including:
    • 2 x Anchors (#6, #8 x 7/8)
    • 2 x Screws (#6 x 1.25)
    • 1 x Cable Tie (2.5 mm)
  • 1 x **Installation Guide**

Mounting Recommendations:

  • Recommended Height: **2.2m to 2.75m (7.5ft to 9ft)** – No adjustments required.
  • Wall Mounting: Surface-mounted or semi-flush for **discreet placement**.
  • Corner Mounting: Ideal for **junctures of two perpendicular walls**.
  • Ceiling Mounting: Use the **B338 Universal Ceiling-Mount Bracket (optional)**.
  • Additional Mounting Accessories: Compatible with:
    • **B335-3 Swiveling Low-Profile Mount**
    • **B328 Gimbal-Mount Bracket**

Specifications Summary:

Feature Details
Detection Technology PIR – Dual Fresnel Lens System
Detection Pattern **77-zone, 7-layer coverage**
Lookdown Zones 3 additional detection zones (optional setting)
Recommended Mounting Height 2.2m to 2.75m (7.5ft to 9ft)
Installation Locations Flat wall, corner, or ceiling-mounted
False Alarm Prevention Advanced signal processing for reliable detection

Additional Notes:

  • Designed for Superior Coverage: Ensures **highly accurate motion detection across wide areas**.
  • Professional Installation Recommended: While easy to install, **expert placement ensures optimal performance**.

The **Bosch Blue Line Gen2 PIR Motion Detector** is an excellent choice for **enhanced security detection**, providing **reliable, precise, and hassle-free protection**. Whether for **residential, commercial, or industrial security**, this sensor delivers **cutting-edge intrusion detection**.
