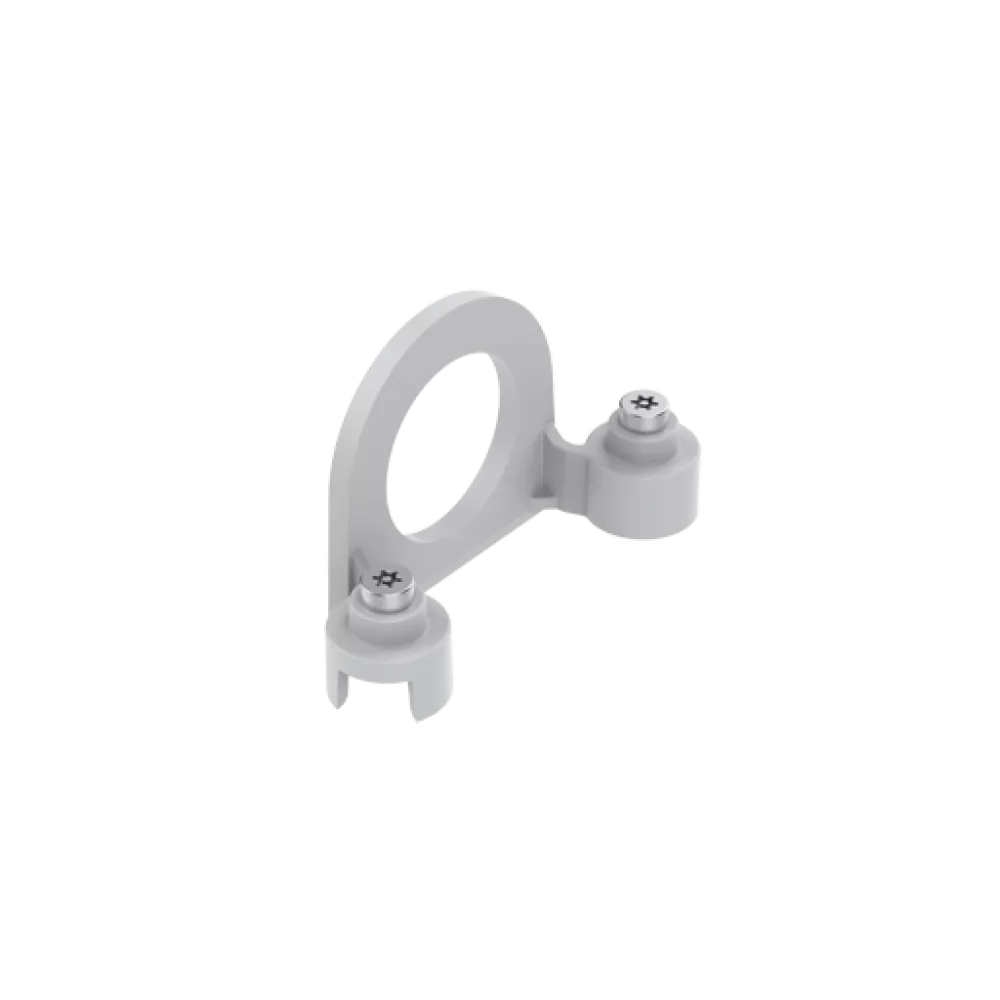

AXIS TP3601 3/4" Conduit Adapter 4-Point Mount for Secure Camera Installation

Model: AXIS TP3601

Who This Is For

For installers who need a secure, conduit-fed mounting solution for AXIS cameras in environments where cable protection and a rigid 4-point fixing are non-negotiable. The AXIS TP3601 3/4" Conduit Adapter 4-Point Mount is built for sites where exposed cabling is not acceptable - think industrial plant rooms, correctional facilities, external structural columns, or any installation where the camera mount must resist physical interference. The 3/4" conduit thread accepts standard electrical conduit, keeping all cable runs fully enclosed from the wall through to the camera head. The 4-point fixing pattern spreads load across the mounting surface and resists lateral torque, making it a practical choice when a standard 2-point pendant or wall plate simply will not hold position under vibration or deliberate contact. If the integrity of both the cable run and the camera position matters to your client, this adapter is the specification-level answer.

What This Accessory Actually Does

Who Buys This Model

• Industrial site installers: Facilities with compulsory conduit requirements - manufacturing plants, utilities, and processing sites where all cabling must run in conduit per site safety rules.
• Correctional and secure facility contractors: Installations where exposed cable tails at the camera mount represent a security or safety risk and where 4-point fixing meets structural fixing specifications.
• Structural and external column mounting: Installers fixing cameras to steel columns, concrete pillars, or external building fabric where a 4-point spread load is required and a standard bracket is not appropriate.
• AXIS-specified projects: Integrators working to a camera schedule that specifies AXIS hardware throughout and need manufacturer-matched accessories to maintain warranty and system integrity.

Honest Assessment

The AXIS TP3601 solves a specific installation problem well: it gets conduit directly into the camera mount in a 4-point fixing configuration that suits hard surfaces and demanding environments. If your site requires fully enclosed cable runs from the wall to the camera, this is the correct component - it is not a workaround or a field modification. The 4-point pattern genuinely improves stability on rigid substrates like concrete and structural steel compared to typical 2-point wall plates. What it will not do is serve as a universal mounting solution. If conduit is not part of your installation design, a standard AXIS wall bracket or pendant mount will be simpler to install and lower cost. It is also specific to compatible AXIS camera models - it is not a generic adapter that works across brands. Verify camera model compatibility before ordering. Available through Security Australia, the TP3601 is worth specifying on the drawing rather than sourcing on-site when a project calls for conduit-fed camera positions.

Before You Buy

Quick Fit Check

• Good match if: Your installation requires cable runs in 3/4" conduit through to the camera mount point - industrial sites, correctional facilities, and external structural positions where exposed cabling is not permitted.
• Good match if: You need a 4-point fixing footprint to distribute load on concrete, masonry, or structural steel where a standard 2-point bracket does not provide sufficient stability or meet site fixing specifications.
• You may need a different model if: Conduit is not part of your cable design - a standard AXIS wall bracket, junction box mount, or pendant adapter will be a simpler and more cost-effective fit for conventional surface-mount or ceiling-drop installations.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your installation requires 3/4" conduit fed directly to the camera mount and a 4-point fixing pattern to satisfy site cabling rules or structural fixing specifications.
• You may need a different model if: Conduit is not part of your installation - standard AXIS wall brackets, junction box adapters, or pendant mounts will suit conventional surface-cable or ceiling-drop installations more directly and at lower cost.
• Pairs well with: Compatible AXIS dome or bullet camera housings on industrial or secure facility installations where the full camera and mounting solution is AXIS-specified throughout.

Common Questions

1. Will the TP3601 work with any AXIS camera, or is it specific to certain models?

   It is specific to compatible AXIS camera housings - it does not work across the entire AXIS range. AXIS produces mounting accessories for particular housing families, and the TP3601 is designed to interface with specific camera models. Always cross-reference the TP3601 against your camera's accessory list on the AXIS product page before ordering to confirm it is a listed compatible mount for that housing.

2. Does the 3/4" conduit size match standard Australian electrical conduit?

   Not directly - care is needed here. Australian electrical conduit is typically specified in metric sizes (20mm, 25mm), while 3/4" is an imperial measurement used in North American conduit standards. 3/4" conduit has an outside diameter of approximately 26.7mm, which is dimensionally close to 25mm metric but is not the same thread or fit. Confirm your site's conduit specification before ordering to avoid a mismatch at the mount entry point.

3. Does this adapter replace the need for a separate junction box at the camera position?

   Yes, in most conduit-fed installations. The TP3601 routes cabling directly from the conduit run into the camera housing, removing the need for a separate surface-mounted junction box at the camera position. This results in a cleaner installation profile and eliminates an additional enclosure that could be a point of ingress or interference. Confirm with your specific camera model that no separate back box is required for that housing.

4. Is the 4-point fixing pattern stronger than a standard 2-point wall bracket for heavy cameras?

   Yes, for load distribution purposes. A 4-point fixing spreads the camera's weight and any lateral force across 4 anchor points rather than 2, reducing the stress concentration at each fastener. This is particularly relevant on harder substrates like concrete and masonry where the pull-out rating of each anchor matters. It also reduces the tendency for the mount to rotate under vibration, which can shift camera aim over time on sites with ongoing mechanical activity nearby.

5. Will this work for an outdoor installation, or is it indoor only?

   The TP3601 is a mount adapter, not a camera housing, so its outdoor suitability depends on the camera housing it supports rather than the adapter itself. In a conduit-fed installation, the cable entry is through the conduit stub, which means there is no open cable hole to seal independently at the mount. Verify the weather sealing rating of the camera housing you are pairing with this adapter for outdoor positions, and ensure conduit entry and any exposed fixings are treated appropriately for the environment.

6. Where can I confirm which AXIS cameras this is compatible with before I order?

   The AXIS Communications product page for the TP3601 lists compatible camera models in the accessories or specifications section - this is the most accurate reference. The team at Security Australia can also assist with confirming compatibility if you have a specific camera model and project requirement in mind before placing an order.
