- Sku: AXIS T91G61
- Vendor: SecurityAustralia

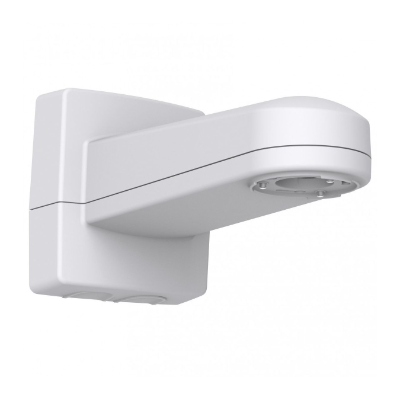

AXIS T91G61 Wall Mount to suit Q3709, P55, P56, Q60 & Q61 Series cameras, IP66
The AXIS T91G61 delivers a robust, IP66-rated wall mounting solution for installers working with AXIS PTZ and multi-sensor cameras including the Q3709, P55, P56, Q60 and Q61 series. Built from powder-coated aluminium with a 30 kg load rating and IK10 impact resistance, it handles demanding indoor and outdoor environments. A pre-mounted IP66 Ethernet cable with RJ45 connector simplifies installation and keeps cabling sealed from the elements.
Why This Model
- Retrofit-friendly hole pattern: Matches standard Axis PTZ and Pelco PTZ mount patterns, so existing wall penetrations can be reused without additional drilling - a real time-saver on replacement jobs.
- Pre-mounted sealed Ethernet cable: The included IP66 RJ45 connector maintains weatherproofing at the cable entry point, eliminating the need for separate sealing solutions on outdoor installs.
- Pole and corner adaptable: Compatible with optional AXIS T91A57 Pole Mount and T91A64 Corner Mount accessories, giving installers flexibility when a flat wall surface isn't available.
| General Supported Products | AXIS Q3709-PVE AXIS Q6000-E Series AXIS P56 Series AXIS Q60 Series AXIS Q61 Series |
| Casing | Powder coated aluminum casing Color: white NCS S 1002-B |
| Dimensions | 185 x 214 x 404 mm (7.28 x 8.43 x 15.9 in) |
| Weight | 3.5 kg (7.7 lb) |
| Maximum Load | 30 kg (66 lb) |
| Cable Routing | Back: cable hole Bottom: 3/4" Conduit entrance x2 |
| Environment | Indoor, Outdoor |
| Approvals | Safety: IEC/EN/UL 60950-1, IEC/EN/UL 60950-22 Environment: IEC/EN 60529 IP66, IEC 62262 IK10, IEC 60068-2-6 (Sinus), IEC 60068-2-27 (Shock), NEMA 250 Type 4X, UL 50E, MIL-STD 810G 509.5, RoHS |
| Included Accessories | Installation guide Ethernet cable with IP66 RJ45 connector (with gasket) Foam gaskets and silicone strap (pre-mounted) Connector plug angle C13 |
| Optional Accessories | AXIS T81B22 DC 30 W Midspan 1-port AXIS T8133 30 W Midspan AXIS T8134 60 W Midspan AXIS T8154 60 W SFP Midspan AXIS T8642 PoE+ over Coax Device AXIS T91A57 Pole Mount AXIS T91A64 Corner Mount AXIS ACI Conduit Adapters Network cable coupler indoor slim |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Have a question?
AXIS T91G61 Wall Mount to suit Q3709, P55, P56, Q60 & Q61 Series cameras, IP66
Model: AXIS T91G61
Who This Is For
Property managers specifying PTZ or multi-sensor camera deployments who need a wall mount that goes beyond a simple bracket. The AXIS T91G61 Wall Mount is engineered for heavy-duty installations where cameras like the AXIS Q3709-PVE, Q60 Series, Q61 Series, P56 Series, and Q6000-E Series need to be positioned on exterior walls - and where cable management, weather sealing, and structural integrity are non-negotiable. With a 30 kg maximum load capacity, IP66 weather protection, and IK10 impact resistance, this mount handles both the physical demands of large PTZ heads and the environmental exposure of outdoor sites. The pre-mounted Ethernet cable with IP66 RJ45 connector simplifies the final camera connection, while dual conduit entries at the base keep cabling clean and concealed. Suitable for walls, and extendable to poles and corners with optional accessories.
What This Mount Actually Does
30 kg Rated Load Capacity
The T91G61 supports up to 30 kg, which accommodates the full weight of large PTZ camera heads and multi-sensor units without flex or fatigue. This matters on long-term outdoor installations where structural stability directly affects camera alignment and image accuracy.
IP66 Weather Sealing with Pre-Mounted Ethernet
The included Ethernet cable features an IP66-rated RJ45 connector with gasket seal, so the network connection point stays protected against driven rain and dust ingress. This eliminates the need for a separate weatherproof connector at the camera head junction.
IK10 Impact Resistance
Rated IK10, the mount's powder-coated aluminium casing resists significant mechanical impact. On publicly accessible walls - loading docks, building perimeters, car parks - this rating means the bracket itself is not a vandalism vulnerability even when the camera is targeted.
Internal Accessory Cavity
The mount body is sized to house accessories such as midspans and PoE injectors inside the casing itself. This keeps ancillary hardware off the wall face, protected from weather, and out of sight - reducing the total number of separate enclosures needed at each camera position.
Dual Conduit Entry and Rear Cable Exit
Two 3/4-inch conduit entries at the base plus a rear cable hole give installers flexible cable routing options. Whether you are running conduit up a wall or entering cable through the structure, the mount accommodates both paths without field modifications.
Retrofit-Ready Hole Pattern
The T91G61 matches the bolt pattern of standard Axis PTZ wall mounts and Pelco PTZ mounts, so existing wall penetrations and fixing points can be reused without additional drilling. This significantly reduces retrofit time on sites upgrading from older Axis or Pelco PTZ installations.
Who Buys This Model
- Security Integrators Deploying Axis PTZ Systems: Installers specifying AXIS Q61, Q60, or P56 Series cameras on exterior walls who need a mount rated to match the camera's own environmental certifications and load requirements.
- Retrofit Contractors on Pelco-to-Axis Migrations: Sites transitioning from Pelco PTZ cameras can reuse existing wall fixings because the T91G61 matches the Pelco bolt pattern - reducing labour time and avoiding unnecessary wall patching.
- Facility Managers at Industrial and Commercial Sites: Operations with PTZ cameras on loading docks, perimeter walls, or car park structures where IK10 impact resistance and IP66 weather sealing are minimum requirements rather than optional extras.
- Installers Using Axis Midspan or PoE+ Injectors: Where the camera position is remote from a switch and a local PoE midspan is required, the internal cavity allows the midspan to be housed inside the mount rather than in a separate outdoor enclosure.
Honest Assessment
The AXIS T91G61 is a well-engineered mount for a specific set of large Axis camera platforms. The IP66 and IK10 ratings are genuine, the 30 kg load capacity gives real structural headroom, and the retrofit-compatible hole pattern is a practical advantage on sites with existing Pelco or Axis PTZ infrastructure. The internal cavity for accessory storage is genuinely useful - housing a midspan inside the mount rather than adding a separate weatherproof enclosure saves both cost and wall space. The pre-mounted IP66 Ethernet cable simplifies commissioning at height. What the T91G61 will not do is accommodate cameras outside its supported list - it is purpose-designed for specific Axis PTZ and multi-sensor models, not a universal bracket. It is also a wall-mount solution only by default; pole or corner installation requires purchasing additional Axis accessories separately. Available through Security Australia, the T91G61 is the correct choice when the camera model matches and the installation demands certified outdoor performance.
Before You Buy
Compatibility Check: The T91G61 is designed specifically for the AXIS Q3709-PVE, Q6000-E Series, P56 Series, Q60 Series, and Q61 Series. Confirm your camera model is on this list before ordering - this mount is not a universal PTZ bracket. If you intend to install on a pole or corner rather than a flat wall, add the AXIS T91A57 Pole Mount or AXIS T91A64 Corner Mount to your order, as neither is included in the box.
Conduit Planning: The base of the T91G61 has two 3/4-inch conduit entries. If your site uses a metric conduit standard or a different conduit diameter, source the appropriate AXIS ACI Conduit Adapters before installation day. The rear cable hole is an alternative entry point if conduit is not being used, but plan your cable routing before the mount is fixed to the wall - retrofitting conduit after installation is significantly harder at height.
Quick Fit Check
- Good match if: You are mounting an AXIS Q60, Q61, P56, Q3709-PVE, or Q6000-E Series camera on an exterior wall and need IP66 and IK10 rated infrastructure to match the camera's own environmental ratings.
- Good match if: You are replacing a Pelco or earlier Axis PTZ wall mount and want to reuse existing wall penetrations - the T91G61's matching hole pattern avoids additional drilling and reduces retrofit labour.
- You may need a different model if: Your camera is not in the T91G61's supported list - a different Axis mounting accessory or a third-party heavy-duty PTZ wall mount may be more appropriate for your specific camera model.
Key Features & Technical Specifications
Real-World Scenarios
How It Compares
- Choose this if: Your camera is one of the confirmed supported Axis models and you need IP66, IK10, and a 30 kg load-rated wall mount with internal accessory storage and a retrofit-compatible hole pattern.
- You may need a different model if: Your camera is not in the T91G61's supported list - a different Axis mounting accessory designed for compact or dome-series cameras will be a better mechanical fit for your installation.
- Pairs well with: Axis PoE+ midspan injectors (housed internally), Axis pole mount or corner mount accessories for non-wall surfaces, and Cat6 cable with an IP66-rated field-terminatable RJ45 for longer runs.
Common Questions
-
Will the T91G61 work with my AXIS Q6135-LE or Q6135-LE PTZ camera?
No. The T91G61 is confirmed compatible with the AXIS Q3709-PVE, Q6000-E Series, P56 Series, Q60 Series, and Q61 Series only. The Q6135-LE is part of the Q61 Series family, so confirm your specific model suffix against the Q61 Series listing. If your model sits outside these series, a different Axis mounting accessory matched to your camera model is required. -
Does this mount work for pole installations without buying extra parts?
No. Out of the box, the T91G61 is a wall mount only. Pole installation requires the separately purchased AXIS T91A57 Pole Mount accessory, and corner installation requires the AXIS T91A64 Corner Mount. Neither is included in the standard package. Plan these additions into your order if a flat wall surface is not available at the camera position. -
What does IK10 actually mean for this wall mount in practice?
IK10 is the highest impact protection rating under IEC 62262, meaning the casing is tested to resist 20 joules of impact energy - equivalent to a 5 kg mass dropped from 400 mm. For a wall mount at an accessible location such as a car park, loading dock, or building perimeter, this rating means the powder-coated aluminium housing is engineered to withstand deliberate strikes without structural deformation that could shift camera alignment or expose internal cabling. -
Can I fit an Axis midspan inside the mount body, and which midspans fit?
Yes, the T91G61's internal cavity is designed to accommodate accessories including Axis midspan injectors. Confirmed compatible optional midspans listed for this mount include the AXIS T81B22 DC 30 W Midspan 1-port, AXIS T8133 30 W Midspan, AXIS T8134 60 W Midspan, and AXIS T8154 60 W SFP Midspan. If your camera model requires PoE+ (such as some Q61 Series configurations), confirm the midspan wattage against the camera's power budget before selecting which midspan to house internally. -
Does the T91G61 include the Ethernet cable, or do I need to supply my own?
The Ethernet cable is included. The T91G61 ships with a pre-mounted Ethernet cable fitted with an IP66-rated RJ45 connector and gasket seal at the camera connection end. This is a fixed-length cable within the mount - your field cable connects from the switch or midspan at the other end. The connector plug angle C13 is also included in the box, as are foam gaskets and a silicone strap. -
Is the T91G61 rated for coastal or salt-atmosphere environments?
Yes. Beyond the IP66 rating, the T91G61 holds MIL-STD 810G Method 509.5 certification, which specifically tests for salt fog and corrosive atmosphere performance. It also carries NEMA 250 Type 4X certification, which covers corrosion resistance in addition to water ingress protection. These certifications make the T91G61 appropriate for coastal and marine-adjacent installations where standard IP66 mounts may corrode over time. Stocked by Security Australia, this mount is one of the few wall brackets in the Axis accessory range carrying both ratings. -
Will the T91G61 directly replace a Pelco PTZ wall mount without additional drilling?
Yes, in most cases. The T91G61's bolt pattern is confirmed to match standard Pelco PTZ camera wall mount patterns, which means existing wall anchor points and cable penetrations can be reused. This makes it a direct retrofit option for sites upgrading from Pelco PTZ hardware to supported Axis PTZ or multi-sensor cameras. Always verify the specific Pelco mount pattern on your site against Axis documentation before committing, as some older or non-standard Pelco mounts may differ.
