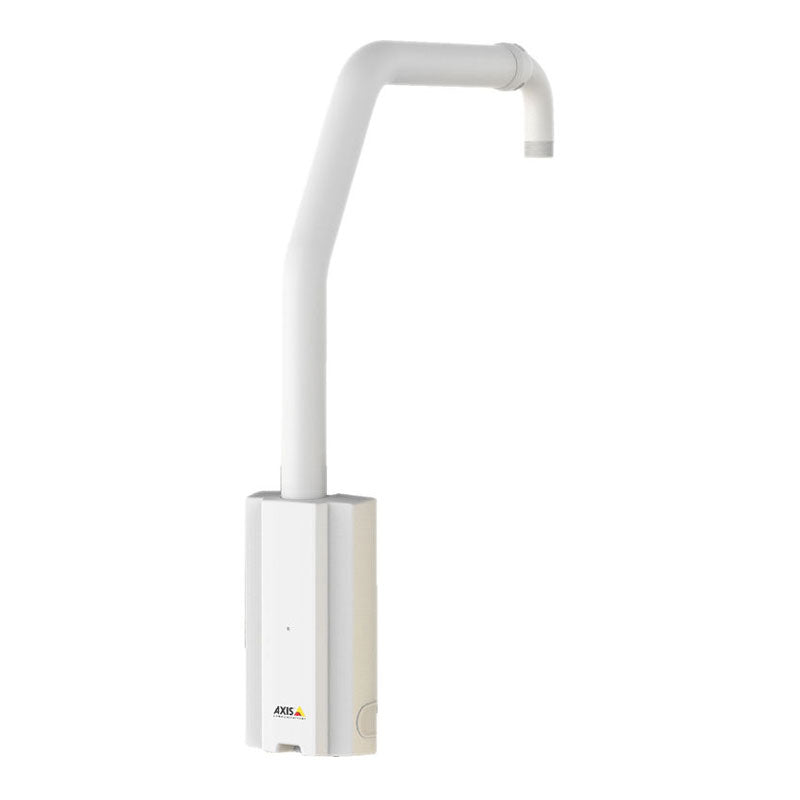

AXIS T91D62 Telescopic Parapet Mount to suit Outdoor Fixed & PTZ Domes, 1.5 NPT
When rooftop or parapet camera installation is the requirement, the AXIS T91D62 Telescopic Parapet Mount provides a robust, adjustable solution for outdoor fixed and PTZ dome cameras using a 1.5" NPS thread. The telescopic arm extends to clear parapets and facade obstructions, while 180-degree swivel on its own axis allows safe camera mounting and maintenance from the rooftop without leaning over the edge. Note: compatible pendant kits are required separately depending on the camera series used.
Why This Model
- Telescopic adjustable arm: Extends from 783mm to 1033mm, allowing the mount to accommodate varying parapet thicknesses and facade obstructions without custom fabrication.
- 180-degree swivel axis: The mount rotates fully on its own axis so cameras can be positioned and serviced safely from the rooftop, reducing the need for elevated access equipment during maintenance.
- NEMA 4X and IK10-rated aluminium housing: Provides corrosion protection and impact resistance rated to 10kg load capacity, making it suitable for long-term outdoor exposure in demanding environments.
| General | |
|---|---|
| Casing | NEMA 4X- and IK10-rated impact resistant aluminum mount |
| Color | White NCS S 1002-B |
| Cable routing | Back: Cable hole Side: Cable conduit holes M25 3/4" |
| Maximum load | 10 kg (22 lb) |
| Mounting option | Parapet and wall |
| Supported products | AXIS M30 Series (requires AXIS T94F01D Pendant Kit) AXIS P32 Series (requires AXIS T94T01D/T94K01D Pendant Kits) AXIS P33 Series (requires AXIS T94T01D/T94K01D Pendant Kits) AXIS Q35-V cameras (requires AXIS T94K01D Pendant Kit) AXIS Q35-VE cameras (requires AXIS T94M01D Pendant Kit) AXIS Q37 Series (requires AXIS AXIS T94A01D Pendant Kit) AXIS Q56 Series (requires AXIS AXIS T94A01D Pendant Kit) AXIS Q60 Series (requires AXIS AXIS T94A01D Pendant Kit) AXIS Q61 Series (requires AXIS AXIS T94A01D Pendant Kit) |
| Environment | Indoor, Outdoor |
| Approvals | IEC/EN/UL 60950-1 IEC/EN/UL 60950-22 IEC 62262 IK10 NEMA 250 Type 4X* EN 50581 *Corrosion protection |
| Dimensions | Collapsed arm: 1007 x 783 mm (39.6 x 30.1 in) Expanded arm: 1007 x 1033 mm (39.6 x 40.7 in) |
| Weight | 5.9 kg (13 lb) |
| Included accessories | Installation Guide, Pull-string |
| Optional accessories | AXIS T91D62 Adapter Mounting Bracket AXIS ACI Conduit Adapters AXIS T91B52 Extension Pipes 30/100 cm (0.98/3.2 ft) AXIS Bird Control Spike Network Cable Coupler IP66 |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Have a question?
AXIS T91D62 Telescopic Parapet Mount to suit Outdoor Fixed & PTZ Domes, 1.5 NPT
Model: AXIS T91D62
Who This Is For
When mounting cameras over parapets without losing sightlines or compromising safe rooftop access is the priority, the AXIS T91D62 Telescopic Parapet Mount is the bracket to specify. Built for installers placing outdoor fixed dome or PTZ dome cameras on parapet walls and building facades, it solves the practical problem of getting a camera out far enough from the wall to deliver unobstructed downward coverage. The telescopic arm adjusts to suit parapets of varying thickness, and the 180-degree swivel on its own axis means the camera can be positioned and serviced from the rooftop without leaning over the edge. Rated NEMA 4X and IK10, the aluminium construction handles Australian outdoor environments - UV, wind load, and moisture - without degrading. It suits AXIS Q-Series and P-Series dome cameras when paired with the appropriate pendant kit.
What This Mount Actually Does
Telescopic Arm Adjustment
The arm extends from 783 mm collapsed to 1033 mm fully expanded, letting installers compensate for different parapet thicknesses or facade obstructions. You position the camera at the right standoff distance without fabricating custom risers or adapting non-rated hardware on site.
180-Degree Swivel for Safe Rooftop Access
The mount rotates 180 degrees on its own axis, so the camera assembly swings back over the roof during installation and maintenance. Technicians can connect cabling, adjust tilt, and re-aim the camera without reaching unsafely over the parapet edge.
NEMA 4X and IK10 Rated Housing
NEMA 4X covers corrosion protection suitable for outdoor exposure, while IK10 means the aluminium housing resists impact up to 20 joules. For rooftop installations exposed to weather and occasional physical knocks during maintenance, both ratings matter.
Parapet and Wall Dual-Use
The T91D62 is designed for both parapet capping and direct wall mounting, giving installers one bracket that covers two common high-rise and commercial exterior scenarios without stocking separate hardware for each application.
Cable Management Built In
Cable routing is handled via a rear cable hole and side conduit holes sized at M25 (3/4"). Network cabling runs internally through the mount rather than being exposed on the exterior, reducing UV degradation and weathering of cable jackets over time.
Pelco Retrofit Compatibility (Optional)
An optional AXIS T91D62 Adapter Mounting Bracket allows the mount to reuse existing holes drilled for Pelco PTZ dome parapet mounts. On upgrade projects where coring rooftop surfaces is disruptive or costly, this retrofit option avoids unnecessary structural work.
Who Buys This Model
- Security Installers on Commercial Rooftop Projects: Specifying parapet-mounted AXIS Q-Series or P-Series PTZ and dome cameras on multi-storey commercial and industrial buildings where a rated, adjustable bracket is required by site or council.
- Facilities Managers Upgrading Existing Pelco Installations: Sites with legacy Pelco parapet mounts already cored into the rooftop can use the optional adapter bracket with the T91D62 to upgrade to AXIS cameras without reopening the structure.
- Safety-Conscious Project Managers on High-Rise Sites: The 180-degree swivel function directly addresses working-at-heights obligations, enabling camera alignment and cable connection from the rooftop without leaning over the parapet.
- Architects and Consultants Specifying AXIS Systems: Consultants writing specifications for AXIS outdoor dome and PTZ deployments who need a confirmed, manufacturer-matched parapet mounting solution rather than third-party fabricated brackets.
Honest Assessment
The AXIS T91D62 does a specific job well: it places outdoor dome and PTZ dome cameras over parapets with a rated, adjustable, manufacturer-designed bracket. The telescopic arm, NEMA 4X corrosion rating, IK10 impact resistance, and integrated cable management make it a properly engineered solution for a mount that will sit on a rooftop for years. The 180-degree swivel is genuinely useful for technicians working at height - it is not a marketing note, it changes the practicality of the installation. What it will not do is work as a standalone mount. Every supported AXIS camera series requires a specific pendant kit in addition to this bracket - the camera does not attach directly. If your camera model is not on the confirmed compatibility list, check before ordering. It also supports a maximum load of 10 kg, so heavier PTZ housings need to be verified against that limit. This mount is available through Security Australia for projects where the full AXIS accessory stack is being specified.
Before You Buy
Pendant Kit Required: The T91D62 uses a 1.5" NPS thread interface, but your AXIS camera does not mount directly to it. Every supported camera series - M30, P32, P33, Q35, Q37, Q56, Q60, Q61 - requires its own specific AXIS pendant kit as an intermediate adapter. Verify which pendant kit your camera model needs before placing your order, as the pendant kit is a separate purchase not included with this mount.
Conduit Entry Planning: The mount provides side entry conduit holes at M25 (3/4") and a rear cable hole. Plan your conduit run and cable entry point before drilling the parapet - the arm dimension at collapsed position is 1007 x 783 mm, expanding to 1007 x 1033 mm. Confirm clearance from adjacent plant, drainage outlets, and parapet capping profiles before finalising the mounting position.
Quick Fit Check
- Good match if: You are mounting a supported AXIS outdoor fixed dome or PTZ dome camera on a parapet or exterior wall and need an adjustable arm that reaches 783-1033 mm to clear the parapet and deliver unobstructed downward coverage.
- Good match if: Your site has existing Pelco PTZ parapet mount holes and you need to upgrade to an AXIS camera - the optional T91D62 Adapter Mounting Bracket allows the existing core holes to be reused without additional structural work.
- You may need a different model if: Your camera uses a thread or adapter interface other than 1.5" NPS, or if you need a fixed-length wall arm, corner mount, or pole mount solution - a different AXIS T91 or T94 series accessory will be more appropriate for those configurations.
Key Features & Technical Specifications
Real-World Scenarios
How It Compares
- Choose this if: You need an adjustable-reach parapet mount with NEMA 4X and IK10 ratings, a 180-degree swivel for safe rooftop installation and maintenance, and confirmed compatibility with AXIS outdoor fixed dome and PTZ dome camera series.
- You may need a different model if: Your camera is a bullet or box-style unit, or if you need a fixed-length wall arm, pole mount, or corner bracket - a different accessory within the AXIS T91 mounting range will suit those applications more directly.
- Pairs well with: AXIS outdoor PTZ dome or fixed dome cameras from the Q-Series and P-Series, combined with the appropriate AXIS T94-Series pendant kit for your specific camera model.
Common Questions
-
Does a camera mount directly to the T91D62 without any other adapter?
No. Every supported AXIS camera series requires its own specific pendant kit as an intermediate mounting adapter between the camera and the T91D62's 1.5" NPS thread. For example, AXIS Q35-VE cameras need the AXIS T94M01D Pendant Kit, while AXIS Q60, Q61, Q56, and Q37 Series cameras each require the AXIS T94A01D Pendant Kit. The pendant kit is a separate purchase and must be selected based on your exact camera model before ordering. -
Will this mount work for a site upgrading from Pelco PTZ dome parapet mounts?
Yes, with the optional adapter. The AXIS T91D62 Adapter Mounting Bracket is available separately and allows the T91D62 to use the existing holes drilled for Pelco PTZ dome parapet mounts. This avoids re-coring the parapet structure, which is particularly useful where rooftop waterproofing membranes are involved and any new penetration requires additional waterproofing remediation. -
What is the maximum camera weight this mount can support?
10 kg (22 lb). This covers the combined weight of the camera body and pendant kit for supported AXIS dome and PTZ dome models. Before specifying the T91D62 for a heavier PTZ housing, verify the total assembled weight of the camera plus pendant kit against this limit - exceeding the rated load affects both structural integrity and warranty. -
How far does the arm actually extend, and is that enough for a typical parapet?
The arm adjusts between 783 mm and 1033 mm in overall mount depth. The usable standoff distance from the parapet face depends on where the mount is anchored on the parapet capping, but the telescopic range accommodates most standard commercial parapet thicknesses - typically 150-600 mm - while still placing the camera clear of the capping edge for an unobstructed downward viewing angle. -
Is the T91D62 rated for coastal or corrosive environments?
Yes. The mount carries a NEMA 250 Type 4X rating, which specifically addresses corrosion protection in addition to weather resistance. The aluminium construction with this rating is appropriate for sites near coastal areas, industrial zones with airborne contaminants, or any outdoor location where standard powder-coat mild steel mounts would be a long-term maintenance problem. The T91D62 is stocked by Security Australia for projects where the full AXIS accessory specification is required. -
How does the 180-degree swivel actually help during installation?
It rotates the entire camera and arm assembly inboard over the roof surface. This means during initial installation and subsequent maintenance visits, the technician connects the pendant kit, dresses the cable, and adjusts camera tilt while standing on the roof with the assembly in front of them - rather than reaching over or leaning past the parapet edge. On any site with a working-at-heights management plan, this changes the risk profile of the task. -
Can the T91D62 be used on a wall rather than a parapet?
Yes. The mount is rated for both parapet and wall installation. Wall-mounting the T91D62 suits scenarios such as elevated external walls on industrial buildings or plant rooms where a long standoff arm is needed to position the camera clear of facade features like cladding profiles, downpipes, or HVAC equipment that would obstruct a shorter bracket.
