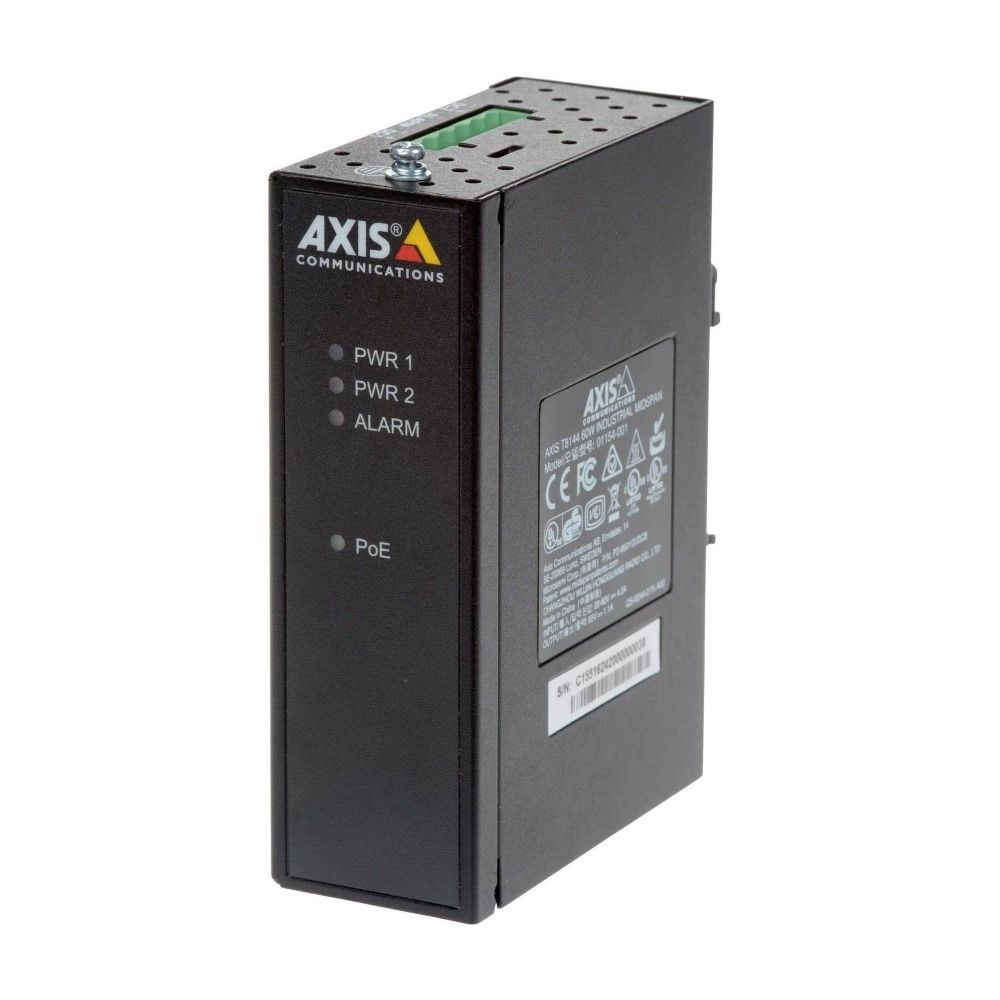

AXIS T8144 Industrial Midspan, 60W, Dual 20-60 V DC
Built as a single-port PoE midspan for demanding industrial installations, the AXIS T8144 delivers up to 60W of High PoE output to power cameras and network devices directly from a dual DC input supply. Its steel casing, -40 °C to 75 °C operating range, and dual 20-60 V DC inputs with redundancy make it suited to harsh environments where standard PoE injectors would fail. Requires an external 20-60 V DC power source - not mains powered.
Why This Model
- Dual DC input redundancy: Two independent 20-60 V DC inputs mean a single power source failure won't drop your connected device - critical in industrial control cabinet installations.
- 60W High PoE output: Powers demanding devices like PTZ cameras and multi-sensor units that exceed the 30W limit of standard PoE, removing the need for a separate power supply run.
- -40 °C to 75 °C rated: Operates reliably across extreme temperature ranges found in outdoor enclosures, cold-storage facilities, and manufacturing environments where consumer-grade hardware would fail.
| Function | Data and power are fed to a network video product through an Ethernet cable. Use together with a PoE splitter for a network video product without built-in PoE support. |
| Data Rate | 10/100/1000 Mbps |
| Installation and Management | Automatically detects PoE and High PoE-enabled devices and supplies inline power. Local LED management display. |
| Power | High Power over Ethernet Input Voltage: 20 to 60 V DC Power: max 72 W Output Voltage: 55 V DC Power: max 60 W |
| Power Consumption | No remote device connected: 2 W 30 W remote device connected: 36 W 60 W remote device connected: 72 W |
| Connectors | Shielded RJ45, EIA 568A and 568B 6-pin DC power and alarm terminal connector |
| Wiring | Data provided over pairs 1/2 and 3/6 for 10/100 Ethernet, over all four pairs for Gigabit Ethernet. Power over pairs 1/2 (-), 3/6 (+), 4/5 (+) and 7/8 (-) |
| General | Casing: Steel Color: black Sustainability: PVC free |
| Display and Indicators | PoE LED Power LEDs: PWR 1 and PWR 2 Alarm LED |
| Mounting | Wall or DIN rail |
| Operating Conditions | -40 °C to 75 °C (-40 °F to 167 °F) Humidity max 95% RH (non-condensing) |
| Storage Conditions | -40 °C to 85 °C (-40 °F to 185 °F) |
| Approvals | Safety: IEC/EN/UL 62368-1, UL 508 EMC: EN 55024, EN 55032 Class A, FCC Part 15 Subpart B Class A, VCCI Class A, RCM AS/NZS CISPR32 Class A, ICES-003 Class A, EAC |
| Environment | IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-32 |
| Dimensions | 78 x 36 x 111 mm (3.1 x 1.4 x 4.4 in) |
| Weight | 315 g (0.7 lb) |
| Included Accessories | Installation Guide DIN Rail Clip Wall Mount |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Have a question?
AXIS T8144 Industrial Midspan, 60W, Dual 20-60 V DC
Model: AXIS T8144
Who This Is For
For installers and systems integrators who need to power high-draw network cameras or PoE devices in locations where standard 802.3af or 802.3at midspans simply fall short. The AXIS T8144 Industrial Midspan is built for cabinet and DIN rail installation in environments that would destroy a commercial-grade unit - think outdoor equipment enclosures, manufacturing floor control panels, cold-storage facilities, and remote infrastructure sites. With a dual DC input across a 20-60 V DC range and a 60 W PoE output, it suits sites already running DC power distribution or those needing power redundancy without a separate UPS. The operating range of -40 °C to 75 °C covers Australian outback heat and cold-chain refrigeration alike. If you are powering a high-PoE AXIS camera or PTZ inside a harsh-environment enclosure and need that power source to be genuinely rated for the conditions, this is the unit the job calls for.
What This Device Actually Does
60 W High-PoE Output
Delivers up to 60 W of PoE power over a single Ethernet cable to connected devices. This covers high-draw PTZ cameras, multi-sensor units, and other powered devices that exceed standard 30 W PoE+ budgets, removing the need for a separate local power supply at the camera.
Dual DC Input for Power Redundancy
Two independent DC inputs accept 20-60 V DC each. If one supply fails, the second maintains power to the connected device without interruption. This matters in critical-site installations where camera downtime is not an acceptable outcome.
-40 °C to 75 °C Operating Range
Rated for extreme temperature operation in either direction. A commercial PoE injector typically fails below 0 °C or above 40-50 °C. The T8144 continues operating through freeze-room environments, outdoor enclosures in summer heat, and unventilated industrial cabinets.
DIN Rail and Wall Mount Ready
Ships with both a DIN rail clip and wall mount bracket. Integrates directly into standard industrial control cabinets alongside PLCs and other rail-mounted equipment, keeping the installation tidy and the unit securely fixed in high-vibration environments.
Gigabit Data Pass-Through
Supports 10/100/1000 Mbps data rates. Video from high-resolution cameras passes through at full gigabit speed without throttling. Power is delivered over all four cable pairs during Gigabit operation, maintaining full PoE output regardless of the data load.
Local LED Status Display
Dedicated LEDs for PoE status, PWR 1, PWR 2, and an alarm indicator allow a technician to diagnose power and connectivity status directly at the unit - no software or network access required. Useful during commissioning or fault-finding in a locked cabinet.
Who Buys This Model
- Industrial CCTV Integrators: Installing high-PoE AXIS PTZ or multi-sensor cameras inside factory, mining, or port environments where the midspan must live inside a rated enclosure and tolerate temperature extremes beyond any commercial unit.
- Critical Infrastructure Teams: Powering surveillance cameras at substations, water treatment facilities, or remote communications sites already running 24 V or 48 V DC distribution, where the dual DC input provides built-in redundancy without additional switching equipment.
- Cold-Chain and Food Processing Facilities: Deploying cameras in refrigerated storage, blast-freeze rooms, or processing areas where ambient temperatures drop well below 0 °C and a standard PoE injector would simply stop functioning.
- Transport and Logistics Operators: Fitting cameras to covered loading docks, rail yards, and freight terminals where the control cabinet is unventilated and summer temperatures inside the enclosure regularly exceed 50 °C.
Honest Assessment
The AXIS T8144 does a specific job well: it delivers 60 W of High PoE to a single device from a DC power source, in conditions that eliminate every other midspan option. The -40 °C to 75 °C operating range, steel casing, DIN rail mounting, and dual DC input redundancy are genuinely useful in industrial deployments - not marketing language applied to a commercial product. The RCM AS/NZS CISPR32 Class A approval confirms it meets Australian electromagnetic compatibility requirements, which matters in EMC-sensitive industrial environments. What it will not do is power multiple cameras - this is a 1-port device, so a multi-camera industrial deployment needs one unit per camera or a purpose-built industrial PoE switch instead. It also requires a DC power source; there is no AC input option. For office, retail, or standard outdoor camera installs, a conventional PoE switch is simpler and more cost-effective. The AXIS T8144 is available through Security Australia and is best specified where the installation environment genuinely demands it.
Before You Buy
Power Source Requirement: The T8144 accepts 20-60 V DC input only - there is no built-in AC-to-DC converter. Confirm your cabinet already has a suitable DC rail or budget for a separate DC power supply. Maximum draw from your DC supply will reach 72 W when powering a 60 W device, so size your supply and fusing accordingly. The 6-pin DC power and alarm terminal connector is included; cable it using the wiring diagram in the installation guide supplied with the unit.
PoE Splitter Compatibility: The T8144 can also power non-PoE network devices when used alongside a compatible PoE splitter. If you are connecting a camera or device without a built-in PoE receiver, pair this midspan with a splitter rated to handle 60 W output to avoid equipment damage or under-powering at the remote device end.
Quick Fit Check
- Good match if: You are powering a single high-PoE camera or device from an existing 24-48 V DC supply inside an industrial cabinet, and the installation environment operates outside the temperature range of commercial PoE equipment.
- Good match if: The site requires power redundancy at the individual camera level and you have 2 independent DC feeds available - the dual DC input allows both to be connected simultaneously with automatic failover.
- You may need a different model if: You are powering more than 1 camera or PoE device from a single location - an industrial-rated multi-port PoE switch will be more practical and cost-effective for that application.
Key Features & Technical Specifications
Real-World Scenarios
How It Compares
- Choose this if: Your site runs DC power distribution, operates outside the temperature range of commercial PoE equipment, and you need per-camera power redundancy from 2 independent DC feeds at the midspan level.
- You may need a different model if: You need to power multiple cameras from a single location - an industrial-grade multi-port PoE switch will handle that more efficiently and at lower cost per port than individual midspans.
- Pairs well with: High-PoE AXIS PTZ or multi-sensor cameras, industrial DIN rail DC power supplies, and compatible PoE splitters for legacy or non-PoE devices.
Common Questions
-
Does this midspan work with AC mains power?
No. The AXIS T8144 accepts DC input only, in the range of 20-60 V DC. There is no built-in AC-to-DC converter. If your site runs 240 V AC, you will need a separate DC power supply rated to deliver at least 72 W at a voltage within that 20-60 V DC input range before connecting to the T8144. -
Will this power a standard 802.3af or 802.3at camera?
Yes. The T8144 automatically detects PoE and High PoE-enabled devices and supplies the appropriate power level. It will power standard 15.4 W (802.3af) and 30 W (802.3at) devices, not just 60 W High PoE devices. The unit simply draws less from your DC supply when powering a lower-wattage device. -
How does the dual DC input redundancy actually work?
Both DC inputs can be connected to independent power sources simultaneously. The unit draws from both as needed. If one DC supply fails or is disconnected, the T8144 continues operating on the remaining supply without any interruption to the connected PoE device. There is no manual switching or configuration required - the redundancy is automatic. -
What does the Alarm LED indicate and how do I use it?
The Alarm LED signals a fault condition at the unit - such as a power input failure or a PoE fault on the connected device. Combined with the PWR 1 and PWR 2 LEDs, a technician can identify which DC feed has failed or whether the PoE output is the source of the problem without needing network access or management software. This is particularly useful when the unit is inside a locked cabinet at a remote site. -
Is the AXIS T8144 approved for use in Australia?
Yes. The T8144 carries RCM approval to AS/NZS CISPR32 Class A, confirming it meets Australian electromagnetic compatibility requirements. Safety certification to IEC/EN/UL 62368-1 and UL 508 (industrial control equipment) is also confirmed. The unit is stocked by Security Australia and ships with an installation guide, DIN rail clip, and wall mount bracket included. -
What cable type and maximum run length should I use with the T8144?
Standard Cat5e or Cat6 shielded Ethernet cable is appropriate, connecting via the shielded RJ45 port. The T8144 itself does not specify a maximum cable run beyond standard Ethernet limits - 100 m per segment for 10/100/1000 Mbps. For High PoE delivery over longer runs, use Cat6 rather than Cat5e to minimise resistive losses in the cable and ensure the full 60 W reaches the remote device. -
Can the T8144 be used to power non-PoE cameras or devices?
Yes, with an additional component. The T8144 supports use with a PoE splitter at the remote device end. The splitter receives the combined data and power over the Ethernet cable and separates them, outputting a DC voltage to a device that has no built-in PoE receiver. Ensure the splitter is rated to handle the wattage your device requires and that output voltage matches the device's input specification.
