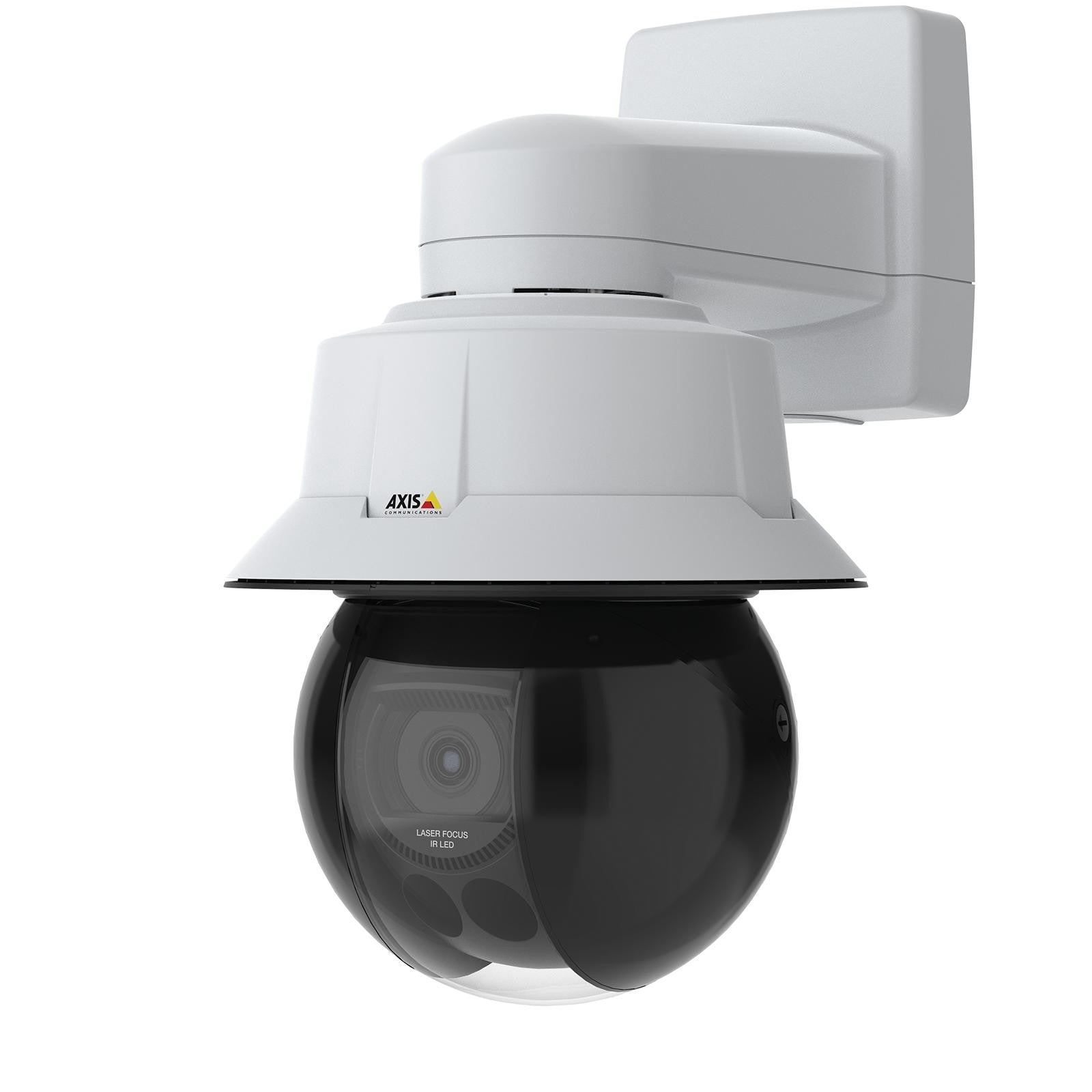

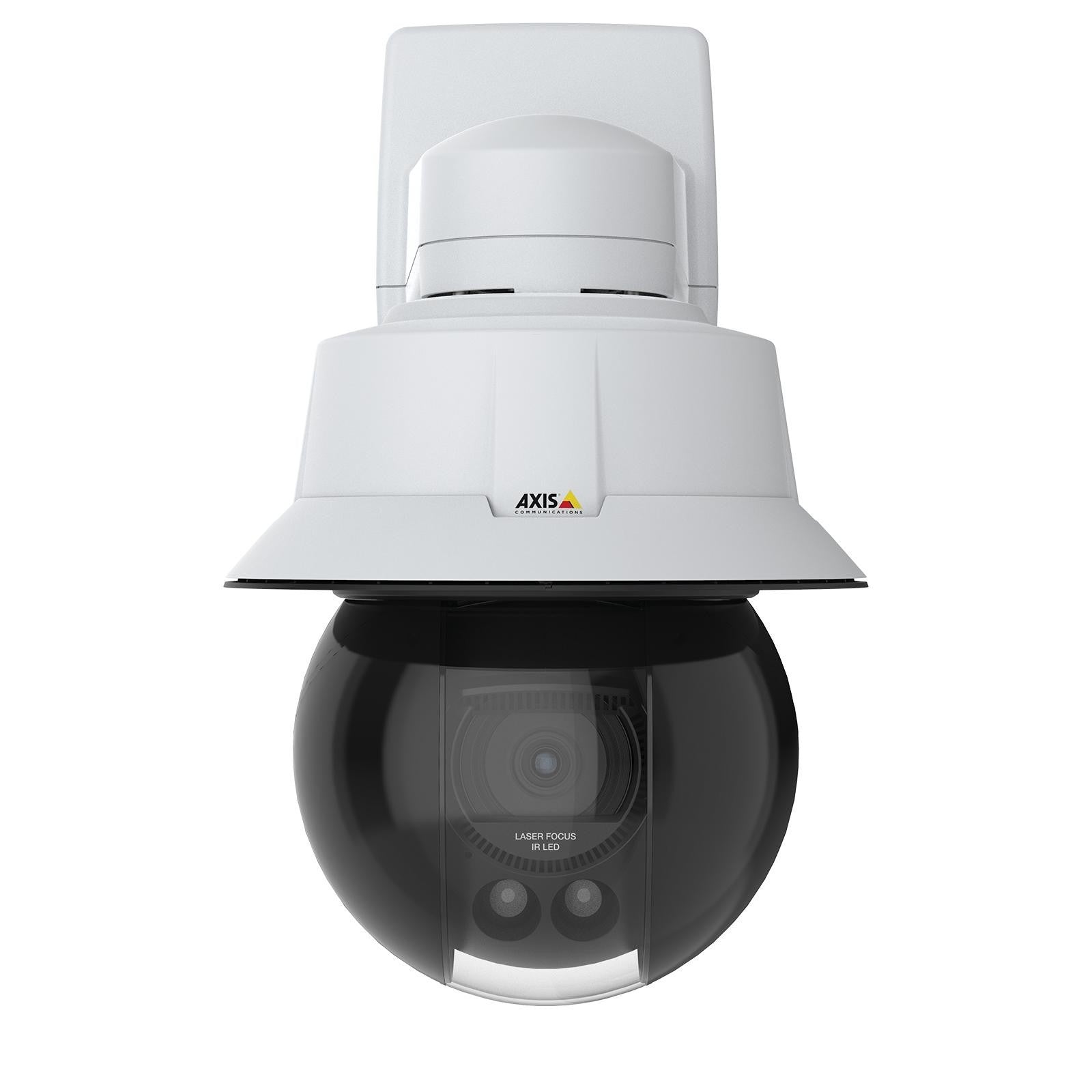

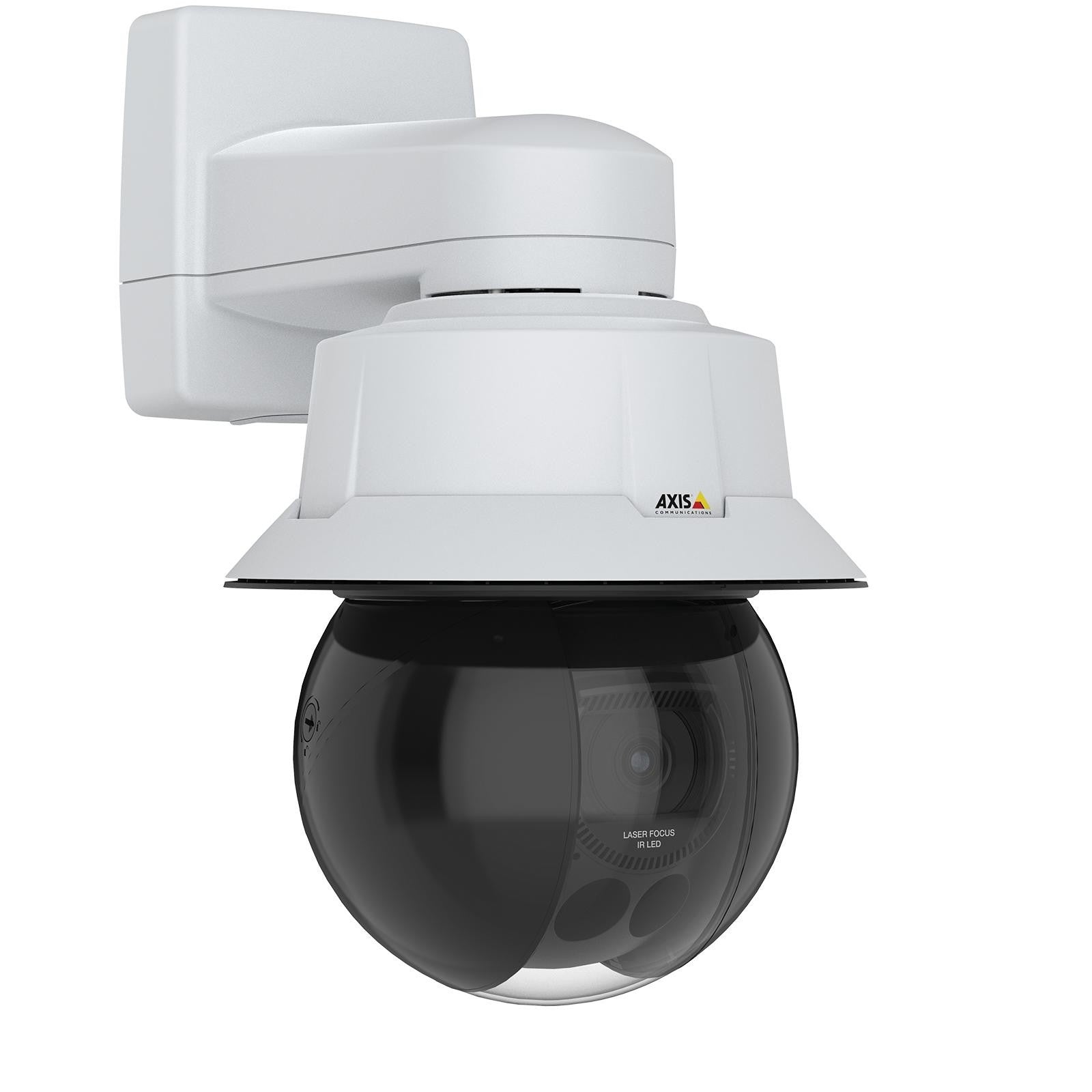

AXIS Q6318-LE 4K UHD PTZ Network Camera with 31x Optical Zoom, IR & Laser Focus

Model: AXIS Q6318-LE

Who This Is For

When covering large open areas with a single camera position is the priority, the AXIS Q6318-LE is built for exactly that challenge. Installers working on airports, ports, rail yards, large industrial compounds, and critical infrastructure sites will find this camera addresses the core problem of wide-area surveillance without deploying a grid of fixed cameras. The 31x optical zoom paired with 4K UHD resolution means a single unit can cover broad overview angles and still resolve fine detail on a person or vehicle at significant distance. The integrated IR and laser focus ensure low-light and after-dark performance holds up without the usual trade-offs between range and focus accuracy. This is a specified, project-grade camera suited to security integrators and facilities managers running enterprise-level systems who need documented coverage depth and optical precision in a single outdoor PTZ housing.

What This Camera Actually Does

Who Buys This Model

• Security integrators on major infrastructure projects: Airports, ports, and rail facilities that require documented optical zoom depth and 4K resolution to satisfy compliance and tender specifications use the Q6318-LE as a primary perimeter PTZ unit.
• Mining and resource site operators: Remote sites with large open areas and no ambient lighting after dark benefit from the combined IR illumination and laser focus, which maintains sharp imagery at long zoom distances without requiring external floodlighting.
• Facilities managers at industrial compounds: Logistics hubs and manufacturing sites where a single pan-tilt-zoom unit needs to replace multiple fixed cameras across a broad coverage zone, reducing cabling runs and mounting infrastructure.
• Government and critical infrastructure security teams: Sites requiring edge-based analytics via ACAP and integration into enterprise video management platforms, where the AXIS ecosystem is already the standard.

Honest Assessment

The AXIS Q6318-LE does two things at a high level: it resolves fine detail at long optical zoom distances through a 4K sensor, and it maintains focus accuracy in low light through a laser focus system that standard PTZ motors cannot match. These are not incremental improvements - they are meaningful advantages at sites where coverage distance and night-time clarity are the primary design constraints. The ACAP platform also means this camera can take on edge analytics workloads that would otherwise require dedicated server hardware. Where this camera does not fit: smaller commercial sites, residential applications, or projects where budget is the primary driver. The Q6318-LE is a project-specified, integrator-grade product with a cost profile to match. If your requirement is a straightforward outdoor fixed camera or a cost-effective PTZ for a small business carpark, a different product category available through Security Australia will serve that need more appropriately.

Before You Buy

Quick Fit Check

• Good match if: You are covering a large open area - port berth, freight yard, or open industrial compound - where one PTZ unit needs to function as both an overview camera and a detail camera at significant distances using the 31x optical zoom.
• Good match if: The site has no external lighting after dark and you need IR illumination combined with laser-assisted focus to maintain sharp imagery at full zoom in low-light conditions.
• You may need a different model if: Your coverage zone is compact or the application is a standard commercial or retail site - a fixed turret or dome camera will deliver better value and simpler installation for those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a 4K PTZ with 31x optical zoom and IR illumination that maintains laser-assisted focus at long zoom distances in low light - a combination not available in standard mid-range PTZ cameras.
• You may need a different model if: Your site requires simultaneous wide-area coverage without a dedicated operator or automated guard tours - a multi-sensor panoramic camera may provide better constant-coverage value at lower cost per angle monitored.
• Pairs well with: A fixed wide-angle overview camera at the same mounting location, providing constant scene context while the PTZ handles detail zoom and incident response - a common enterprise PTZ deployment pattern.

Common Questions

1. Will this camera work with a standard PoE switch?

   No. The AXIS Q6318-LE requires High PoE (IEEE 802.3bt Type 3 Class 6). The camera draws typically 17 W with IR off and up to 51 W maximum, and ships with an Axis High PoE 60 W SFP midspan. Standard PoE (802.3af, 15.4 W) and PoE+ (802.3at, 30 W) will not run the pan-tilt drive, IR illuminators and heater simultaneously. Use the supplied midspan or an 802.3bt-capable switch port at each camera run before installation begins.

2. What is the pan and tilt range of the Q6318-LE?

   The Q6318-LE supports 360° continuous pan with a tilt range of -90° to +20°. The 360° continuous pan means there is no mechanical end-stop - the camera can rotate indefinitely in either direction without cable wind-up, which is important for sites using automated guard tours that make repeated full rotations.

3. How does the laser focus work and why does it matter for a PTZ camera?

   The laser focus system uses a laser rangefinder to calculate the distance to the target and set focus precisely, rather than relying on contrast-detection autofocus which can hunt in low-light conditions. In a PTZ camera with 31x optical zoom, the depth of field at full magnification becomes very narrow. At night, when IR illumination is the only light source, standard autofocus frequently loses lock as the camera pans or zooms. Laser focus solves this by actively measuring distance and adjusting the lens independently of scene contrast, keeping imagery sharp at full zoom in darkness.

4. Does this camera support auto-tracking?

   Auto-tracking capability on the Q6318-LE depends on the analytics application deployed via ACAP or the video management system in use. The camera itself supports integration with AXIS applications and third-party VMS platforms that provide auto-tracking functions. This should be confirmed with your VMS vendor or integrator during system design, as auto-tracking behaviour - including classification type (person vs vehicle) and track handoff settings - varies between applications and requires configuration at commissioning.

5. Will this camera work in very hot Australian outdoor environments?

   Yes. The Q6318-LE is rated for operation from -40°C to 60°C. The upper limit of 60°C covers direct-sun exposed installations in Australian tropical and arid regions, including roof-mounted or pole-mounted positions without shade. The IP66 rating also protects against dust ingress, which is relevant for sites in dry inland regions.

6. Does this camera record locally if the network goes down?

   Yes. The Q6318-LE has an onboard microSD/SDHC/SDXC card slot that supports edge recording. When the connection to the VMS or NAS is interrupted, the camera can continue writing footage to the local card. Once the network is restored, many VMS platforms support automatic gap-fill retrieval from the edge card, though this depends on the VMS in use.

7. What video management systems does the Q6318-LE integrate with?

   The Q6318-LE uses the ONVIF standard and AXIS VAPIX API, which means it integrates with the major enterprise VMS platforms including Milestone XProtect, Genetec Security Center, AXIS Camera Station, and others that support ONVIF Profile S and PTZ control. Specific PTZ preset and guard tour functionality may require VAPIX integration rather than ONVIF alone - confirm with your VMS integrator. The camera is available through Security Australia as part of the AXIS professional camera range.

8. How many preset positions does the camera support and how accurate is preset recall?

   The Q6318-LE supports a large number of configurable preset positions - sufficient for complex multi-zone guard tour programming across large site perimeters. Preset recall accuracy on this class of AXIS PTZ is mechanically consistent, with the camera returning to the same pan, tilt, and zoom coordinates reliably across repeated cycles. Accuracy figures depend on operating temperature and mounting stability - ensure the mounting structure itself does not flex under wind load, as any movement in the pole or bracket is amplified at high zoom levels.
