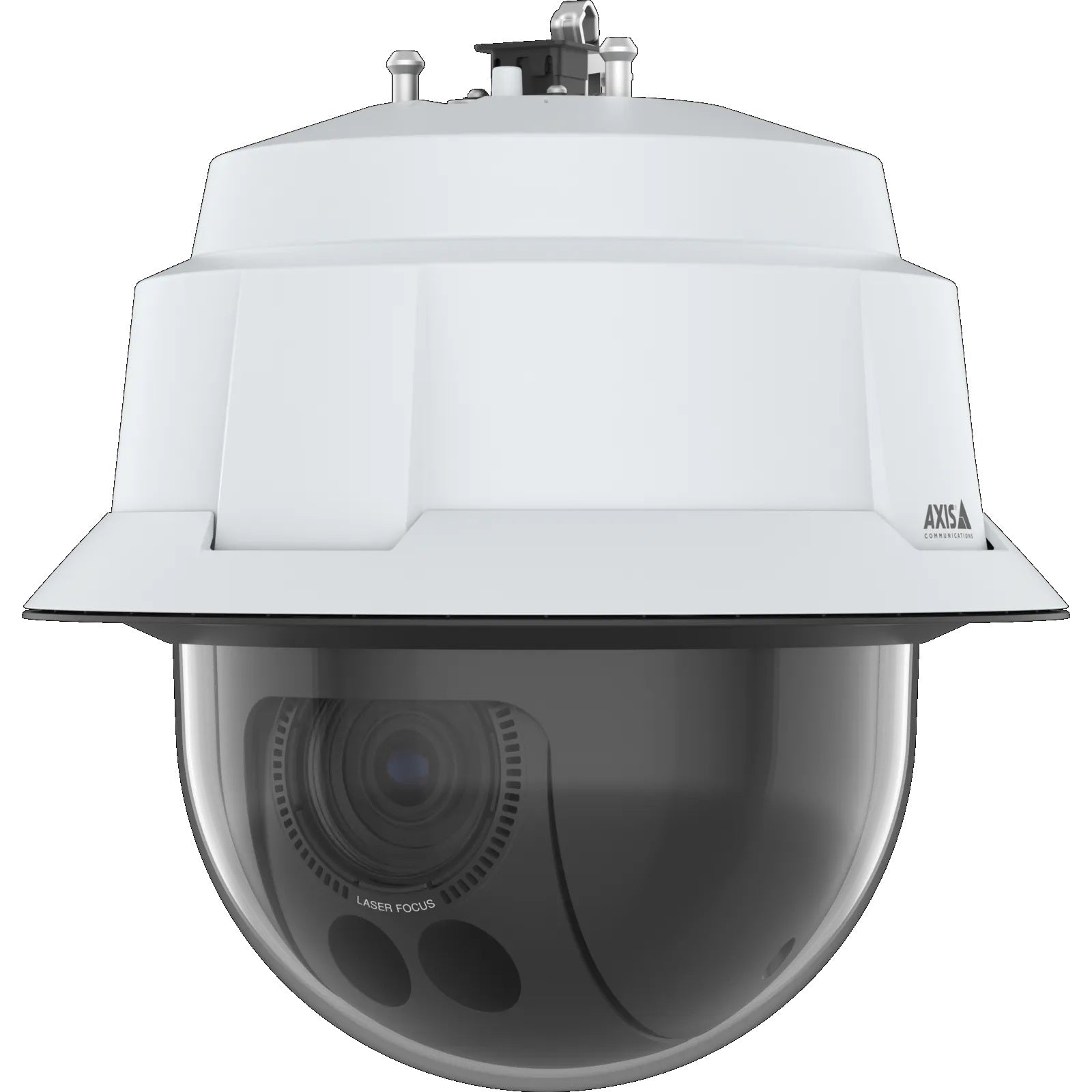

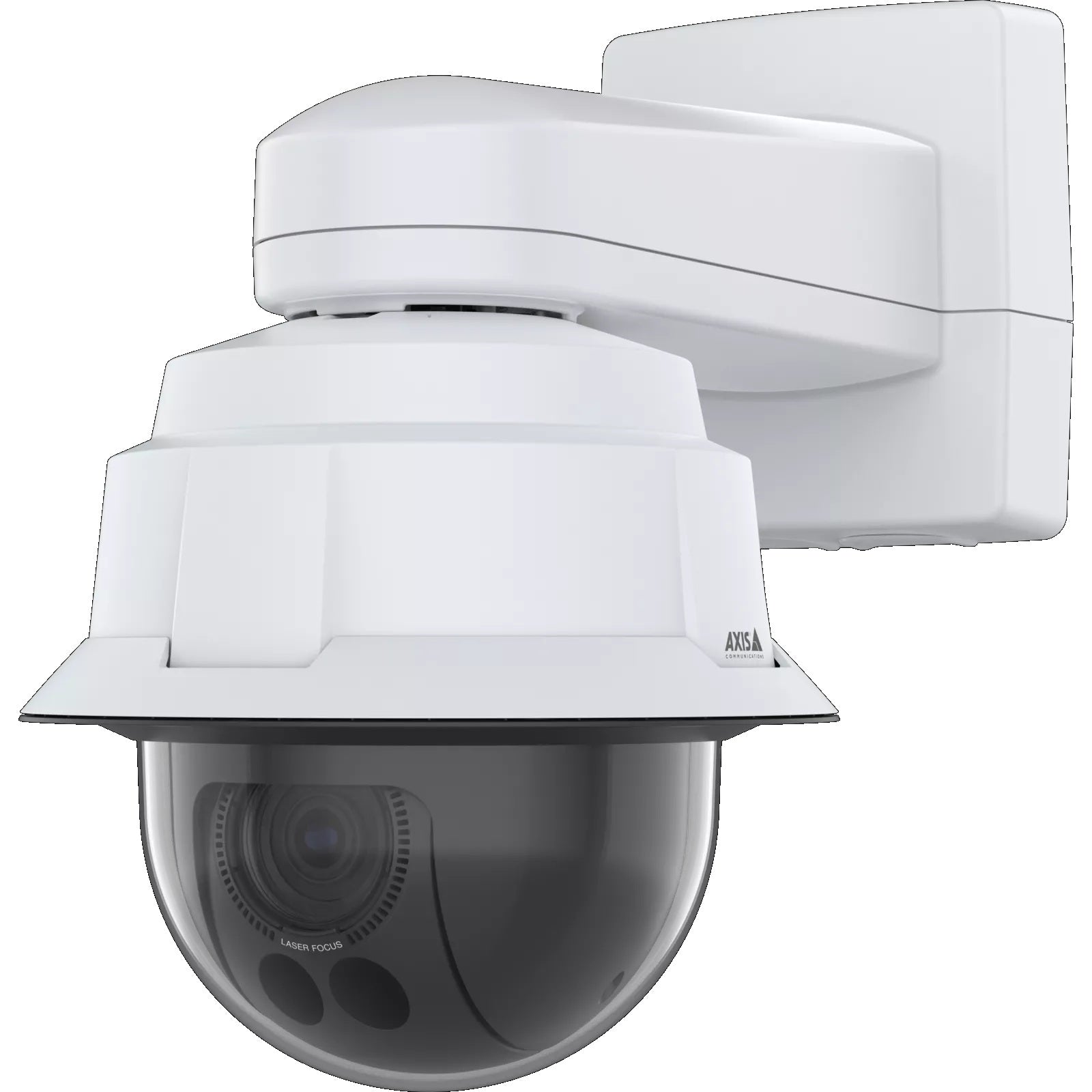

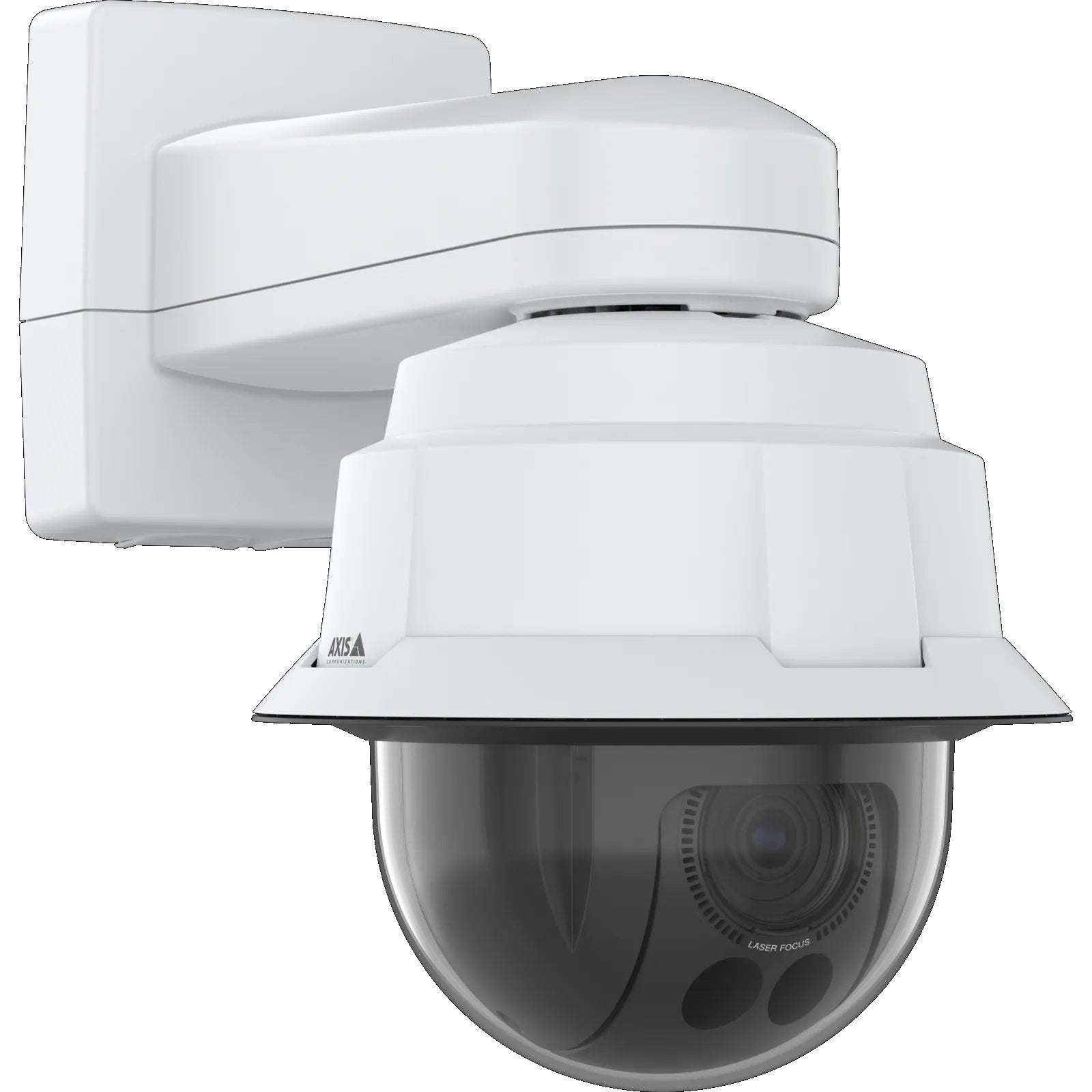

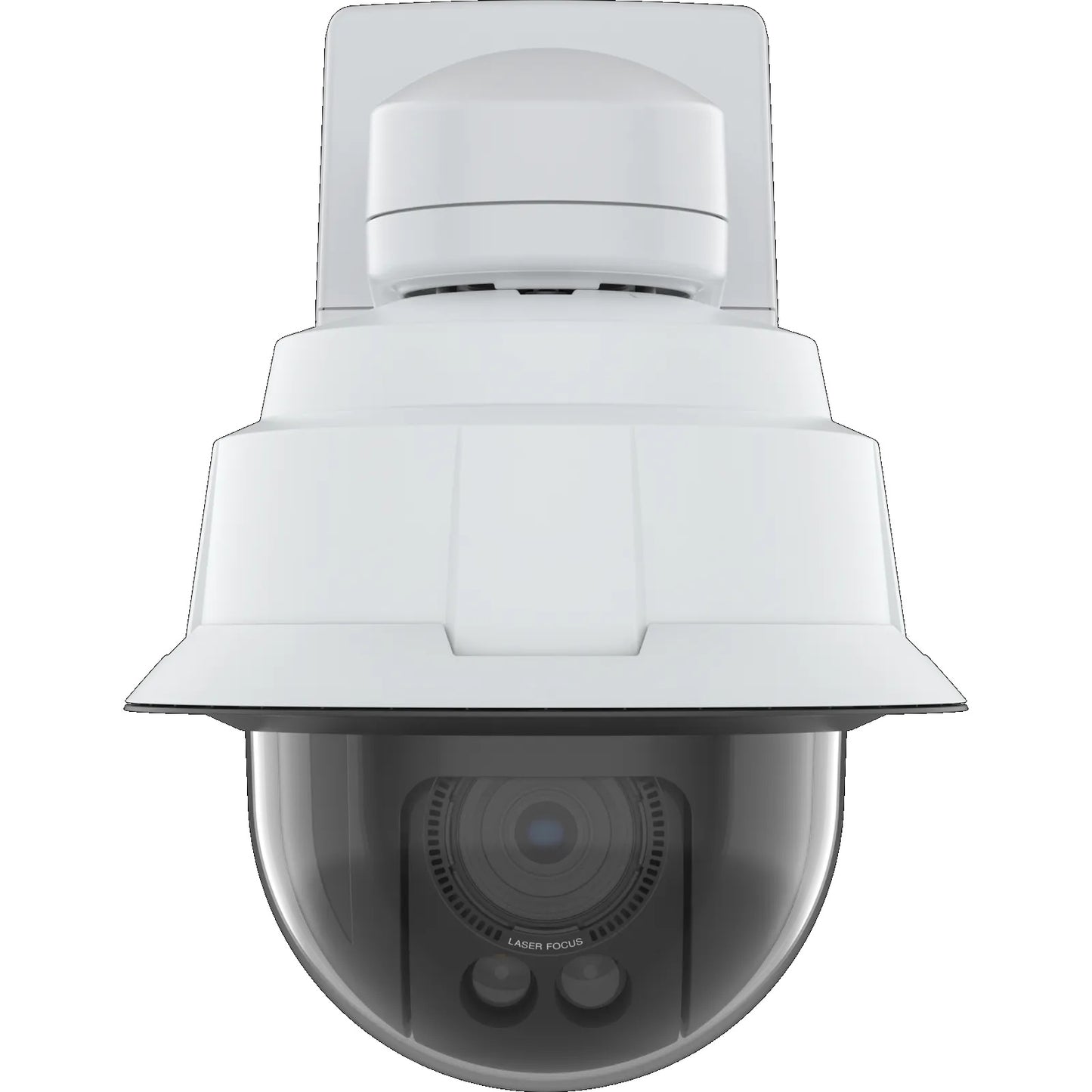

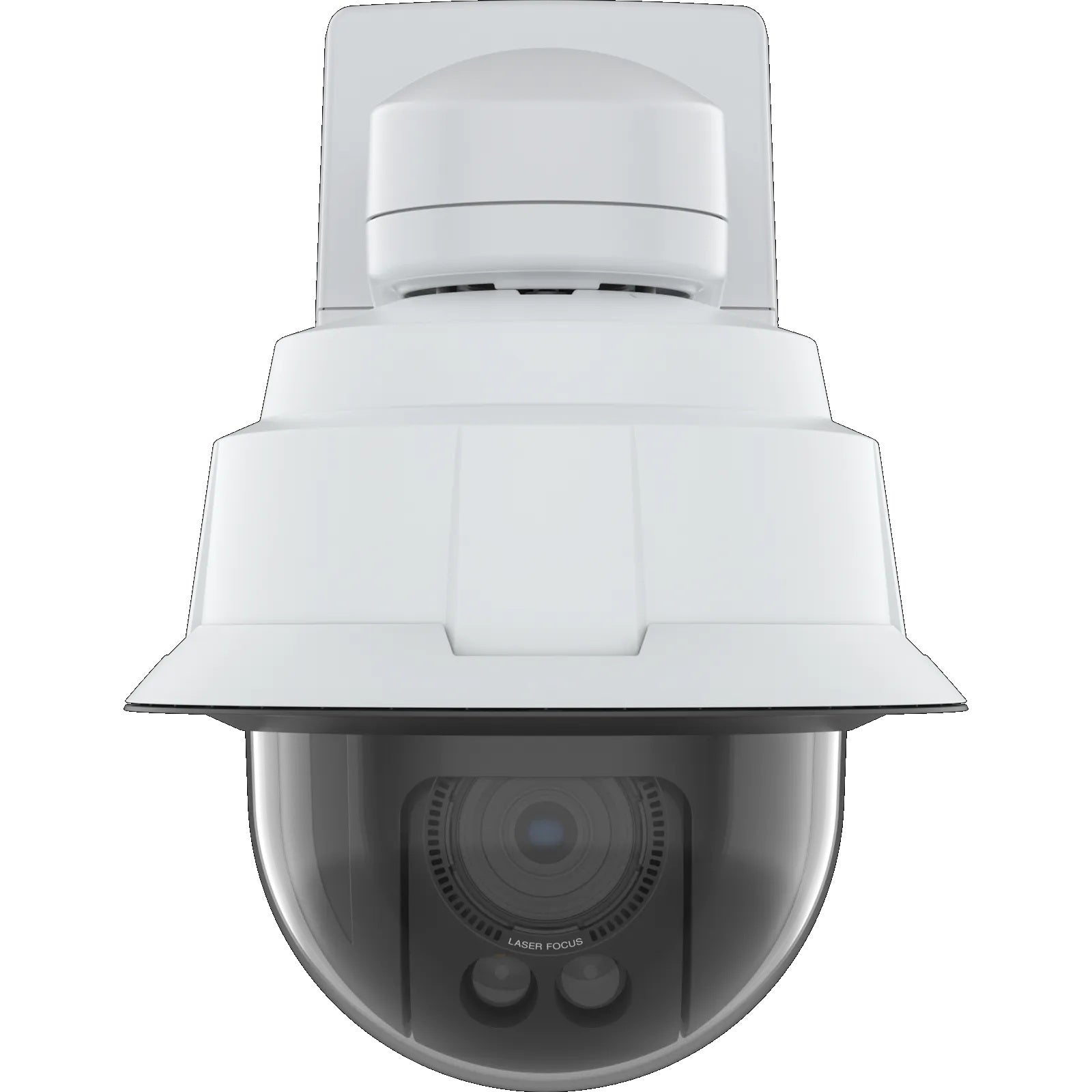

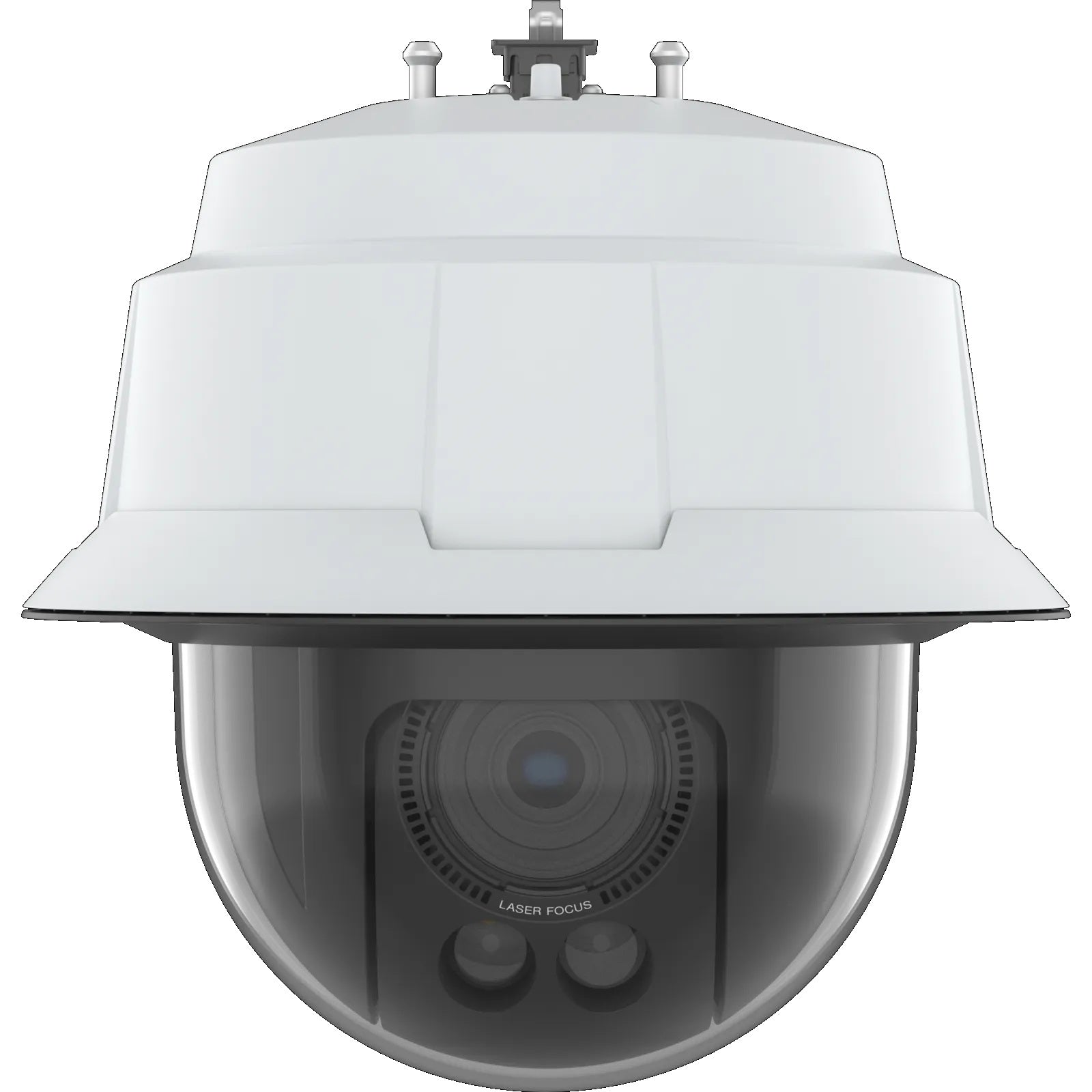

AXIS Q6086-E 4MP Outdoor PTZ Camera with 34x Optical Zoom, Lightfinder 2.0, Forensic WDR, AI Analytics 03188-006

Model: AXIS Q6086-E

Who This Is For

For security managers and installers who need a single outdoor PTZ to cover large, complex sites where fixed cameras would require multiple units and significant cabling runs. The AXIS Q6086-E is built for applications like ports, rail yards, industrial perimeters, large car parks, and critical infrastructure where operators need to track subjects at distance without losing image quality. The 34x optical zoom keeps a 4MP image usable at ranges where most cameras would be rendering unidentifiable shapes. Lightfinder 2.0 keeps the sensor working in near-dark conditions without switching to IR-washed monochrome, and the onboard AI analytics classify humans and vehicles before alerting operators - reducing the alarm fatigue that comes with pixel-change motion detection on large outdoor scenes. This is a professional-grade unit for sites with the network infrastructure and trained staff to use it properly.

What This Camera Actually Does

Who Buys This Model

• Port and Logistics Operators: Sites with long open approaches, container yards, and perimeter fencing benefit from 34x optical zoom tracking vehicles and personnel across distances that would require 8 or more fixed cameras to cover with equivalent detail.
• Critical Infrastructure Security Teams: Water treatment facilities, energy sites, and substations running 24-hour monitoring where onboard AI reduces operator alert load and Lightfinder 2.0 maintains usable image quality through the overnight shift without IR illumination washing out colour.
• Mining and Industrial Site Managers: Operations in remote or harsh-environment locations where the Arctic Temperature Control heater and IP66 housing mean the camera functions year-round without shelter, and a single PTZ covers patrol routes previously needing multiple camera positions.
• Government and Transport Security Installers: Specifiers working on rail precincts, bus depots, and public infrastructure where VMS integration via ONVIF and Axis's open API is a project requirement and the camera needs to hold up to Australian outdoor conditions long-term.
• Airport and Airside Security Teams: Perimeter monitoring with auto-tracking capability, where a PTZ following a detected human or vehicle with onboard AI classification handles initial detection without requiring constant operator input.

Honest Assessment

The AXIS Q6086-E does several things genuinely well: the 34x optical zoom combined with 4MP resolution gives usable detail at ranges most outdoor PTZs cannot match, Lightfinder 2.0 keeps the image in colour during low-light conditions rather than switching to a washed-out monochrome mode, and the onboard AI object analytics run without a separate server licence - which matters for total system cost on large installations. The outdoor housing is rated for real extremes, not just typical Australian conditions. Where this camera will not serve well: it is a single-point-of-view unit, so any area it is not currently pointed at is unmonitored unless you have overlapping fixed cameras. It also requires PoE++ (802.3bt Type 4) for full function - standard PoE switches will not power it correctly. For buyers who need comprehensive area coverage without dedicated operator control, a multi-sensor panoramic or fixed camera array is a more practical solution. The Q6086-E is available through Security Australia for professional installation projects.

Before You Buy

Quick Fit Check

• Good match if: You need to monitor a large open perimeter or long approach road where 34x optical zoom lets a single camera cover the area with enough detail to identify vehicles and individuals at distance.
• Good match if: Your site operates overnight in low-ambient-light conditions and you need colour image retention without IR illumination - Lightfinder 2.0 handles this where standard PTZs switch to monochrome.
• You may need a different model if: You need complete area coverage with no blind angles - a multi-sensor panoramic camera covering 180 or 360 degrees with simultaneous fixed views would better suit that requirement, and Security Australia stocks panoramic options worth comparing.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need optical zoom range combined with onboard AI and a hardened outdoor housing rated to extreme temperature - the combination of 34x zoom, Lightfinder 2.0, and a -40°C operating rating in a single unit is the specific value proposition here.
• You may need a different model if: You need full 360-degree simultaneous coverage with no blind spots - a multi-sensor panoramic camera provides constant all-direction imaging that a PTZ physically cannot match while actively pointed elsewhere.
• Pairs well with: Fixed wide-angle perimeter cameras that provide constant overview while the PTZ handles zoom detail work - this combination gives both situational awareness and identification capability across the same site.

Common Questions

1. Will a standard PoE switch power the AXIS Q6086-E?

   No. The Q6086-E requires PoE++ (IEEE 802.3bt Type 4, Class 8) - standard 802.3af (15.4W) and 802.3at (30W) switches do not supply sufficient power. Full operation including the built-in heater requires a switch or midspan injector that delivers 802.3bt Class 8. Confirm your infrastructure before the installation date - retrofitting switch capacity mid-project adds significant time and cost.

2. Does this camera work with third-party VMS platforms or only Axis software?

   Yes, it works with third-party VMS platforms. The Q6086-E supports ONVIF Profile S, G, T, and M, which covers live streaming, recording, PTZ control, and metadata - making it compatible with the majority of enterprise-grade VMS products used in Australian installations. For platforms that support Axis's open API directly, full feature access including analytics events is available.

3. What is the pan and tilt speed, and how does that affect auto-tracking performance?

   Pan and tilt both reach up to 450 degrees per second. At this speed the camera can slew across its full field in under one second, which matters for auto-tracking a fast-moving vehicle across a large scene. The practical limit on tracking performance at full zoom is the apparent angular speed of a subject - at 2.2-degree field of view, a vehicle crossing perpendicular to the camera 50 metres away moves quickly across the frame, and the 450°/s slew rate gives the motor system enough headroom to keep pace.

4. Does AXIS Object Analytics run on the camera itself, or does it need a server licence?

   It runs on the camera itself. AXIS Object Analytics is processed on the Q6086-E's onboard chip - no server-side processing or separate analytics licence is required for human and vehicle classification. This is relevant for remote sites running local recording with limited server infrastructure, and for installations where network bandwidth to a central analytics server is constrained.

5. Will this camera work for licence plate capture?

   It can capture legible plates at appropriate distances under the right conditions, but it is not rated as a dedicated ANPR camera. At full 34x optical zoom the 4MP sensor provides sufficient detail to read stationary or slow-moving plates at significant range, but consistent high-speed plate capture across a lane requires a dedicated ANPR camera with purpose-built shutter and IR illumination specifications. If vehicle speed at the capture point exceeds low walking speed, a dedicated ANPR unit is the more appropriate product type.

6. How many preset positions does the Q6086-E support, and can those be organised into automated guard tours?

   The camera supports up to 256 preset positions. Yes, presets can be sequenced into automated guard tours - the camera cycles through selected positions on a timed interval without requiring operator input. Multiple tours can be configured and scheduled to run at different times of day. During an alarm event, most VMS platforms and Axis's own software can trigger the camera to move to a defined alarm preset and override the active tour until manually released or after a set timeout.

7. Does the Q6086-E have built-in storage, and what happens to recordings if the network goes down?

   Yes. The Q6086-E accepts a microSD/SDHC/SDXC card up to 1 TB. Axis's edge recording function can write footage directly to the card when the network connection to an NVR is unavailable, then sync recordings back to the server when connectivity is restored. This makes the camera practical for sites with intermittent WAN connections or where network resilience is a design requirement. The card is not included and must be purchased separately. The Q6086-E is stocked by Security Australia and shipped without a card installed.

8. How does Lightfinder 2.0 differ from IR night vision, and when does that distinction matter on-site?

   Lightfinder 2.0 is a sensor and processing technology that amplifies available ambient light to retain colour in the image - it is not an active IR illuminator. IR night vision emits near-infrared light and captures a monochrome reflection. The distinction matters when colour is forensically useful - clothing colour, vehicle colour, skin tone - and when IR illumination would create reflection problems from glass, water, or retroreflective surfaces common on outdoor industrial sites. On sites with any ambient light source (street lighting, facility floods, signage), Lightfinder 2.0 will typically produce a more useful image than IR-switched monochrome, particularly at the long zoom distances this camera is designed to cover.
