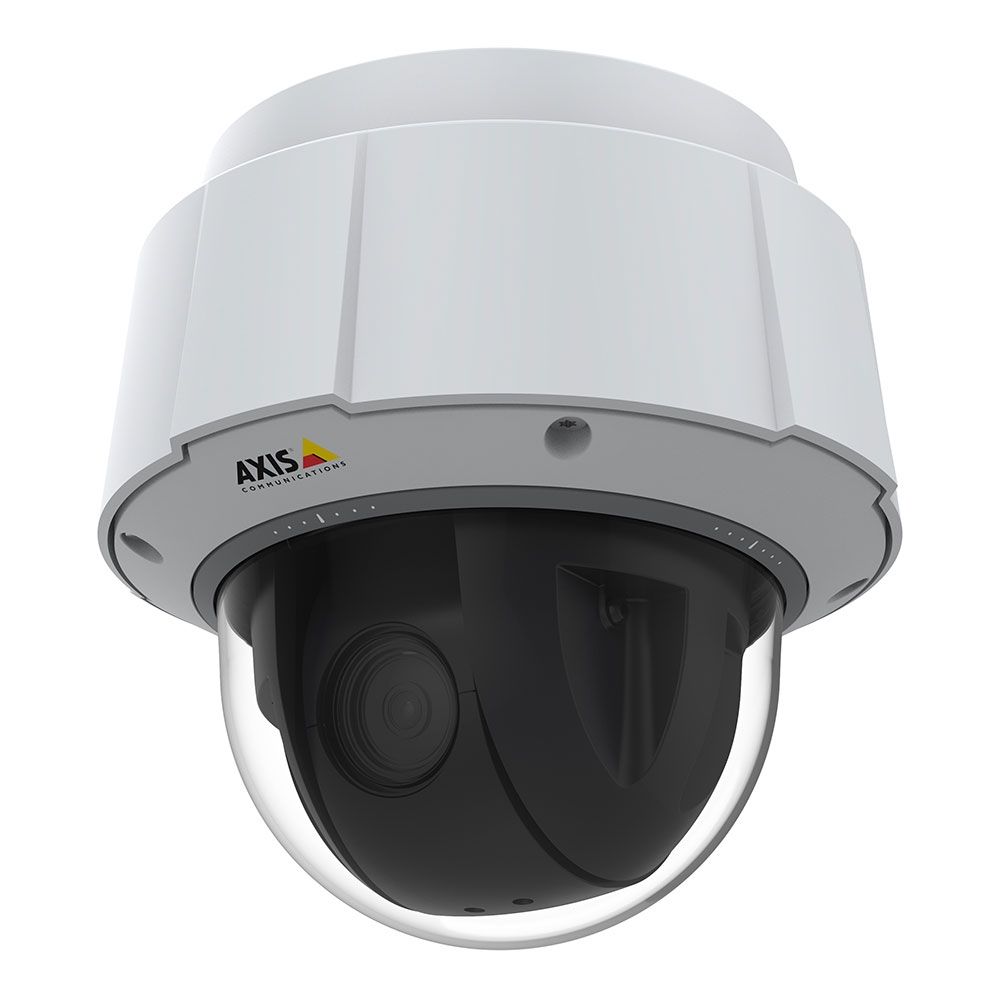

AXIS Q6075-E PTZ Dome Camera, 1080p, H.264, Zipstream, 4.25-170mm VF Lens

The AXIS Q6075-E PTZ Network Camera is a high-performance outdoor surveillance camera designed to deliver superior video quality in challenging environments. It features HDTV 1080p resolution combined with a powerful 40x optical zoom, enabling detailed monitoring even from a distance. The camera excels in low-light conditions thanks to Axis Lightfinder 2.0 technology, which captures sharp images with vibrant colors even in minimal lighting. Equipped with autotracking 2, it allows for active object tracking and quick orientation, making it ideal for monitoring large, critical areas such as urban settings, industrial sites, and critical infrastructures. The camera is built to withstand harsh outdoor conditions, with an IP66/67, NEMA 4X, and IK10-rated housing that protects against dust, rain, snow, and impacts. Arctic Temperature Control ensures reliable operation in extreme temperatures ranging from -40°C to 50°C. Enhanced security features include signed firmware, secure boot, and a Trusted Platform Module (TPM) certified to FIPS 140-2 level 2, ensuring secure storage of cryptographic keys and safeguarding against unauthorized access. Additionally, it supports AXIS Guard Suite analytics for detecting motion, intrusion, and loitering, while privacy masking features allow sensitive areas to be obscured. This camera is a robust and versatile solution for mission-critical surveillance, offering advanced functionality to meet the demands of modern security needs​.

Superior details in demanding light conditions

AXIS Q6075-E delivers superior video quality in HDTV 1080p and 40x optical zoom for excellent details. It features Axis Lightfinder 2.0 which captures low-light images with more saturated colors and sharper images of moving objects. And, Zipstream with support for H.264 and H.265 preserves all the important forensic detail you need, while significantly lowering bandwidth and storage requirements.

Whenever, wherever it's needed

This high-performance outdoor PTZ camera with IP66/67, NEMA 4X, and IK10-ratings is protected from dust, rain, snow and impacts. Arctic temperature control ensures startup from a deeply frozen state and operation in temperatures ranging from -40 °C to 50 °C (-40 °F to 122 °F). Autotracking 2 with click and track functionality and an orientation aid allows for active object tracking and quick orientation. AXIS Q6075-E comes with AXIS Guard Suite analytics for detecting motion, intrusion and loitering. Furthermore, where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property.

Keeping you secure

This high-performance camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware ensures that only authorized firmware is installed and guarantees that it hasn't been compromised. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default. For added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach.

Features

• HDTV 1080p resolution with 40x optical zoom for detailed overviews.
• Autotracking 2 with click and track functionality for active object tracking.
• Axis Lightfinder 2.0 for enhanced low-light images with saturated colors and sharp details.
• Enhanced security features including signed firmware and secure boot.
• Axis Zipstream with H.264/H.265 for reduced bandwidth and storage needs.

Technical Specifications

Video
Compression	H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles; H.265 (MPEG-H Part 2/HEVC) Main Profile; Motion JPEG
Resolution	HDTV 1080p 1920x1080 to 320x180
Frame Rate	Up to 50/60 fps (50/60 Hz) in HDTV 1080p
Video Streaming	Multiple, individually configurable streams in H.264, H.265, and Motion JPEG; Axis Zipstream technology; controllable frame rate and bandwidth; VBR/ABR/MBR H.264/H.265
Image Settings	Manual shutter time, compression, color, brightness, sharpness, white balance, exposure control, exposure zones, low light behavior, rotation, text and image overlay, privacy masks, electronic image stabilization (EIS), freeze on PTZ, automatic defog, backlight compensation, scene profiles
Wide Dynamic Range (WDR)	Up to 120 dB depending on scene, highlight compensation
Network
Protocols	IPv4, IPv6, USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
System Integration
API	Open API for software integration, including VAPIX and AXIS Camera Application Platform; One-Click Cloud Connection; ONVIF Profile G, S, and T
Event Conditions	Device status, edge storage, I/O, MQTT subscribe, PTZ, scheduled and recurring events, video streaming
Event Actions	Day/night mode, overlay text, video recording to edge storage, pre- and post-alarm video buffering, send SNMP trap, PTZ presets, file upload via FTP/SFTP/HTTP/HTTPS, notification via email/HTTP/HTTPS/TCP, MQTT publish
Installation Aids	Pixel counter, leveling guide
Analytics
Included Applications	AXIS Object Analytics, AXIS Video Motion Detection, AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, autotracking 2, active gatekeeper, basic analytics
Supported Applications	Support for AXIS Camera Application Platform enabling installation of third-party applications
AXIS Object Analytics	Object classes: humans, vehicles; Scenarios: line crossing, object in area, crossline counting, time in area; Up to 10 scenarios; Other features: visualized trajectories, color-coded bounding boxes, tables, polygon include/exclude areas, perspective configuration, ONVIF Motion Alarm event
AXIS Scene Metadata	Object classes: humans, faces, vehicles (cars, buses, trucks, bikes), license plates; Object attributes: confidence, position
