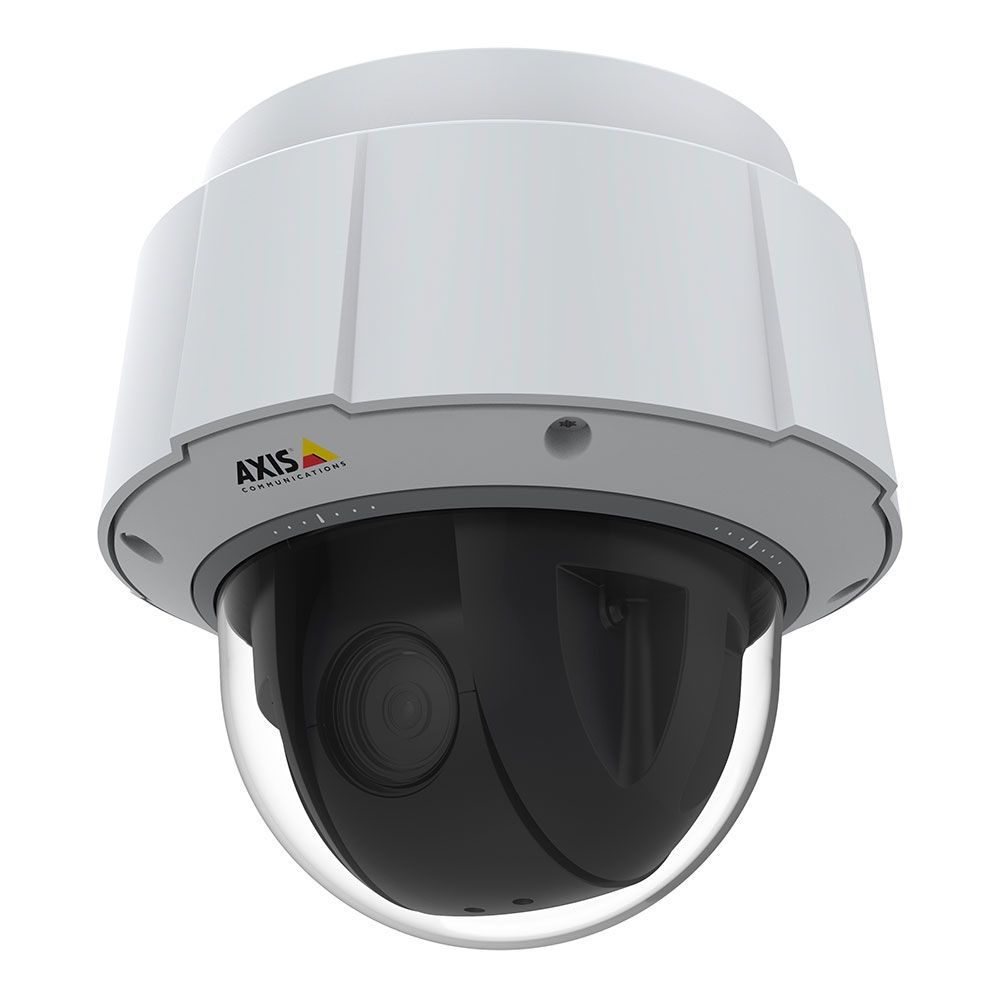

AXIS Q6074-E PTZ Dome Camera, 720p, H.265, 50HZ, Zipstream, 4.25 - 127.5mm VF Lens

The AXIS Q6074-E PTZ Network Camera is a high-performance surveillance solution designed for versatile and reliable outdoor use. It features a 4K resolution sensor that delivers exceptionally clear and detailed images, ensuring high-quality video even in challenging conditions. With a powerful 30x optical zoom, this camera can capture fine details from a considerable distance, making it ideal for monitoring large areas. The camera’s rugged design is optimized for harsh environments, with an IP66 and IK10 rating for weather and impact resistance. It incorporates advanced PTZ functionality, allowing for precise pan, tilt, and zoom control to cover extensive areas effectively.

The AXIS Q6074-E also includes advanced analytics capabilities, such as motion detection and intrusion detection, to enhance security and operational efficiency. Its built-in Lightfinder technology ensures clear color images in low-light conditions, while the WDR (Wide Dynamic Range) feature provides excellent detail in scenes with both bright and dark areas. Additionally, the camera supports edge storage, enabling it to record footage directly to an SD card for added reliability. With its seamless integration into existing security systems, the AXIS Q6074-E offers flexible deployment options and easy management. Its robust performance, combined with smart features, makes it a top choice for high-security applications requiring superior image quality and reliability.

Superior details in demanding light conditions

AXIS Q6074-E offers HDTV 720p resolution that delivers superior video quality and 30x optical zoom for excellent details. It features Axis Lightfinder 2.0 which captures low-light images with more saturated colors and sharper images of moving objects. And, Zipstream with support for H.264 and H.265 preserves all the important forensic detail you need, while significantly lowering bandwidth and storage requirements.

Whenever, wherever it’s needed

This high-performance outdoor PTZ camera with IP66/67, NEMA 4X, and IK10-ratings is protected from dust, rain, snow and impacts. Arctic temperature control ensures startup from a deeply frozen state and operation in temperatures ranging from -40 °C to 50 °C (-40 °F to 122 °F). Autotracking 2 with click and track functionality and an orientation aid allows for active object tracking and quick orientation. AXIS Q6075-E comes with AXIS Guard Suite analytics for detecting motion, intrusion and loitering. Furthermore, where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property.

Keeping you secure

This high-performance camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantees that the firmware hasn’t been compromised and ensures only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default. For added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach.

Features

• HDTV 720p resolution and 30x optical zoom for comprehensive overviews and detailed imagery.
• Features autotracking 2 with click and track functionality and orientation aid for effective object tracking and quick orientation.
• Equipped with Axis Lightfinder 2.0 for enhanced low-light performance, delivering sharper images with more saturated colors.
• Includes enhanced security features like signed firmware and secure boot to maintain firmware integrity and authenticity.
• Utilizes Axis Zipstream with H.264/H.265 to significantly reduce bandwidth and storage requirements.

Technical Specifications

Camera
Image Sensor	1/2.8” progressive scan CMOS
Lens	4.25-127.5 mm, F1.6-4.2
Field of View	Horizontal: 63.8°-2.6° (720p) Vertical: 38.0°-1.47° (720p)
Focus & Iris	Autofocus, auto-iris
Day and Night	Automatically removable infrared-cut filter
Minimum Illumination	Color: 0.1 lux at 30 IRE, F1.6; 0.15 lux at 50 IRE, F1.6 B/W: 0.002 lux at 30 IRE, F1.6; 0.003 lux at 50 IRE, F1.6
Shutter Time	1/11000 s to 1/3 s with 50 Hz 1/11000 s to 1/3 s with 60 Hz
Pan/Tilt/Zoom	Pan: 360° endless, 0.05°–450°/s Tilt: 220°, 0.05°–450°/s Zoom: 30x optical, 12x digital, total 360x zoom E-flip, 256 preset positions, tour recording (max 10, max duration 16 minutes each), guard tour (max 100), control queue, on-screen directional indicator, orientation aid PTZ, set new pan 0°, adjustable zoom speed, focus recall
Video
Video Compression	H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles; H.265 (MPEG-H Part 2/HEVC) Main Profile; Motion JPEG
Resolution	HDTV 720p 1280x720 to 320x180
Frame Rate	Up to 50/60 fps (50/60 Hz) in HDTV 720p
Video Streaming	Multiple, individually configurable streams in H.264, H.265, and Motion JPEG; Axis Zipstream technology in H.264 and H.265; Controllable frame rate and bandwidth; VBR/ABR/MBR H.264/H.265
Image Settings	Manual shutter time, compression, color, brightness, sharpness, white balance, exposure control, exposure zones, fine tuning of behavior at low light, rotation: 0°, 180°, text and image overlay, polygon privacy masks, image freeze on PTZ, automatic defog, backlight compensation, scene profiles, Wide Dynamic Range (WDR): Up to 120 dB depending on scene, highlight compensation
